Huawei S5720-36C-PWR-EI-DC dual switch supports 28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 2 DC equipped, PoE+

28 Ports Switch Electrical Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

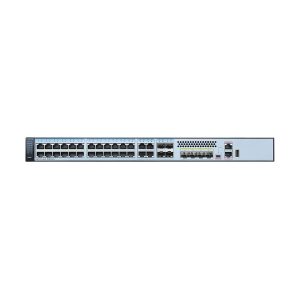

S5720-36C-PWR-EI-DC dual Overview

Huawei S5720-36C-PWR-EI-DC dual switch with 28 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T ports, 4 10GE SFP+ ports, it belongs to Huawei S5720-EI series. The S5720-EI series enhanced gigabit Ethernet switches (S5720-EI for short) are next-generation switches that provide flexible GE access ports and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), the S5720-EI provides large table sizes and higher hardware processing capabilities than similar switches.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-36C-PWR-EI-DC dual Quick Specs

28 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T ports, 4 10GE SFP+ ports

1 extended slot, 2 hot-swappable AC/DC power supplies, 2 DC equipped, PoE+

Forwarding performance is 132 Mpps

Switching capacity is 598 Gbit/s

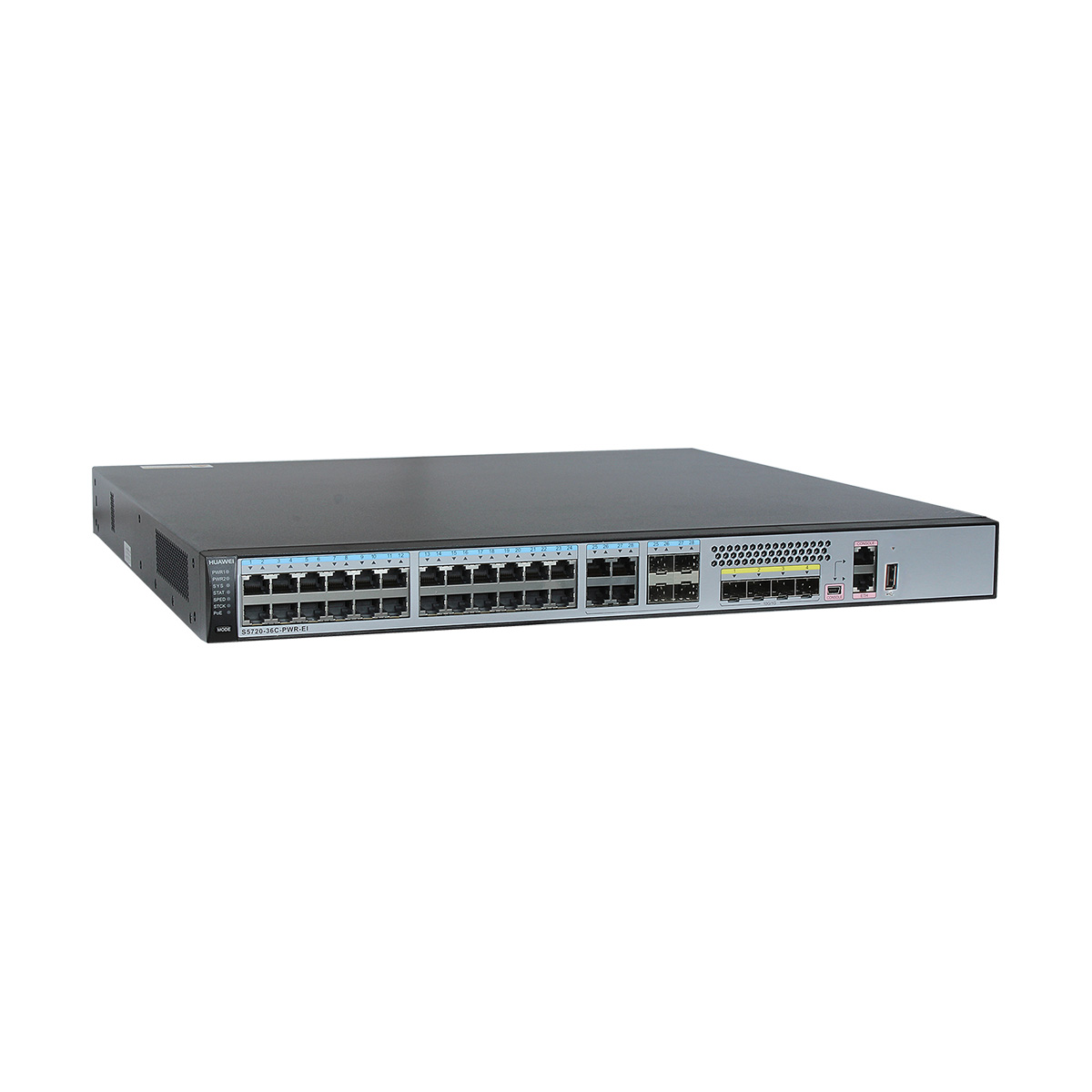

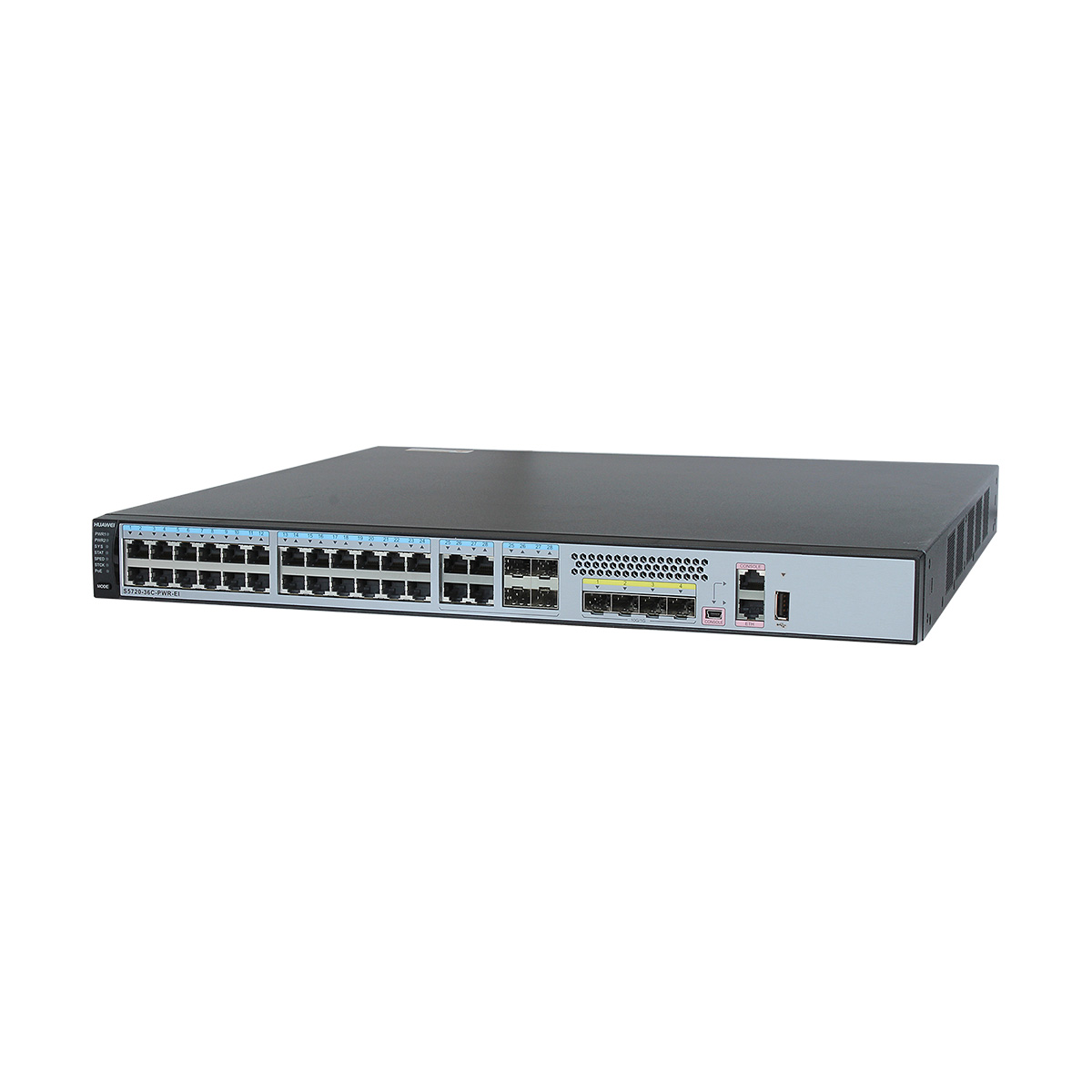

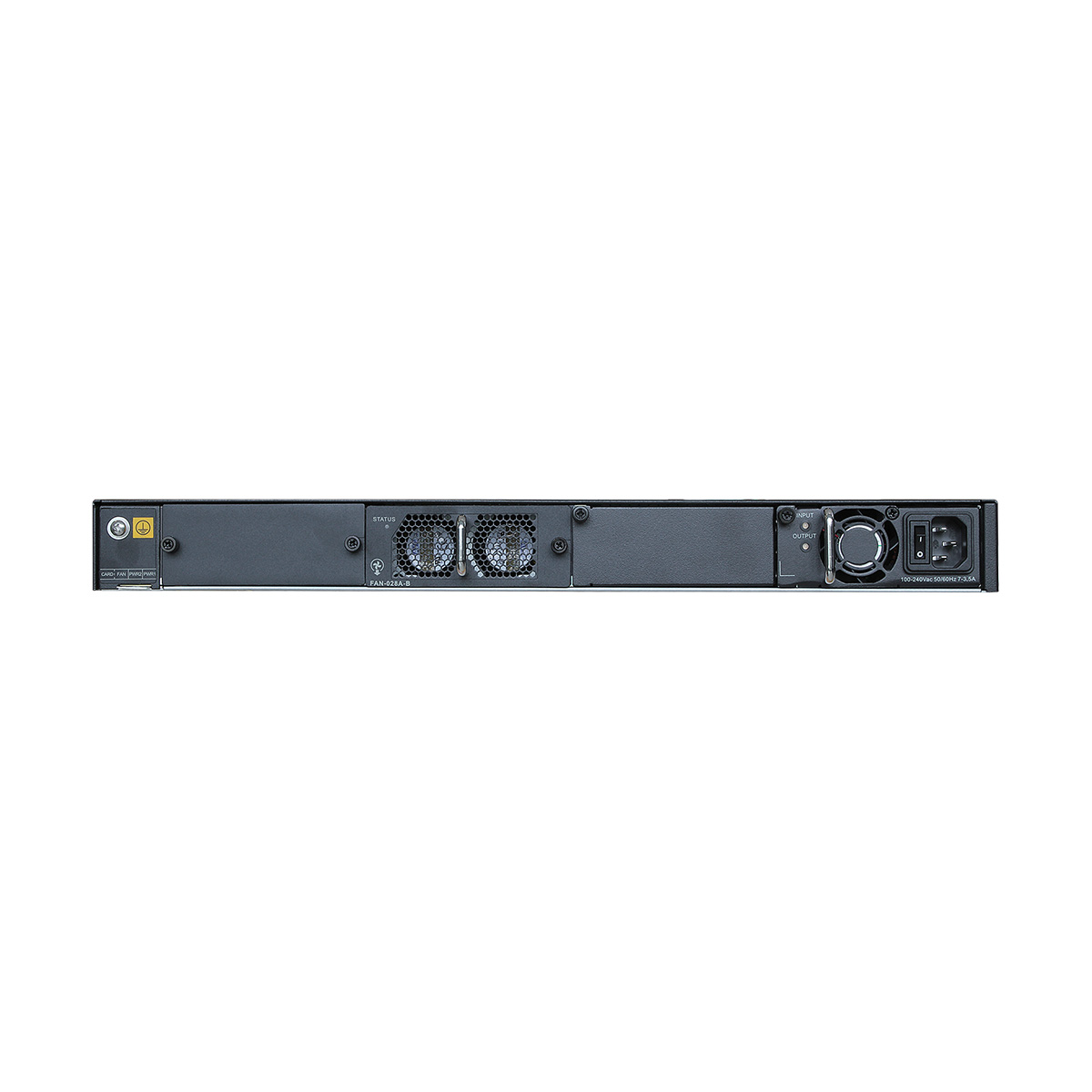

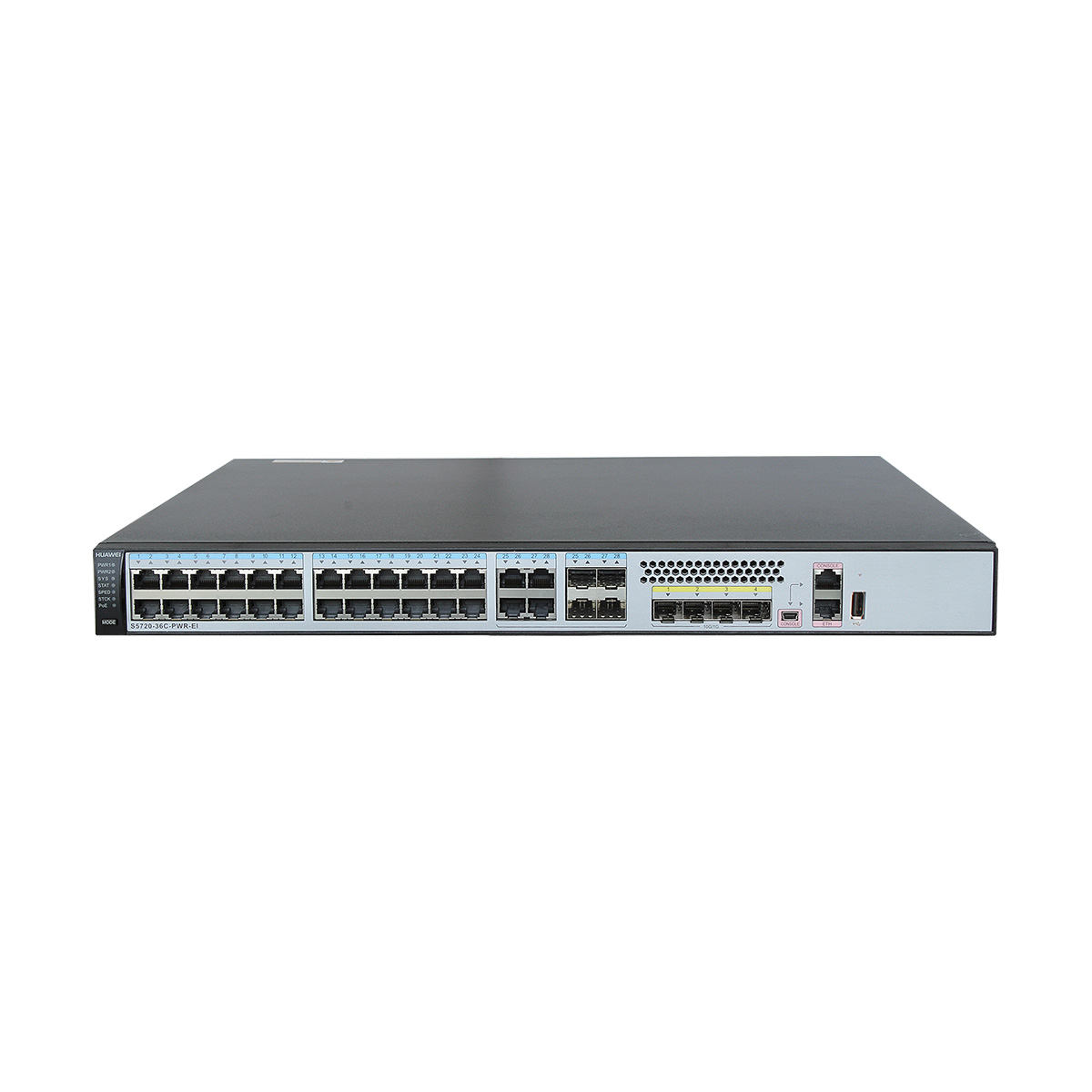

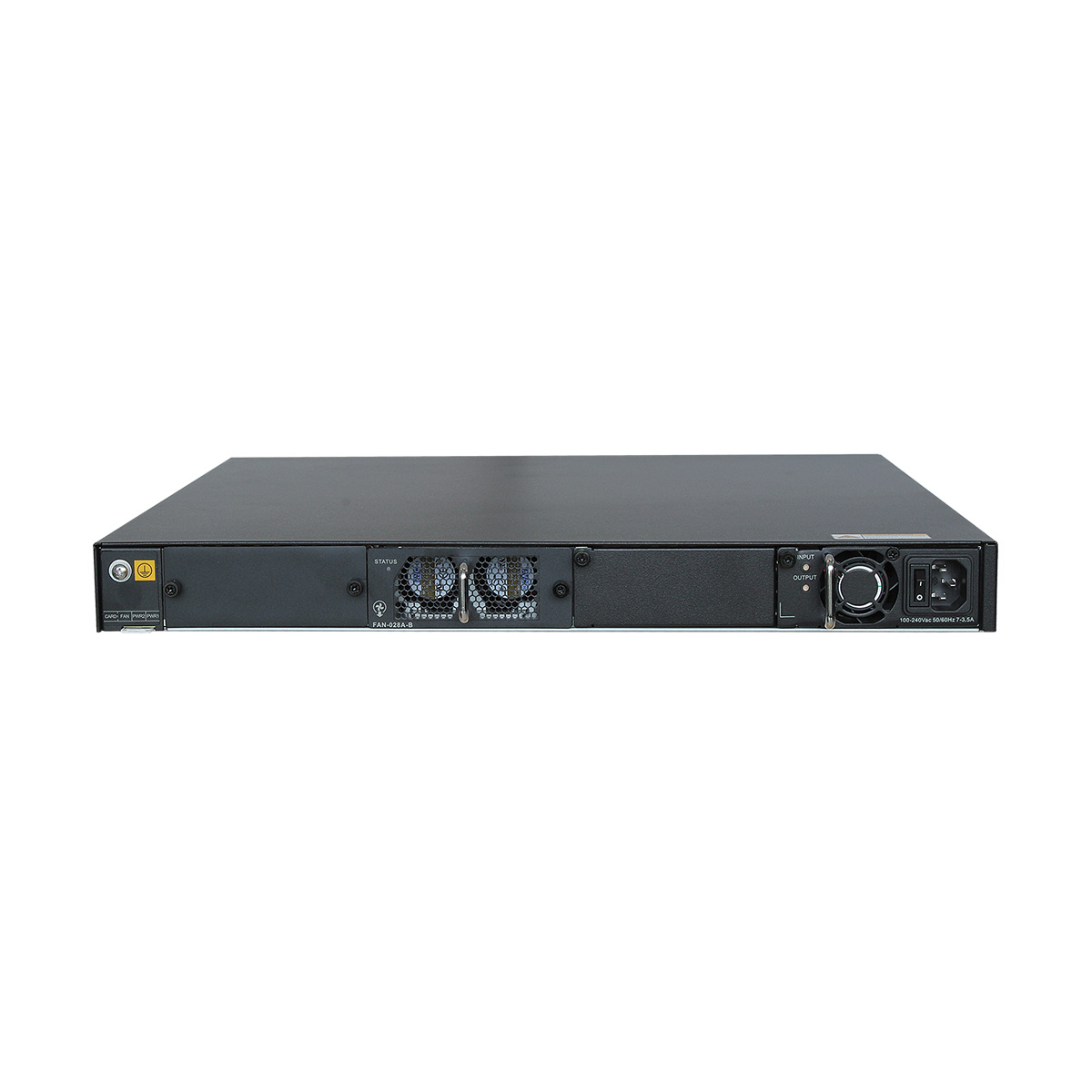

S5720-36C-PWR-EI-DC dual appearance and structure

1. Twenty-four 100/1000BASE-T ports	8. Ground screw
2. Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)	9. ESN label
3. Four 10GE SFP+ ports	10. Rear card slot
4. One mini USB port	11. Fan slot
5. One console port	12. Power module slot 2
6. One ETH management port	13. Power module slot 1
7. One USB port

Item	S5720-36C-PWR-EI-DC dual
Fixed port	28 10/100/1000 Ethernet PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 1 extended slot
ETH management port	Supported
Console port (RJ45)	Supported
Console port (Mini USB)	Supported
USB port	USB 2.0
Forwarding performance	132 Mpps
Switching capacity	598 Gbit/s
Extended slot	One extended slot that supports an uplink interface card or private stack card
CPU	Frequency:1 GHz
CPU	Cores:2
Memory	Memory (RAM):2 GB
Memory	Flash memory: Hardware: 512 MB, of which 340 MB is available for users
DRAM and Flash	SDRAM: 2 GB; Flash: 340 MB
MAC address table	IEEE 802.1d
	64K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
	VLAN-based transparent transmission of protocol packets
Jumbo frame	12K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection; BPDU tunnel
IP routing	Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
	16K IPv4 unicast routes, 8K IPv6 unicast routes
	3K IPv4 static routes, 1K IPv6 static routes
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load splitting among trunk member ports
	Controllable multicast
	Layer 2 multicast control
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Inbound and outbound traffic rate limiting on a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
	Per queue rate limiting and interface traffic shaping
	1:1,N:1,N:4 port mirroring; VLAN mirroring
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Port aggregation	LACP
	Up to 128 trunk groups
	Up to 8 member interfaces in each trunk group
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag)
Reliability	ITU-Y.1731; BFD for BGP/IS-IS/OSPF/static route
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3, RMON/RMON2
	Web-based network management system
	System logs and multi-level alarms
	sFlow, LLDP/LLDP-MED, 802.3az EEE
	SCP (Secure Copy Protocol), TFTP, FTP
	Store dual software images and configuration files
Interoperability	VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
	Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
	VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz No front power input
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Chassis height	1 U
Typical power consumption	without PD: 48.5W; with PD: <864.3W

Item	S5720-36C-PWR-EI-DC dual
Fixed port	28 10/100/1000 Ethernet PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 1 extended slot
ETH management port	Supported
Console port (RJ45)	Supported
Console port (Mini USB)	Supported
USB port	USB 2.0
Forwarding performance	132 Mpps
Switching capacity	598 Gbit/s
Extended slot	One extended slot that supports an uplink interface card or private stack card
CPU	Frequency:1 GHz
CPU	Cores:2
Memory	Memory (RAM):2 GB
Memory	Flash memory: Hardware: 512 MB, of which 340 MB is available for users
DRAM and Flash	SDRAM: 2 GB; Flash: 340 MB
MAC address table	IEEE 802.1d
	64K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
	VLAN-based transparent transmission of protocol packets
Jumbo frame	12K
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection; BPDU tunnel
IP routing	Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
	16K IPv4 unicast routes, 8K IPv6 unicast routes
	3K IPv4 static routes, 1K IPv6 static routes
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load splitting among trunk member ports
	Controllable multicast
	Layer 2 multicast control
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Inbound and outbound traffic rate limiting on a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
	Per queue rate limiting and interface traffic shaping
	1:1,N:1,N:4 port mirroring; VLAN mirroring
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Port aggregation	LACP
	Up to 128 trunk groups
	Up to 8 member interfaces in each trunk group
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag)
Reliability	ITU-Y.1731; BFD for BGP/IS-IS/OSPF/static route
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients
	One-click and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack, Virtual cable test, SNMP v1/v2c/v3, RMON/RMON2
	Web-based network management system
	System logs and multi-level alarms
	sFlow, LLDP/LLDP-MED, 802.3az EEE
	SCP (Secure Copy Protocol), TFTP, FTP
	Store dual software images and configuration files
Interoperability	VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
	Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
	VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz No front power input
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Chassis height	1 U
Typical power consumption	without PD: 48.5W; with PD: <864.3W

Weight	14.0000 kg
Dimensions	71.0000 × 36.0000 × 19.5000 cm
Campus Switch	S5720-EI

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

S5720-36C-PWR-EI-DC dual

Description

S5720-36C-PWR-EI-DC dual Overview

S5720-36C-PWR-EI-DC dual Quick Specs

S5720-36C-PWR-EI-DC dual appearance and structure

Additional information

Reviews

Related products

Main Menu

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

Search For Products

Popular

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability
