S5720-36C-EI-AC

2 Reviews Write a review
PN2359562
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-36C-EI-AC switch supports 28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-36C-EI-AC overview

Huawei S5720-36C-EI-AC with 28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, is one of the Huawei S5720 series switches. The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.



S5720-36C-EI-AC quick specs

28 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or SFP ports

4 10GE SFP+ ports

1 extended slot

2 hot swappable AC/DC power supplies, 1 AC equipped

Forwarding performance is 132 Mpps

Switching capacity is 598 Gbps

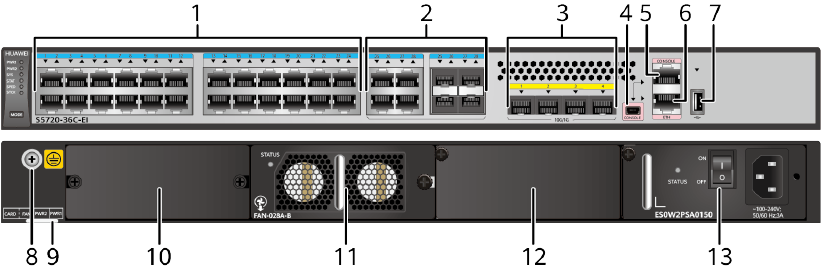

S5720-36C-EI-AC appearance and structure

S5720-36C-EI-AC appearance and structure

1 Twenty-four 10/100/1000BASE-T ports 8 Ground screw
2 Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) 9 ESN labe
3 Four 10GE SFP+ ports 10 Rear card slot
4 One mini USB port 11 Fan slot
5 One console port  12  Power module slot 2
6 One ETH management port 13 Power module slot 1
7 One USB port

Item S5720-36C-EI-AC
Forwarding performance 132 Mpps
Switching capacity 598 Gbit/s
Extended slot 1
Ports description 28 10/100/1000 Ethernet ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 1 extended slot
Fixed port GE port 24
10GE port 4
Flexible card Card slot 1
Card type 2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
Card specification For details about cards, see the section Card Types.
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type 150 W AC (pluggable) 150 W DC (pluggable)
Power supply specification For details about power supplies, see the section Power Supply.
Power supply redundancy 1+1
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 150 W AC: 3 A 150 W DC: 6 A
Maximum power consumption of the device 75.8 W
Power consumption in the case of 30% traffic load 39.5 W (without cards) 7.28 W (with a 2- port 10GE optical card) 52.17 W (with a 2-port QSFP+ stack card)
Power consumption in the case of 100% traffic load 46.4 W (without cards) 54.06 W (with a 2-port 10GE optical card) 59.36 W (with a 2-port QSFP+ stack card)
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) 259
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature  decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non-condensing)
Operating altitude AC: 5000 m DC: 2000 m
Noise under normal temperature (sound power) 51.2 dB(A)
Noise under high temperature (sound power) 71 dB(A)
Noise under normal temperature (sound pressure) 37.5 dB(A)
Surge protection specification (RJ45 service port) ±8 kV in common mode
Surge protection specification (power port) AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability MTBF (year) Without cards: 80.05 With a 2-port 10GE SFP+ card: 73.65 With a stack card: 71.74
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 9.76 kg

Additional information

Weight 14.0000 kg
Dimensions 71.0000 × 36.0000 × 19.5000 cm
Item S5720-36C-EI-AC
Forwarding performance 132 Mpps
Switching capacity 598 Gbit/s
Extended slot 1
Ports description 28 10/100/1000 Ethernet ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 1 extended slot
Fixed port GE port 24
10GE port 4
Flexible card Card slot 1
Card type 2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
Card specification For details about cards, see the section Card Types.
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type 150 W AC (pluggable) 150 W DC (pluggable)
Power supply specification For details about power supplies, see the section Power Supply.
Power supply redundancy 1+1
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
Maximum input current 150 W AC: 3 A 150 W DC: 6 A
Maximum power consumption of the device 75.8 W
Power consumption in the case of 30% traffic load 39.5 W (without cards) 7.28 W (with a 2- port 10GE optical card) 52.17 W (with a 2-port QSFP+ stack card)
Power consumption in the case of 100% traffic load 46.4 W (without cards) 54.06 W (with a 2-port 10GE optical card) 59.36 W (with a 2-port QSFP+ stack card)
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) 259
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature  decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non-condensing)
Operating altitude AC: 5000 m DC: 2000 m
Noise under normal temperature (sound power) 51.2 dB(A)
Noise under high temperature (sound power) 71 dB(A)
Noise under normal temperature (sound pressure) 37.5 dB(A)
Surge protection specification (RJ45 service port) ±8 kV in common mode
Surge protection specification (power port) AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability MTBF (year) Without cards: 80.05 With a 2-port 10GE SFP+ card: 73.65 With a stack card: 71.74
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 9.76 kg

Reviews

  1. Mesbah –

    I bought many orders from Telecomate.com, all products that i received came with a good condition.

  2. Milos –

    S5720-36C-EI-AC support Multiprotocol Label Switching(MPLS), very good model.
