S5720-36C-EI-28S-AC

Rated 5.00 out of 5 based on 6 customer ratings

6 Reviews Write a review

PN2359503

AvailabilityIn Stock

Campus Switch S5720-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei switch S5720-36C-EI- 28S-AC supports 28 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped

28 Ports Switch GE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-36C-EI-28S-AC overview

Huawei S5720-36C-EI-28S-AC swich with 28 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T ports, 4 10GE SFP+ ports, it is belong to Huawei S5720-EI series. The S5720-EI series enhanced gigabit Ethernet switches (S5720-EI for short) are next-generation switches that provide flexible GE access ports and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), the S5720-EI provides large table sizes andhigher hardware processing capabilities than similar switches.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-36C-EI-28S-AC quick specs

28 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T ports, 4 10GE SFP+ ports

1 extended slot, 2 hot swappable AC/DC power supplies, 1 AC equipped

Forwarding performance is 132 Mpps

Switching capacity is 598 Gbit/s

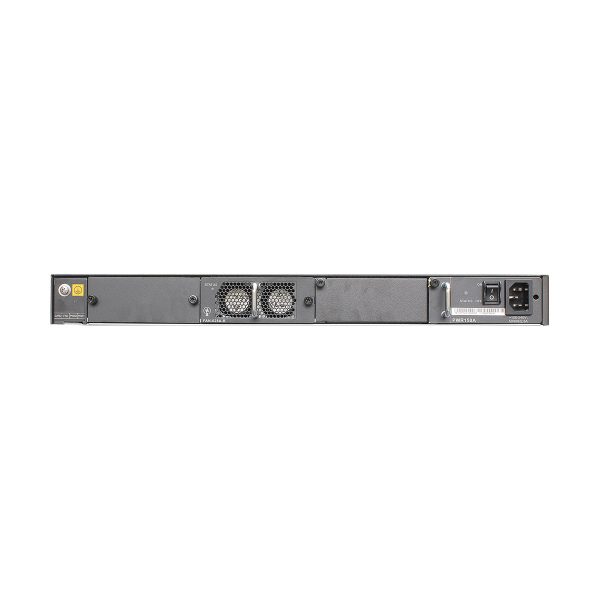

S5720-36C-EI-28S-AC appearance and structure

1. Twenty-four 100/1000BASE-X ports	8. Ground screw
2. Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)	9. ESN label
3. Four 10GE SFP+ ports	10. Rear card slot
4. One mini USB port	11. Fan slot
5. One console port	12. Power module slot 2
6. One ETH management port	13. Power module slot 1
7. One USB port

Item		S5720-36C-EI- 28S-AC
Forwarding performance		132 Mpps
Switching capacity		598 Gbit/s
Extended slot		1
Ports description		28 Gig SFP ports, 4 of which are dual-purpose 10/100/1000 ports, 4 10GE SFP+ ports, 1 extended slot
Fixed port	GE port	24
Fixed port	10GE port	4
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	83.9 W
	Power consumption in the case of 30% traffic load	47.86 W (without cards) 55.35 W (with a 2-port 10GE optical card) 60.25 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	56.65 W (without cards) 64.06 W (with a 2-port 10GE optical card) 68.65 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	286
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	±8 kV in common mode
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 85.45 With a 2-port 10GE SFP+ card: 78.2 With a stack card: 76.05
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.88 kg

Item		S5720-36C-EI- 28S-AC
Forwarding performance		132 Mpps
Switching capacity		598 Gbit/s
Extended slot		1
Ports description		28 Gig SFP ports, 4 of which are dual-purpose 10/100/1000 ports, 4 10GE SFP+ ports, 1 extended slot
Fixed port	GE port	24
Fixed port	10GE port	4
Flexible card	Card slot	1
	Card type	2-port 10GE SFP+ interface card 2-port QSFP+ dedicated stack card
	Card specification	For details about cards, see the section Card Types.
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	150 W AC (pluggable) 150 W DC (pluggable)
	Power supply specification	For details about power supplies, see the section Power Supply.
	Power supply redundancy	1+1
	Rated voltage range	AC: 100 V AC to 240 V AC; 50/60 Hz DC: -48 V DC to - 60 V DC
	Maximum voltage range	AC: 90 V AC to 264 V AC; 47-63 Hz DC: -36 V DC to - 72 V DC
	Maximum input current	150 W AC: 3 A 150 W DC: 6 A
	Maximum power consumption of the device	83.9 W
	Power consumption in the case of 30% traffic load	47.86 W (without cards) 55.35 W (with a 2-port 10GE optical card) 60.25 W (with a 2-port QSFP+ stack card)
	Power consumption in the case of 100% traffic load	56.65 W (without cards) 64.06 W (with a 2-port 10GE optical card) 68.65 W (with a 2-port QSFP+ stack card)
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	Pluggable dual fans
	Airflow	Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
	Maximum heat dissipation of the device (BTU/hour)	286
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
	Short-term operating temperature	0-1800 m: -5°C to +50°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. NOTE: Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%–95% (non-condensing)
	Operating altitude	AC: 5000 m DC: 2000 m
	Noise under normal temperature (sound power)	51.2 dB(A)
	Noise under high temperature (sound power)	71 dB(A)
	Noise under normal temperature (sound pressure)	37.5 dB(A)
	Surge protection specification (RJ45 service port)	±8 kV in common mode
	Surge protection specification (power port)	AC power interface: ±6 kV in differential or common mode DC power interface: ±1 kV in differential; ±2 kV in common mode
Reliability	MTBF (year)	Without cards: 85.45 With a 2-port 10GE SFP+ card: 78.2 With a stack card: 76.05
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 420 x 44.4
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	9.88 kg

Weight	14.0000 kg
Dimensions	71.0000 × 36.0000 × 19.5000 cm
