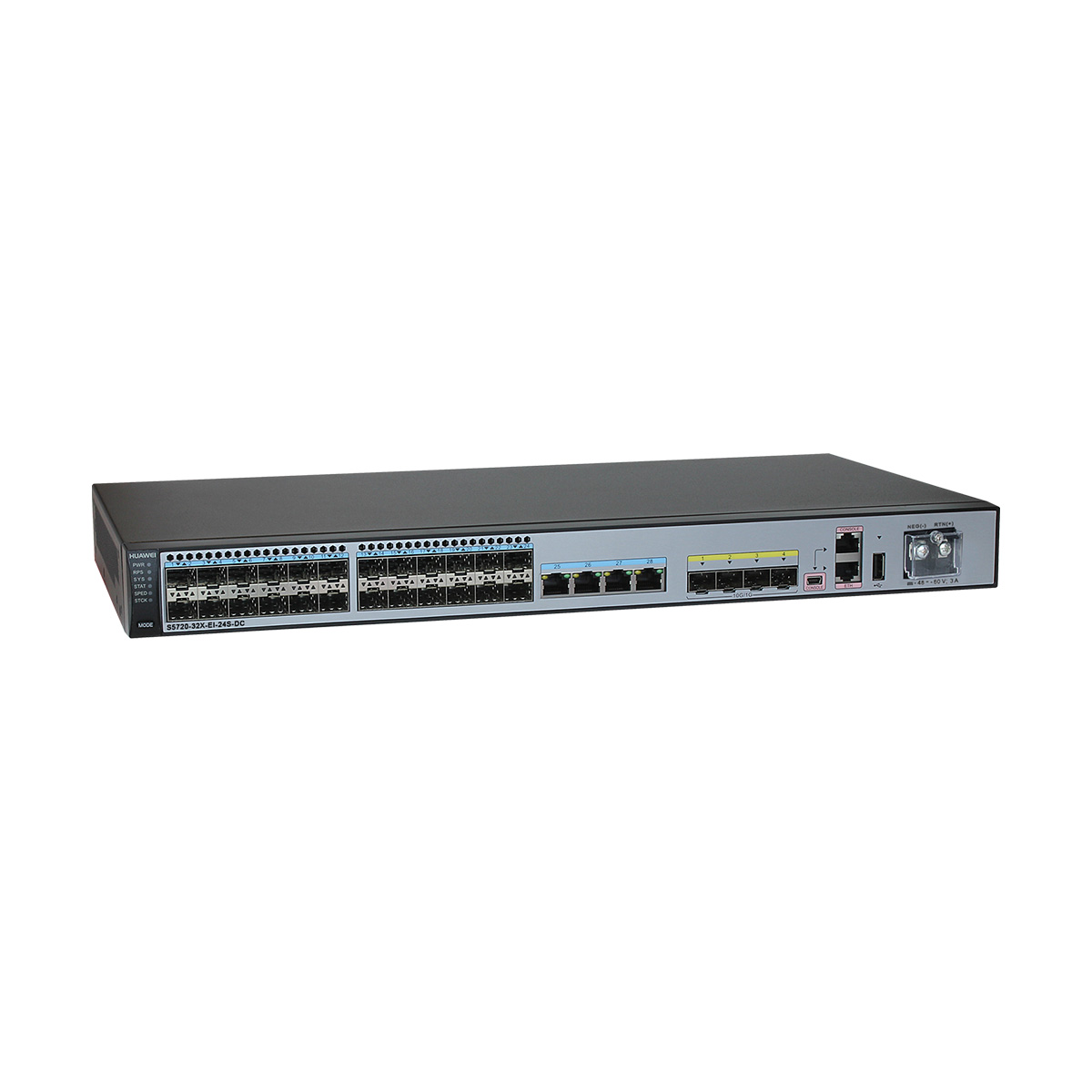

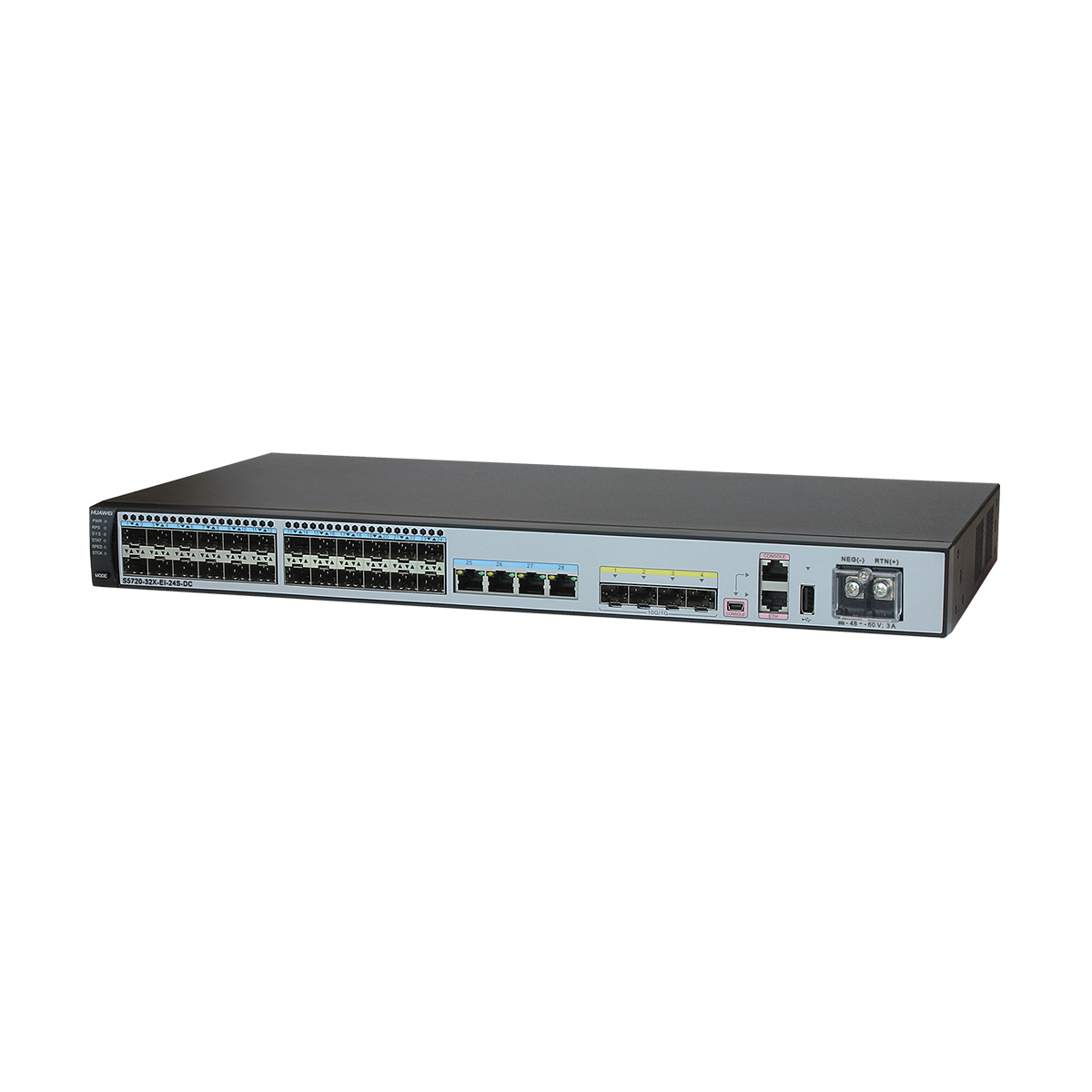

S5720-32X-EI-24S-DC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02350NHE

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-32X-EI-24S-DC switch supports 24 GE SFP ports, 4 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed DC power, supports RPS

24 Ports Switch Fixed DC Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-32X-EI-24S-DC overview

Huawei S5720-32X-EI-24S-DC with 24 GE SFP ports, 4 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports, fixed DC power, supports RPS, which is one of the S5720s serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-32X-EI-24S-DC quick specs

24 GE SFP ports

4 10/100/1000BASE-T ports,

4 10GE SFP+ ports

2 QSFP+ dedicated stack ports,

fixed DC power, supports RPS

Forwarding performance is 102 Mpps

Switching capacity is 598 Gbit/s

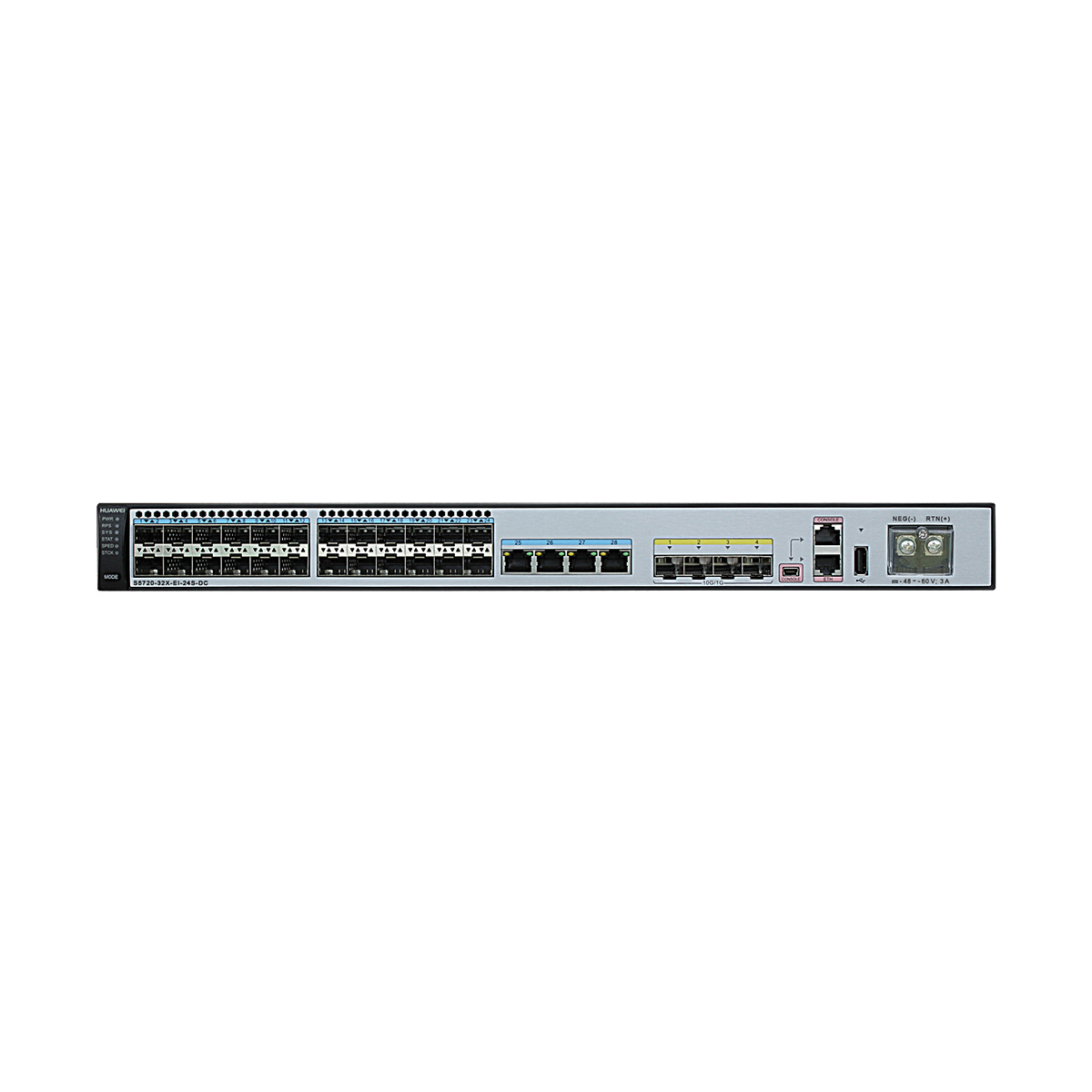

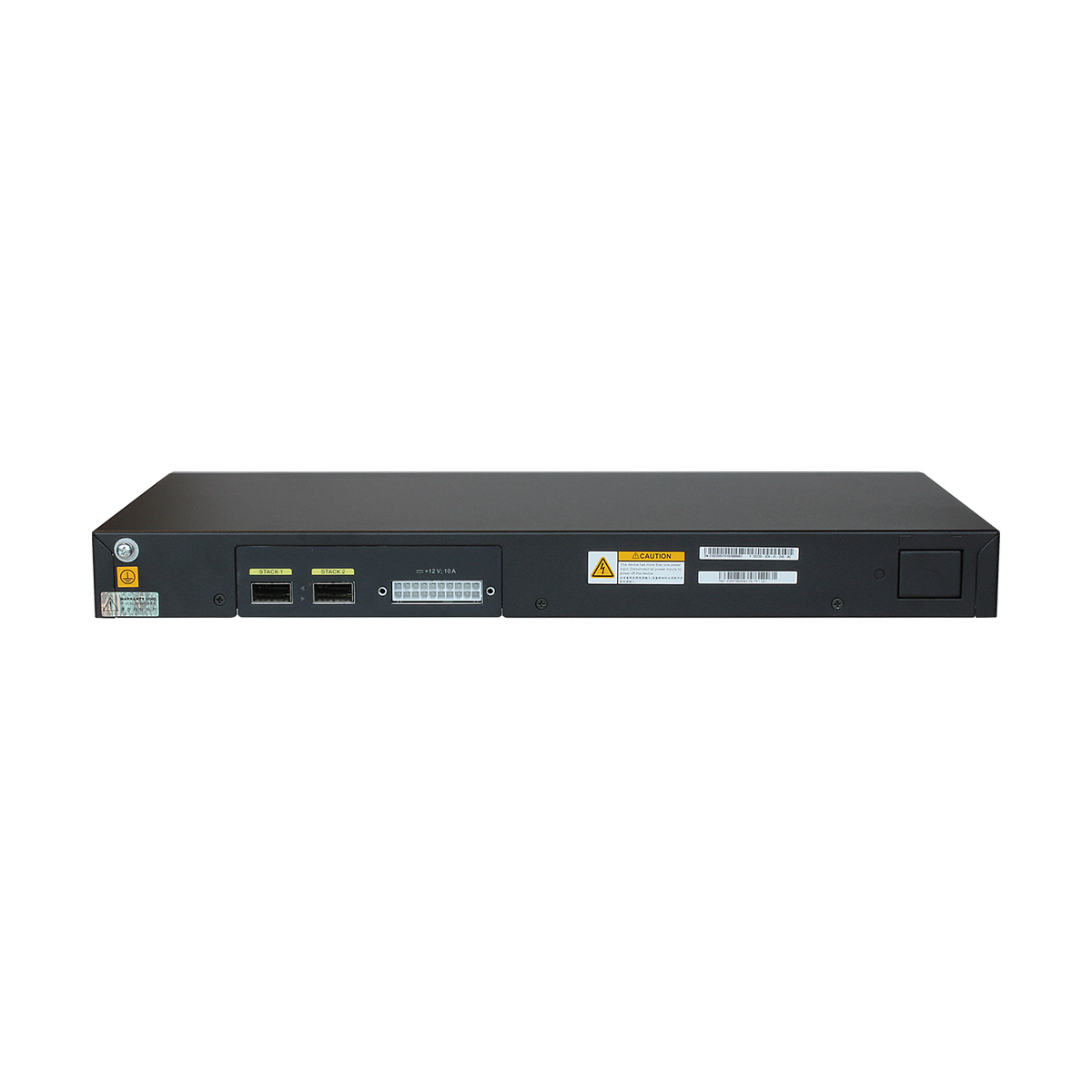

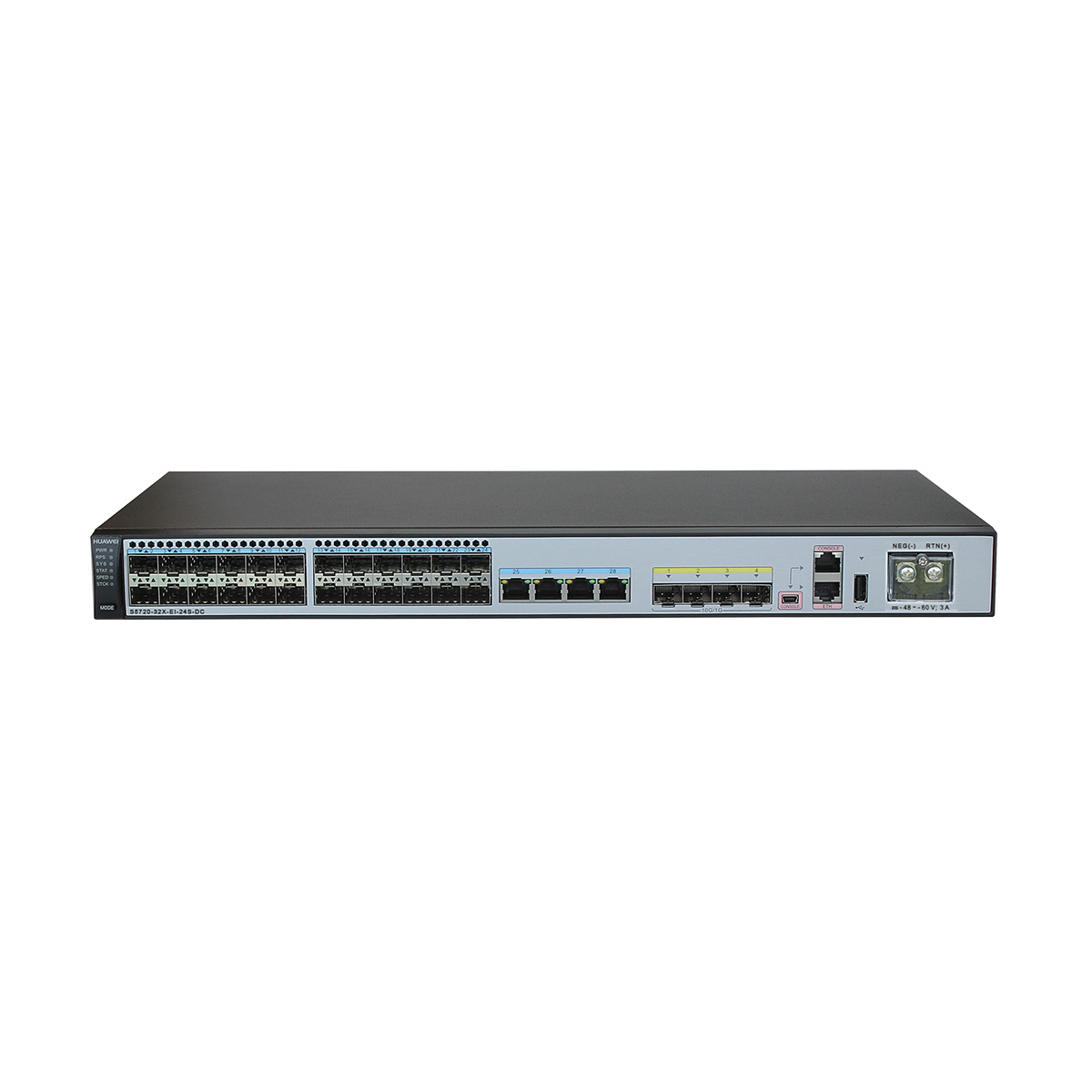

S5720-32X-EI-24S-DC appearance and structure

1. Twenty-four 100/1000BASE-X ports	7. One USB port
2. Four 10/100/1000BASE-T ports	8. DC power terminal
3. Four 10GE SFP+ ports	9. Ground screw
4. One mini USB port	10. Two QSFP+ stack optical ports
5. One console port	11. RPS socket
6. One ETH management port

Item		S5720-32X-EI- 24S-DC
Forwarding performance		102 Mpps
Switching capacity		598 Gbit/s
Ports description		24 Gig SFP ports, 4 10/100/1000 Ethernet ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port	GE port	28
	10GE port	4
	Dedicated stack port	2
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	DC(fixed)
	Power supply	Built-in single power
	redundancy	supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	-48 V DC to -60 V DC
	Maximum voltage range	-36 V DC to -72 V DC
	Maximum input current	3 A
	Maximum power consumption of the device	58.9 W
	Power consumption in the case of 30% traffic load	55.46 W
	Power consumption in the case of 100% traffic load	56.5 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	1
	Airflow	Air flows in from the left side and front panel and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	201
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m:The operating temperature decreases 1°C every time the altitude increases 220 m
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95% (non-condensing)
	Operatingaltitude	2000 m
	Noise under normal temperature (sound power)	49.3 dB(A)
	Noise under high temperature (sound power)	69.2 dB(A)
	Noise under normal temperature (sound pressure)	35.9 dB(A)
	Surge protection specification (power port)	±8kV in common mode
	Surge protection specification (power port)	±1kV in differential mode, ±2kV in common mode
Reliability	MTBF (year)	82.54
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 220 x 43.6 (front-access)
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	4.21 kg

Item		S5720-32X-EI- 24S-DC
Forwarding performance		102 Mpps
Switching capacity		598 Gbit/s
Ports description		24 Gig SFP ports, 4 10/100/1000 Ethernet ports, 4 10GE SFP+ ports, 2 QSFP+ dedicated stack ports
Fixed port	GE port	28
	10GE port	4
	Dedicated stack port	2
Management port	ETH management port	Supported
	Console port (RJ45)	Supported
	Console port (Mini USB)	Supported
	USB port	USB 2.0
CPU	Frequency	1 GHz
CPU	Cores	2
Memory	Memory (RAM)	2 GB
Memory	Flash memory	Hardware: 512 MB, of which 340 MB is available for users
Power supply system	Power supply type	DC(fixed)
	Power supply	Built-in single power
	redundancy	supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	-48 V DC to -60 V DC
	Maximum voltage range	-36 V DC to -72 V DC
	Maximum input current	3 A
	Maximum power consumption of the device	58.9 W
	Power consumption in the case of 30% traffic load	55.46 W
	Power consumption in the case of 100% traffic load	56.5 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	1
	Airflow	Air flows in from the left side and front panel and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	201
Environment parameters	Long-term operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m:The operating temperature decreases 1°C every time the altitude increases 220 m
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95% (non-condensing)
	Operatingaltitude	2000 m
	Noise under normal temperature (sound power)	49.3 dB(A)
	Noise under high temperature (sound power)	69.2 dB(A)
	Noise under normal temperature (sound pressure)	35.9 dB(A)
	Surge protection specification (power port)	±8kV in common mode
	Surge protection specification (power port)	±1kV in differential mode, ±2kV in common mode
Reliability	MTBF (year)	82.54
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 220 x 43.6 (front-access)
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	4.21 kg

Weight	6.5000 kg
Dimensions	55.0000 × 36.0000 × 9.0000 cm
Campus Switch	S5720-EI
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
