S5720-32P-EI-AC

6 Reviews Write a review
PN02350BDY
Brands
AvailabilityIn Stock
Campus Switch S5720-EI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-32P-EI-AC switch supports 24 10/100/1000BASE-T ports, 4 100/1000 SFP ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports, fixed AC power, supports RPS

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-32P-EI-AC overview

Huawei S5720-32P-EI-AC with 24 10/100/1000BASE-T ports, 4 100/1000 SFP ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports, is one of the Huawei S5720 series switches. The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.

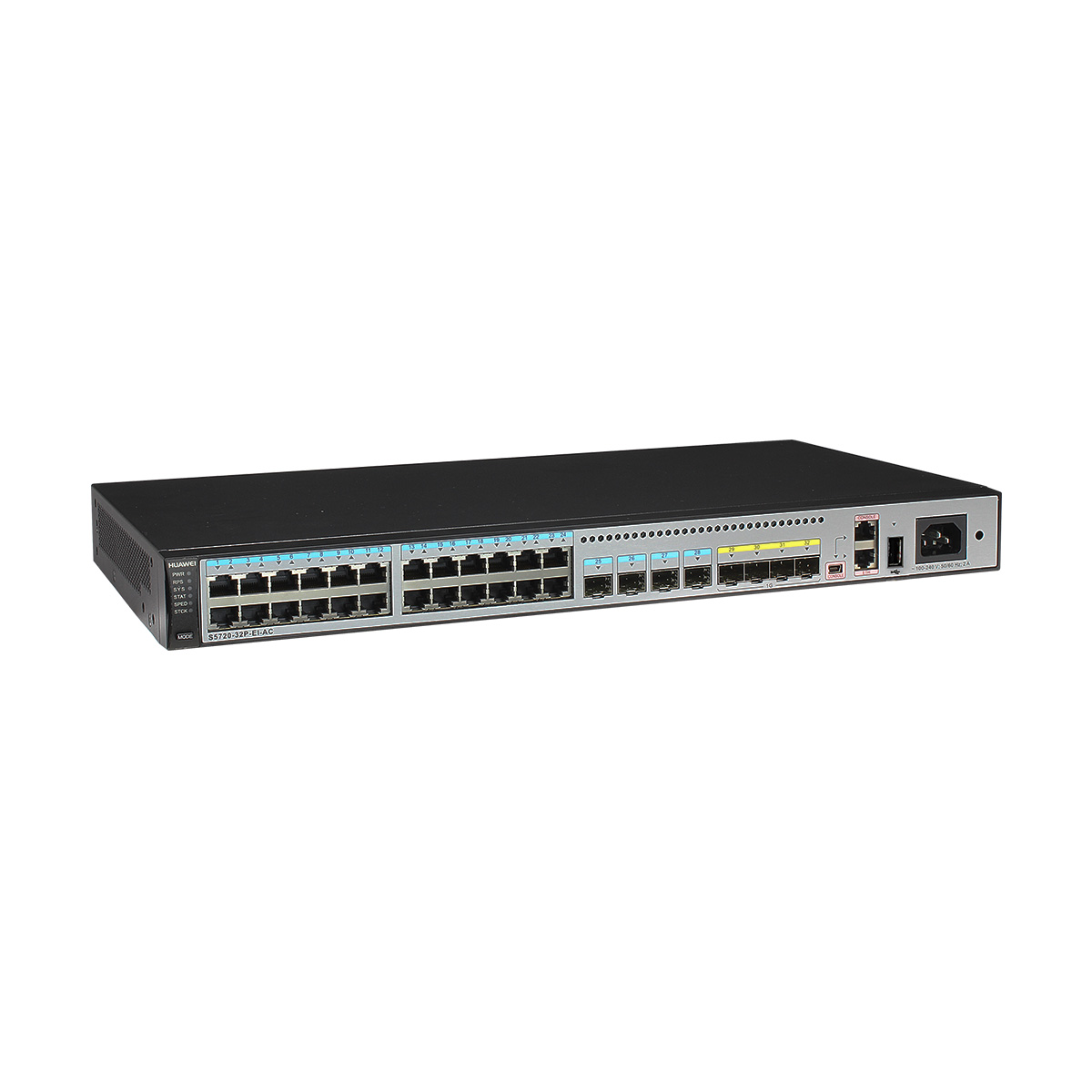

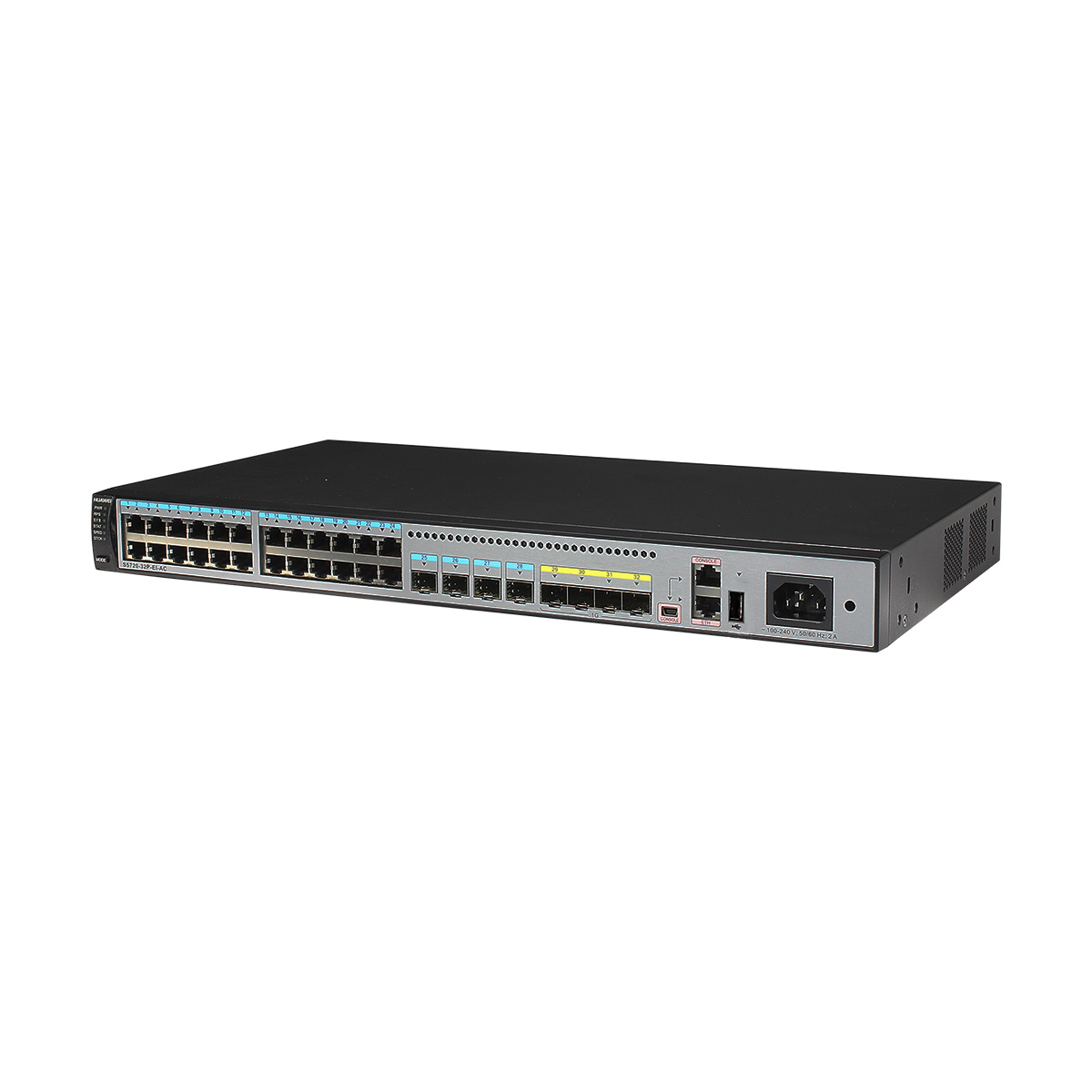

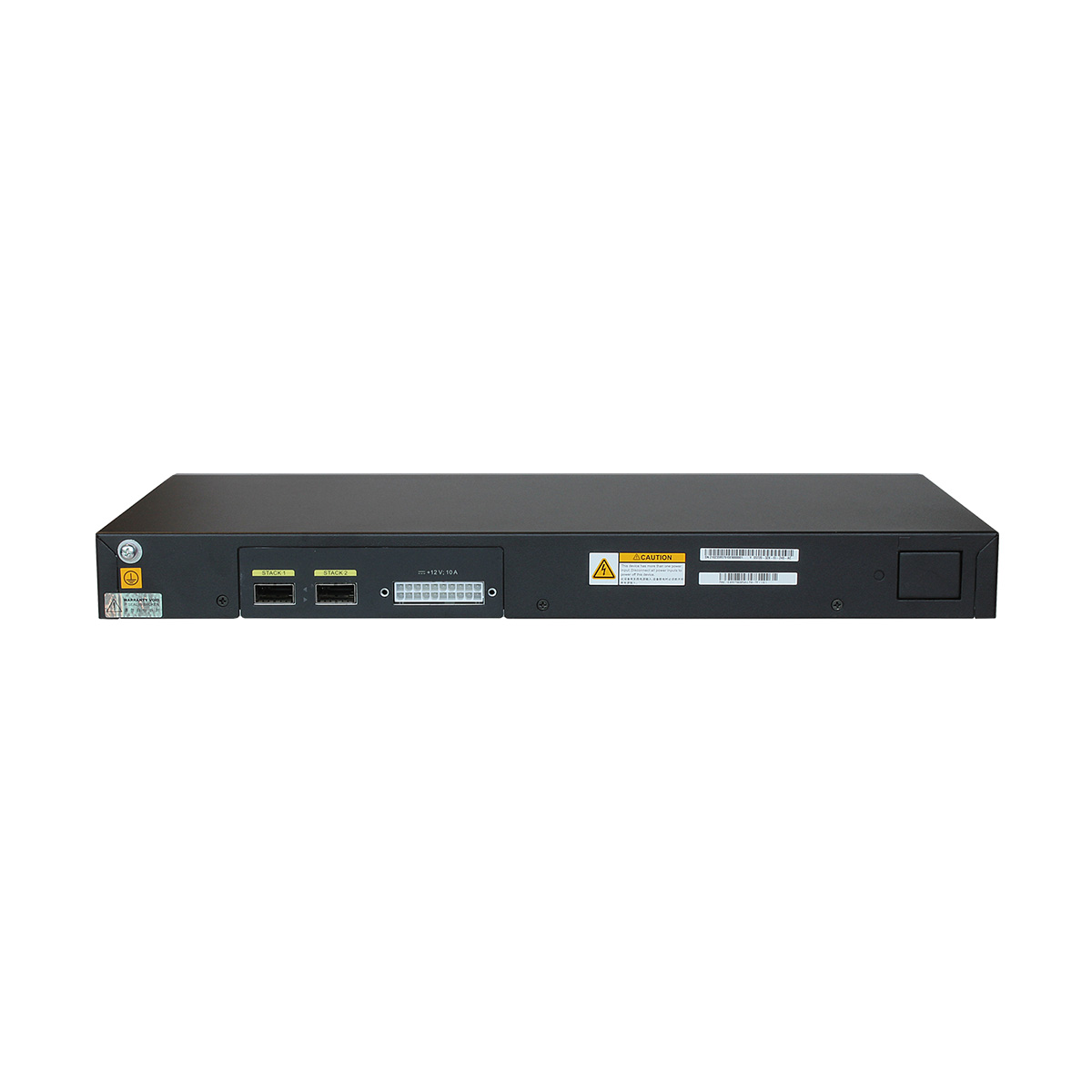

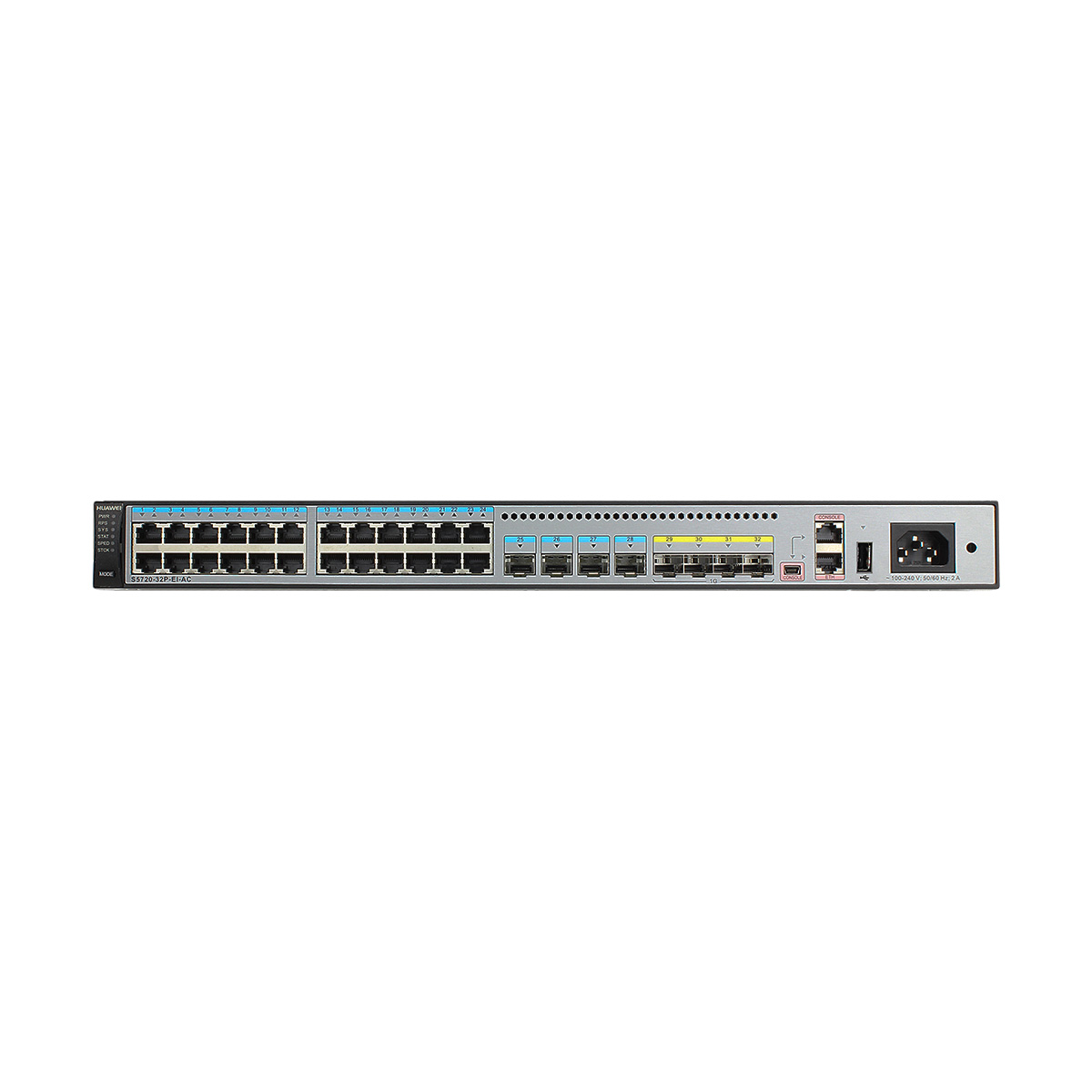

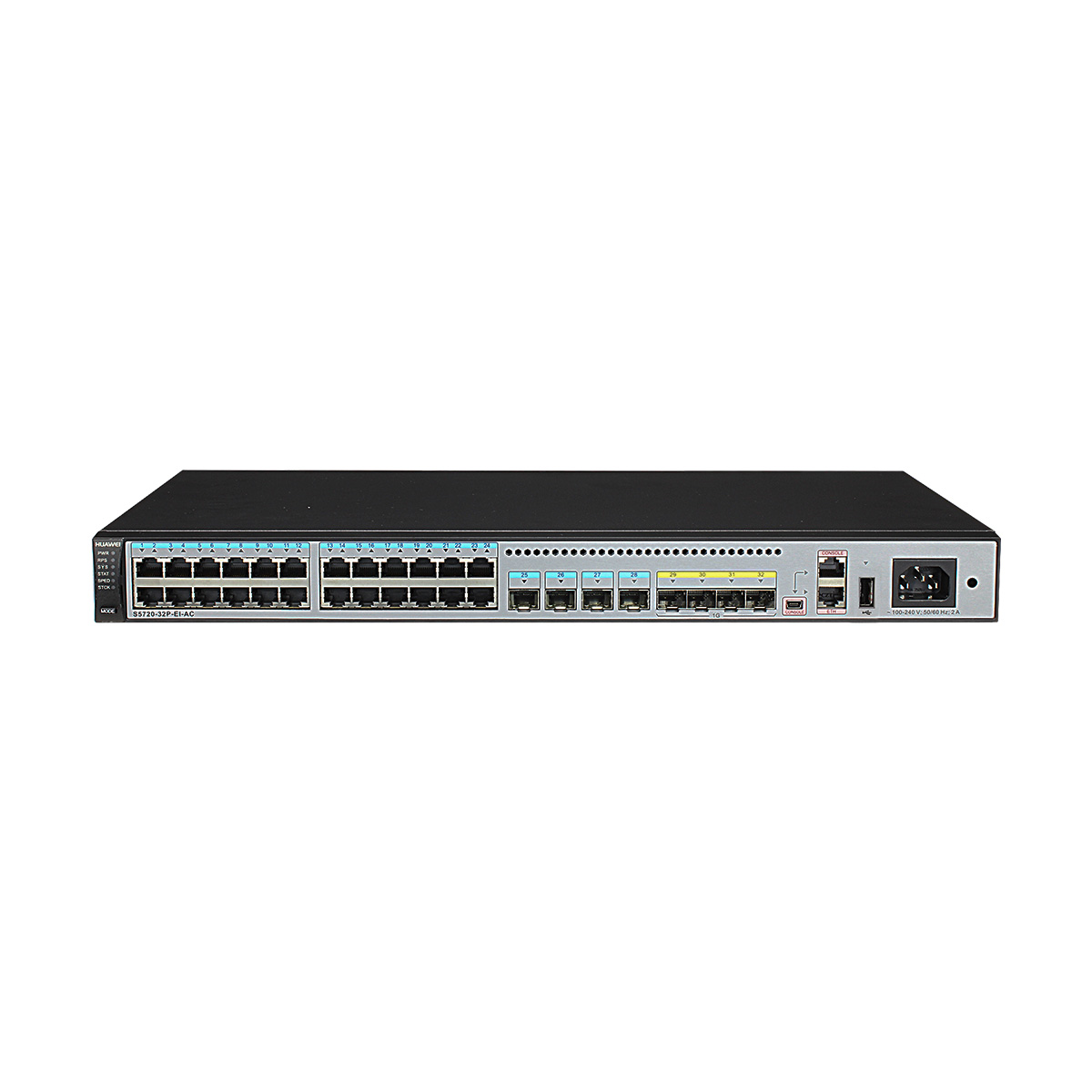

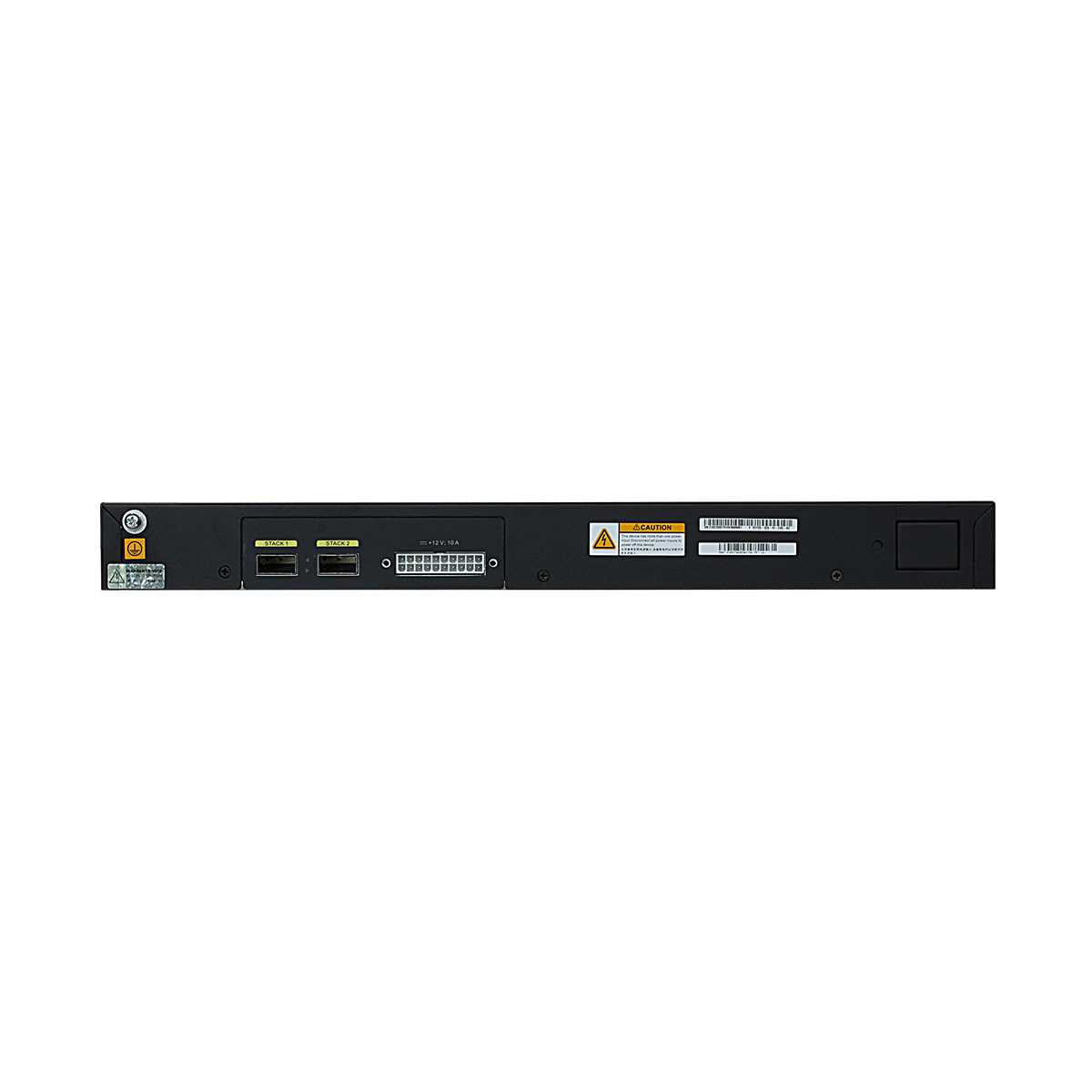

S5720-32P-EI-AC appearance and structure

S5720-32P-EI-AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports 7. One USB port
2. Four 100/1000BASE-X ports 8. AC socket
3. Four 1000BASE-X ports 9. Jack for AC power cable locking strap
4. One mini USB port 10. Ground screw
5. One console port 11. Two QSFP+ stack optical ports
6. One ETH management port 12. RPS socket
Item S5720-32P-EI-AC
Ports description 24 10/100/1000 Ethernet ports, 4 100/1000 SFP ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports
Forwarding performance 48 Mpps
Switching capacity 598 Gbit/s
Fixed port GE port 32
Dedicated stack port 2
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 2 A
Maximum power consumption of the device 50.7 W
Power consumption in the case of 30% traffic load 39.75 W
Power consumption in the case of 100% traffic load 44.7 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 173
Environment parameters Long-term operating temperature  0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (RJ45 service port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 80.32
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6 (front-access)
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.44 kg

Additional information

Weight 6.5000 kg
Dimensions 55.0000 × 36.0000 × 9.0000 cm
Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5720-32P-EI-AC
Ports description 24 10/100/1000 Ethernet ports, 4 100/1000 SFP ports, 4 GE SFP ports, 2 QSFP+ dedicated stack ports
Forwarding performance 48 Mpps
Switching capacity 598 Gbit/s
Fixed port GE port 32
Dedicated stack port 2
Management port ETH management port Supported
Console port (RJ45) Supported
Console port (Mini USB) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 2 GB
Flash memory Hardware: 512 MB, of which 340 MB is available for users
Power supply system Power supply type AC (fixed)
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 2 A
Maximum power consumption of the device 50.7 W
Power consumption in the case of 30% traffic load 39.75 W
Power consumption in the case of 100% traffic load 44.7 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 173
Environment parameters Long-term operating temperature  0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 49.3 dB(A)
Noise under high temperature (sound power) 69.2 dB(A)
Noise under normal temperature (sound pressure) 35.9 dB(A)
Surge protection specification (RJ45 service port) ±8kV in common mode
Surge protection specification (power port) ±6kV in differential mode, ±6kV in common mode
Reliability MTBF (year) 80.32
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6 (front-access)
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.44 kg
