S5720-32C-HI-24S-AC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN2358600

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-HI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-32C-HI-24S-AC switch supports 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

24 Ports Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-32C-HI-24S-AC overview

Huawei S5720-28P-LI-AC switch with 24 10/100/1000BASE-T ports, 4 GE SFP ports, fixed AC power, supports RPS, which is one of the S5720 series switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-32C-HI-24S-AC quick specs

24 10/100/1000BASE-T ports

4 GE SFP ports

Fixed AC power

Supports RPS

Forwarding performance is 51Mpps

Switching capacity is 336 Gbit/s

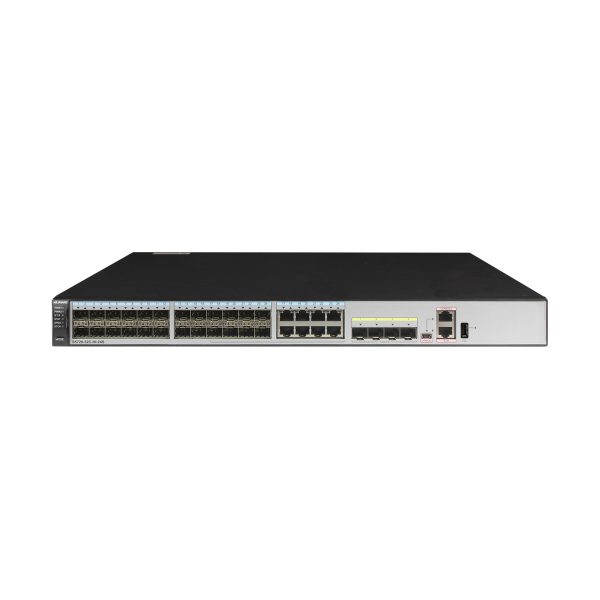

S5720-32C-HI-24S-AC appearance and structure

1. Sixteen 100/1000BASE-X ports	8. Ground screw
2. Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X)	9. ESN label
3. Four 10GE SFP+ ports	10. Rear card slot 1
4. One mini USB port	11. Rear card slot 2
5. One console port	12. Power module slot 2
6. One ETH management port	13. Power module slot 1
7. One USB port

Item	S5720-32C-HI-24S-AC
Fixed port	24 GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports
Forwarding performance	168 Mpps
Switching capacity	598 Gbit/s
Extended slot	1 port extended slot with optional subcard 4x10GE SFP+ 1 slot reserved for the stack card
MAC address table	IEEE 802.1d
	128K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Rate limitation in the inbound and outbound directions of a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP fields of packets
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
	Queue-based rate limitation and shaping on ports
	HQoS
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Super Virtual Fabric (SVF)	Supports a two-layer client architecture
Management and Maintenance	Virtual cable test, SNMP v1/v2c/v3, RMON
	Network management system (NMS) and Web managemen
	System logs and multi-level alarms
	802.3az EEE
	GVRP
	Dying Gasp upon power-off
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar with DTP
	VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Typical power consumption	<172.7W

Item	S5720-32C-HI-24S-AC
Fixed port	24 GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports
Forwarding performance	168 Mpps
Switching capacity	598 Gbit/s
Extended slot	1 port extended slot with optional subcard 4x10GE SFP+ 1 slot reserved for the stack card
MAC address table	IEEE 802.1d
	128K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
	IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
	Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
	Multicast Source Discovery Protocol (MSDP)
QoS/ACL	Rate limitation in the inbound and outbound directions of a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP fields of packets
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
	Queue-based rate limitation and shaping on ports
	HQoS
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready
Access security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	G.8032 Ethernet Ring Protection Switching (ERPS)
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Super Virtual Fabric (SVF)	Supports a two-layer client architecture
Management and Maintenance	Virtual cable test, SNMP v1/v2c/v3, RMON
	Network management system (NMS) and Web managemen
	System logs and multi-level alarms
	802.3az EEE
	GVRP
	Dying Gasp upon power-off
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar with DTP
	VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V A C, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Dimensions (mm)	442 (W) x 420 (D)x 43.6 (H)
Typical power consumption	<172.7W

Weight	18.5000 kg
Dimensions	71.5000 × 56.5000 × 22.5000 cm
Campus Switch	S5720-HI
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
