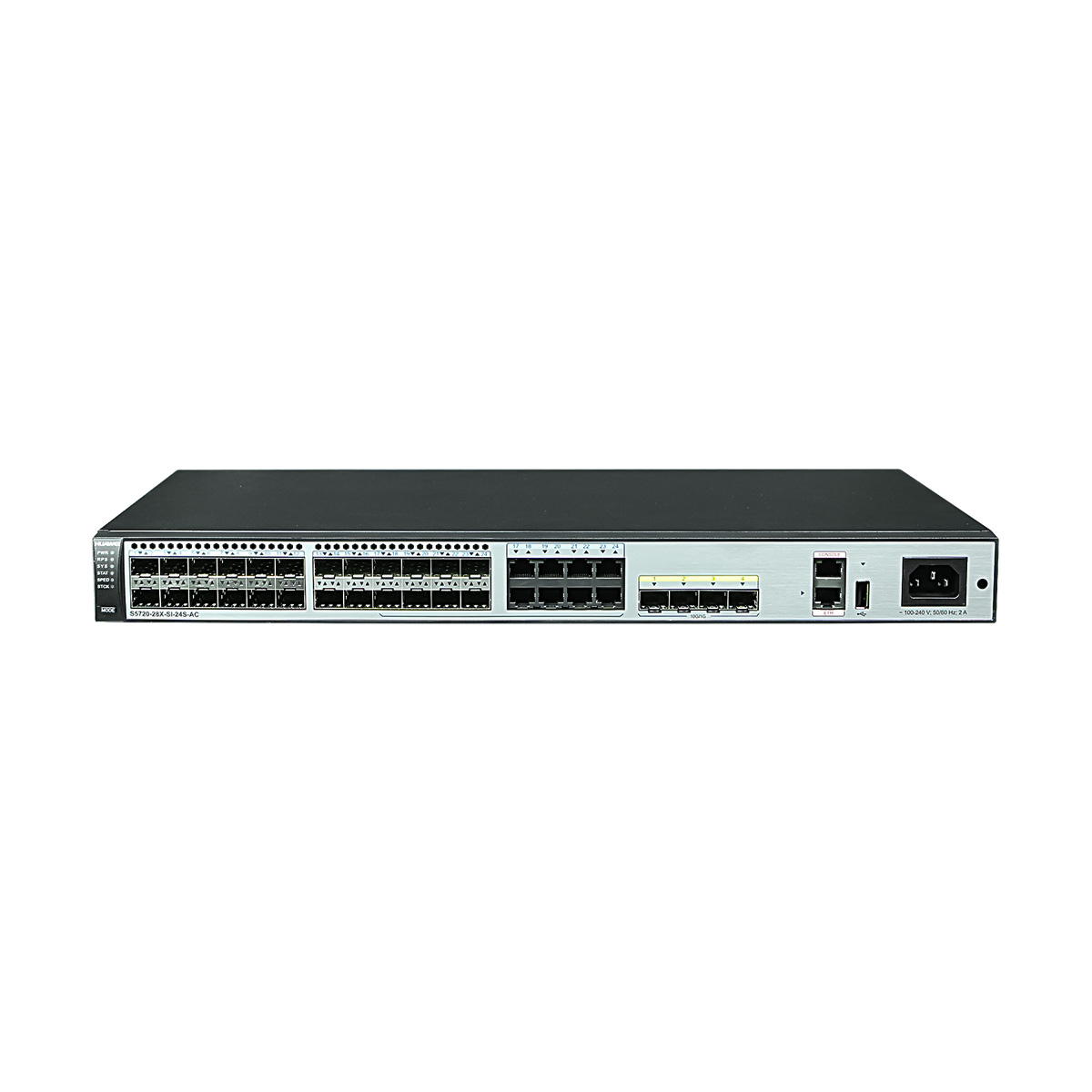

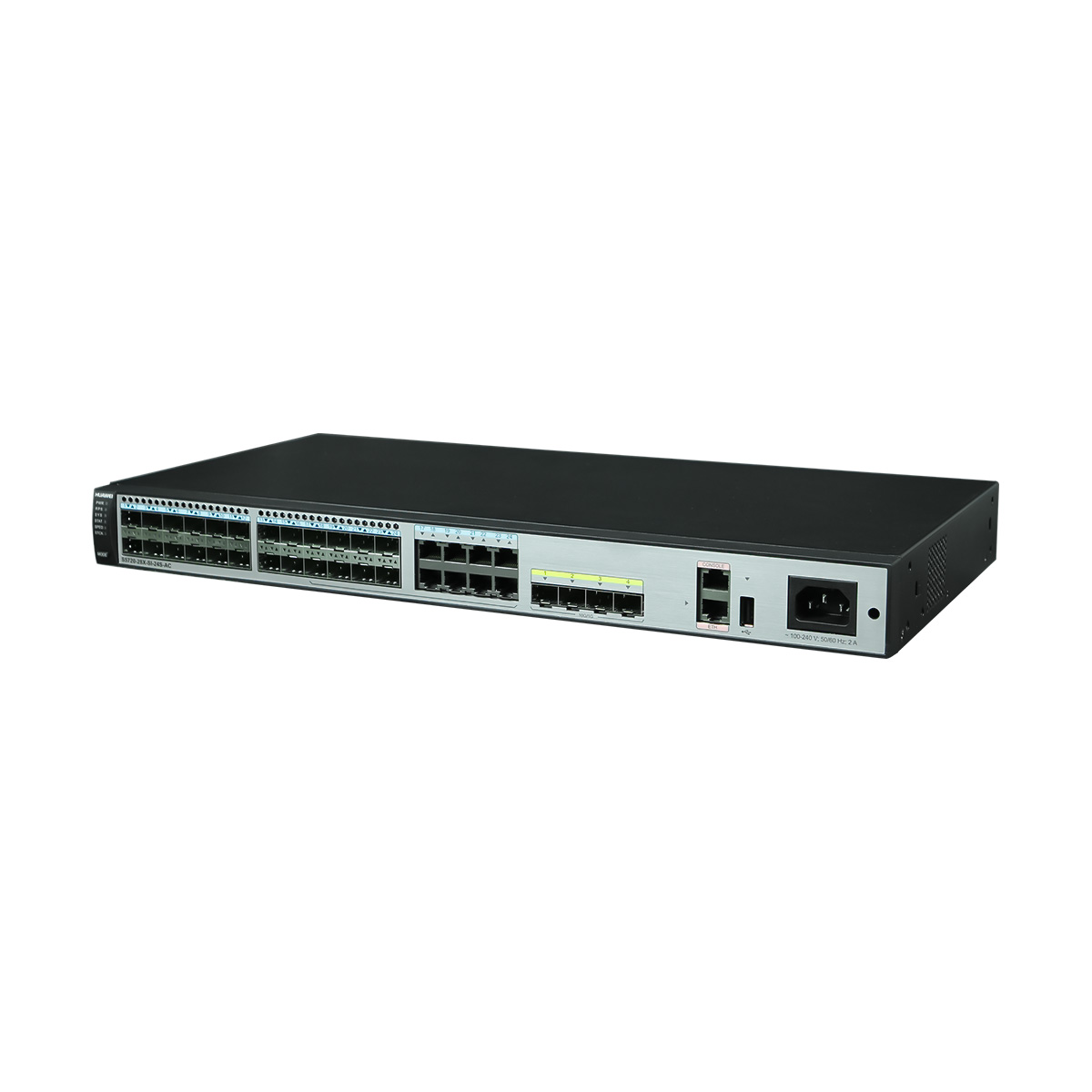

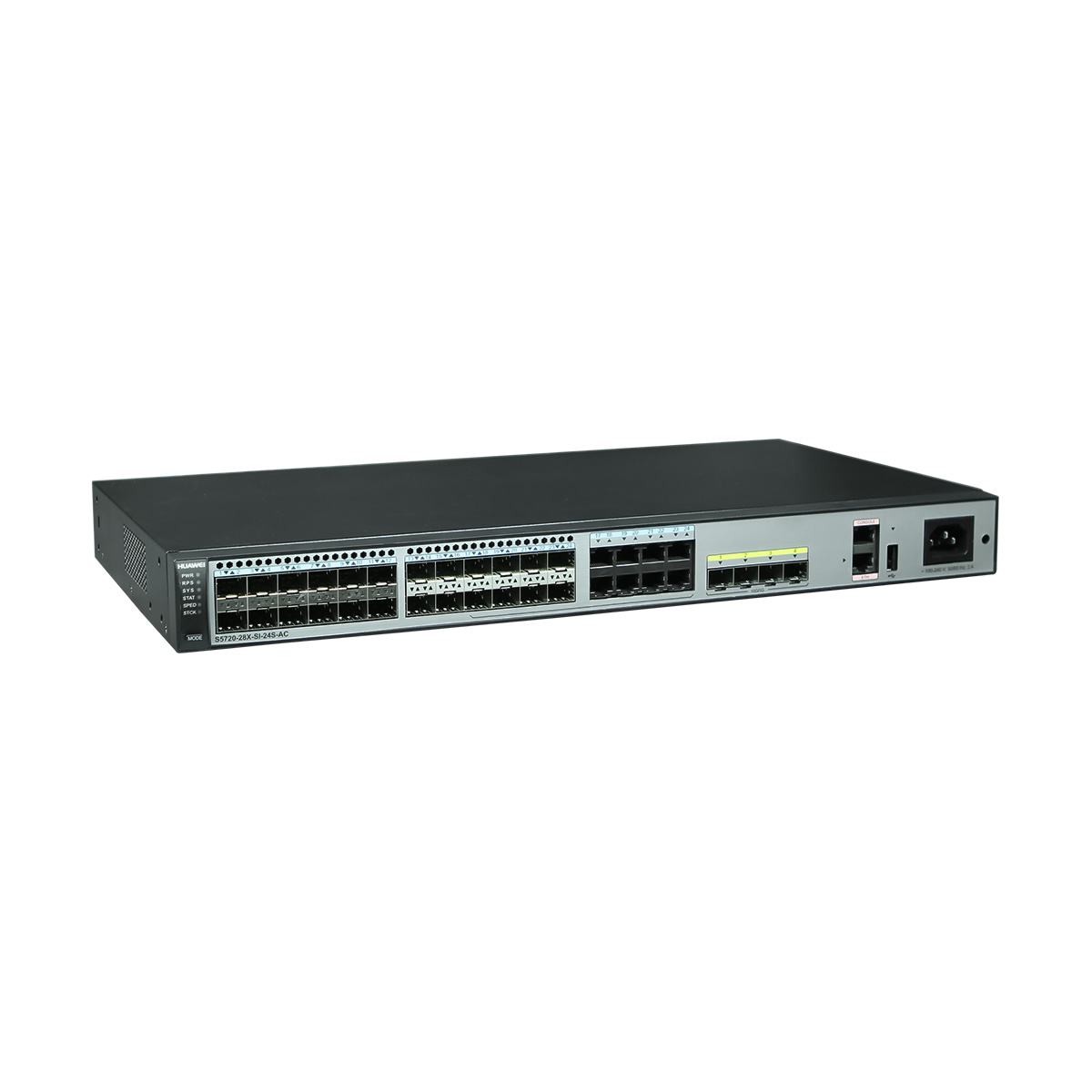

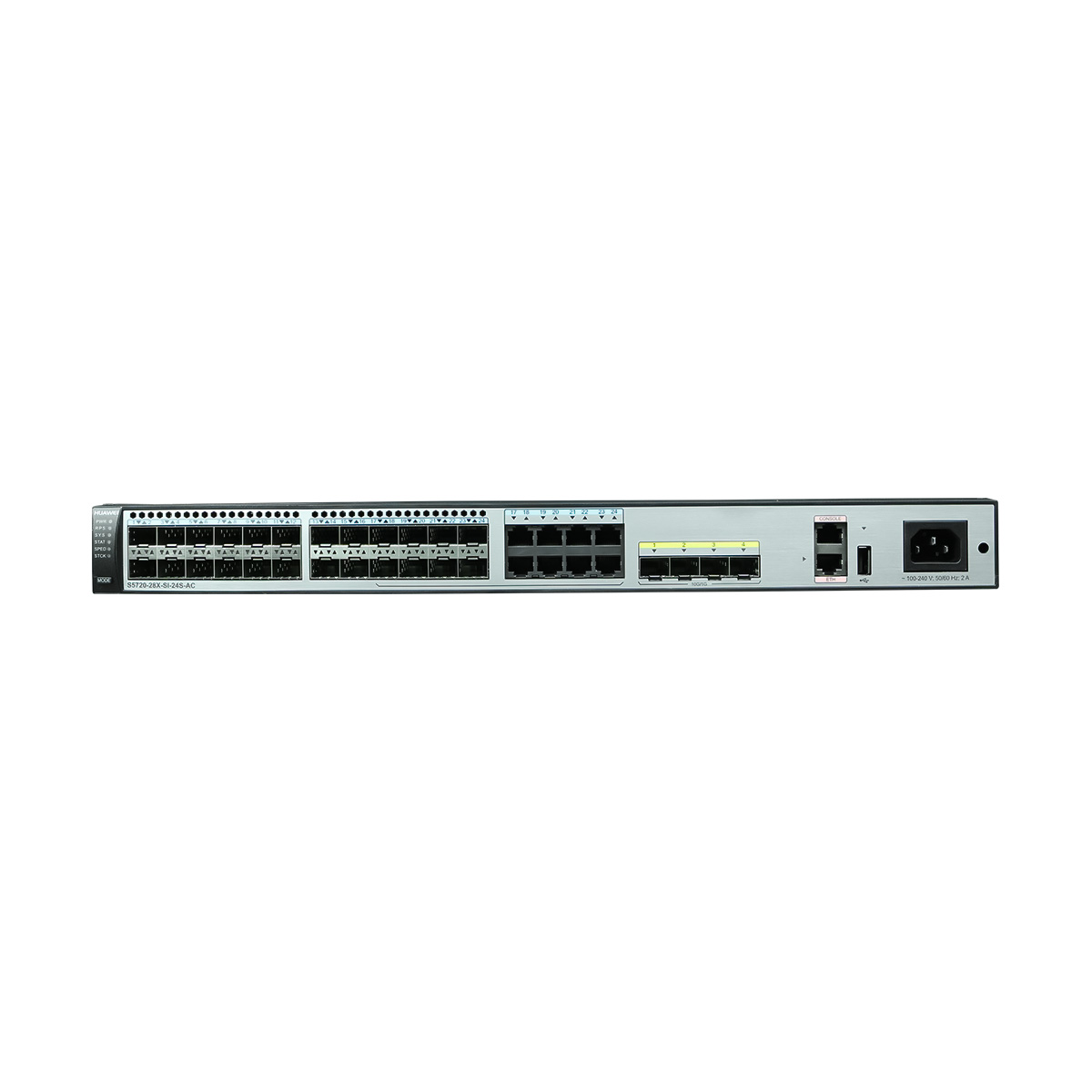

S5720-28X-SI-24S-AC

Rated 5.00 out of 5 based on 3 customer ratings

3 Reviews Write a review

PN98010625

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28X-SI-24S-AC switch supports 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, 1 fixed AC power equipped

24 Ports Switch Fixed AC Switch GE Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-28X-SI-24S-AC overview

Huawei S5720-28X-SI-24S-AC switch with 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, 1 AC power fixed, which is one of the S5720 series switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-28X-SI-24S-AC quick specs

24 GE SFP ports

8 of which are dual-purpose 10/100/1000BASE-T or SFP ports

4 10GE SFP+ ports

1 fixed AC equipped

Forwarding performance is 98 Mpps

Switching capacity is 336 Gbit/s

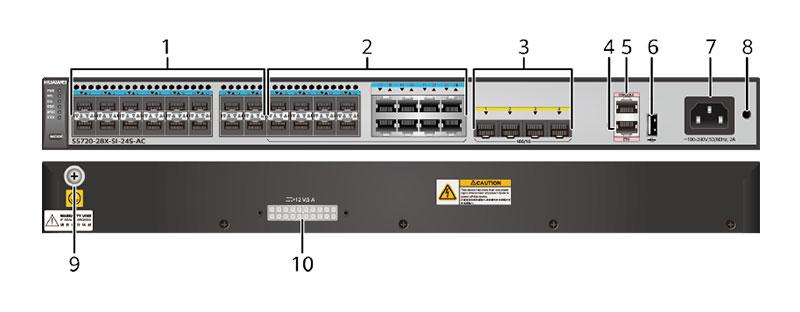

S5720-28X-SI-24S-AC appearance and structure

1. Sixteen 100/1000BASE-X ports	6. One USB port
2. Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X)	7. AC socket
3. Four 10GE SFP+ ports	8. Jack for AC power cable locking strap
4. One ETH management port	9. Ground screw
5. One console port	10. RPS socket

Item	S5720-28X-SI-24S-AC
Fixed port	24 Gig SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+
Forwarding performance	96 Mpps
Switching capacity	336 Gbit/s
Extended slot	NA
MAC address table	IEEE 802.1d compliance
	16K MAC address entries
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
IP routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast forwarding	PIM DM, PIM SM, PIM SSM IGMP v1/v2/v3, IGMP v1/v2/v3 snooping and IGMP fast leave MLD v1/v2 and MLD v1/v2 snooping Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security features	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist IEEE 802.1x authentication, MAC address authentication, and Portal authentication DHCPv4/v6 client/relay/server/snooping Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Supports separation between user authentication and policy enforcement points IPSec
Super Virtual Fabric (SVF)	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
Management and Maintenance	iStack (using service ports as stack ports) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels 802.3az EEE sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 mm x 507 mmx 44.4 mm
Relative humidity	5% to 95% (noncondensing)
Heat dissipation	Heat dissipation using fans supporting intelligent speed adjustment

Item	S5720-28X-SI-24S-AC
Fixed port	24 Gig SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+
Forwarding performance	96 Mpps
Switching capacity	336 Gbit/s
Extended slot	NA
MAC address table	IEEE 802.1d compliance
	16K MAC address entries
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
IP routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast forwarding	PIM DM, PIM SM, PIM SSM IGMP v1/v2/v3, IGMP v1/v2/v3 snooping and IGMP fast leave MLD v1/v2 and MLD v1/v2 snooping Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security features	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist IEEE 802.1x authentication, MAC address authentication, and Portal authentication DHCPv4/v6 client/relay/server/snooping Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets Supports separation between user authentication and policy enforcement points IPSec
Super Virtual Fabric (SVF)	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
Management and Maintenance	iStack (using service ports as stack ports) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels 802.3az EEE sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 mm x 507 mmx 44.4 mm
Relative humidity	5% to 95% (noncondensing)
Heat dissipation	Heat dissipation using fans supporting intelligent speed adjustment

Weight	14.0000 kg
Dimensions	71.0000 × 55.0000 × 17.5000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
