Huawei S5720-28X-PWR-SI-DC dual supports 24 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 2 DC equipped, PoE+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-28X-PWR-SI-DC dual overview

Huawei S5720-28X-PWR-SI-DC switch with 24 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, 2 DC equipped, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.



S5720-28X-PWR-SI-DC dual quick specs

24 10/100/1000BASE-T ports

4 of which are dual-purpose 10/100/1000 or SFP ports

4 10GE SFP+ ports

2 hot swappable AC/DC power supplies, 2 DC equipped

PoE+

Forwarding performance is 96 Mpps

Switching capacity is 336 Gbit/s

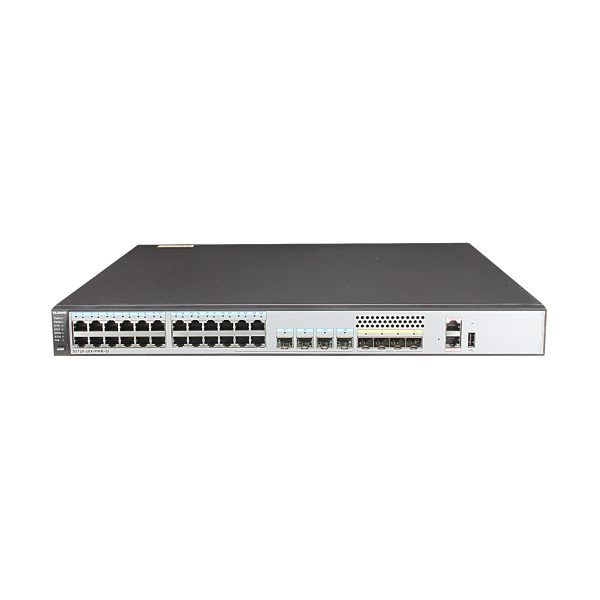

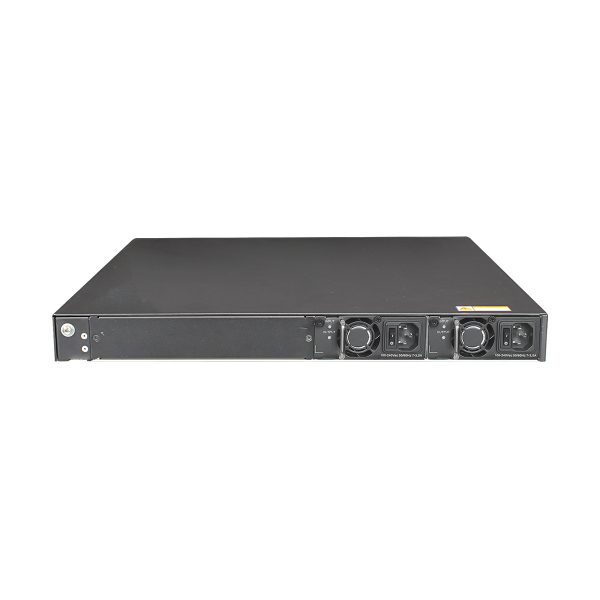

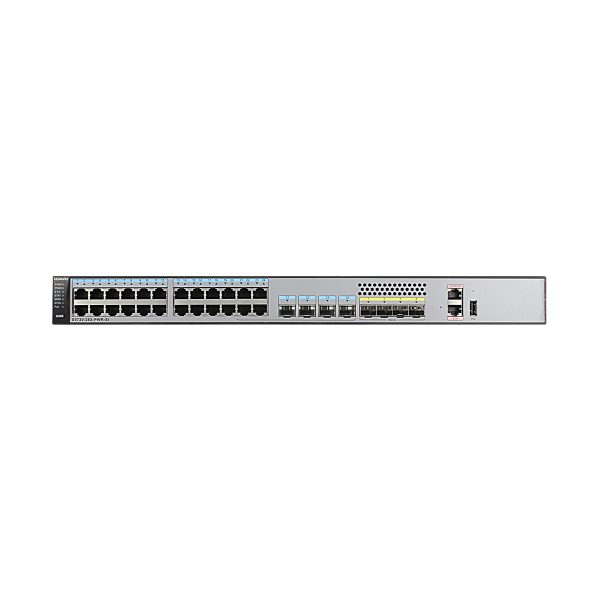

S5720-28X-PWR-SI-DC dual appearance and structure

S5720-28X-PWR-SI-DC dual appearance and structure

1. Twenty PoE+ 10/100/1000BASE-T ports 6. One USB port
2. Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) 7. Ground screw
3. Four 10GE SFP+ ports 8. ESN label
4. One ETH management port 9. Power module slot 2
5. One console port 10. Power module slot 1

Item S5720-28X-PWR-SI-DC dual
Fixed port 24 10/100/1000 Ethernet PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports
ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
Forwarding performance 96 Mpps
Switching capacity 336 Gbit/s
Extended slot NA
CPU Frequency:800 MHz
Cores:2
Storage Memory (RAM):512 MB
Flash memory: Hardware: 512MB, of which 240 MB is available for users
MAC address table IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Wireless AC AP access control, AP domain management, and AP configuration template management, Radio management, unified static configuration, and dynamic centralized management, WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame 10K
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Rate limitation in the inbound and outbound directions of a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP fields of packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
Queue-based rate limitation and shaping on ports
HQoS
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond- protection switchover
SEP
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Supports a two-layer client architecture
Management and Maintenance Virtual cable test, SNMP v1/v2c/v3, RMON
Network management system (NMS) and Web management
System logs and multi-level alarms
802.3az EEE
GVRP
Dying Gasp upon power-off
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar with DTP
VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment Operating temperature:0-1800m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Chassis height 1 U
Typical power consumption without PD: 31.8W; with PD: <913W(PoE:740W)

Additional information

Weight 14.0000 kg
Dimensions 71.0000 × 55.0000 × 17.5000 cm
Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Item S5720-28X-PWR-SI-DC dual
Fixed port 24 10/100/1000 Ethernet PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, 4 10GE SFP+ ports
ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
Forwarding performance 96 Mpps
Switching capacity 336 Gbit/s
Extended slot NA
CPU Frequency:800 MHz
Cores:2
Storage Memory (RAM):512 MB
Flash memory: Hardware: 512MB, of which 240 MB is available for users
MAC address table IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Wireless AC AP access control, AP domain management, and AP configuration template management, Radio management, unified static configuration, and dynamic centralized management, WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame 10K
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Rate limitation in the inbound and outbound directions of a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP fields of packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
Queue-based rate limitation and shaping on ports
HQoS
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond- protection switchover
SEP
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches and APs as one device for management
Supports a two-layer client architecture
Management and Maintenance Virtual cable test, SNMP v1/v2c/v3, RMON
Network management system (NMS) and Web management
System logs and multi-level alarms
802.3az EEE
GVRP
Dying Gasp upon power-off
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar with DTP
VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment Operating temperature:0-1800m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Chassis height 1 U
Typical power consumption without PD: 31.8W; with PD: <913W(PoE:740W)

Reviews

  1. Steven –

    Model name with “dual”, means S5720-28X-PWR-SI-DC equipped 2pcs of DC power modules

  2. Luis Antonio –

    Este modelo contiene dos módulos de potencia, uno de ellos se puede usar como repuesto, muy bueno,
