S5720-28X-PWH-LI-AC

Rated 3.00 out of 5 based on 2 customer ratings

1 Review Write a review

PN98010659

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28X-PWH-LI-AC switch supports 16 10/100/1000BASE-T ports, 8 100/1000/2500BASE-T PoE ports, 4 10GE SFP+ ports, fixed AC power, supports RPS, PoE++

16 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-28X-PWH-LI-AC Overview

Huawei S5720-28X-PWH-LI-AC is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With 24 Ethernet 10/100/1,000 ports, and 4 10 Gig SFP+, the switch provides the ubiquitous service function to ensure consistent user experience, what’s more, the special PoE function guarantees constant power supply to meet customers’ electricity demand. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-28X-PWH-LI-AC switch is the best choice for the branches of high-quality large- and middle-sized campus networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5720-28X-PWH-LI-AC Quick Spec

24 Ethernet 10/100/1,000 ports, and 4 10 Gig SFP+

Forwarding performance is 126 Mpps

Switching capacity is 336 Gbps

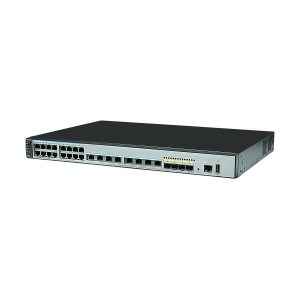

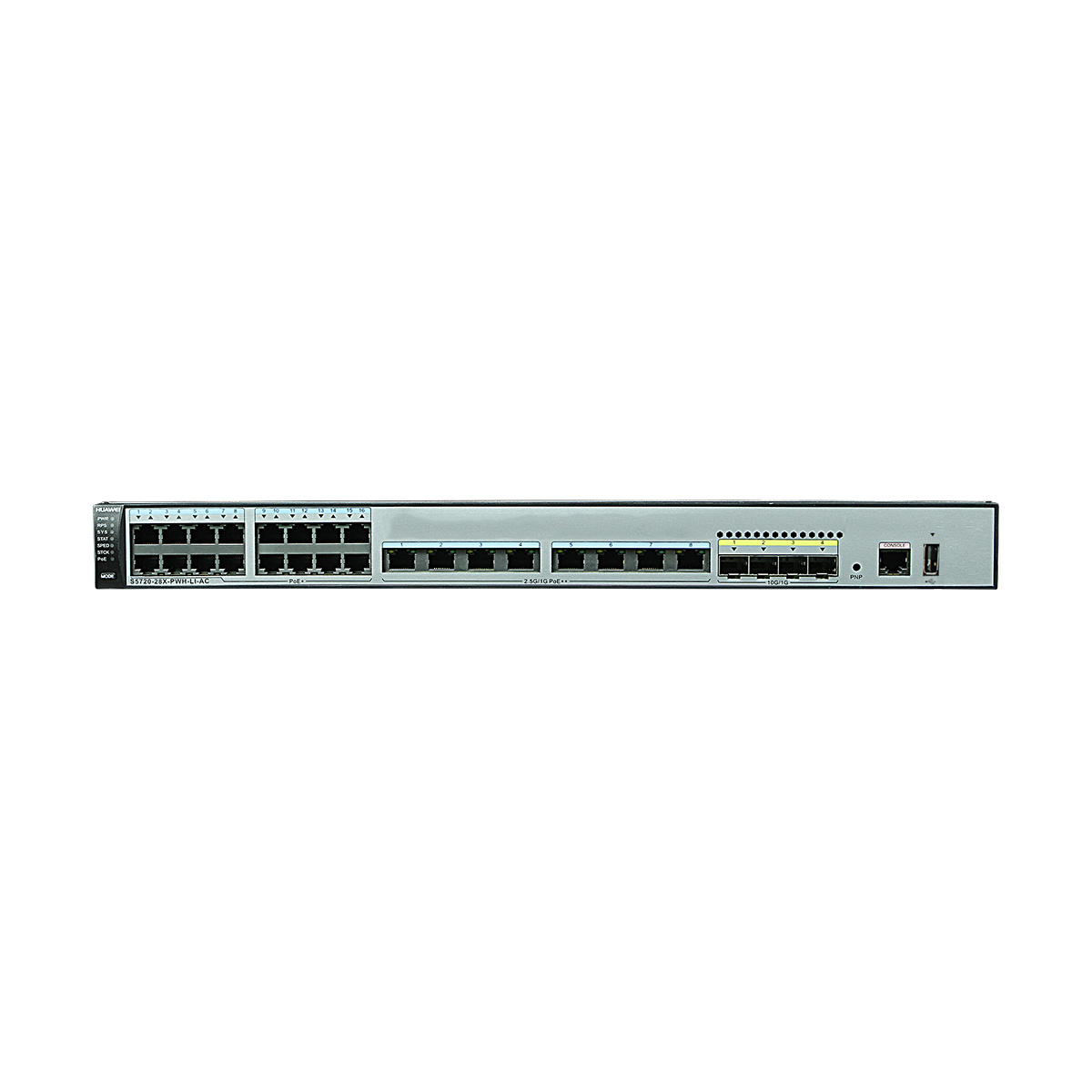

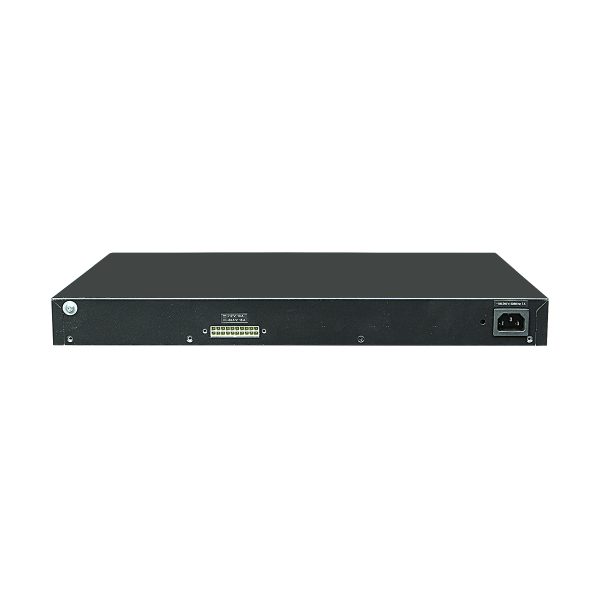

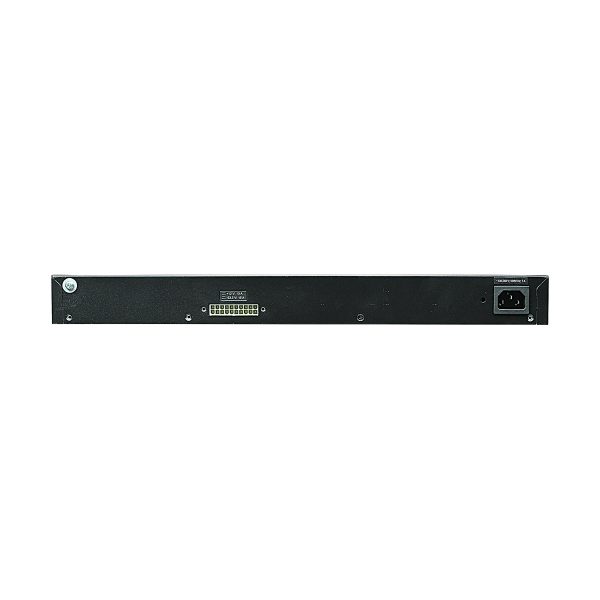

S5720-28X-PWH-LI-AC appearance and structure

1	Sixteen PoE+ 10/100/1000BASE-T ports	6	One USB port
2	Eight PoE++ 100M/1000M/2.5G BASE-T ports (MultiGE port)	7	Ground screw
3	Four 10GE SFP+ ports	8	RPS socket
4	One PNP button	9	Jack for AC power cable locking strap
5	One console port	10	AC socket

S5720-28X-PWH-LI-AC Datasheet

Item		S5720-28X- PWH-LI-AC
Forwarding performance		126 Mpps
Switching capacity		336 Gbit/s
Ports description		16 10/100/1000Base-T Ethernet ports, 8 100/1000/2500Base-T PoE ports, 4 10GE SFP+ ports
Fixed port	GE port	16
	10GE port	4
	Multi-GE port	8
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 67.3 W With PDs: 473 W (PDs: 360 W)
	Power consumption in the case of 30% traffic load	51.6 W
	Power consumption in the case of 100% traffic load	53.4 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 229.7 With PDs: 1614
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C
	Operating temperature	1800–5000 m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95% (non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	55.2 dB(A)
	Noise under high temperature (sound power)	71.4 dB(A)
	Noise under normal temperature (sound pressure)	43.4 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)	50.6
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.85 kg

S5720-28X-PWH-LI-AC Datasheet

Item		S5720-28X- PWH-LI-AC
Forwarding performance		126 Mpps
Switching capacity		336 Gbit/s
Ports description		16 10/100/1000Base-T Ethernet ports, 8 100/1000/2500Base-T PoE ports, 4 10GE SFP+ ports
Fixed port	GE port	16
	10GE port	4
	Multi-GE port	8
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 67.3 W With PDs: 473 W (PDs: 360 W)
	Power consumption in the case of 30% traffic load	51.6 W
	Power consumption in the case of 100% traffic load	53.4 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 229.7 With PDs: 1614
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C
	Operating temperature	1800–5000 m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95% (non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	55.2 dB(A)
	Noise under high temperature (sound power)	71.4 dB(A)
	Noise under normal temperature (sound pressure)	43.4 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)	50.6
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.85 kg

Weight	6.0000 kg
Dimensions	46.0000 × 52.2000 × 10.5000 cm
