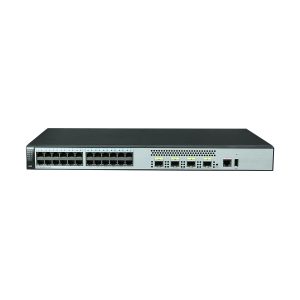

s5720 28x li ac 1

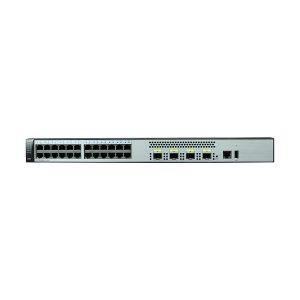

s5720 28x li ac 2

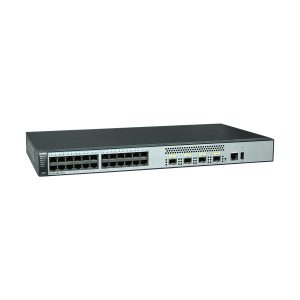

s5720 28x li ac 3
s5720 28x li ac 4
s5720 28x li ac 5
Categories:

S5720-28X-LI-AC

1 Review Write a review
PN98010581
AvailabilityIn Stock
Campus Switch S5720-LI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28X-LI-AC switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-28X-LI-AC Overview

Huawei S5720-28X-LI-AC switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power, supports RPS which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-28X-LI-AC Quick Specs

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

Fixed AC power

Supports RPS

Forwarding performance is 108 Mpps

Switching capacity is 336 Gbit/s

S5720-28X-LI-AC appearance and structure

S5720-28X-LI-AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports 6. Ground screw
2. Four 10GE SFP+ ports 7. RPS socket
3. One PNP button 8. Jack for AC power cable locking strap
4. One console port 9. AC socket
5. One USB port
S5720-28X-LI-AC Datasheet
Item S5720-28X-LI-AC
Forwarding performance 108 Mpps
Switching capacity 336 Gbit/s
Ports description 24 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ ports
Fixed port GE port 24
10GE port 4
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 800 MHz
Core 1
Storage Memory (RAM) 512 MB
Flash memory Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range 100 V AC to 240 V AC; 50/60Hz
Maximum voltage range 90 V AC to 264 V AC; 47 Hz to 63 Hz
Maximum input current 0.8 A
Maximum power consumption of the device 29.5 W
Power consumption in the case of 30% traffic load 21.4 W
Power consumption in the case of 100% traffic load 27.8 W
Heat dissipation system Heat dissipation mode Heat dissipation using fans
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 100.7
Environment parameters Operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m:The operating temperature decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to +70°C
Relative humidity 5%-95%(non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 47 dB(A)
Noise under high temperature (sound power) 47 dB(A)
Noise under normal temperature (sound pressure) 37.8 dB(A)
Surge protection specification (RJ45 service port) ±7 kV in common mode
Surge protection specification (power port) ±6 kV in differential or common mode
Reliability MTBF (year) 45
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 3.9 kg

Additional information

Weight 4.0000 kg
Dimensions 55.0000 × 35.0000 × 9.0000 cm
Campus Switch

S5720-28X-LI-AC Datasheet
Item S5720-28X-LI-AC
Forwarding performance 108 Mpps
Switching capacity 336 Gbit/s
Ports description 24 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ ports
Fixed port GE port 24
10GE port 4
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 800 MHz
Core 1
Storage Memory (RAM) 512 MB
Flash memory Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range 100 V AC to 240 V AC; 50/60Hz
Maximum voltage range 90 V AC to 264 V AC; 47 Hz to 63 Hz
Maximum input current 0.8 A
Maximum power consumption of the device 29.5 W
Power consumption in the case of 30% traffic load 21.4 W
Power consumption in the case of 100% traffic load 27.8 W
Heat dissipation system Heat dissipation mode Heat dissipation using fans
Number of fan modules 1
Airflow Air flows in from the left side and front panel and exhausts from the right side
Maximum heat dissipation of the device (BTU/hour) 100.7
Environment parameters Operating temperature 0-1800 m: 0°C to 45°C 1800-5000 m:The operating temperature decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to +70°C
Relative humidity 5%-95%(non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 47 dB(A)
Noise under high temperature (sound power) 47 dB(A)
Noise under normal temperature (sound pressure) 37.8 dB(A)
Surge protection specification (RJ45 service port) ±7 kV in common mode
Surge protection specification (power port) ±6 kV in differential or common mode
Reliability MTBF (year) 45
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 3.9 kg
