Categories:S5720 Series

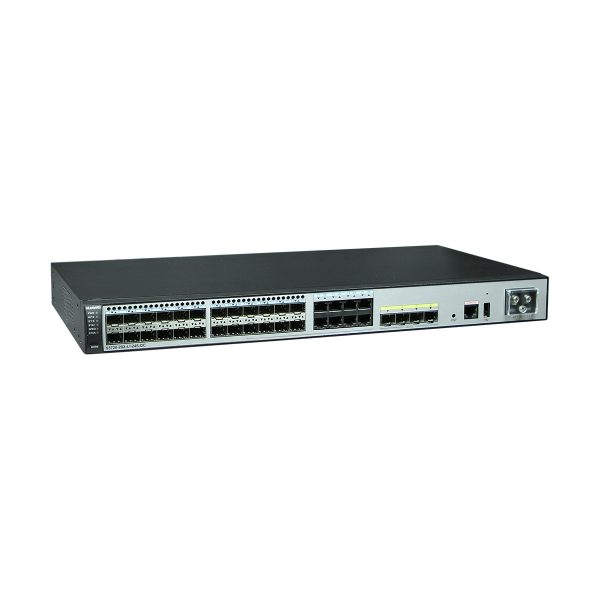

S5720-28X-LI-24S-DC

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN98010631

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28X-LI-24S-DC switch supports 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, fixed DC power, supports RPS

24 Ports Switch Fixed DC Switch GE Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-28X-LI-24S-DC overview

Huawei S5720-28X-LI-24S-DC with 24 GE SFP ports, 8 of which are dual-purpose 10/100/1000BASE-T or SFP ports, 4 10GE SFP+ ports, fixed DC power, supports RPS, which is one the Huawei S5720 series switch.

The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-28X-LI-24S-DC quick specs

24 GE SFP ports

8 of which are dual-purpose 10/100/1000BASE-T or SFP ports

4 10GE SFP+ ports, fixed DC power

supports RPS

Forwarding performance is 108 Mpps

Switching capacity is 336 Gbps

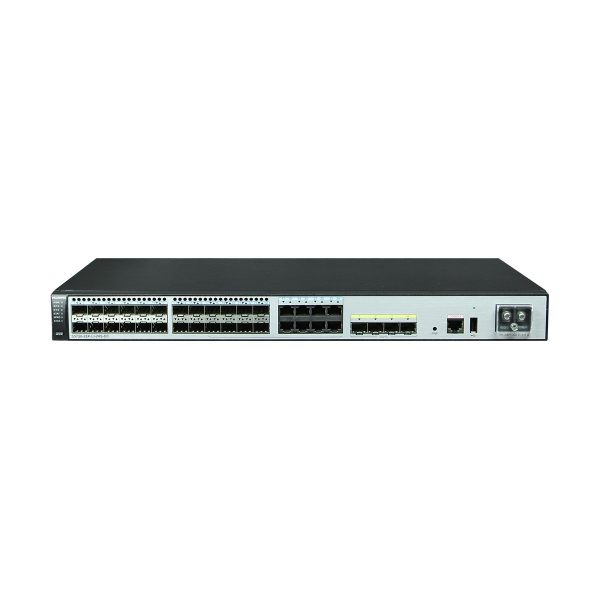

S5720-28X-LI-24S-DC appearance and structure

1	Sixteen 100/1000BASE-X ports	6	One USB port
2	Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X)	7	DC power terminal
3	Four 10GE SFP+ ports	8	Ground screw
4	One PNP button	9	RPS socket
5	One console port

S5720-28X-LI-24S-DC appearance and structure

Item		S5720-28X-LI-24S-DC
Forwarding performance		108 Mpps
Switching capacity		336 Gbit/s
Ports description		24 Gig SFP ports, 8 of which are dual-purpose 10/100/1000Base-T or SFP ports, 4 10GE SFP+ ports
Fixed port	GE port	24
Fixed port	10GE port	4
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Core	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in DC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	-48 V DC to -60 V DC
	Maximum voltage range	36 V DC to -72 V DC
	Maximum input current	3 A
	Maximum power consumption of the device	42.7W
	Power consumption in the case of 30% traffic load	30.3 W
	Power consumption in the case of 100% traffic load	34.4 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	1
	Airflow	Air flows in from the left side and front panel and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	145.7
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	43 dB(A)
	Noise under high temperature (sound power)	64.7 dB(A)
	Noise under normal temperature (sound pressure)	37.8 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±1 kV in differential mode ±2 kV in common mode
Reliability	MTBF (year)	41
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	250 x 180 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	4.1 kg

S5720-28X-LI-24S-DC appearance and structure

Item		S5720-28X-LI-24S-DC
Forwarding performance		108 Mpps
Switching capacity		336 Gbit/s
Ports description		24 Gig SFP ports, 8 of which are dual-purpose 10/100/1000Base-T or SFP ports, 4 10GE SFP+ ports
Fixed port	GE port	24
Fixed port	10GE port	4
Management port	Console port (RJ45)	Supported
Management port	USB port	USB 2.0
CPU	Frequency	800 MHz
CPU	Core	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in DC
	Power supply redundancy	Built-in single power supply and RPS in 6:1 mode
	RPS	Supported
	Rated voltage range	-48 V DC to -60 V DC
	Maximum voltage range	36 V DC to -72 V DC
	Maximum input current	3 A
	Maximum power consumption of the device	42.7W
	Power consumption in the case of 30% traffic load	30.3 W
	Power consumption in the case of 100% traffic load	34.4 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	1
	Airflow	Air flows in from the left side and front panel and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	145.7
Environment parameters	Operating temperature	0-1800 m: 0°C to 45°C 1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to +70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	43 dB(A)
	Noise under high temperature (sound power)	64.7 dB(A)
	Noise under normal temperature (sound pressure)	37.8 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±1 kV in differential mode ±2 kV in common mode
Reliability	MTBF (year)	41
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	250 x 180 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	4.1 kg

Weight	4.0000 kg
Dimensions	55.0000 × 35.0000 × 9.0000 cm
