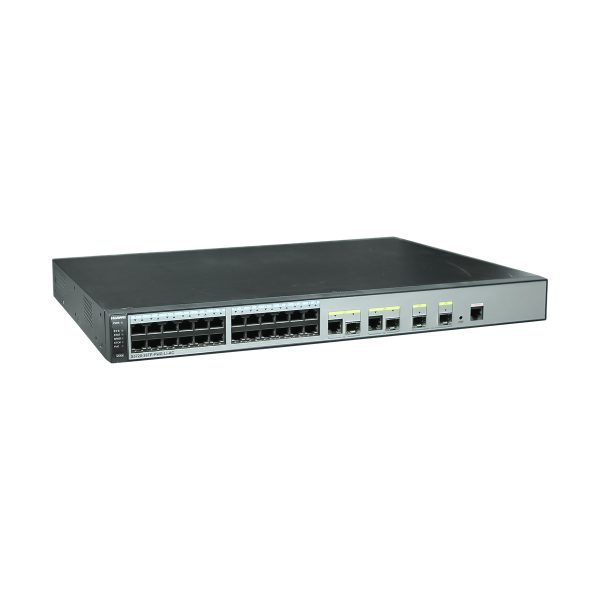

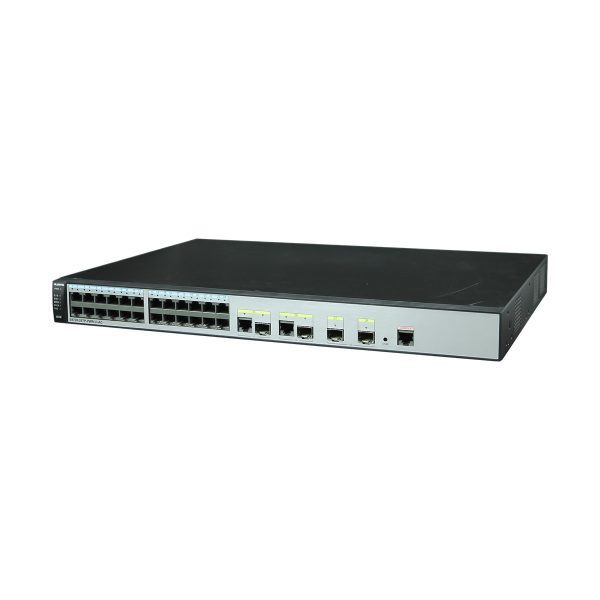

S5720-28TP-PWR-LI-AC

Rated 4.50 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN98010637

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28TP-PWR-LI-AC switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power, PoE+

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-28TP-PWR-LI-AC Overview

The S5720S-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control.S5720-28TP-PWR-LI-AC supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports. It provides customers with an energy-saving, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. Additionally, Huawei customizes specialized models to meet customer requirements in special scenarios.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5720-28TP-PWR-LI-AC Quick Spec

24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports

Forwarding performance is 46.5 Mpps

Switching capacity is 336 Gbps

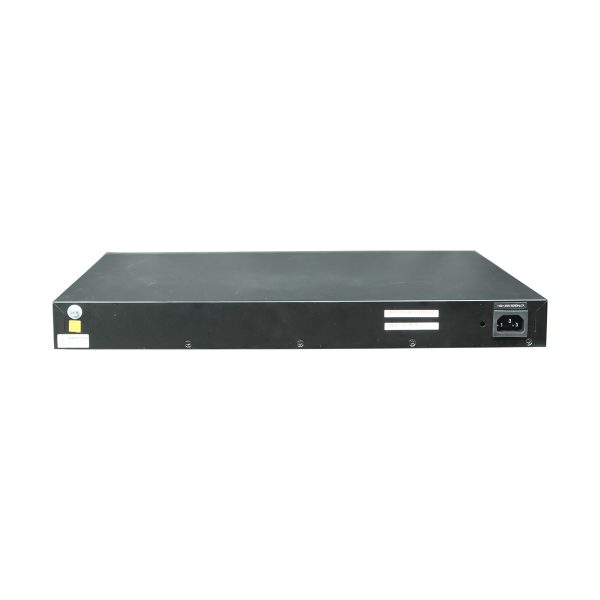

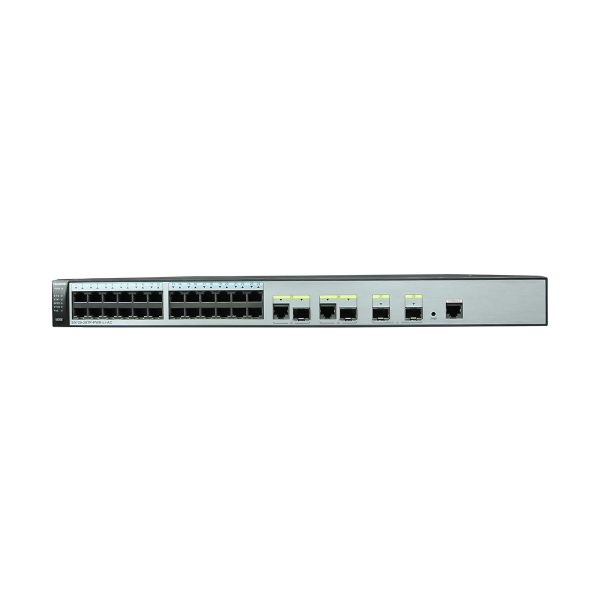

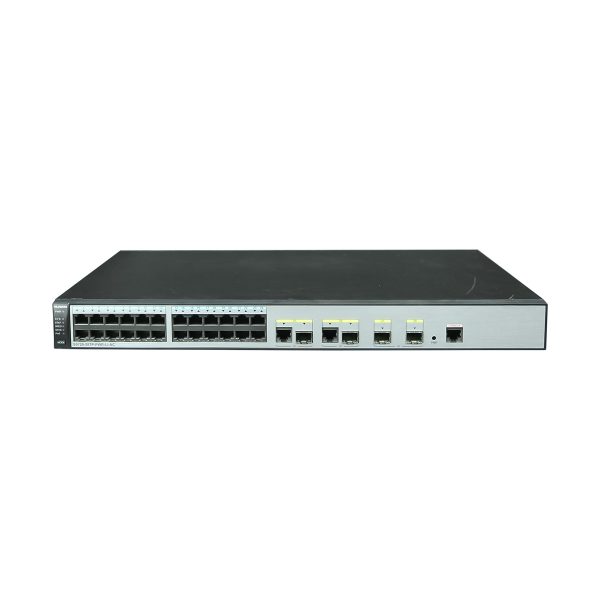

S5720-28TP-PWR-LI-AC appearance and structure

1	Twenty-four PoE+ 10/100/1000BASE-T ports	5	One console port
2	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)	6	Ground screw
3	Two 1000BASE-X ports	7	Jack for AC power cable locking strap
4	One PNP button	8	AC socket

S5720-28TP-PWR-LI-AC Datasheet

Item		S5720-28TP-PWR-LI-AC
Forwarding performance		46.5 Mpps
Switching capacity		336 Gbit/s
Ports description		24 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports
Fixed port	GE port	28
	10GE port	NA
	Multi-GE port	NA
Management port	Console port (RJ45)	Supported
Management port	USB port	NA
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	NA
	RPS	NA
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 38.8 W
		With PDs: 444.8 W
		(PDs: 369.6 W)
	Power consumption in the case of 30% traffic load1	27.4 W
	Power consumption in the case of 100% traffic load1	31.1 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 132.4 With PDs: 1518
Environment parameters	Operating temperature	0-1800 m: 0°C to 50°C 1800–5000m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	48.6 dB(A)
	Noise under high temperature (sound power)	66.4 dB(A)
	Noise under normal temperature (sound pressure)	43.3 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)²	40
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.3 kg

S5720-28TP-PWR-LI-AC Datasheet

Item		S5720-28TP-PWR-LI-AC
Forwarding performance		46.5 Mpps
Switching capacity		336 Gbit/s
Ports description		24 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports
Fixed port	GE port	28
	10GE port	NA
	Multi-GE port	NA
Management port	Console port (RJ45)	Supported
Management port	USB port	NA
CPU	Frequency	800 MHz
CPU	Cores	1
Storage	Memory (RAM)	512 MB
Storage	Flash memory	Hardware: 512 MB, of which 240 MB is available for users
Power supply system	Power supply type	Built-in AC
	Power supply redundancy	NA
	RPS	NA
	Rated voltage range	100-240V AC; 50/60Hz
	Maximum voltage range	90-264V AC; 47Hz-63Hz
	Maximum input current	7 A
	Maximum power consumption of the device	Without PDs: 38.8 W
		With PDs: 444.8 W
		(PDs: 369.6 W)
	Power consumption in the case of 30% traffic load1	27.4 W
	Power consumption in the case of 100% traffic load1	31.1 W
Heat dissipation system	Heat dissipation mode	Air-cooled heat dissipation and intelligent fan speed adjustment
	Number of fan modules	2
	Airflow	Air flows in from the left side and exhausts from the right side
	Maximum heat dissipation of the device (BTU/hour)	Without PDs: 132.4 With PDs: 1518
Environment parameters	Operating temperature	0-1800 m: 0°C to 50°C 1800–5000m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
	Storage temperature	-40°C to+70°C
	Relative humidity	5%-95%(non-condensing)
	Operating altitude	5000 m
	Noise under normal temperature (sound power)	48.6 dB(A)
	Noise under high temperature (sound power)	66.4 dB(A)
	Noise under normal temperature (sound pressure)	43.3 dB(A)
	Surge protection specification (RJ45 service port)	±7 kV in common mode
	Surge protection specification (power port)	±6 kV in differential or common mode
Reliability	MTBF (year)²	40
	MTTR (hour)	2
	Availability	> 0.99999
Certification		EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications	Chassis dimensions (W x D x H, mm)	442 x 310 x 43.6
	Chassis height	1 U
	Chassis weight (full configuration weight, including weight of packaging materials)	5.3 kg

Weight	5.5000 kg
Dimensions	46.0000 × 52.2000 × 10.5000 cm
Campus Switch	S5720-LI
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
