S5720-28TP-LI-AC

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN98010639

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5720-28TP-LI-AC switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power

24 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5720-28TP-LI-AC overview

Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5720-LI series
support intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with a
green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes
specialized models to meet customer requirements and to suit special scenarios. S5720-28TP-LI-AC 24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.

S5720-28TP-LI-AC quick specs

24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports

Forwarding performance is 51 Mpps

Switching capacity is 336 Gbps

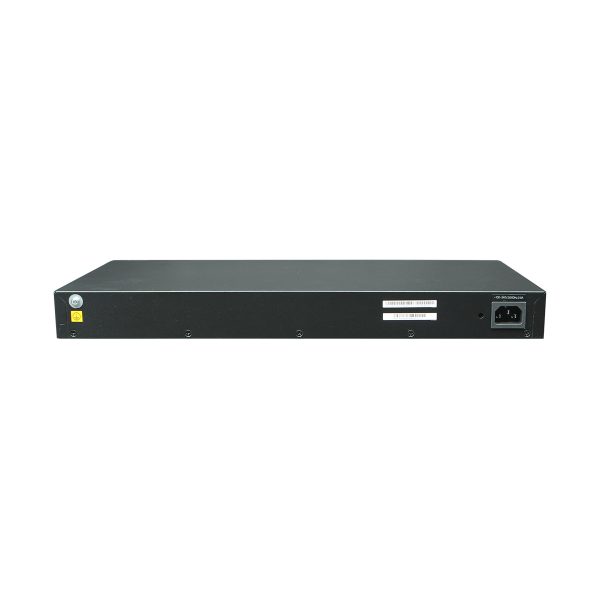

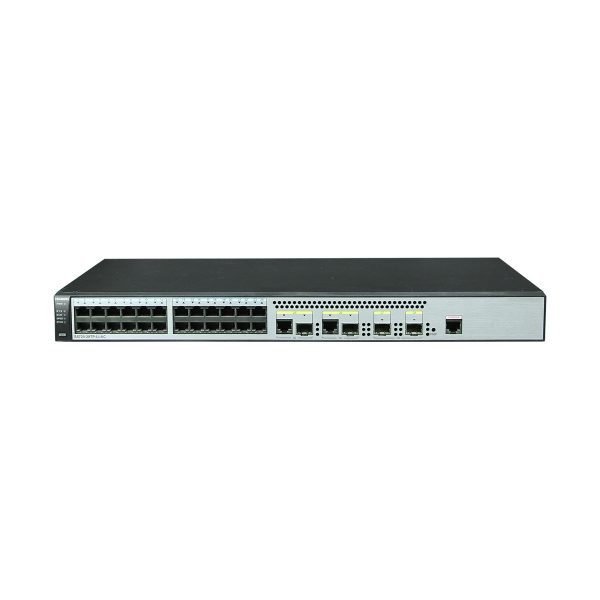

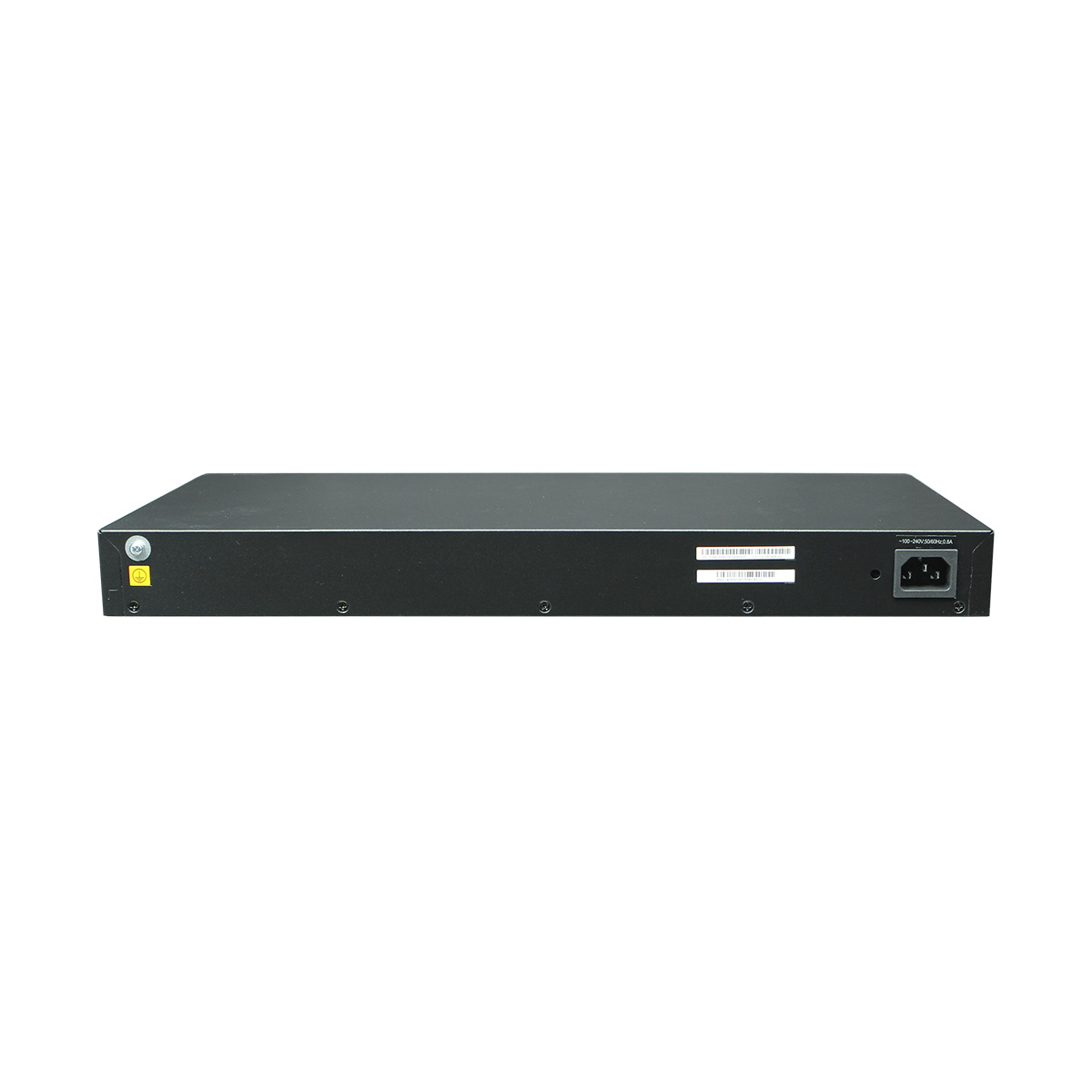

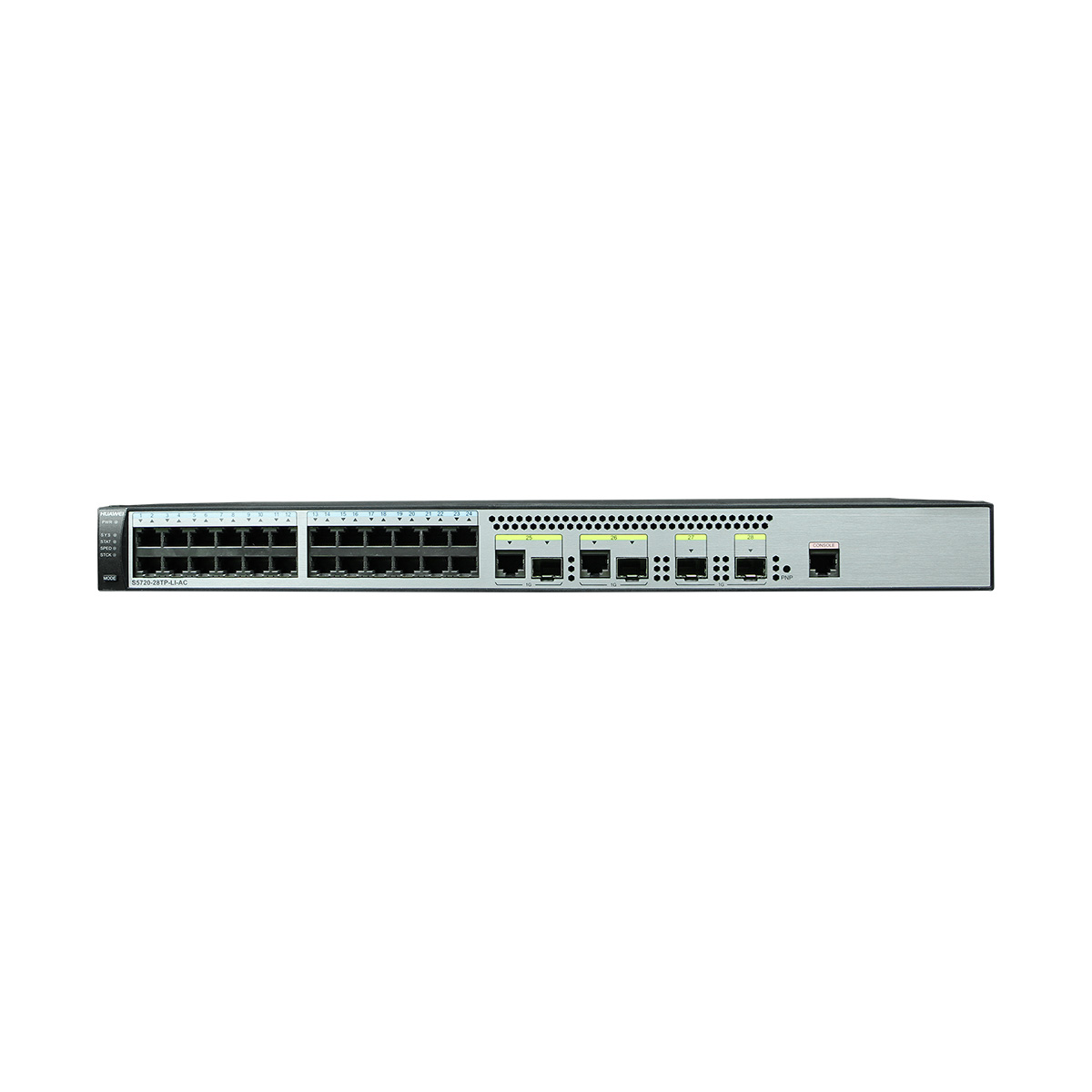

S5720-28TP-LI-AC appearance and structure

1	Twenty-four 10/100/1000BASE-T ports	5	One console port
2	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) Modules applicable to combo optical ports:	6	Ground screw
3	Two 1000BASE-X ports	7	Jack for AC power cable locking strap
4	One PNP button	8	AC socket

S5720-28TP-LI- AC Datasheet

Item	S5720-28TP-LI- AC
Fixed port	24 Ethernet 10/100/1000 ports, 4 Gig SFP ports (2 of which are dual purpose 10/100/1000Base-T or SFP ports)
Forwarding performance	51 Mpps
MAC address table	Interface-based MAC learning limiting
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame	10K
IP routing	Static routes, RIP, RIPng, OSPF
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, and VLAN ID
	Rate limiting in each queue and traffic shaping on interfaces
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Reliability	VRRP,VRRP for BFD,VRRP6
	EFM OAM (802.3ah)
	CFM OAM (802.1ag)
	ITU-Y.1731
	DLDP
	LACP
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack
	Virtual Cable Test (VCT)
	Remote configuration and maintenance using Telnet
	SNMPv1/v2c/v3
	RMON
	web-based NMS
	HTTPS
	LLDP/LLDP-MED
	System logs and multi-level alarms
	802.3az EEE
	Dying Gasp (S5720-X-LI, S5720-TP-LI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC:Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Typical power consumption	22.1W

S5720-28TP-LI- AC Datasheet

Item	S5720-28TP-LI- AC
Fixed port	24 Ethernet 10/100/1000 ports, 4 Gig SFP ports (2 of which are dual purpose 10/100/1000Base-T or SFP ports)
Forwarding performance	51 Mpps
MAC address table	Interface-based MAC learning limiting
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame	10K
IP routing	Static routes, RIP, RIPng, OSPF
IPv6 features	Neighbor Discovery (ND)
	Path maximum transmission unit (PMTU)
	IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types
	Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics collection
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, and VLAN ID
	Rate limiting in each queue and traffic shaping on interfaces
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and the limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Reliability	VRRP,VRRP for BFD,VRRP6
	EFM OAM (802.3ah)
	CFM OAM (802.1ag)
	ITU-Y.1731
	DLDP
	LACP
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration
	Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations
	Supports independent running client
Management and Maintenance	iStack
	Virtual Cable Test (VCT)
	Remote configuration and maintenance using Telnet
	SNMPv1/v2c/v3
	RMON
	web-based NMS
	HTTPS
	LLDP/LLDP-MED
	System logs and multi-level alarms
	802.3az EEE
	Dying Gasp (S5720-X-LI, S5720-TP-LI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC:Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Typical power consumption	22.1W

Weight	4.0000 kg
Dimensions	35.0000 × 9.0000 × 55.0000 cm
