Huawei S5720-12TP-PWR-LI-AC switch supports 8 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power, PoE+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5720-12TP-PWR-LI-AC overview

The S5720-12TP-LI-AC with 8 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP portsadopts the ground-free design. Only the 220 V power module needs to be grounded. This design facilitates switch deployment in the places where grounding is difficult, such as corridor.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5720-12TP-PWR-LI-AC quick spec

8 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports

Forwarding performance is 22.5 Mpps

Switching capacity is 336 Gbps

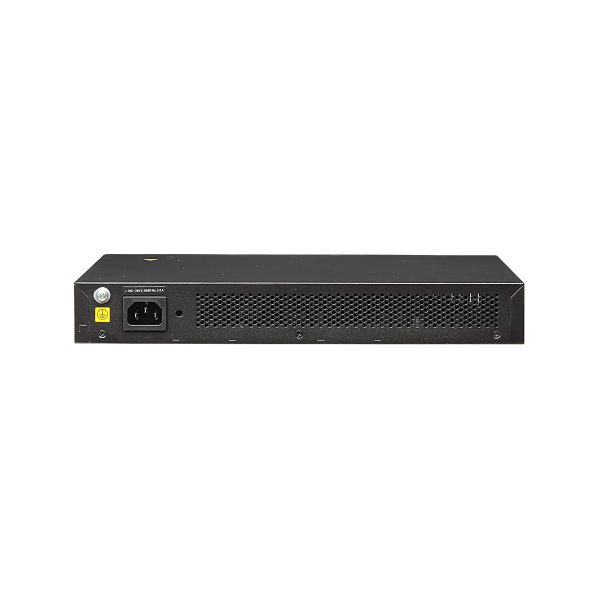

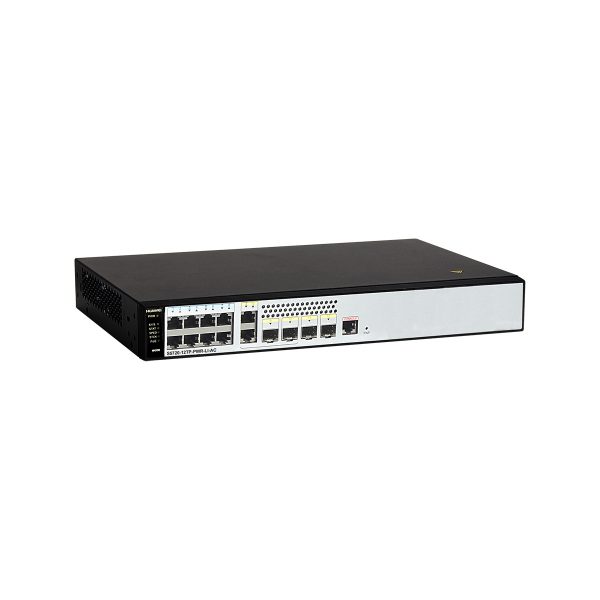

S5720-12TP-PWR-LI-AC appearance and structure

S5720-12TP-PWR-LI-AC appearance and structure

1 Eight PoE+ 10/100/1000BASE-T ports 5 One PNP button
2 Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) 6 One PNP button
3 Two 1000BASE-X ports 7 AC socket
4 One console port 8 Jack for AC power cable locking strap
S5720-12TP-PWR-LI-AC Datasheet
Item S5720-12TP-PWR-LI-AC
Forwarding performance 22.5 Mpps
Switching capacity 336 Gbit/s
Ports description 8 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports
Fixed port GE port 12
10GE port NA
Multi-GE port NA
Management port Console port (RJ45) Supported
USB port NA
CPU Frequency 800 MHz
Cores 1
Storage Memory (RAM) 512 MB
Flash memory Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy NA
RPS NA
Rated voltage range 100-240V AC; 50/60Hz
Maximum voltage range 90-264V AC; 47Hz-63Hz
Maximum input current 2.5 A
Maximum power consumption of the device Without PDs: 15.61 W
With PDs: 160.5 W
(PDs: 123.2 W)
Power consumption in the case of 30% traffic load1 14.57 W
Power consumption in the case of 100% traffic load 15.61 W
Heat dissipation system Heat dissipation mode Natural heat dissipation
Number of fan modules NA
Airflow NA
Maximum heat dissipation of the device (BTU/hour) Without PDs: 53.3 With PDs: 547.8
Environment parameters Operating temperature 0-1800 m: 0°C to 45°C 1800–5000m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to+70°C
Relative humidity 5%-95%(non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) Silent (fan- free)
Noise under high temperature (sound power) Silent (fan- free)
Noise under normal temperature (sound pressure) Silent (fan- free)
Surge protection specification (RJ45 service port) ±7 kV in common mode
Surge protection specification (power port) ±6 kV in differential or common mode
Reliability MTBF (year) 23.8
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 320 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 3 kg

Additional information

Weight 3.5000 kg
Dimensions 45.2000 × 38.0000 × 9.0000 cm
Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
S5720-12TP-PWR-LI-AC Datasheet
Item S5720-12TP-PWR-LI-AC
Forwarding performance 22.5 Mpps
Switching capacity 336 Gbit/s
Ports description 8 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports
Fixed port GE port 12
10GE port NA
Multi-GE port NA
Management port Console port (RJ45) Supported
USB port NA
CPU Frequency 800 MHz
Cores 1
Storage Memory (RAM) 512 MB
Flash memory Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy NA
RPS NA
Rated voltage range 100-240V AC; 50/60Hz
Maximum voltage range 90-264V AC; 47Hz-63Hz
Maximum input current 2.5 A
Maximum power consumption of the device Without PDs: 15.61 W
With PDs: 160.5 W
(PDs: 123.2 W)
Power consumption in the case of 30% traffic load1 14.57 W
Power consumption in the case of 100% traffic load 15.61 W
Heat dissipation system Heat dissipation mode Natural heat dissipation
Number of fan modules NA
Airflow NA
Maximum heat dissipation of the device (BTU/hour) Without PDs: 53.3 With PDs: 547.8
Environment parameters Operating temperature 0-1800 m: 0°C to 45°C 1800–5000m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to+70°C
Relative humidity 5%-95%(non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) Silent (fan- free)
Noise under high temperature (sound power) Silent (fan- free)
Noise under normal temperature (sound pressure) Silent (fan- free)
Surge protection specification (RJ45 service port) ±7 kV in common mode
Surge protection specification (power port) ±6 kV in differential or common mode
Reliability MTBF (year) 23.8
MTTR (hour) 2
Availability > 0.99999
Certification EMC certification Safety certification Manufacturing certification For details about certifications, see the section Safety and Regulatory Compliance.
Physical specifications Chassis dimensions (W x D x H, mm) 320 x 220 x 43.6
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 3 kg
