Categories:S5700 Series

S5710-52C-PWR-EI

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN2355886

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5700-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5710-52C-PWR-EI switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, POE+

48 Ports Switch Electrical Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5710-52C-PWR-EI Overview

This switch comes with 48 1000BASE-T ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, POE+, without power module

Huawei Quidway S5700 series gigabit enterprise switches are designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in the Internet data center, or desktop switch to provide 1000 Mbps access for terminals.

S5710-52C-PWR-EI Quick Specs

48 10/100/1000BASE-T ports

4 10GE SFP+ ports

Forwarding performance: 192Mpps

Switching capacity: 256Gbps/2.56Tbps

PoE+

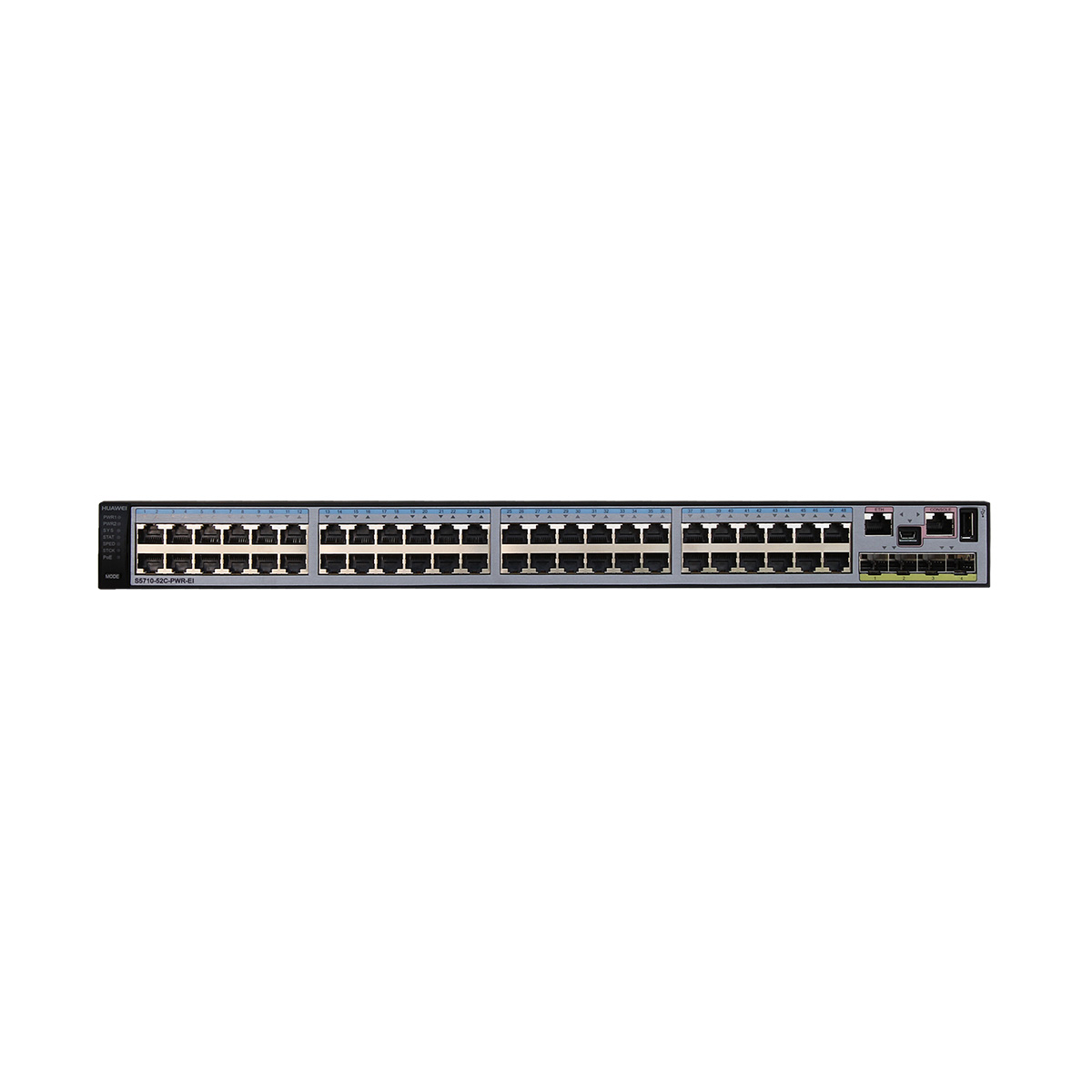

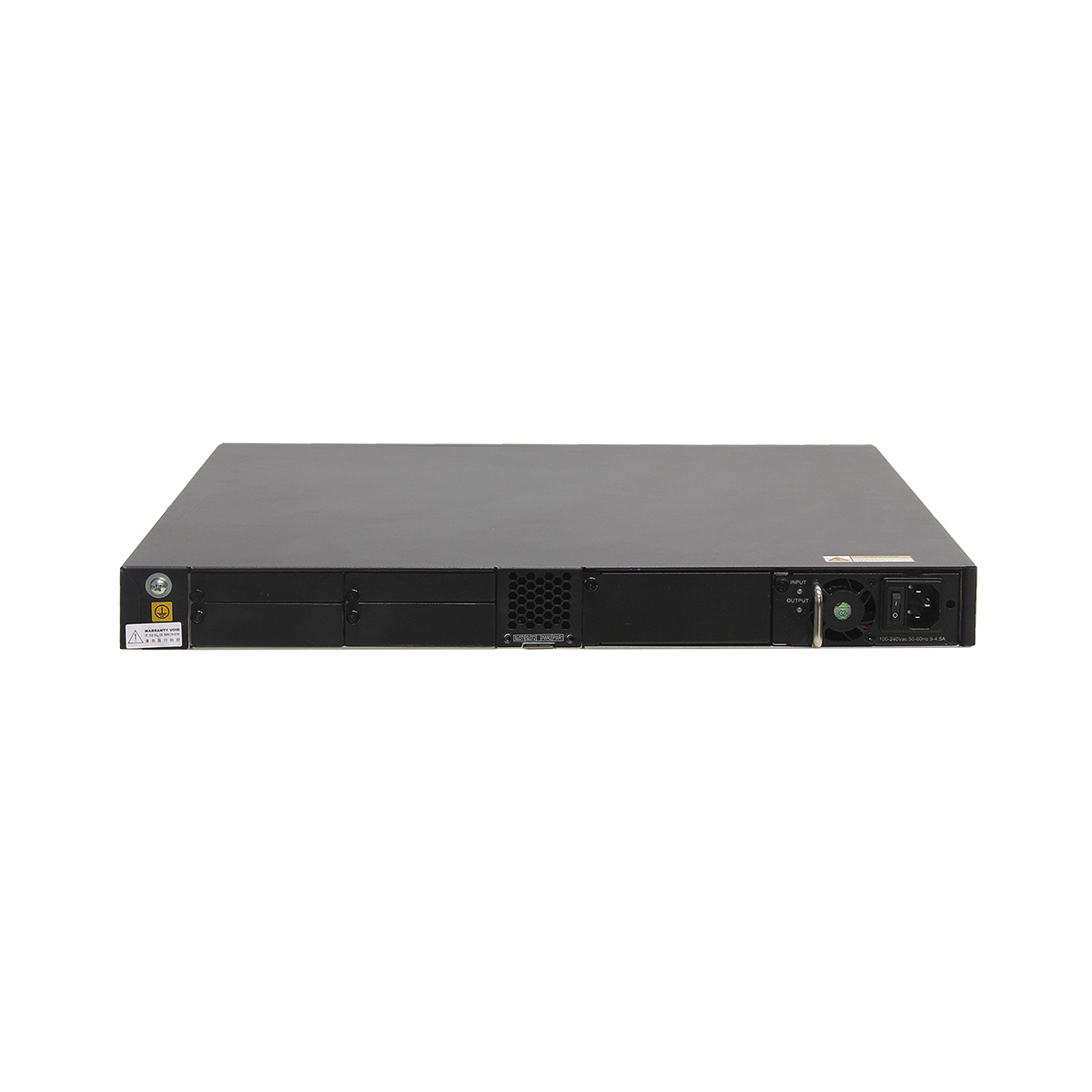

S5710-52C-PWR-EI appearance and structure

1	Forty-eight POE+ 10/100/1000BASE-T ports	7	One PNP button
2	Four 10GE SFP+ ports GE optical module 10GE SFP+ optical module	8	Ground screw
3	One console port	9	Rear card slot 1
4	One ETH management port	10	Rear card slot 2
5	One USB port	11	Power module slot 1
6	ESN label	12	Power module slot 2

Item	S5710-52C-PWR-EI
Fixed port	Forty-eight POE+ 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Memory (RAM)	512 MB
Flash	V200R001: 64 MB; V200R002 and later versions: 200 MB
Mean time between failures(MTBF)	36.86 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	Using 580 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode
Service port surge protection	Common mode: ±1 kV
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Using two 580 W power modules; No card: 1023 W (system power consumption: 283 W, PoE: 740 W); Two 8-port GE electrical card: 1035 W (system power consumption: 295 W, PoE: 740 W); Two 8-port GE optical card: 1043 W (system power consumption: 303 W, PoE: 740 W); Two 2-port 10GE optical card: 1040 W (system power consumption: 300 W, PoE: 740 W) Using two 1150 W power modules; No card: 1605 W (system power consumption: 165 W, PoE: 1440 W); Two 8-port GE electrical card: 1625 W (system power consumption: 185 W, PoE: 1440 W); Two 8-port GE optical card: 1635 W (system power consumption: 195 W, PoE: 1440 W); Two 2-port 10GE optical card: 1633 W (system power consumption: 193 W, PoE: 1440 W)
Certification	EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging)	8 kg

Weight	8.0000 kg
Dimensions	59.0000 × 55.5000 × 12.0000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S5700-EI

Item	S5710-52C-PWR-EI
Fixed port	Forty-eight POE+ 10/100/1000BASE-T ports, 4 10GE SFP+ ports
Memory (RAM)	512 MB
Flash	V200R001: 64 MB; V200R002 and later versions: 200 MB
Mean time between failures(MTBF)	36.86 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	Using 580 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode
Service port surge protection	Common mode: ±1 kV
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Using two 580 W power modules; No card: 1023 W (system power consumption: 283 W, PoE: 740 W); Two 8-port GE electrical card: 1035 W (system power consumption: 295 W, PoE: 740 W); Two 8-port GE optical card: 1043 W (system power consumption: 303 W, PoE: 740 W); Two 2-port 10GE optical card: 1040 W (system power consumption: 300 W, PoE: 740 W) Using two 1150 W power modules; No card: 1605 W (system power consumption: 165 W, PoE: 1440 W); Two 8-port GE electrical card: 1625 W (system power consumption: 185 W, PoE: 1440 W); Two 8-port GE optical card: 1635 W (system power consumption: 195 W, PoE: 1440 W); Two 2-port 10GE optical card: 1633 W (system power consumption: 193 W, PoE: 1440 W)
Certification	EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging)	8 kg
