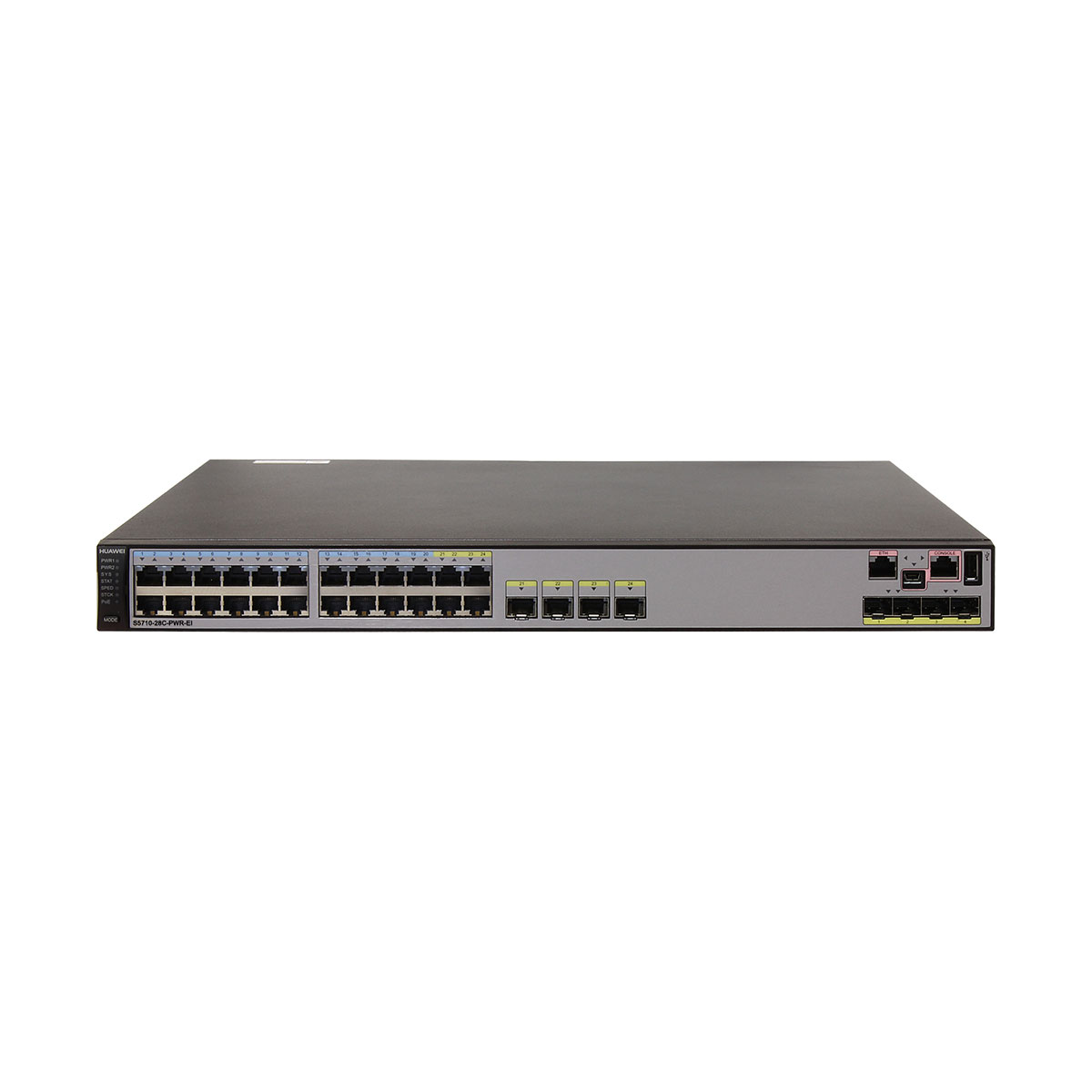

S5710-28C-PWR-EI-AC

0 Reviews Write a review
PN2354038
AvailabilityIn Stock
Campus Switch S5700-EI
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5710-28C-PWR-EI-AC switch supports 20 1000BASE-T PoE+ ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

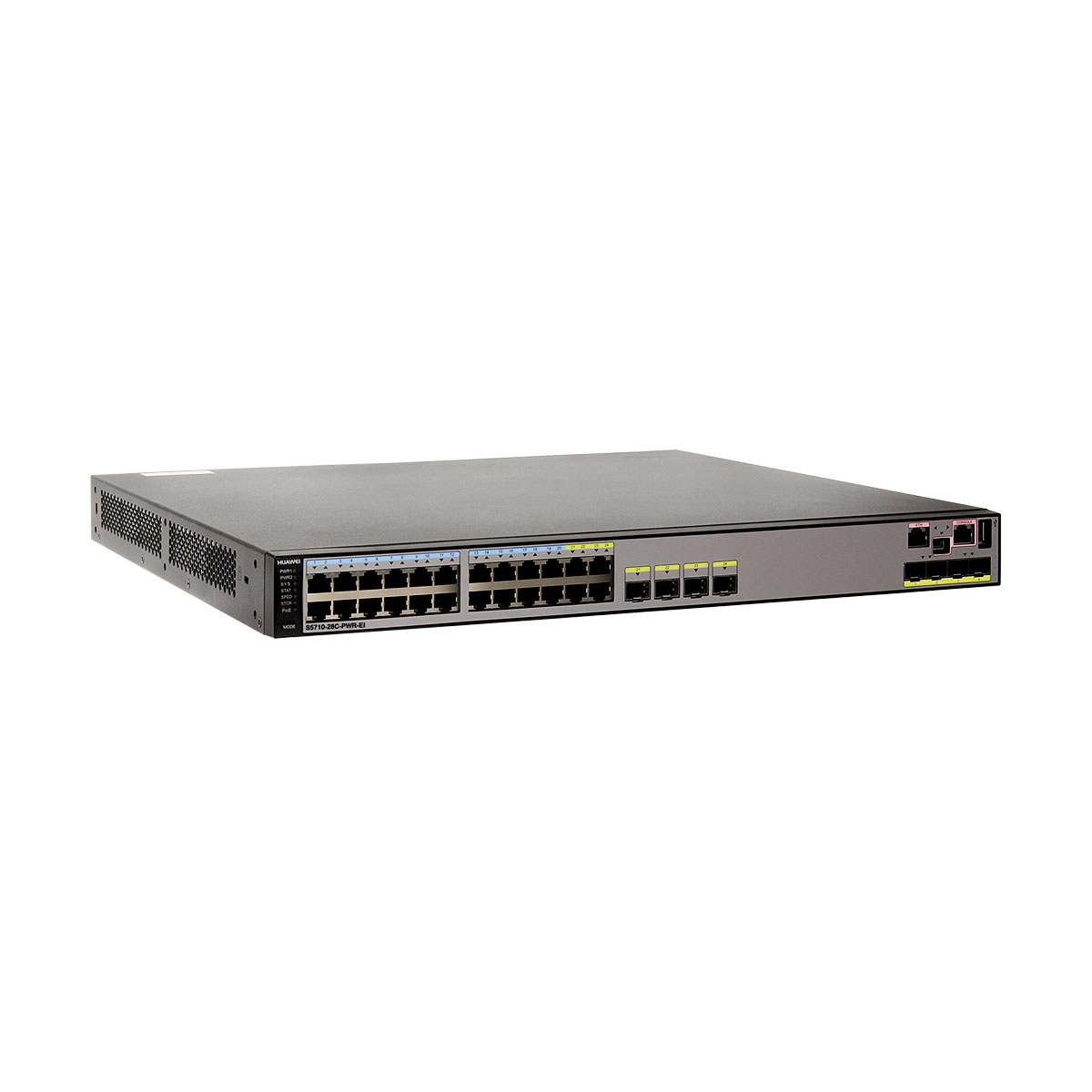

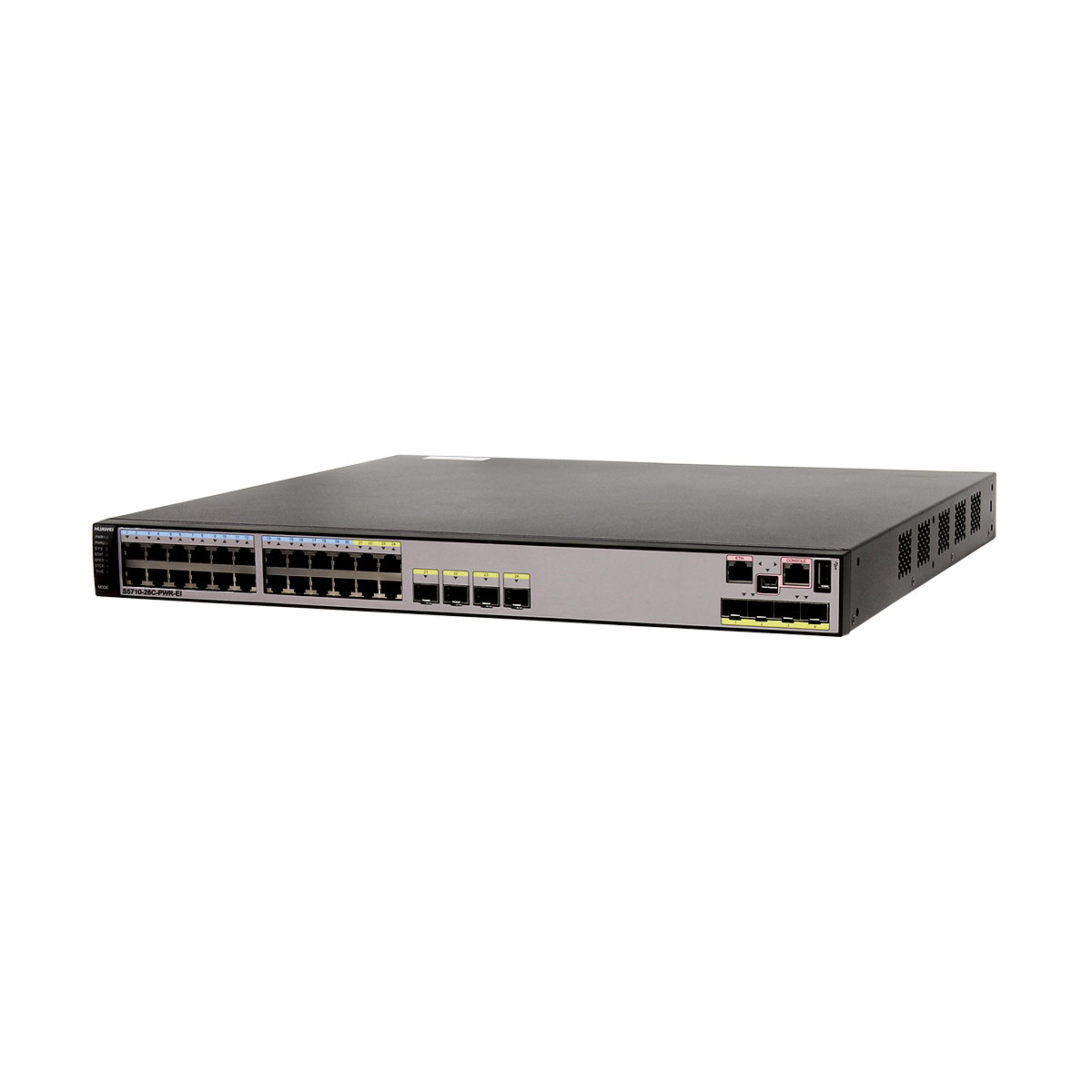

S5710-28C-PWR-EI-AC Overview

Huawei S5710-28C-PWR-EI-AC switch supports 20 1000BASE-T PoE+ ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, wihtout power module

Huawei Quidway S5700 series gigabit enterprise switches is designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in Internet data center, or desktop switch to provide 1000 Mbps access for terminals.

S5710-28C-PWR-EI-AC Quick Specs

20 PoE+ 10/100/1000BASE-T ports, 4 GE SFP combo ports, 4 10GE SFP+ ports

Forwarding performance: 156Mpps

Switching capacity: 256Gbps/2.56Tbps

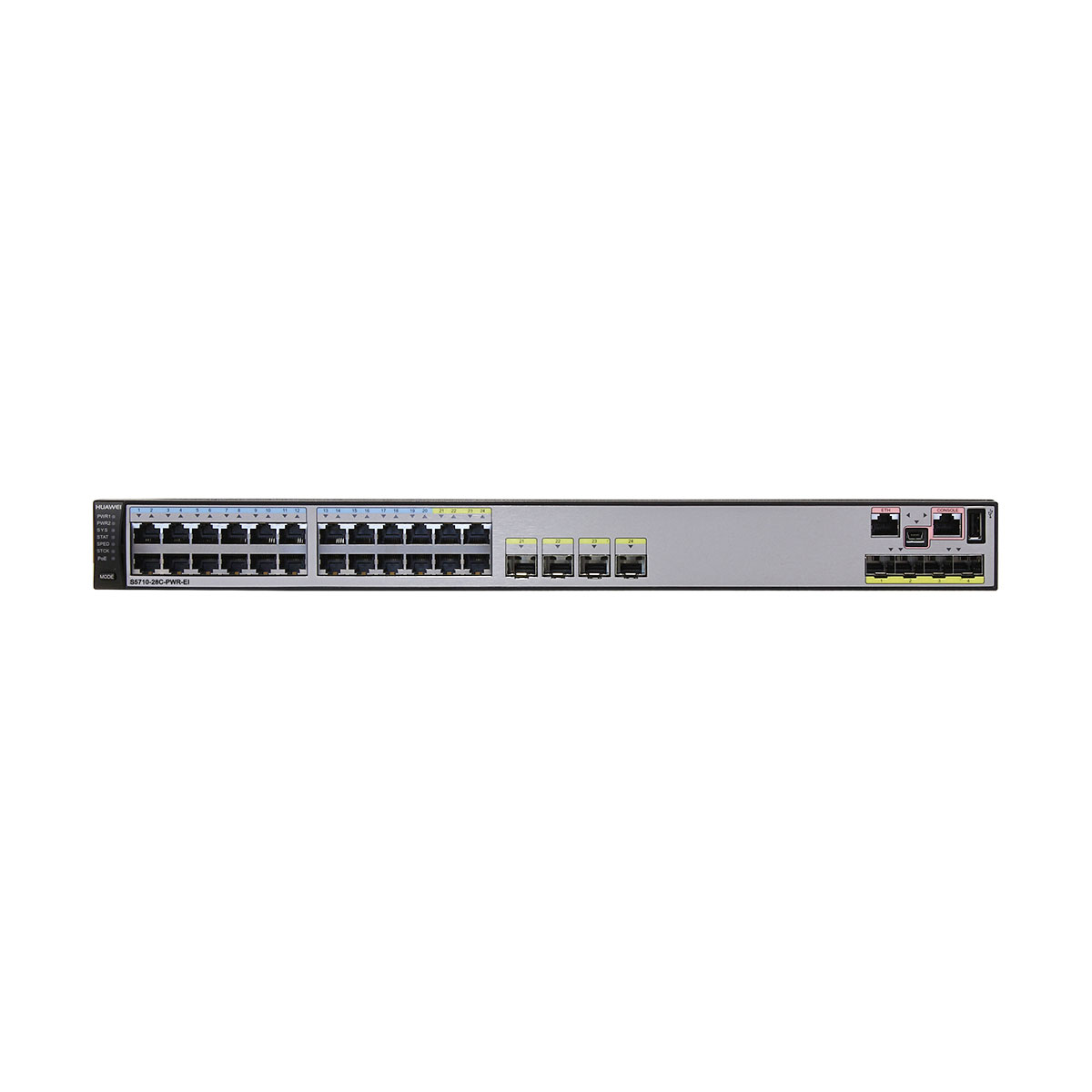

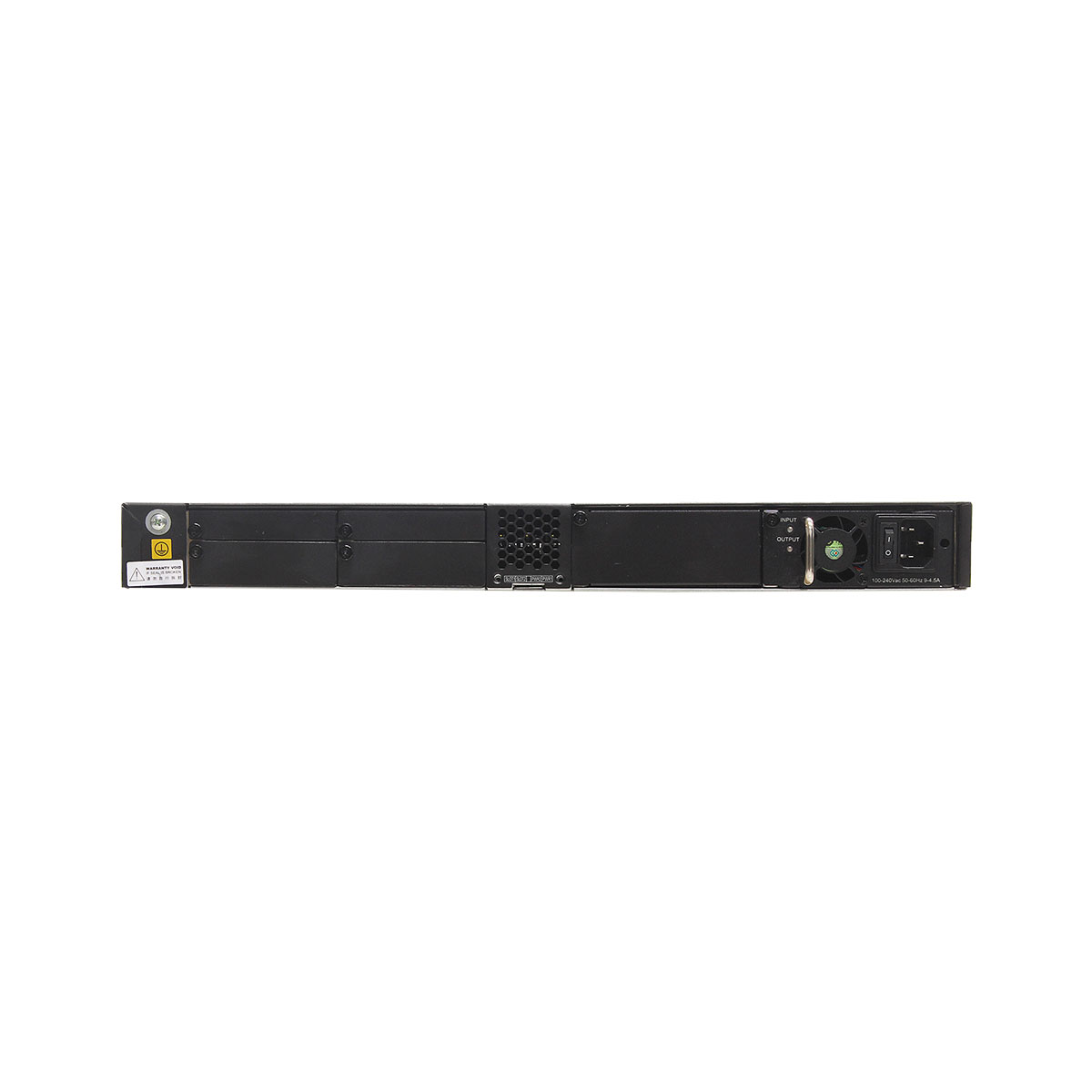

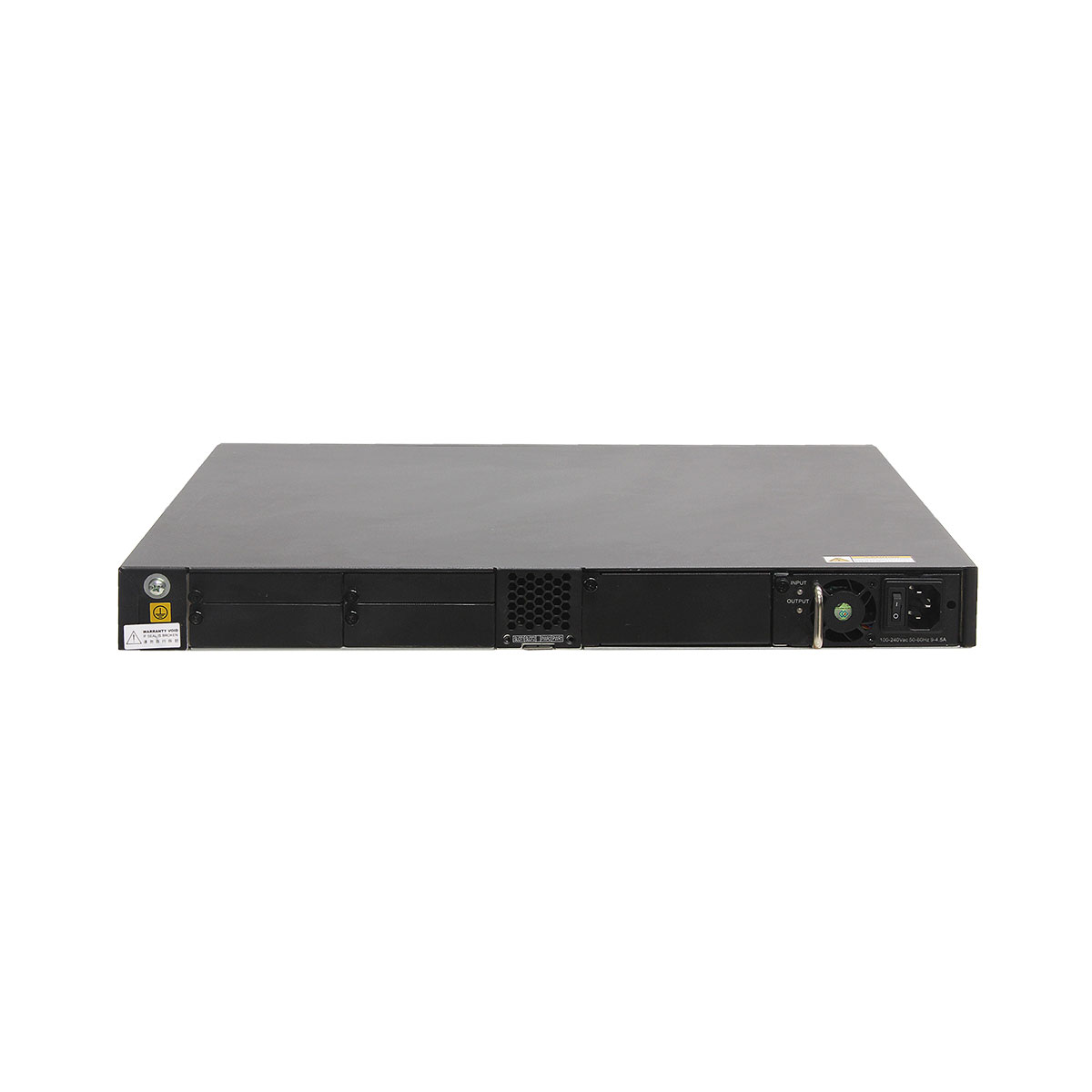

S5710-28C-PWR-EI-AC appearance and structure

S5710-28C-PWR-EI-AC appearance and structure

1 Twenty PoE+ 10/100/1000BASE-T ports 7 One PNP button
2 Four 10GE SFP+ ports, 4 GE SFP combo ports 8 Ground screw
3 One console port 9 Rear card slot 1
4 One ETH management port 10 Rear card slot 2
5 One USB port 11 Power module slot 1
6 ESN label 12 Power module slot 2
S5710-28C-PWR-EI-AC Datasheet
Item S5710-28C-PWR-EI-AC
Fixed port Twenty PoE+ 10/100/1000BASE-T ports,4 GE SFP combo ports, 4 10GE SFP+ ports
Memory (RAM) 512 MB
Flash 200 MB
Mean time between failures(MTBF) 51.28 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±1 kV
Stack ports Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) No card: 920 W (system power consumption: 180 W, PoE: 740 W); Two 8-port GE electrical card: 934 W (system power consumption: 194 W, PoE: 740 W); Two 8-port GE optical card: 942 W (system power consumption: 202 W, PoE: 740 W); Two 2-port 10GE optical card: 941 W (system power consumption: 201 W, PoE: 740 W)
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8 kg

Additional information

Weight 8.0000 kg
Dimensions 59.0000 × 55.5000 × 12.0000 cm
Campus Switch

S5710-28C-PWR-EI-AC Datasheet
Item S5710-28C-PWR-EI-AC
Fixed port Twenty PoE+ 10/100/1000BASE-T ports,4 GE SFP combo ports, 4 10GE SFP+ ports
Memory (RAM) 512 MB
Flash 200 MB
Mean time between failures(MTBF) 51.28 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±1 kV
Stack ports Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range

100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) No card: 920 W (system power consumption: 180 W, PoE: 740 W); Two 8-port GE electrical card: 934 W (system power consumption: 194 W, PoE: 740 W); Two 8-port GE optical card: 942 W (system power consumption: 202 W, PoE: 740 W); Two 2-port 10GE optical card: 941 W (system power consumption: 201 W, PoE: 740 W)
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8 kg

Reviews

There are no reviews yet.

Be the first to review “S5710-28C-PWR-EI-AC”

Your email address will not be published. Required fields are marked *

Related products
Quick view
Categories:

S5700-24TP-SI-AC

R.F.Q
(2)
PN2352360
Quick view
Categories:

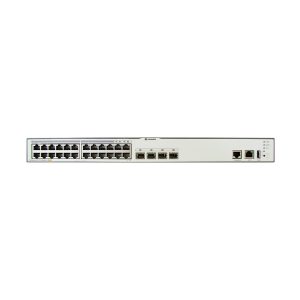

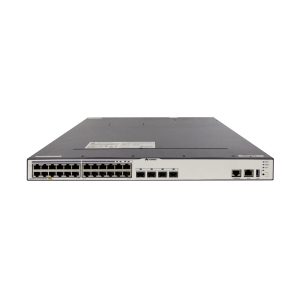

S5700-24TP-PWR-SI
