S5710-28C-EI

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN2358323

AvailabilityIn Stock

Campus Switch S5700-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5710-28C-EI switch supports 24 1000BASE-T ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5710-28C-EI Overview

Huawei S5710-28C-EI switch supports 24 1000BASE-T ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, wihtout power module

Huawei Quidway S5700 series gigabit enterprise switches is designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in Internet data center, or desktop switch to provide 1000 Mbps access for terminals.

S5710-28C-EI Quick Specs

24 10/100/1000BASE-T ports, 4 GE SFP combo ports, 4 10GE SFP+ ports

Forwarding performance: 156Mpps

Switching capacity: 256Gbps/2.56Tbps

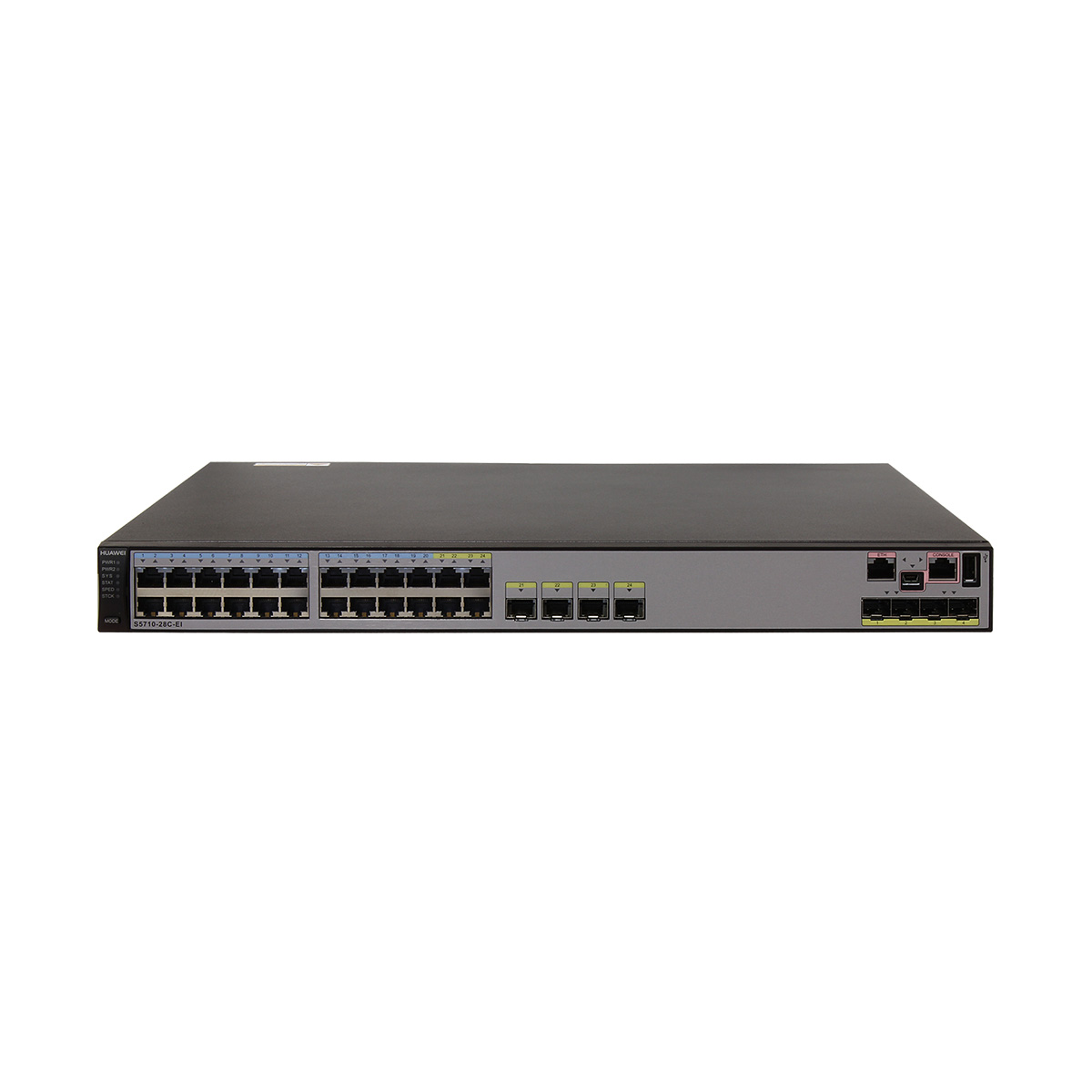

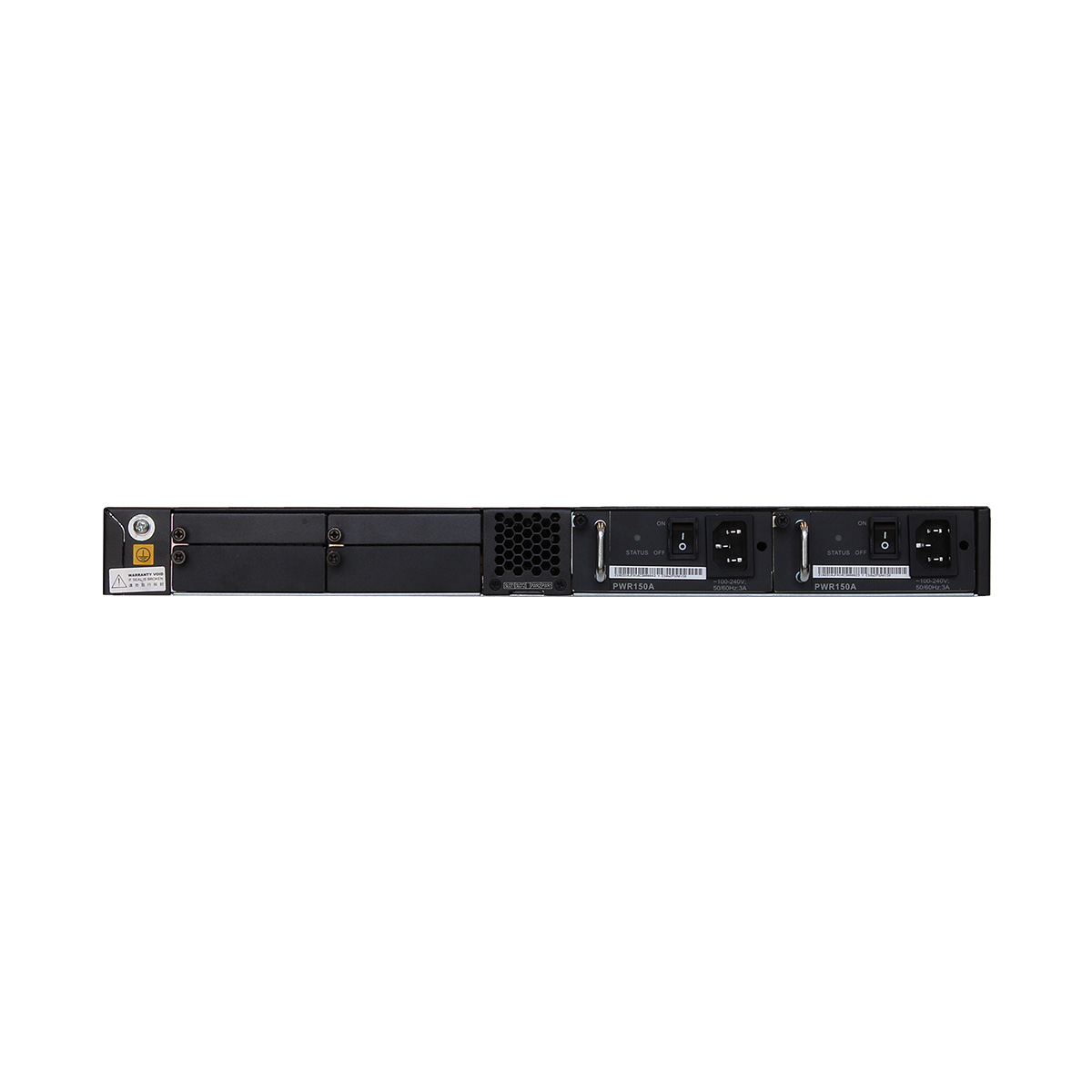

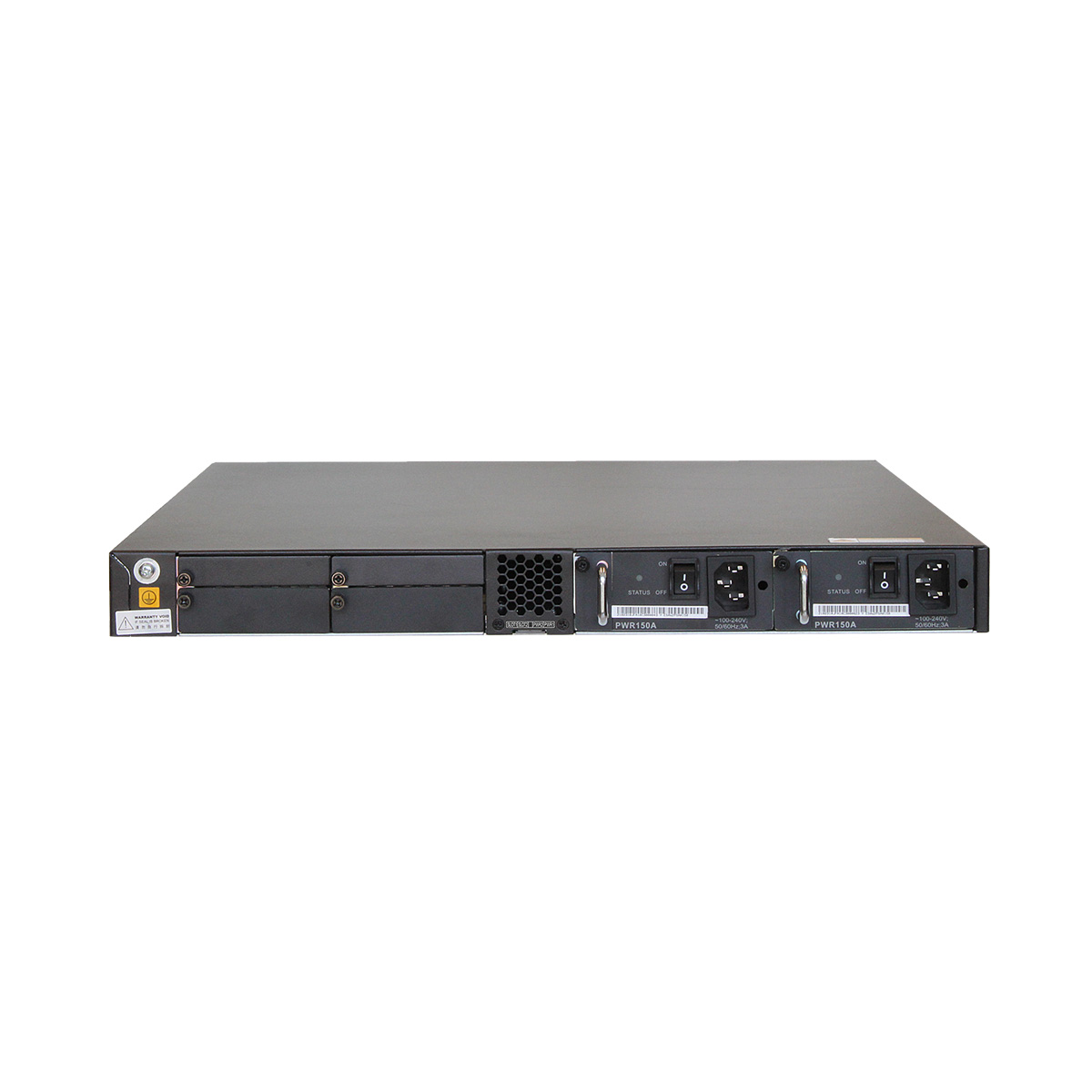

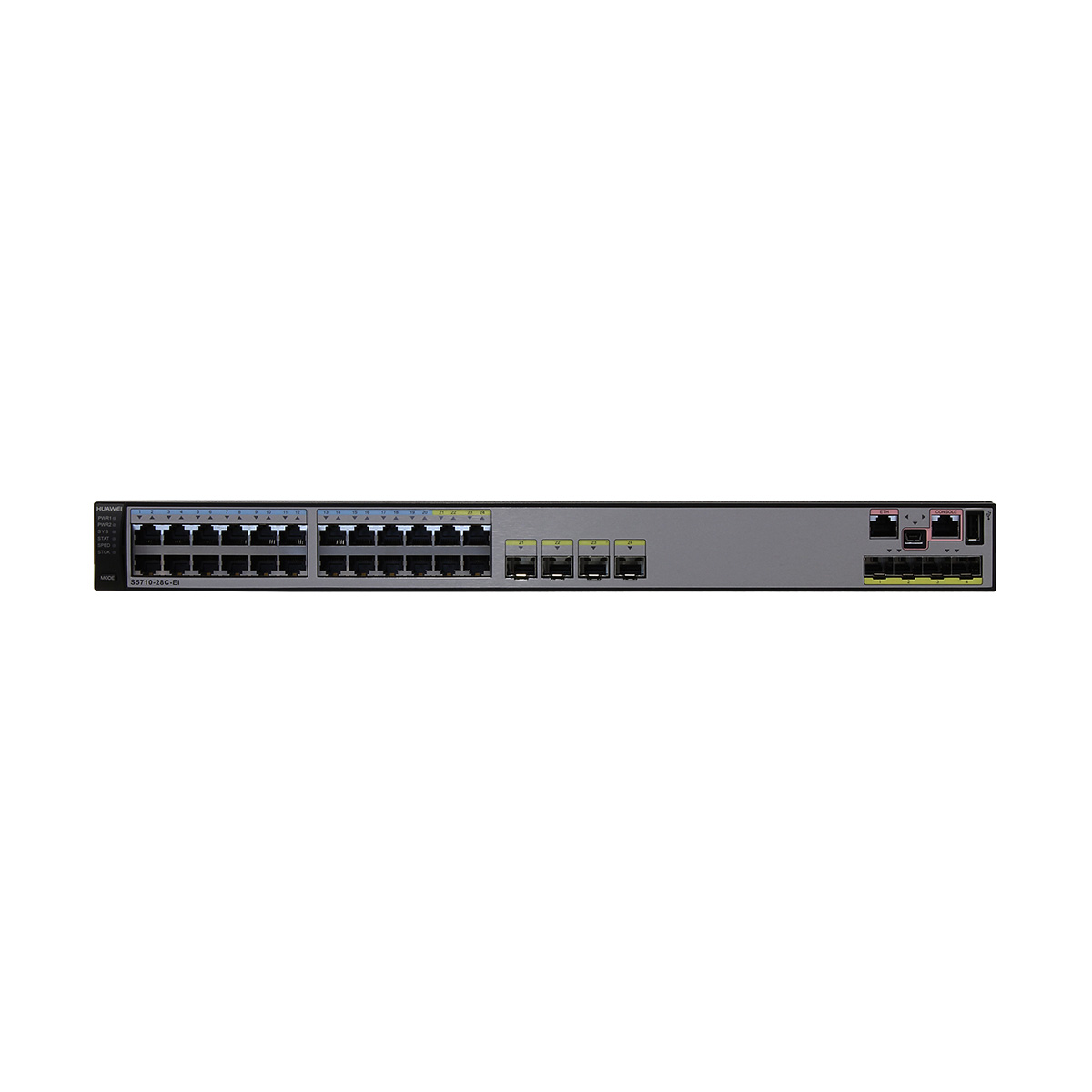

S5710-28C-EI appearance and structure

1	Twenty-four 10/100/1000BASE-T ports	7	One PNP button
2	Four GE SFP+ ports, 4 GE SFP combo ports	8	Ground screw
3	One console port	9	Rear card slot 1
4	One ETH management port	10	Rear card slot 2
5	One USB port	11	Power module slot 1
6	ESN label	12	Power module slot 2

Item	S5710-28C-EI
Fixed port	Twenty-four 10/100/1000BASE-T ports,4 GE SFP combo ports, 4 10GE SFP+ ports
Memory (RAM)	512 MB
Flash	V200R001: 64 MB V200R002 and later versions: 200 MB
Mean time between failures(MTBF)	55.98 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Service port surge protection	Common mode: ±2 kV
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	98 W
Certification	EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging)	8 kg

Weight	8.0000 kg
Dimensions	59.0000 × 55.5000 × 12.0000 cm
Campus Switch	S5700-EI

Item	S5710-28C-EI
Fixed port	Twenty-four 10/100/1000BASE-T ports,4 GE SFP combo ports, 4 10GE SFP+ ports
Memory (RAM)	512 MB
Flash	V200R001: 64 MB V200R002 and later versions: 200 MB
Mean time between failures(MTBF)	55.98 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode; Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Service port surge protection	Common mode: ±2 kV
Stack ports	Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	98 W
Certification	EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging)	8 kg
