Description

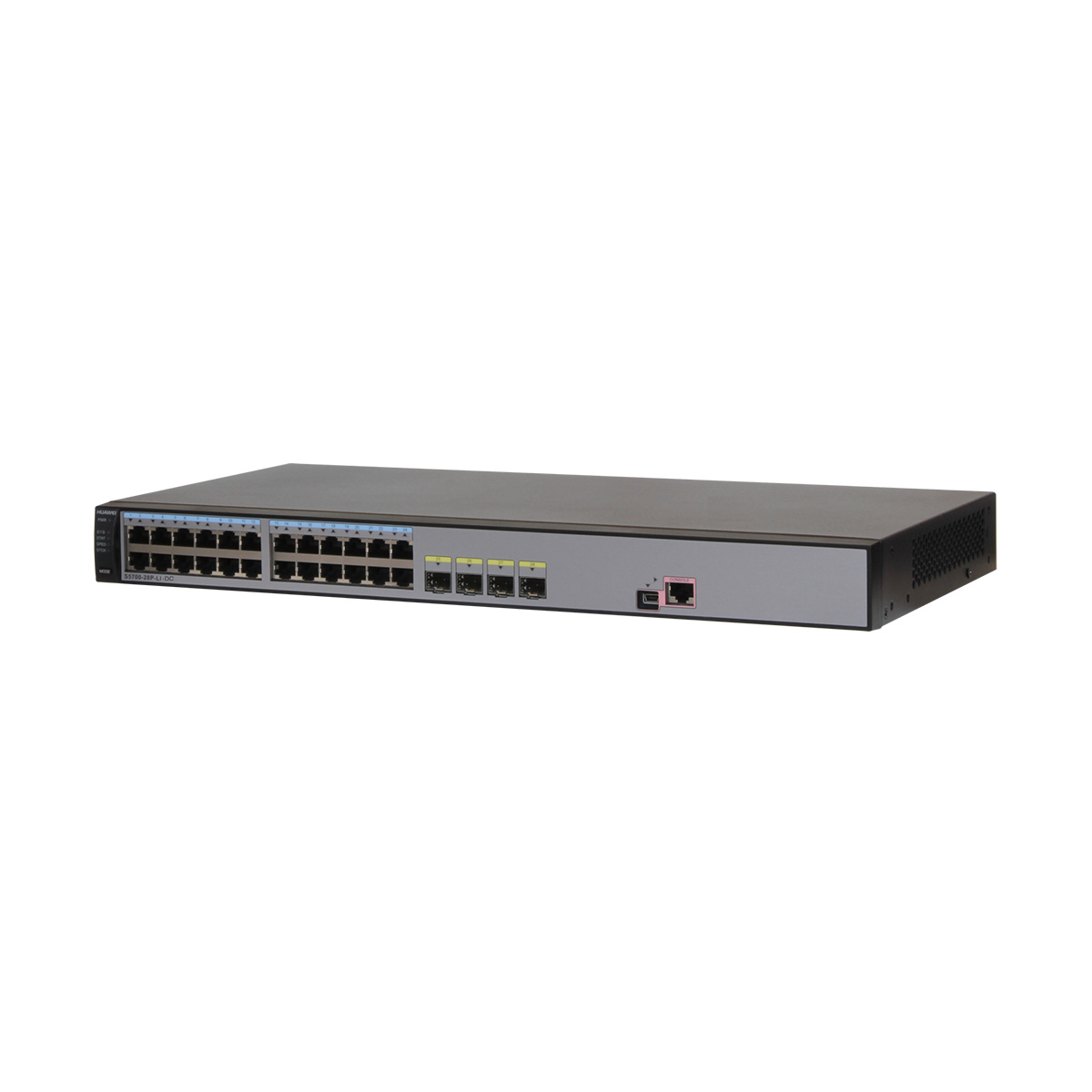

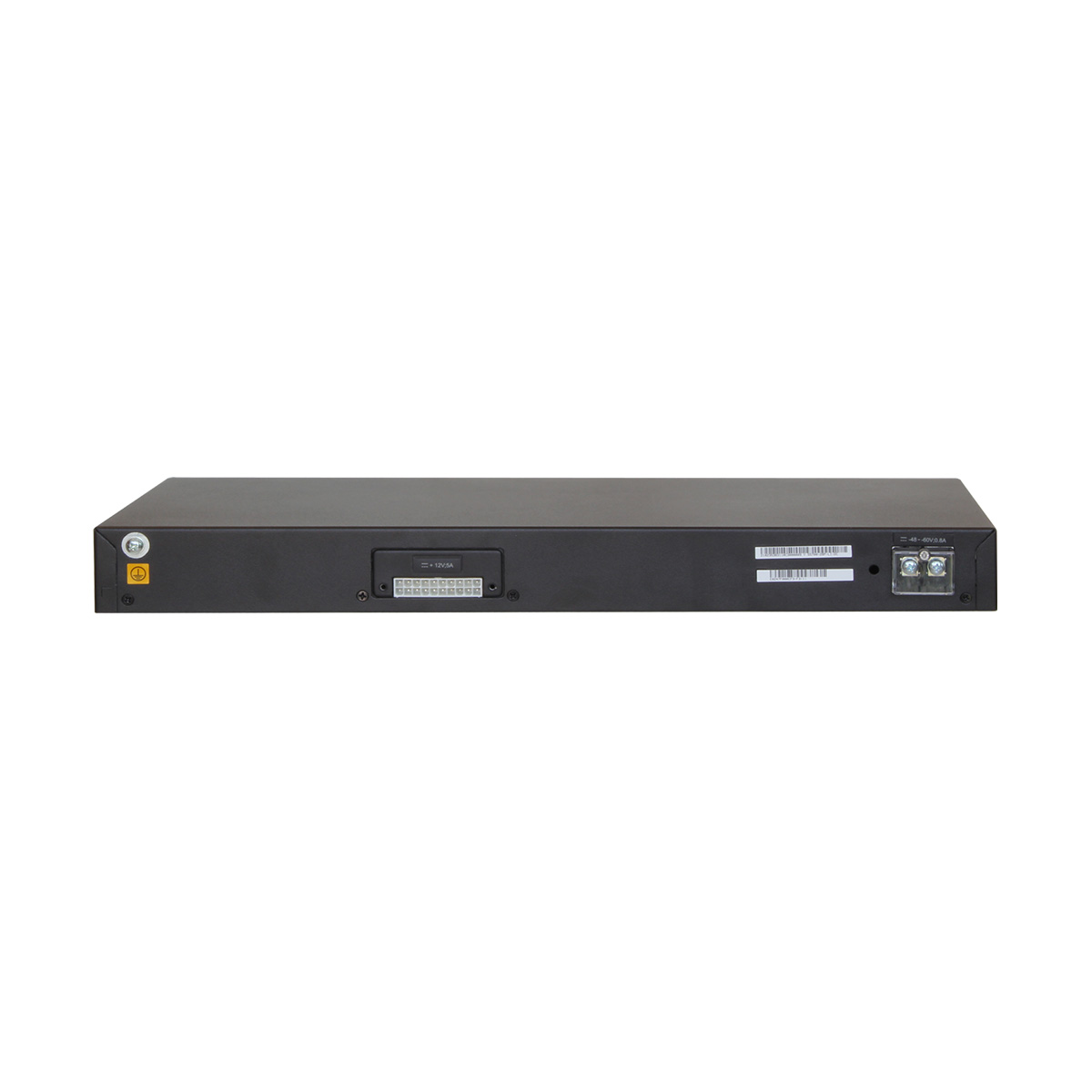

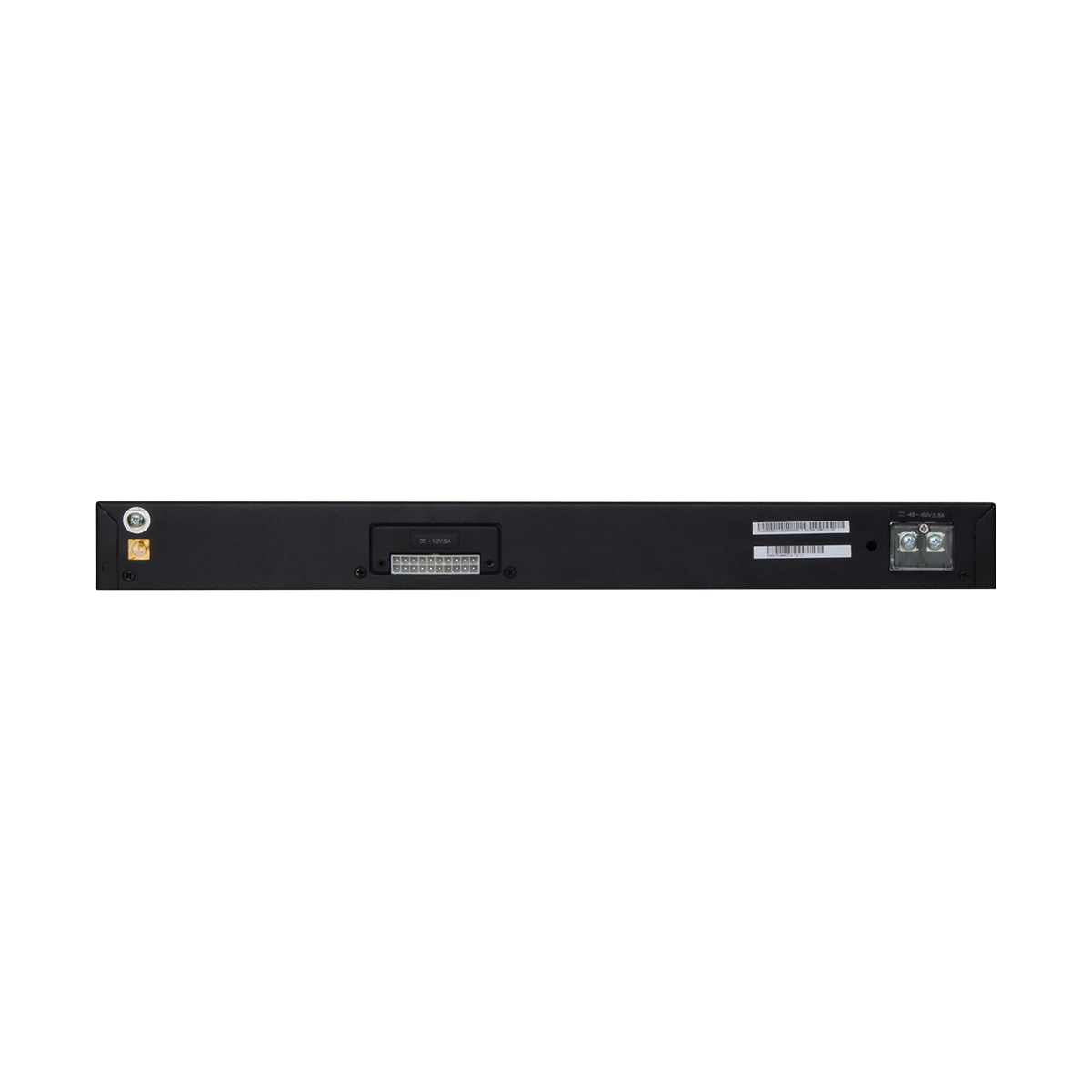

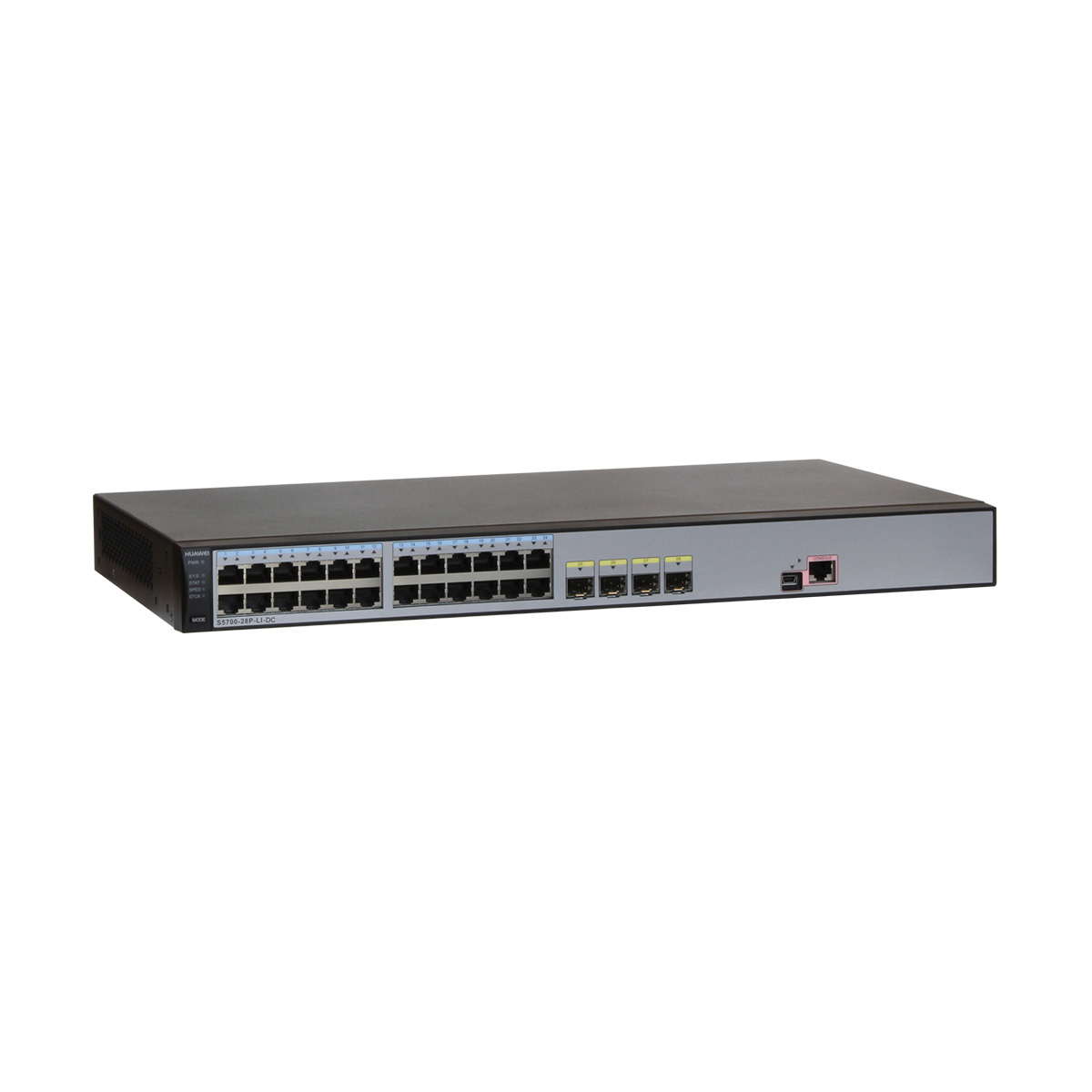

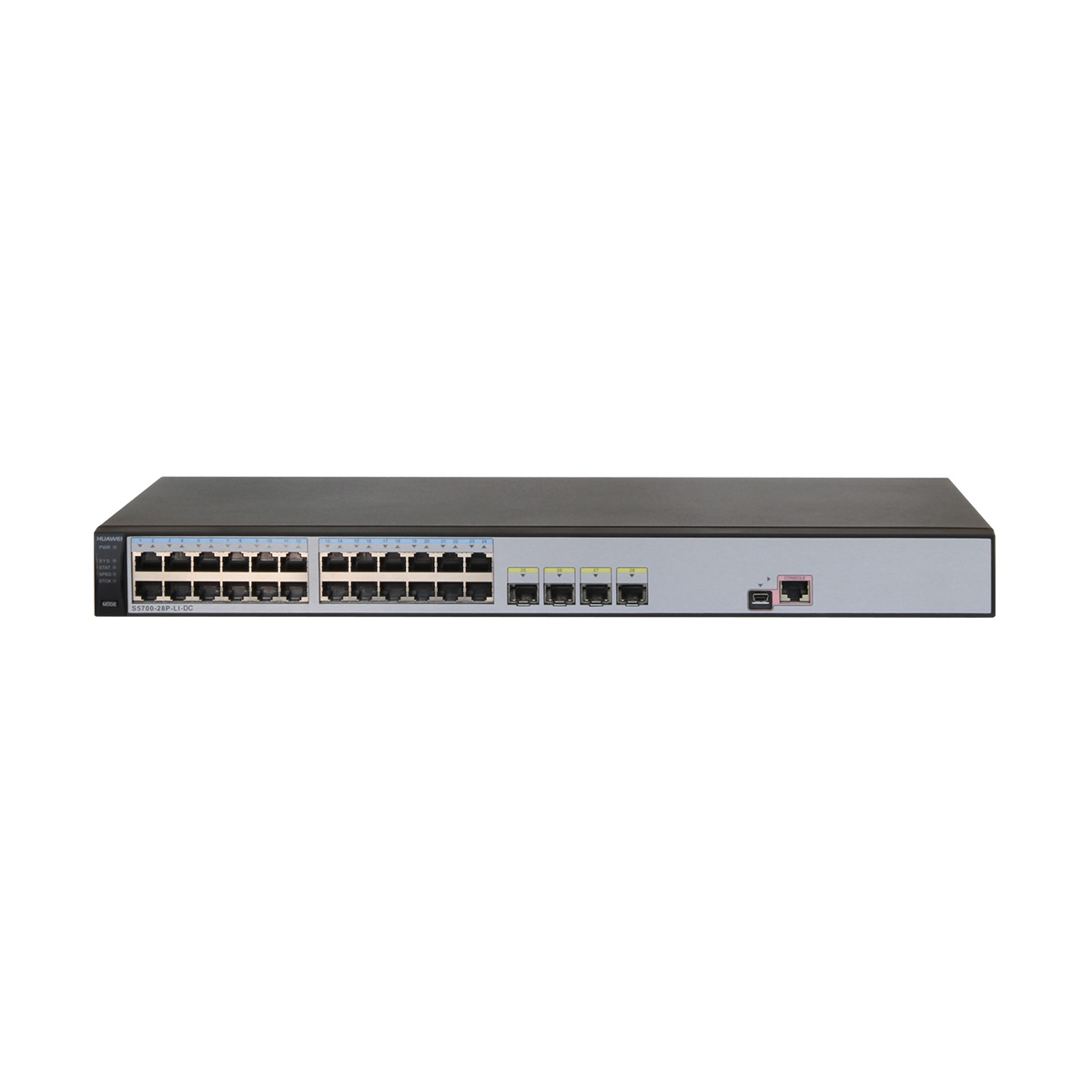

| Item | S5700-28P-LI-DC |
| Fixed port | 24 10/100/1000BASE-T ports, 4 GE SFP ports |
| Forwarding performance | 42 Mpps |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN Mapping | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| ERPS (G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| IP routing | Static routing |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| OAM | Supports |
| Management and maintenance | Virtual cable test |
| Stacking | |
| MAC Forced Forwarding (MFF) | |
| Port mirroring and RSPAN (remote port mirroring) | |
| Remote configuration and maintenance using Telnet | |
| SNMP v1/v2/v3 | |
| RMON | |
| Web NMS | |
| HGMP | |
| System logs and alarms of different levels | |
| 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) | |
| GVRP | |
| MUX VLAN | |
| Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN?switches) | |
| sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series) | |
| DDR memory | 256 MB |
| Flash memory | V200R001: 64 MB V200R002 and later versions: 200 MB |
| Mean time between failures (MTBF) | S5700-28P-LI-DC: 49.69 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Surge protection: Service port protection | Combo electrical ports on the CSFP switch: ±2 kV in common mode; electrical ports on the other models: ±6 kV in common mode |
| Surge protection: Power supply protection | DC: ±1 kV in differential mode; ±2 kV in common mode |
| Stack port | S5700-P-LI (with GE uplink ports): V200R001: The last two uplink 1000Base-X optical ports can be used as stack ports. V200R002 and later versions: The four uplink 1000Base-X optical ports can be used as stack ports. |
| Maximum stack bandwidth (bidirectional) | S5700-P-LI (with GE uplink ports): V200R001: 10 Gbit/s (using 1 m passive SFP+ cables); 20 Gbit/s (using 10 m active SFP+ cables) V200R002: 20 Gbit/s (using 1 m passive SFP+ cables); 40 Gbit/s (using 10 m active SFP+ cables) V200R003 and later versions: 20 Gbit/s (using 1 m passive SFP+ cables, or 3 m/10 m AOC cables); 40 Gbit/s (using 10 m active SFP+ cables) |
| RPS | All S5700-LI series switches except the S5700-10P-PWR-LI-AC and S5700-10P-LI-AC support RPS. |
| PoE | The PWR series support PoE. |
| Input DC voltage: Rated input voltage range | -48 V DC to -60 V DC |
| Input DC voltage: Maximum voltage range | -36 V DC to -72 V DC |
| Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) | S5700-28P-LI-DC: 24 W |
| Operating temperature | 0°C to +50°C at an altitude between 0 m and 1800 m |
| Storage temperature | -40°C to +70°C |
| Noise under normal temperature (27°C, sound power) | S5700-28P-LI-DC: 0 (The device has no fans.) |
| Relative humidity | 5% RH to 95% RH, noncondensing |
| Operating altitude | 0 m to 3000 m |
| EMC | CISPR22 Class A |
| CISPR24 | |
| EN55022 Class A | |
| EN50024 | |
| ETSI EN 300 386 Class A | |
| CFR 47 FCC Part 15 Class A | |
| ICES 003 Class A | |
| AS/NZS CISPR22 Class A | |
| IEC61000-4-2 | |
| ITU-T K 20 | |
| ITU-T K 44 | |
| Environmental standards | RoHS |
| REACH | |
| WEEE | |
| Security | IEC 60950-1 |
| EN 60950-1/A11/A12 | |
| UL 60950-1 | |
| CSA C22.2 No 60950-1 | |
| AS/NZS 60950.1 | |
| Laser safety | IEC60825-1 |
| IEC60825-2 | |
| EN60825-1 | |
| EN60825-2 | |
| Dimensions (W x D x H) | S5700-28P-LI-DC: 442.0 mm x 220.0 mm x 43.6 mm |
| Empty loaded | ≤ 5 kg |
