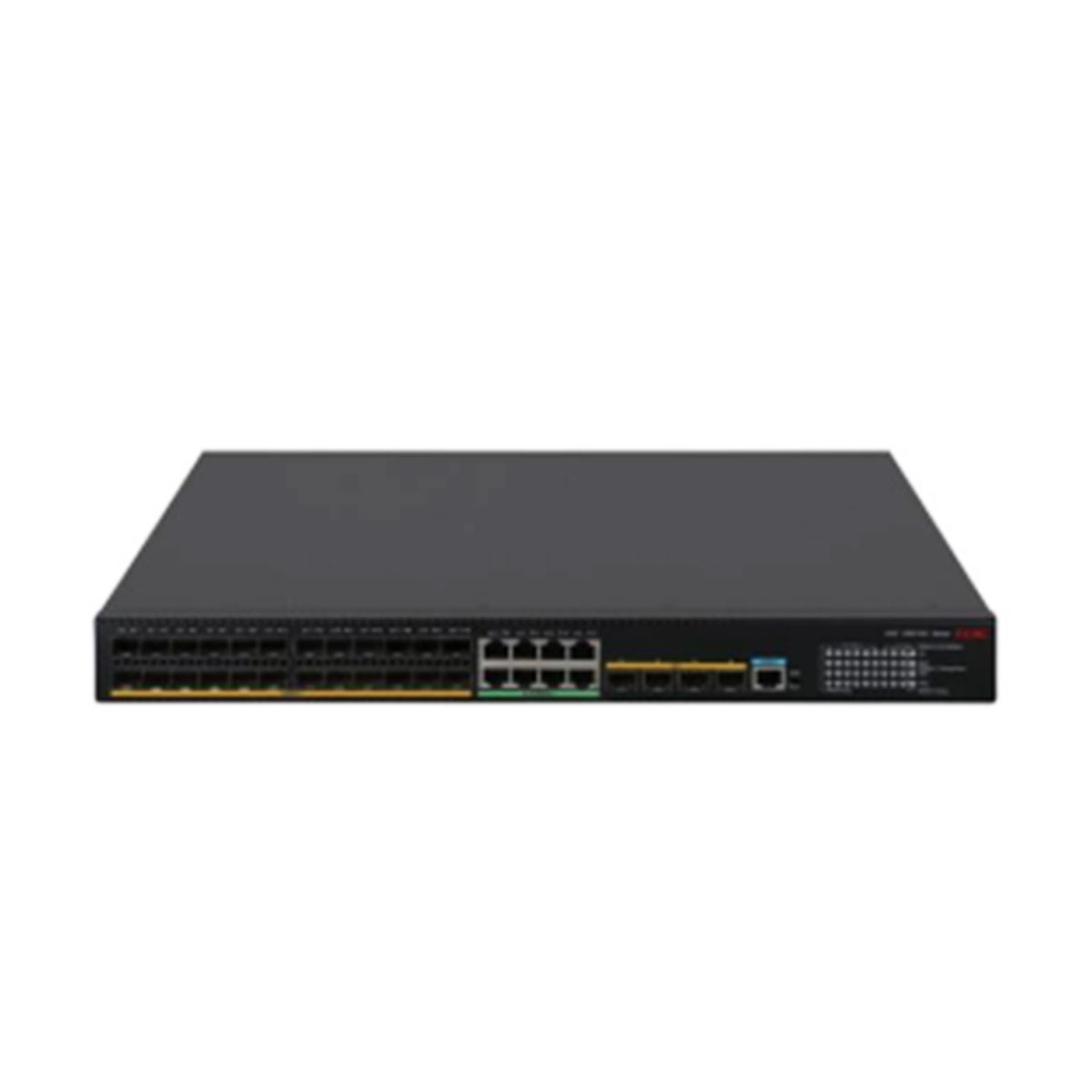

H3C S5570S-36F-EI switch supports 24*100 /1000BASE-X SFP ports, 8 10 /100/1000Base-T ports, 4 10G SFP+ ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5570S-36F-EI overview

H3C S5570S-EI is a new generation of high-performance, high-port density, high-security and easy-to-install intelligent managed Gigabit Ethernet switches developed by H3C using industry-leading ASIC technology, supporting IPv4/IPV6 dual-stack management and forwarding, supports static routing protocols and routing protocols such as RIP, OSPF, BGP, ISIS, etc., and supports rich management and security features.

H3C S5570S-EI products are mainly positioned at the access layer and aggregation layer of enterprises and campuses, meeting high-density Gigabit access, fixed 10 Gigabit uplink ports, supporting PoE+, and building high-performance end-to-end IP with other H3C products network solutions.



S5570S-36F-EI features and benefits
  • SmartMC (Smart Management Center)
  • visualization ability
  • High-performance IPv4/IPv6 service capabilities
  • IRF2 (Second Generation Intelligent Resilience Architecture)
  • Complete security control strategy
  • Multiple reliability protection
  • Rich QoS policies
  • Excellent manageability
  • AD-Campus Solutions
  • Professional lightning protection function
  • green technology
Model S5570S-28S-EI S5570S-54S-EI S5570S-28S-HPWR-EI S5570S-54S-PWR-EI S5570S-36F-EI S5570S-54 F- EI
Port switch capacity(bps) 128G 216G 128G 216G 144G 216G
Packet forwarding rate 95.24Mpps 160.71Mpps 95.24Mpps 160.71Mpps 107.14Mpps 160.71Mpps
Service port description 24*10 /100/1000Base-T adaptive Ethernet ports, 4 10G SFP+ ports 48*10 /100/1000Base-T adaptive Ethernet ports, 6 10G SFP+ ports 24*10 /100/1000Base-T adaptive Ethernet ports, 4 10G SFP+ ports 48*10 /100/1000Base-T adaptive Ethernet ports, 6 10G SFP+ ports 24*100 /1000BASE-X SFP ports, 8 10 /100/1000Base-T ports, 4 10G SFP+ ports 48*100 /1000BASE-X SFP ports
, 6 10G SFP+ ports
PoE / / Y Y / /
Dimensions (W×D×H, unit: mm ) 440× 360×43.6 440× 460×43.6 440× 360×43.6
weight ≤5.6kg ≤6.0kg ≤5.5kg ≤6.0kg ≤4.5KG ≤4.5KG
management port 1 console port
Input voltage AC Rated voltage range: 100V ~ 240V AC , 50/60Hz Maximum voltage range: 90V ~ 264V AC , 47 ~ 63Hz DC Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC
Power consumption (static) Single AC: 16W Single DC: 22W Dual AC: 18W Dual DC: 27W Single AC: 18W Single DC: 23W Dual AC: 23W Dual DC: 29W Single AC: 42W Single DC: 39W Dual AC: 50W Dual DC: 55W Single AC: 47W Single DC: 46W Dual AC: 62W Dual DC: 64W Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W
Power consumption (at full load) Single AC: 37W Single DC: 41W Dual AC: 39W Dual DC: 45W Single AC: 55W Single DC: 56W Dual AC: 57W Dual DC: 61W Single AC: 870W ( PoE is 810W) Single DC: 630W ( 490W for PoE ) Dual AC: 867W ( PoE is 810W) Dual DC: 873W ( PoE is 810W) Single AC: 1290W ( PoE is 1040W) Single DC: 650W ( 490W for PoE ) Dual AC: 1700W ( 1600W for PoE ) Dual DC: 1342W Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W
Fan 2 2 2 2 3 3

Additional information

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Brand

H3C
Model S5570S-28S-EI S5570S-54S-EI S5570S-28S-HPWR-EI S5570S-54S-PWR-EI S5570S-36F-EI S5570S-54 F- EI
Port switch capacity(bps) 128G 216G 128G 216G 144G 216G
Packet forwarding rate 95.24Mpps 160.71Mpps 95.24Mpps 160.71Mpps 107.14Mpps 160.71Mpps
Service port description 24*10 /100/1000Base-T adaptive Ethernet ports, 4 10G SFP+ ports 48*10 /100/1000Base-T adaptive Ethernet ports, 6 10G SFP+ ports 24*10 /100/1000Base-T adaptive Ethernet ports, 4 10G SFP+ ports 48*10 /100/1000Base-T adaptive Ethernet ports, 6 10G SFP+ ports 24*100 /1000BASE-X SFP ports, 8 10 /100/1000Base-T ports, 4 10G SFP+ ports 48*100 /1000BASE-X SFP ports
, 6 10G SFP+ ports
PoE / / Y Y / /
Dimensions (W×D×H, unit: mm ) 440× 360×43.6 440× 460×43.6 440× 360×43.6
weight ≤5.6kg ≤6.0kg ≤5.5kg ≤6.0kg ≤4.5KG ≤4.5KG
management port 1 console port
Input voltage AC Rated voltage range: 100V ~ 240V AC , 50/60Hz Maximum voltage range: 90V ~ 264V AC , 47 ~ 63Hz DC Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC
Power consumption (static) Single AC: 16W Single DC: 22W Dual AC: 18W Dual DC: 27W Single AC: 18W Single DC: 23W Dual AC: 23W Dual DC: 29W Single AC: 42W Single DC: 39W Dual AC: 50W Dual DC: 55W Single AC: 47W Single DC: 46W Dual AC: 62W Dual DC: 64W Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W
Power consumption (at full load) Single AC: 37W Single DC: 41W Dual AC: 39W Dual DC: 45W Single AC: 55W Single DC: 56W Dual AC: 57W Dual DC: 61W Single AC: 870W ( PoE is 810W) Single DC: 630W ( 490W for PoE ) Dual AC: 867W ( PoE is 810W) Dual DC: 873W ( PoE is 810W) Single AC: 1290W ( PoE is 1040W) Single DC: 650W ( 490W for PoE ) Dual AC: 1700W ( 1600W for PoE ) Dual DC: 1342W Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W
Fan 2 2 2 2 3 3
