Description

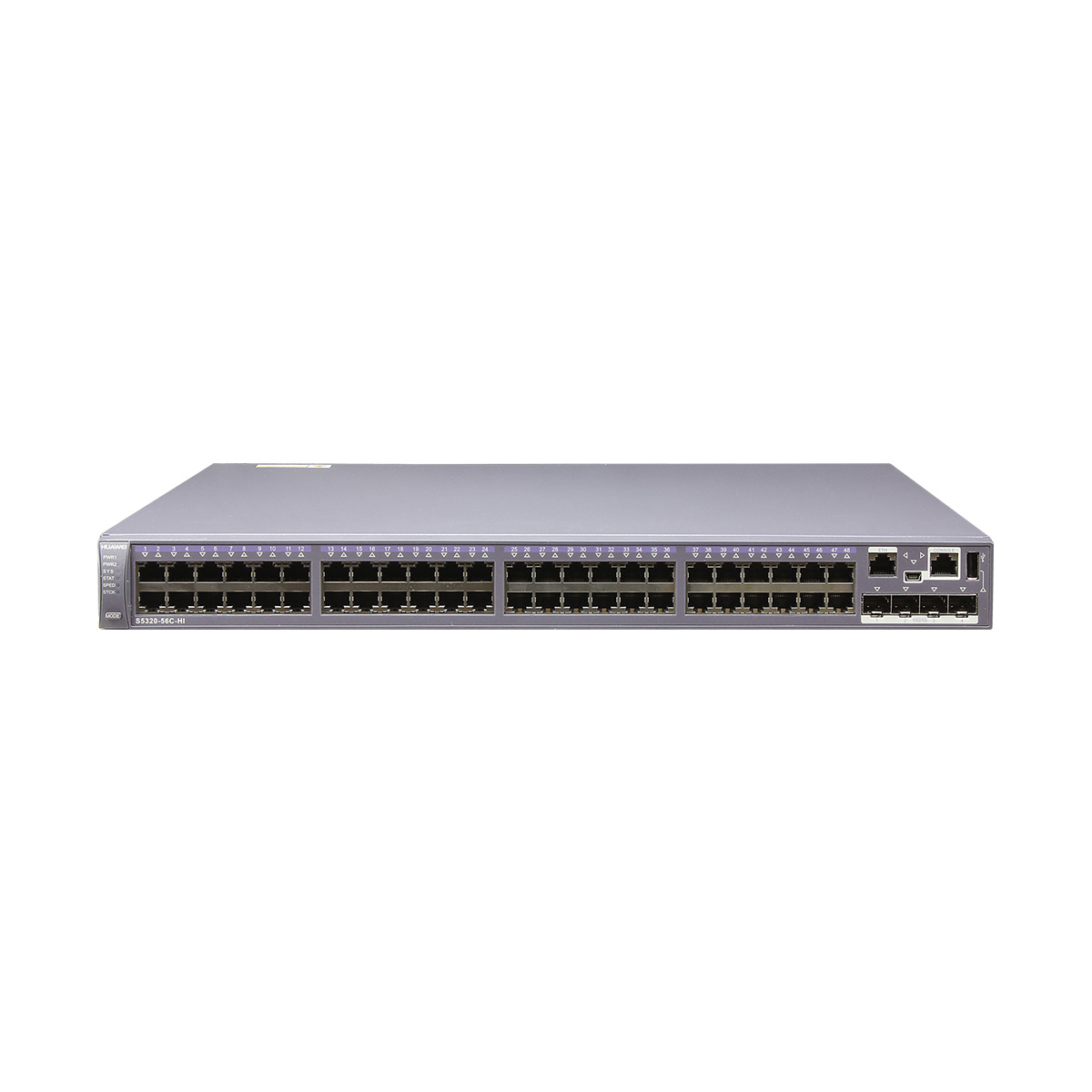

| Item | S5320-56C-HI-AC |
| Fixed port | 48×10/100/1000Base-T, 4x10GE SFP+ |
| Extended slot | One port extended slot with optional subcard 4x10GE SFP+
One slot reserved for the stack card |
| Forwarding performance | 192 Mpps |
| Switching capacity | 598Gbps |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| GVRP | |
| MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN mapping | |
| VLAN-based transparent transmission of protocol packets | |
| Jumbo frame | 12K |
| Ring protection | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover | |
| Smart Ethernet Protection (SEP), G.8032 Ethernet Ring Protection Switching (ERPS) | |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| BPDU protection, root protection, and loop protection; BPDU tunnel | |
| MPLS | MPLS L3VPN
MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QOS |
| IP routing | Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing |
| IPv6 features | Neighbor Discovery (ND) |
| Path maximum transmission unit (PMTU) | |
| IPv6 Ping, IPv6 Tracert, and IPv6 Telnet | |
| 6 to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types | |
| Multicast Listener Discovery (MLD) v1/v2 snooping | |
| Multicast forwarding | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load splitting among trunk member ports | |
| Controllable multicast | |
| Port-based multicast traffic statistics collection | |
| IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent | |
| Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM) | |
| Multicast Source Discovery Protocol (MSDP) | |
| QoS/ACL | Rate limitation in the inbound and outbound directions of a port |
| Packet redirection | |
| WRED | |
| Port-based traffic policing and two-rate and three-color CAR | |
| Eight queues per port | |
| DRR, SP and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP value of packets | |
| Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs | |
| Per queue rate limiting and interface traffic shaping | |
| HQoS | |
| Security features |
Hierarchical user management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface number, and VLAN ID of a user | |
| Port isolation, port security, and sticky MAC | |
| MAC Forced Forwarding (MFF) | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| IEEE 802.1x authentication and the limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense; Blacklist and whitelist | |
| Access security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security |
| Port aggregation | LACP |
| Up to 64 trunk groups | |
| Up to 8 member interfaces in each trunk group | |
| OAM | EFM OAM
CFM OAM Y.1731 performance monitoring |
| Management and Maintenance |
Virtual cable test, SNMP v1/v2c/v3, RMON |
| Network management system (NMS) and Web management | |
| System logs and multi-level alarms | |
| 802.3az EEE, GVRP, MUX VLAN | |
| NetStream, Sflow | |
| Dying Gasp upon power-off | |
| Operating environment | Operating temperature: 0-1800 m altitude: 0-45℃ |
| Input voltage | AC rated voltage: 100 V AC to 240 V AC, 50~60 Hz
AC Maximum voltage range: 90 V AC to 264 V AC, 47~63 Hz |
| Dimensions (mm) | 442 (W) x 420 (D)x 44.4 (H) |
| Typical power consumption |
<183.3W |
