S5130S-52S-HI

SKU2010043

BrandsH3C

AvailabilityIn Stock

WarrantyUp to 36 months

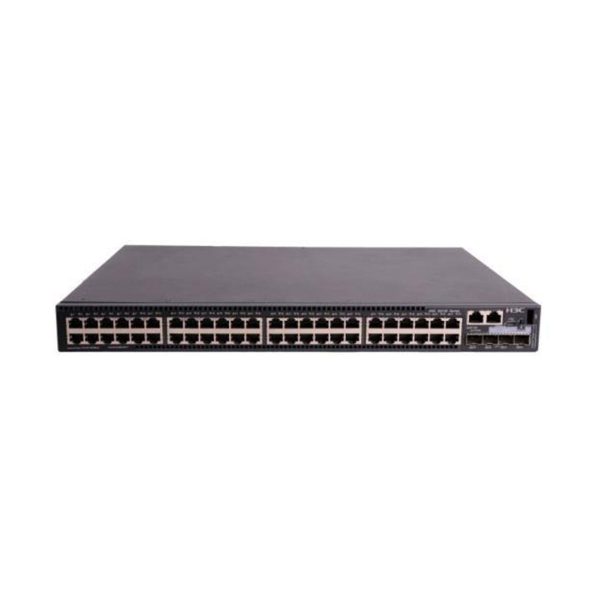

H3C S5130S-52S-HI Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1G/10GBASE-X SFP Plus Ports, dual power supply slots

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5130S-52S-HI overview

H3C S5130S-HI Switch Series – A robust (modular dual power), cost-effective, easy-to-deploy access switching solution with autosensing (Auto-MDIX) POE+ that offers enhanced security and 10GbE uplinks, static route, RIP, OSPF, SDN andIRF enabled flexible management.

S5130S-52S-HI Features and benefits

High-Performance IPv4/IPv6 service capabilities

Software Defined Network (SDN)

Intelligent Resilient Framework 2 (IRF2)

Smart Management Center (SmartMC)

Comprehensive Security Control

High availability

Abundant QoS policies

Professional Anti-lightning function

Feature	S5130S-28S-HI		S5130S-52S-HI	S5130S-28S-PWR-HI	S5130S-52S-PWR-HI
Port Switching capacity	128Gbps		176Gbps	128Gbps	176Gbps
Box Switching capacity	336Gbps
Forwarding capacity	96Mpps		132Mpps	96Mpps	132Mpps
CPU	1 Core, 800MHz
Dimensions (W × D × H)	440×360×43.6		440×360×43.6	440×460×43.6	440×460×43.6
Weight	≤6kg		≤6.5kg	≤8.5kg	≤9.5kg
Front panel data ports	24 x 10/100/1000BASE-T Ethernet ports, (including 8 combo ports), 4 x 10G/1G BASE-X SFP+ ports		48 x 10/100/1000BASE- T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports	24 x 10/100/1000BASE-T Ethernet ports, (including 4 combo ports), 4 x 10G/1G BASE-X SFP+ ports	48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports
Console port	1 × RJ-45 Out of Band console port 1 × Micro-USB(Type B) console port Only the Micro-USB console port is available when you connect both ports.
Expansion slot	-
Power consumption	Single AC: 34W Single DC: 36W Dual AC: 39W		Single AC: 52W Single DC: 53W Dual AC: 55W	Single AC: Upto 898W (including 810W PoE)	Single AC: Upto 1019W (including 900W PoE) Dual AC:
(full configuration )	Dual DC: 44W		Dual DC: 57W	Dual AC： Upto 905W (including 810W PoE)	Upto 1854W （(including 1680W PoE)
MTBF(Year)	174.61		151.28	89.35	61.87
Feature	S5130S-28C-HI		S5130S-52C-HI	S5130S-28C-PWR-HI	S5130S-52C-PWR-HI
Port Switching capacity	128Gbps		176Gbps	128Gbps	176Gbps
Box Switching capacity	336Gbps
Forwarding capacity	96Mpps		132Mpps	96Mpps	132Mpps
CPU	1 Core, 800MHz
Dimensions (W × D × H)	440×360×43.6		440×460×43.6	440×460×43.6	440×460×43.6
Weight	≤4.5kg		≤4.5kg	≤5.4kg	≤5.8kg
Front panel data ports	24 x 10/100/1000BASE-T Ethernet ports, (including 8 combo ports), 4 x 10G/1G BASE-X SFP+ ports		48 x 10/100/1000BASE- T Ethernet ports, (including 2 combo ports), 2 x 10G/1G BASE-X SFP+ ports	24 x 10/100/1000BASE-T Ethernet ports, (including 4 combo ports), 4 x 10G/1G BASE-X SFP+ ports	48 x 10/100/1000BASE-T Ethernet ports, (including 2 combo ports),2 x 10G/1G BASE-X SFP+ ports
Console port	1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
Expansion slot	1
Power consumption (full configuration )	Single AC: 30W Single DC: 32W Dual AC: 38W Dual DC: 38W		Single AC: 49W Single DC: 58W Dual AC: 51W Dual DC: 52W	Single AC: Upto 907W (including 810W PoE) Dual AC： Upto 918W (including 810W PoE)	Single AC: Upto 1032W (including 900W PoE) Dual AC: Upto 1855W （(including 1680W PoE)
MTBF(Year)	174.61		151.28	89.35	61.87
Flash/SDRAM	256MB/512MB
Maximum stacking bandwidth	80G
Maximum stacking number	9
SDN/ Open flow		OpenFlow 1.0 and 1.3 Multiple controllers (EQUAL, master/slave) Multiple tables flow sFlow Group table Meter
Port aggregation		GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation
Port features		IEEE802.3x flow control (full duplex) control based on port rate percentage PPS/BPS-based storm control
IRF2		Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking
VLAN		Port-based VLAN (up to 4094 VLANs) MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN GVRP VLAN tagging Jumbo frame support
ACL		Packet filtering at Layer 2 through layer 4 traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, Time range-based ACL VLAN-based ACL Bidirectional ACL
QoS		Port rate limit (receiving and transmitting) Packet redirection Committed access rate (CAR) Eight output queues on each port Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR 802.1p DSCP remarking Class of service (CoS)
DHCP		DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config
IP routing		IPV4 routing number 1K Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 Policy-based routing BGP (Border gateway routing) Loopback IP interface Route maps
MAC address table		16K
Multicast		IGMP Snooping /MLD Snooping Multicast VLAN
Layer 2 ring network protocol		STP/RSTP/MSTP/PVST Smart Link RRPP G.8032 Ethernet ring protection switching (ERPS)
OAM		802.1ag 802.3ah 802.1 AB (LLDP)
Mirroring		Port mirroring RSPAN traffic mirroring
Security		Hierarchical user management and password protection MAC-based and Web-based authentication 802.1X Guest VLAN RADIUS/HWTACACS/TACACS+ DHCP protection Source-port filtering SSH 2.0,SSL VPN Port isolation Port security MAC address learning limit IP Source guard/ACLs Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks STP protection : BPDU and STP root guard IP/Port/MAC binding EAD
Management and maintenance		Loading and upgrading through XModem/FTP/TFTP Configuration through CLI, Telnet, and console port SNMPv1/v2/v3 and Web-based NMS Remote monitoring (RMON ) alarm, event, and history recording IMC NMS System log, alarming based on severities, and output of debugging information NTP Ping, tracert Virtual cable test (VCT) Device link detection protocol (DLDP) Loopback-detection
Green power		EEE (802.3az) Port auto Power down Port schedule down
Input voltage		Non PoE model input voltage: AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Maximum voltage range -48V~-60V DC PoE model input voltage: 360W AC: 100V~240V, 50Hz~60Hz 720W AC: 100V~240V, 50Hz~60Hz 1110W AC: 115V~240V, 50Hz~60Hz
Operating temperature		-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage temperature		-40℃～+70℃
Operating& storage humidity (noncondensi ng)		5%～95%
EMC		FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 for telecommunications center installations GB/T 9254 YD/T 993
Safety		UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1

Brand	H3C
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
