Home/Ethernet Switch/H3C Switch/S5570S-EI-Series/S5130S-28P-PWR-EI
S5130-28P-PWR-EI-1
Categories:

S5130S-28P-PWR-EI

0 Reviews Write a review
SKU2009870
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

H3C S5130S-28P-PWR-EI switch supports 24×10/100/1000BASE-T Ethernet ports, 4x1G SFP ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5130S-28P-PWR-EI Overview

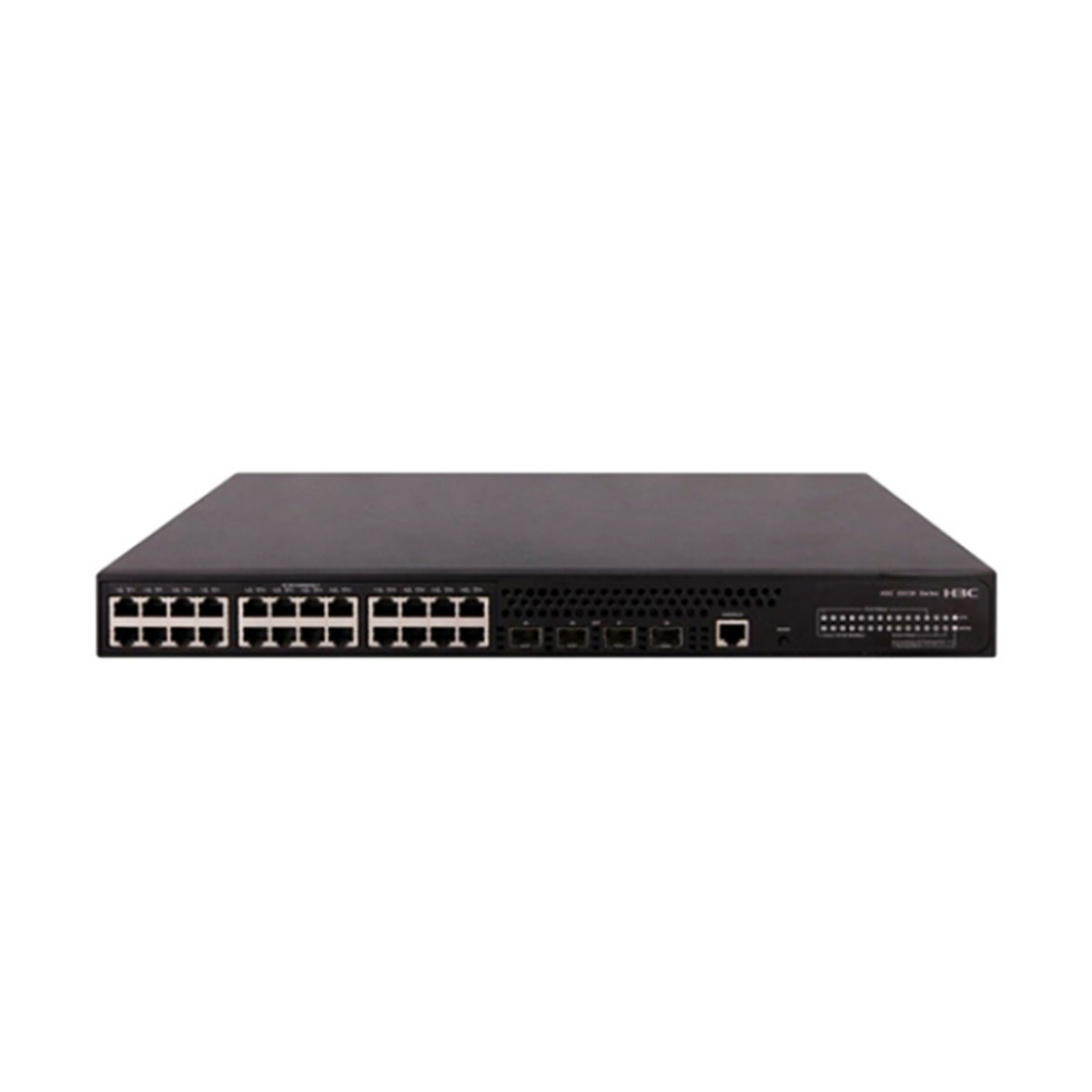

H3C S5130S-28P-PWR-EI switch supports 24×10/100/1000BASE-T Ethernet ports, 4x1G SFP ports.

H3C S5130S-EI Switch Series – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offers enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF,

SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high density campus access.

H3C S5130S-EI series Ethernet switch includes the following models:

  • S5130S-10P-EI
  • S5130S-10MS-UPWR-EI
  • S5130S-12TP-EI
  • S5130S-16S-PWR-EI
S5130S-28P-PWR-EI Features
  • Software Defined Network (SDN)
  • Intelligent Resilient Framework 2 (IRF2)
  • Smart Management Center (SmartMC)
  • High availability
  • Abundant QoS
  • Professional Anti-lightning function
  • Excellent manageability
  • Green design
Item
S5130S-28P-PWR-EI
Port Switching capacity 56Gbps
Box Switching capacity 336Gbps
Forwarding capacity 42Mpps
CPU 1 Core, 800MHz
10/100/1000 Base-T port 24
SFP port 4
Maximum Stacking bandwidth 16Gbps
Maximum stacking num 9
Input voltage AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC (S5130S-52P-PWR-EI, S5130S-28P-HPWR-EI with RPS1600-A)
Flash/SDRAM 256MB/512MB
Power consumption (full configuration) 230W (including 170W PoE)
Operating temperature -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage temperature -40℃ ~ 70℃
Operating & storage relative humidity(no ncondensing) 5%~95%
Dimensions(W × D × H) 440×260×43.6
Weight ≤4kg

Additional information

Brand

H3C
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item
S5130S-28P-PWR-EI
Port Switching capacity 56Gbps
Box Switching capacity 336Gbps
Forwarding capacity 42Mpps
CPU 1 Core, 800MHz
10/100/1000 Base-T port 24
SFP port 4
Maximum Stacking bandwidth 16Gbps
Maximum stacking num 9
Input voltage AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC (S5130S-52P-PWR-EI, S5130S-28P-HPWR-EI with RPS1600-A)
Flash/SDRAM 256MB/512MB
Power consumption (full configuration) 230W (including 170W PoE)
Operating temperature -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage temperature -40℃ ~ 70℃
Operating & storage relative humidity(no ncondensing) 5%~95%
Dimensions(W × D × H) 440×260×43.6
Weight ≤4kg
