S5048PV3-EI-PWR

SKU2010116

BrandsH3C

AvailabilityIn Stock

WarrantyUp to 36 months

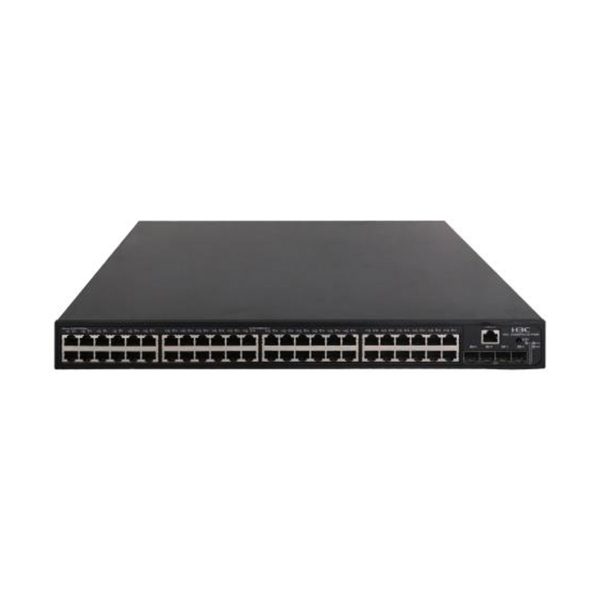

H3C S5048PV3-EI-PWR L2 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports(AC 370W,DC 740W) and 4*1000BASE-X SFP Ports,(AC/DC)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5048PV3-EI-PWR overview

H3C S5000V3-EI is the latest development of Gigabit speed managed Ethernet switch, especially for the SMB (Small Business) market. Besides high-performance access, it also offers

great security access policy control and enhanced network manageability and maintenance.

This makes it ideal for network construction in industries such as government, small to midsize enterprises, schools, and hotels.

S5048PV3-EI-PWR Features and benefits

Multi-type port access

IRF2 (Intelligent Resilient Framework 2)

Comprehensive security control policies

Enhanced service capabilities

Professional anti-lightning function

Green features

PoE+

Features	S5016PV3-EI	S5024PV3-EI	S5048PV3-EI	S5024PV3-EI-PWR	S5024PV3-EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Switching capacity	40Gbps	56Gbps	104Gbps	56Gbps		104Gbps	56Gbps
Packet forwarding rate	30Mpps	42Mpps	78Mpps	42Mpps		78Mpps	78Mpps
Management port	1 console port
10/100/100 0 Base-T port	16	24	48	24		48	2
SFP port	4	4	4	4		4	28
Copper port features	Half-duplex, full-duplex, auto-negotiation MDI/MDI-X
Features	S5016PV3-EI	S5024PV3-EI	S5048PV3 -EI	S5024PV3-EI-PWR	S5024PV3-EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Ethernet functions	LLDP Static MAC configuration MAC address learning limit (up to 8K) Port mirror and flow mirror Link aggregation (up to 8 ports per group) Port isolation STP/RSTP/MSTP IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
VLAN	802.1Q ( up to 4K VLAN) Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN GUEST VLAN
IP routing	Static routing
DHCP	DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82
Broadcast	IGMP V1/V2/V3 Snooping
QoS	Diff-Serv QoS WRR/HQ-WRR 802.1p, DSCP priority mapping Directional port speed limit
ACL	ACL on layer 2, layer 3, and layer 4 ACL on IPv4, IPv6 VLAN ACL
IPv6	IPv6 static routing, dual-stack DHCPv6 Client, DHCPv6 Snooping ND, PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
Reliability	Hot patch, in-service patch upgrade
Security	Hierarchical user management and password protection SSHv2 SSL Specific IP address-based FTP logging and password mechanism
Features	S5016PV3- EI	S5024PV3 -EI	S5048PV3 -EI	S5024PV3-EI-PWR	S5024PV3- EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet Prevent Dos attack IP＋MAC+PORT+VLAN binding IEEE 802.1x SAVI source address validity authentication Radius, HWTACACS SNMPv3 Broadcast suppression Prevent CPU attack
System management	Console/AUX Modem/Telnet/SSH2.0/CLI Loading and upgrading through FTP/TFTP/Xmodem/SFTP SNMP V1/V2c/V3 NTP System log Cluster management
Environment temperature	Operating temperature：-5℃~45℃ Storage temperature：-40℃~70℃
Environment humidity	Operating humidity：5%~95% , non-condensing Storage humidity：5%~95% , non-condensing
Environment protection	China RoHs, EEE
Power consumption	≤19W	≤23W	≤41W	≤230W	AC≤446W DC≤790W	AC≤ 467W DC≤ 807W	≤37W
PoE+	-	-	-	170W	AC 370W DC 740W	AC 370W DC 740W	-
Weight	≤2kg	<2.5kg	<3.5kg	≤4.5kg	≤6kg	≤6kg	<3kg
Input voltage range	AC: 100V～240V AC，50/60Hz； DC: –54 VDC to –57 VDC
Dimensions (W × D x H)	330x230x 43.6 mm	440x160x4 3.6 mm	440x230x 43.6 mm	440x260x43.6 mm		440x400x 43.6 mm	440x260x4 3.6 mm

Brand	H3C
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Features	S5016PV3-EI	S5024PV3-EI	S5048PV3-EI	S5024PV3-EI-PWR	S5024PV3-EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Switching capacity	40Gbps	56Gbps	104Gbps	56Gbps		104Gbps	56Gbps
Packet forwarding rate	30Mpps	42Mpps	78Mpps	42Mpps		78Mpps	78Mpps
Management port	1 console port
10/100/100 0 Base-T port	16	24	48	24		48	2
SFP port	4	4	4	4		4	28
Copper port features	Half-duplex, full-duplex, auto-negotiation MDI/MDI-X
Features	S5016PV3-EI	S5024PV3-EI	S5048PV3 -EI	S5024PV3-EI-PWR	S5024PV3-EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Ethernet functions	LLDP Static MAC configuration MAC address learning limit (up to 8K) Port mirror and flow mirror Link aggregation (up to 8 ports per group) Port isolation STP/RSTP/MSTP IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
VLAN	802.1Q ( up to 4K VLAN) Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN GUEST VLAN
IP routing	Static routing
DHCP	DHCP Relay DHCP Client DHCP Snooping DHCP Snooping Option82
Broadcast	IGMP V1/V2/V3 Snooping
QoS	Diff-Serv QoS WRR/HQ-WRR 802.1p, DSCP priority mapping Directional port speed limit
ACL	ACL on layer 2, layer 3, and layer 4 ACL on IPv4, IPv6 VLAN ACL
IPv6	IPv6 static routing, dual-stack DHCPv6 Client, DHCPv6 Snooping ND, PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
Reliability	Hot patch, in-service patch upgrade
Security	Hierarchical user management and password protection SSHv2 SSL Specific IP address-based FTP logging and password mechanism
Features	S5016PV3- EI	S5024PV3 -EI	S5048PV3 -EI	S5024PV3-EI-PWR	S5024PV3- EI-HPWR	S5048PV3-EI-PWR	S5024FV3- EI
Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet Prevent Dos attack IP＋MAC+PORT+VLAN binding IEEE 802.1x SAVI source address validity authentication Radius, HWTACACS SNMPv3 Broadcast suppression Prevent CPU attack
System management	Console/AUX Modem/Telnet/SSH2.0/CLI Loading and upgrading through FTP/TFTP/Xmodem/SFTP SNMP V1/V2c/V3 NTP System log Cluster management
Environment temperature	Operating temperature：-5℃~45℃ Storage temperature：-40℃~70℃
Environment humidity	Operating humidity：5%~95% , non-condensing Storage humidity：5%~95% , non-condensing
Environment protection	China RoHs, EEE
Power consumption	≤19W	≤23W	≤41W	≤230W	AC≤446W DC≤790W	AC≤ 467W DC≤ 807W	≤37W
PoE+	-	-	-	170W	AC 370W DC 740W	AC 370W DC 740W	-
Weight	≤2kg	<2.5kg	<3.5kg	≤4.5kg	≤6kg	≤6kg	<3kg
Input voltage range	AC: 100V～240V AC，50/60Hz； DC: –54 VDC to –57 VDC
Dimensions (W × D x H)	330x230x 43.6 mm	440x160x4 3.6 mm	440x230x 43.6 mm	440x260x43.6 mm		440x400x 43.6 mm	440x260x4 3.6 mm
