Description

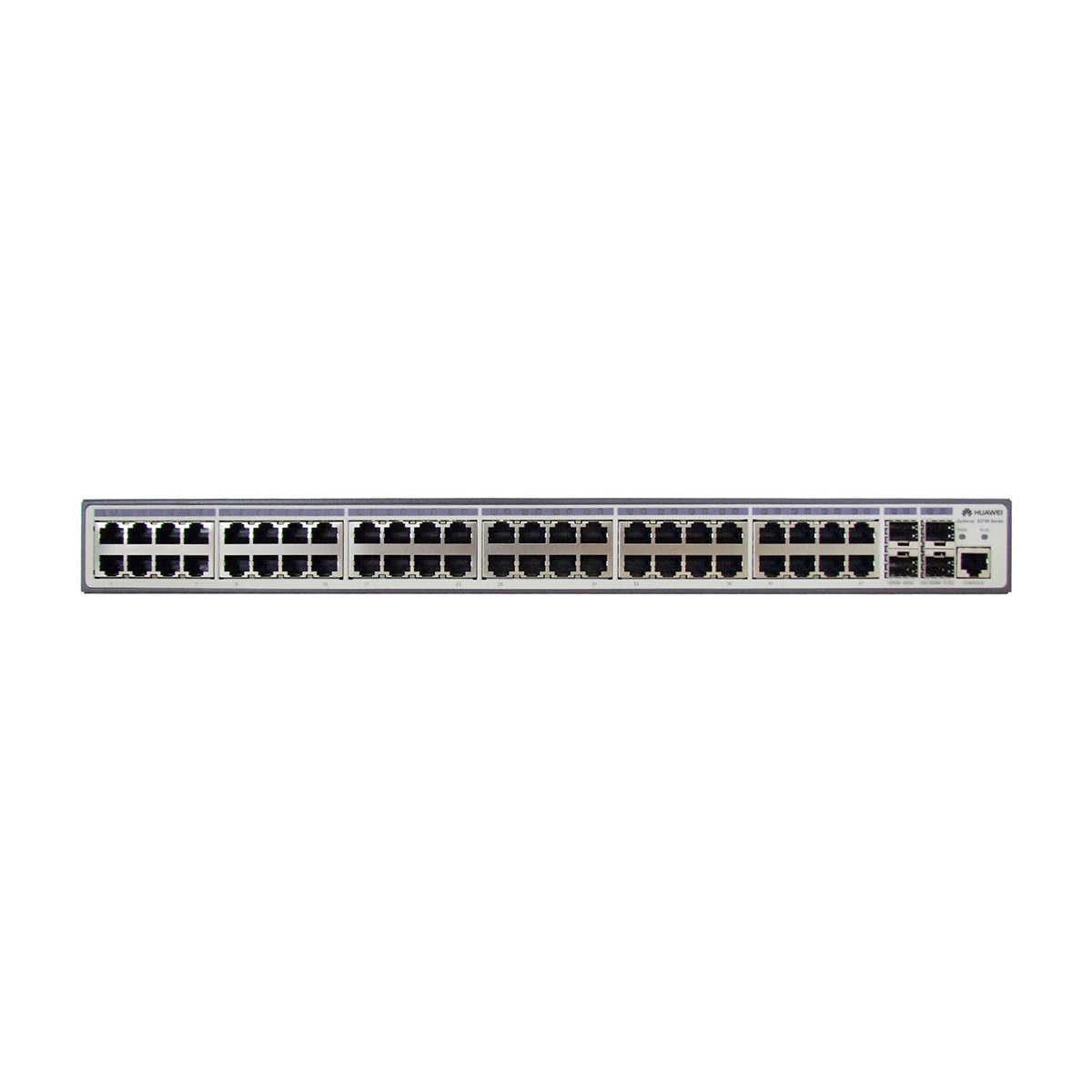

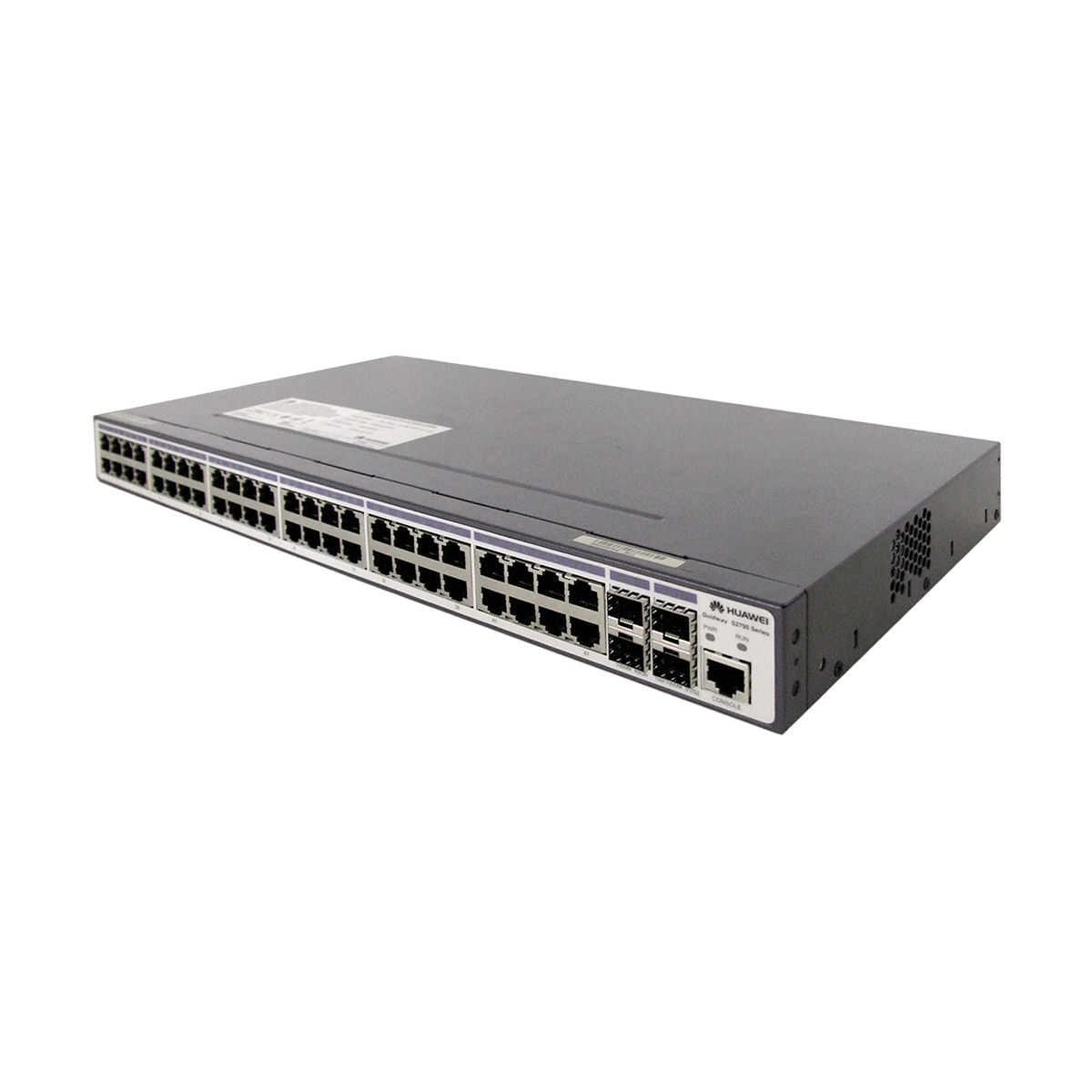

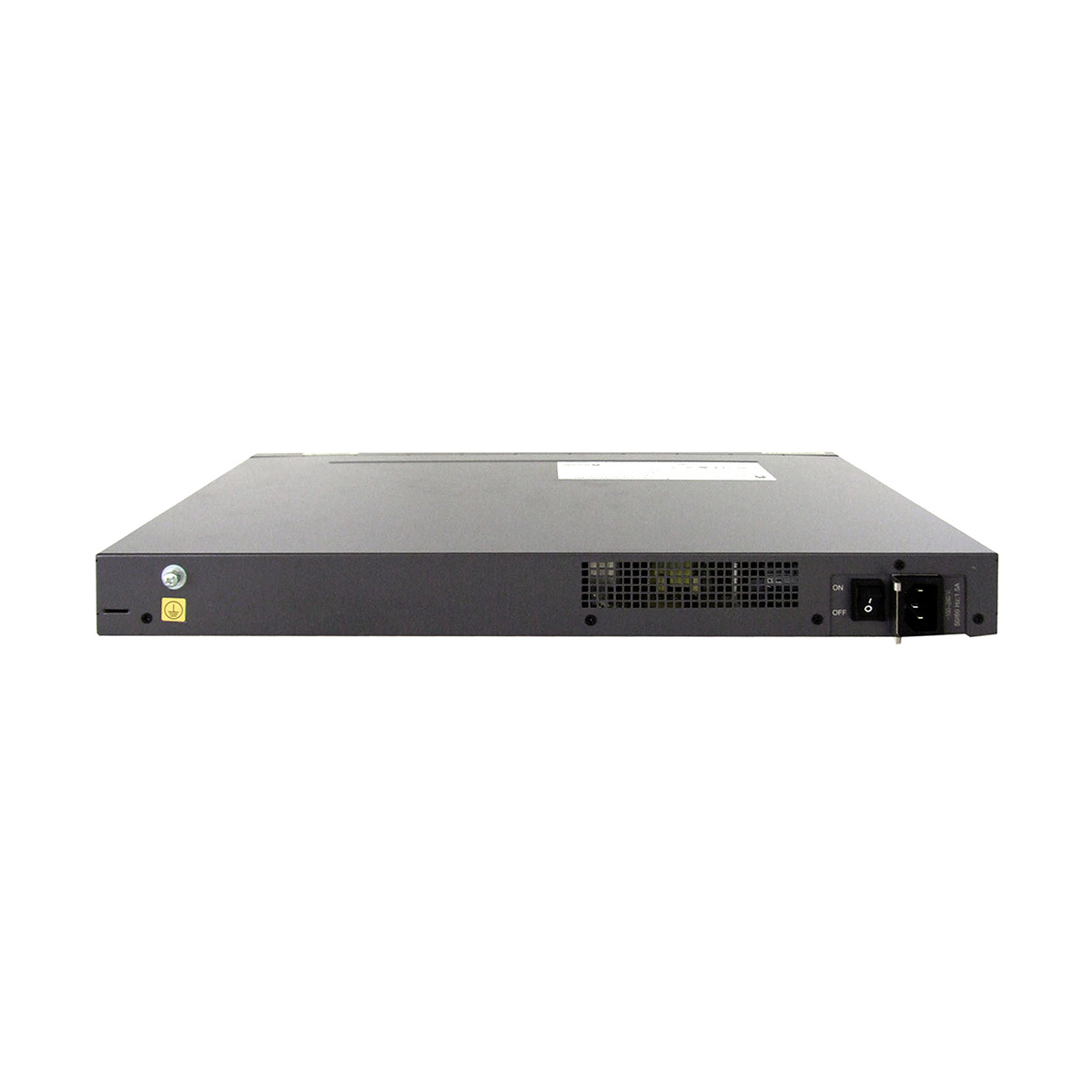

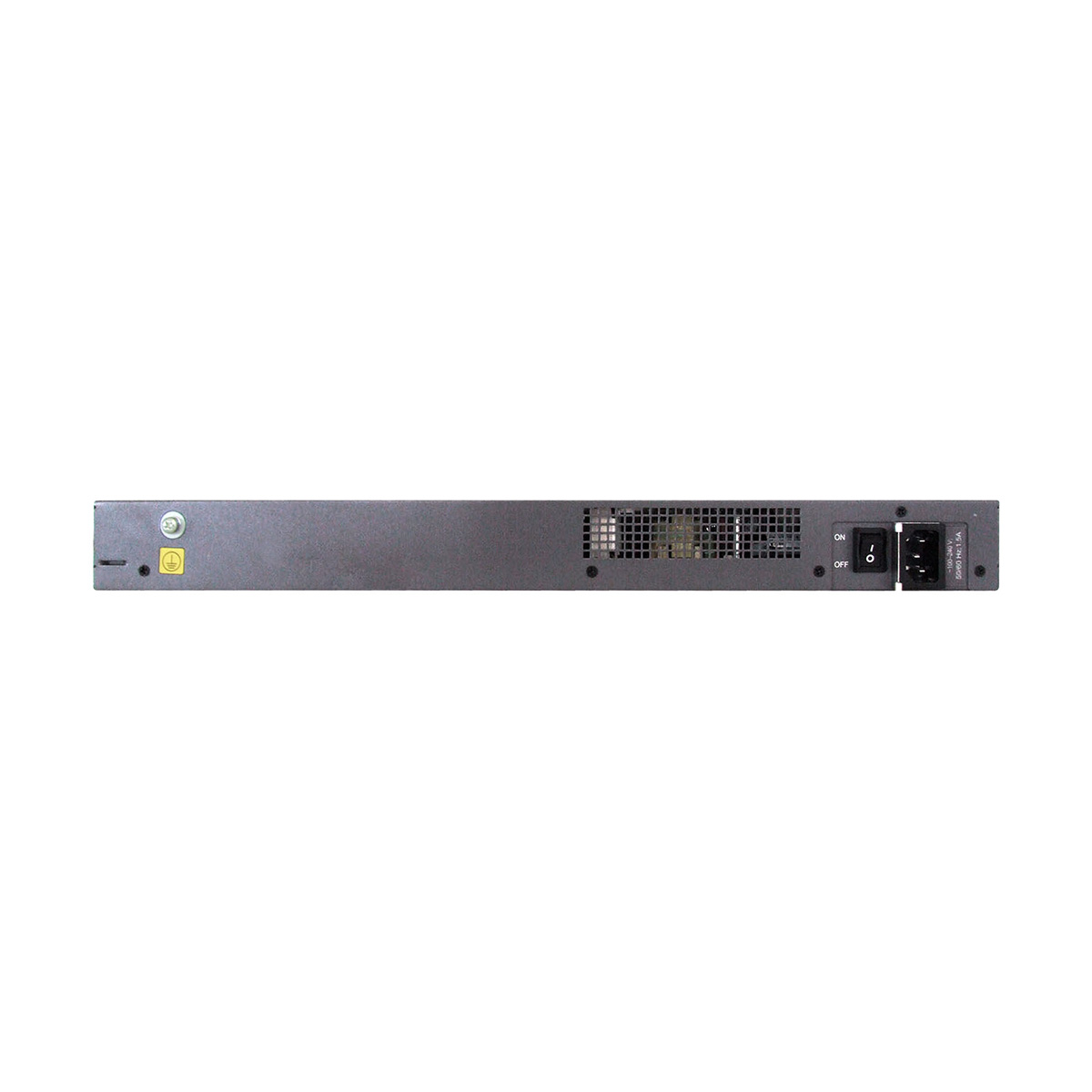

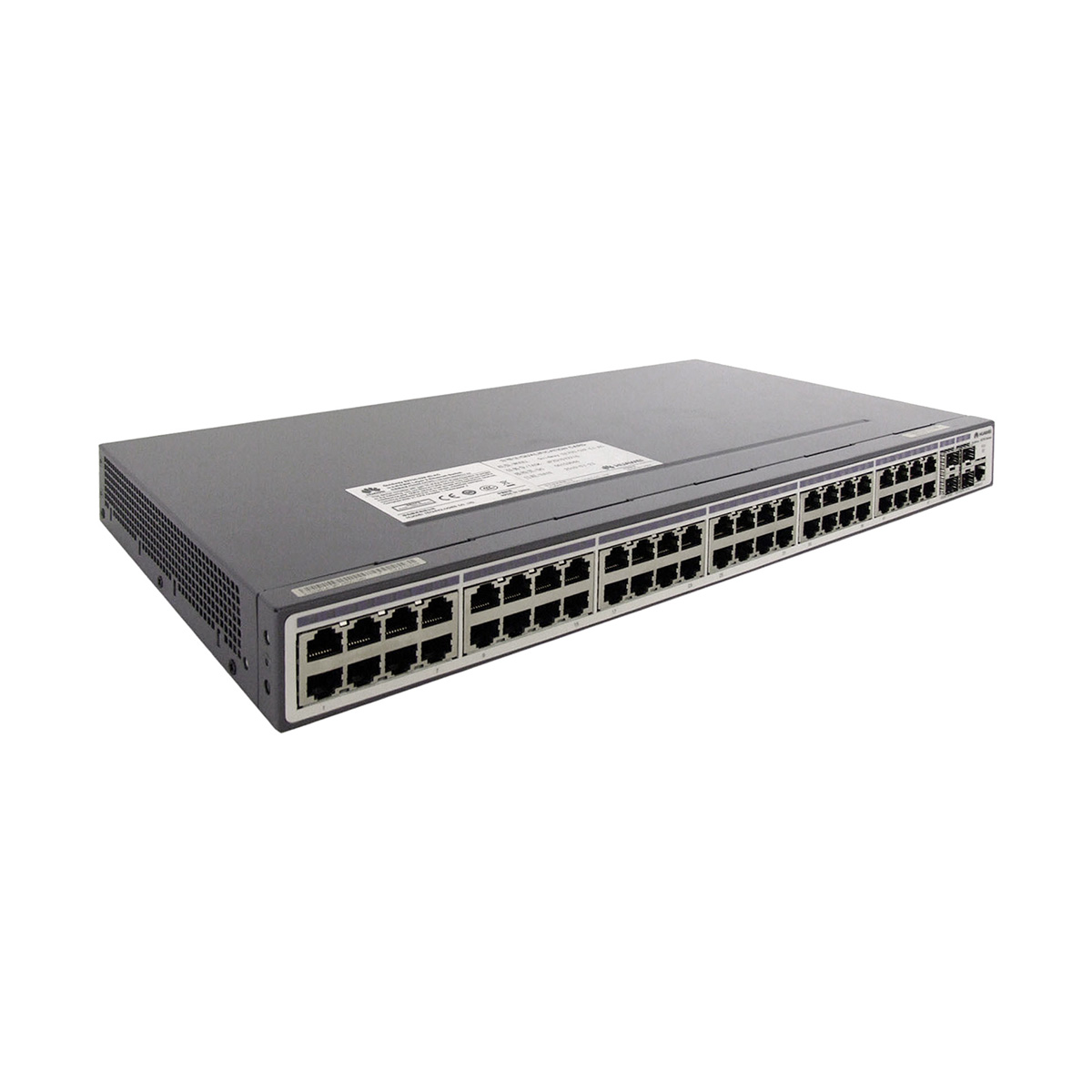

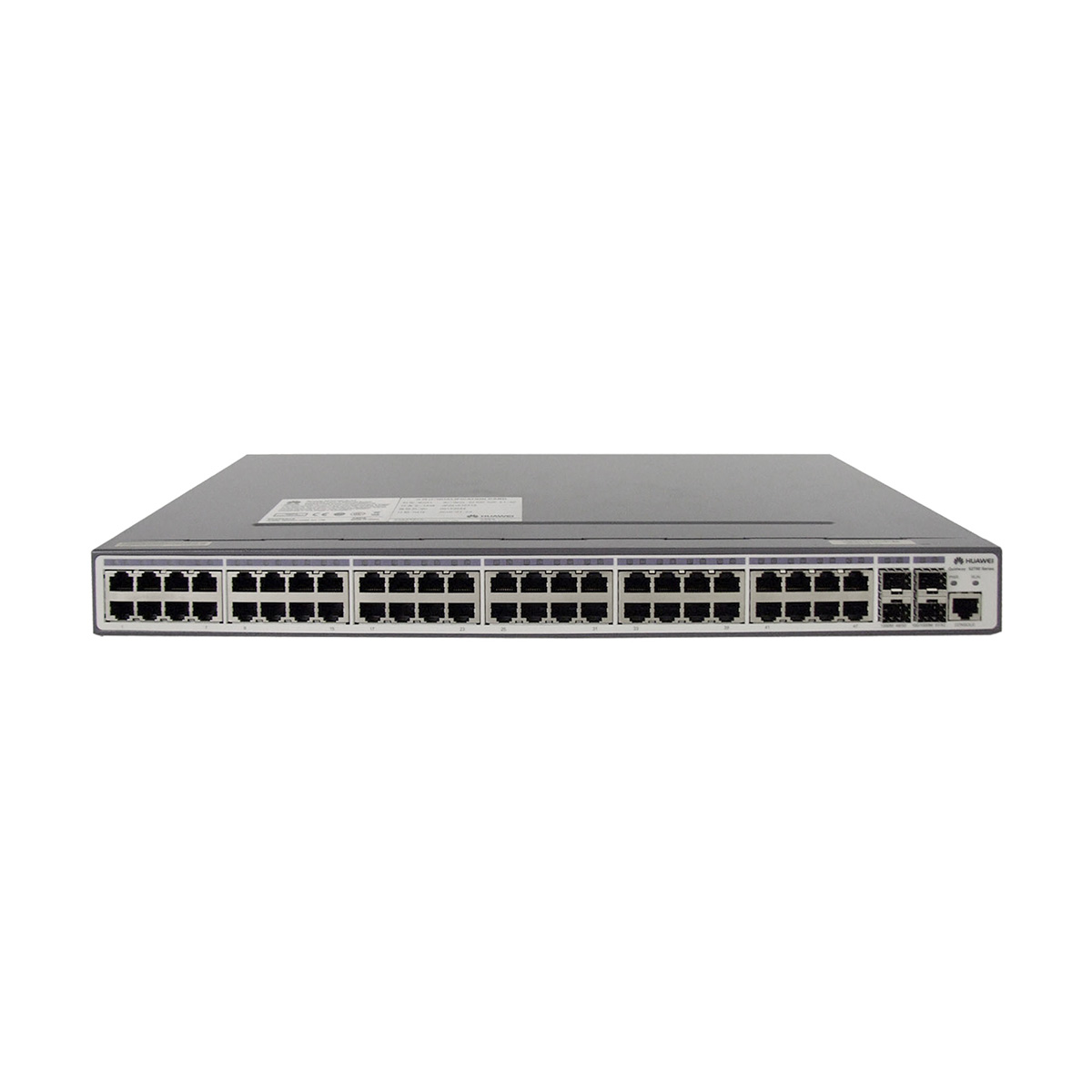

Huawei S2700-52P-EI-AC with 48 Ethernet 10/100 Base-T ports, is one of the Huawei S2700 series switches. The S2700 series Ethernet switches are next-generation energy-saving 100M Ethernet intelligent switches.The S2700 utilizes cutting-edge switching technologies and Huawei Versatile Routing Platform (VRP) software to meet the demand for multi-service provisioning and access on Ethernet networks. It is easy to install and maintain and supports flexible VLAN deployment, comprehensive security and QoS policies, and energy-saving technologies. These features help enterprise customers build next-generation IT networks.
S2700-52P-EI-AC Datasheet
| Item | S2700-52P-EI-AC |
| Fixed ports | 48 Ethernet 10/100 ports, 4 GE SFP |
| Extended slot | NA |
| Forwarding perfomance | 13.2Mpps |
| Switching capacity | 32Gbps |
| VLAN feature | 4K active VLANs, complying with IEEE 802.1Q Port-based VLAN assignment MAC address-based assignment Port-based QinQ |
| QoS | Port-based rate limiting and flow- based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms |
| IPv4 routing | Static routing |
| IPv6 feature | IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping. |
| Multicast | MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets |
| Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance |
| Traffic sampling | N/A |
| Security & Access features | 802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard |
| Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Suppression of multicast, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense DHCP relay |
|
| Surge protection | Surge protection capability of service ports: 7kV |
| Interoperability | NA |
| Operating environment | Long-term operating temperature: –5°C to + 50°C↵ Relative humidity: 10% to 90% (non-condensing) |
| Power | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz |
| Dimensions (WxDxH) | 442×220×43.6 |
| Weight | <3 kg (without power supply) |
| Power consumption | <38 W |
