Description

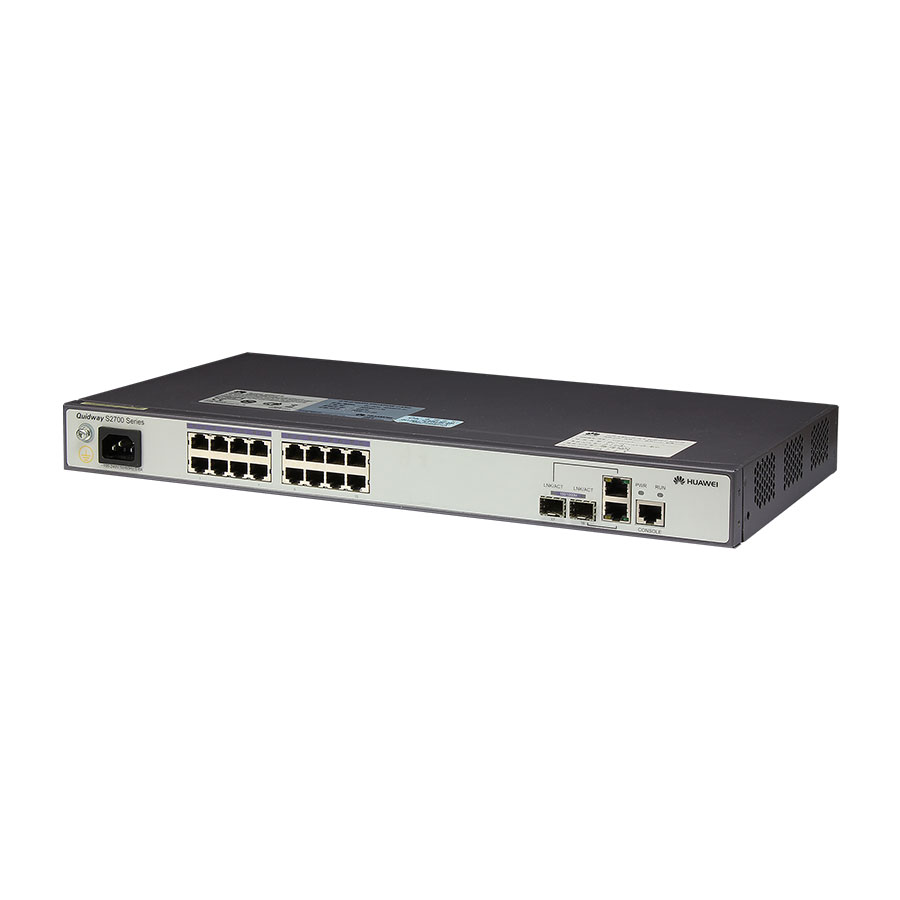

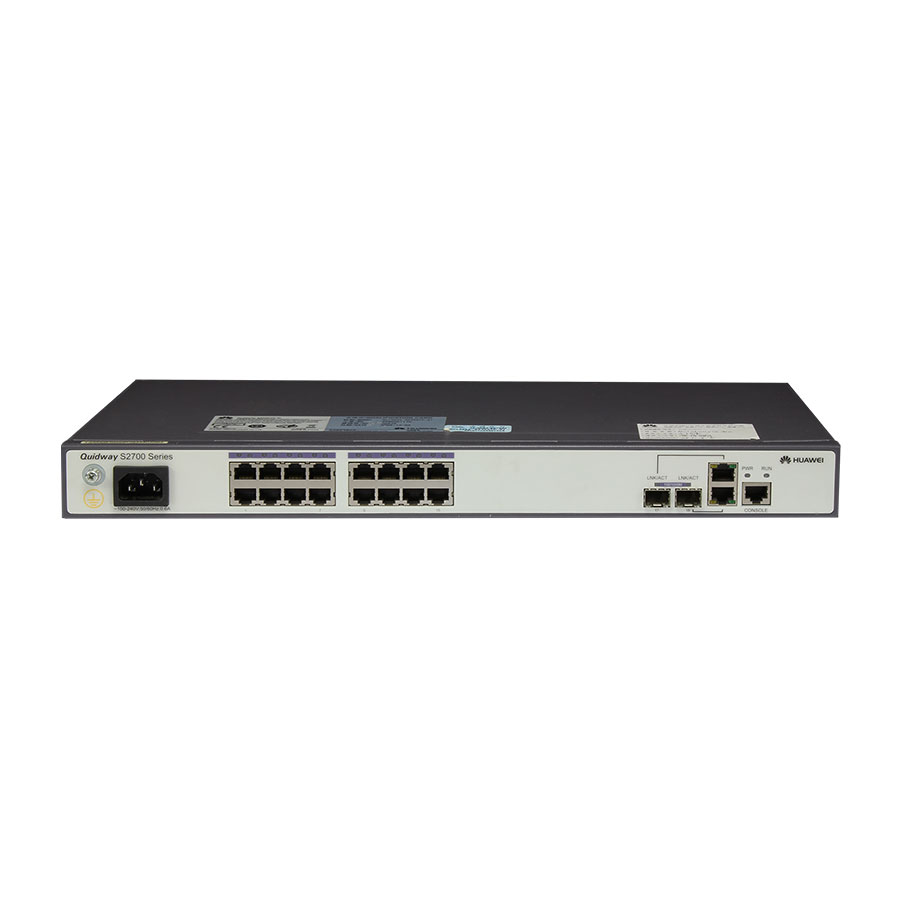

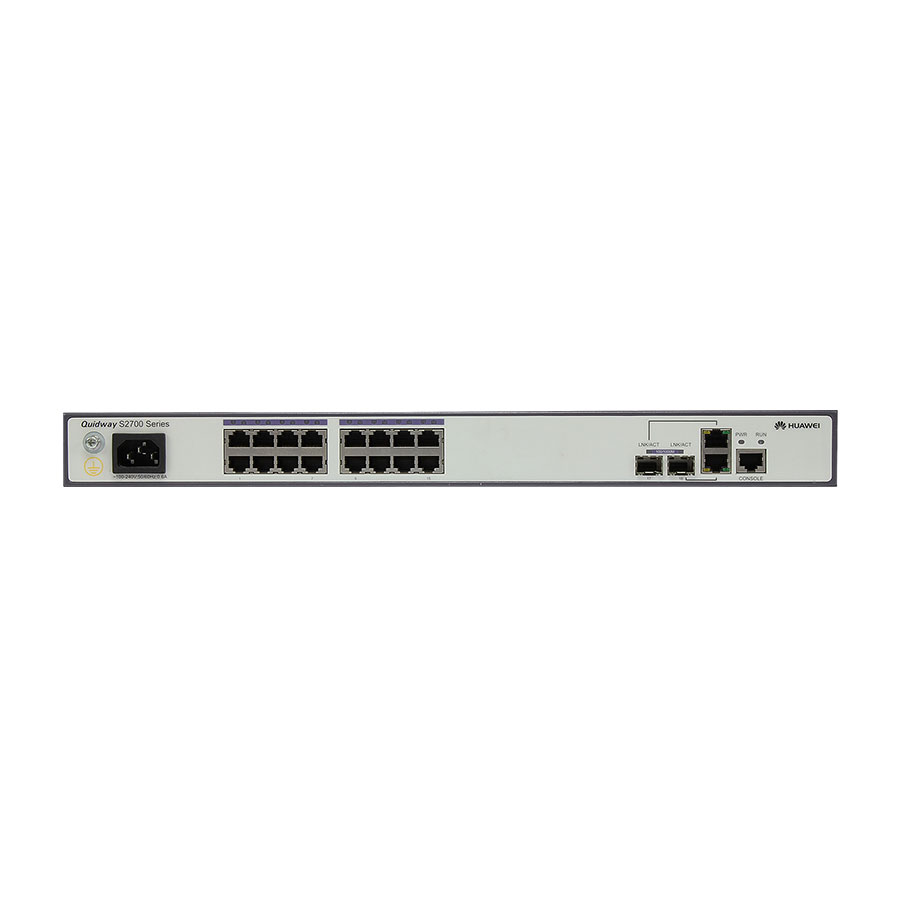

Huawei S2700-18TP-SI-DC with 8 Ethernet 10/100 Base-TX ports, is one of the Huawei S2700 series switches. The S2700 series Ethernet switches are next-generation energy-saving 100M Ethernet intelligent switches.The S2700 utilizes cutting-edge switching technologies and Huawei Versatile Routing Platform (VRP) software to meet the demand for multi-service provisioning and access on Ethernet networks. It is easy to install and maintain and supports flexible VLAN deployment, comprehensive security and QoS policies, and energy-saving technologies. These features help enterprise customers build next-generation IT networks.
S2700-18TP-SI-DC Datasheet
| Item | S2700-18TP-SI-DC |
| Fixed port | 16 10/100Base-TX Ethernet ports, 2 dual-purpose 10/100/1000 or SFP |
| Extended slot | NA |
| Forwarding perfomance | 5.4Mpps |
| Switching capacity | 32Gbps |
| VLAN feature | 4K active VLANs, complying with IEEE 802.1Q |
| Port-based VLAN assignment | |
| QoS | Outbound-Port-based rate limiting and flow-based rate limiting |
| 4 or 8 queues of different priorities on each port | |
| Mapping between 802.1p priorities and queues | |
| SP, WRR, and SP+WRR | |
| algorithms | |
| IPv4 routing | Static routing |
| IPv6 feature | IPv6 protocol Static IPv6 routes |
| Multicast | IGMP v1/v2/v3 snooping |
| Port-based rate limiting for multicast packets | |
| Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w) |
| Traffic sampling | N/A |
| Security & Access features | Storm suppression |
| Multiple authentication methods including AAA, RADIUS, and TACACS+ | |
| Port isolation | |
| Suppression of multicast, broadcast, and unknown unicast packets | |
| CPU defense | |
| Surge protection | Surge protection capability of service ports: 7kV |
| Management | Auto-Config |
| CLI-based configuration | |
| Remote configuration using Telnet | |
| SNMP V1/V2C/V3 | |
| Remote network monitoring SSHv2 | |
| Web-based device management | |
| Interoperability | NA |
| Operating environment | Long-term operating temperature: –5°C to + 50°C↵ |
| Relative humidity: 10% to 90% (non-condensing) | |
| Power | Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
| Maximum voltage: 90 to 264 V AC, 50/60 Hz | |
| Dimensions (WxDxH) | 442×220×43.6 |
| Weight | <2.4 kg |
| Power consumption | <14.5 W |
