Description

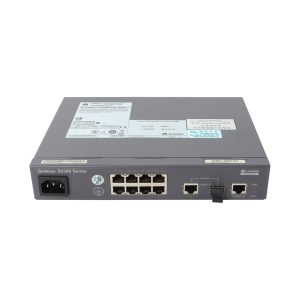

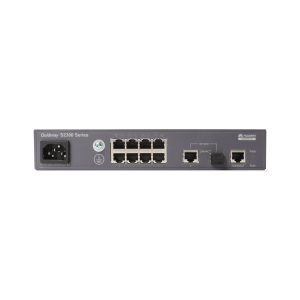

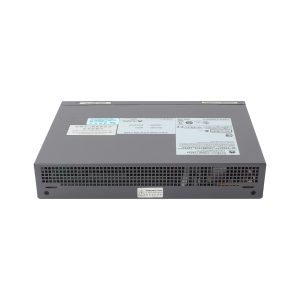

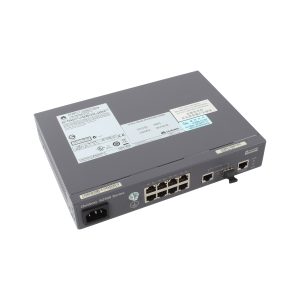

| Item | S2309TP-EI-AC |
| Fixed port | 8 10/100Base-T ports, 1 10/100/1000 Base-T or 100/1000Base-X port |
| Processor | Dominant frequency: 200 MHz |
| Switching capacity | 3.6 Gbit/s |
| Forwarding performance | 2.7 Mpps |
| DDR memory | 64 MB |
| Flash Memory | 16 MB |
| Backplane switching capacity | 32 Gbit/s |
| MAC address table | Supports 8K MAC address entries. |
| Supports manual addition and deletion of a MAC address table. | |
| Supports configuration of MAC address aging time. | |
| Supports disabling of MAC address learning based on port or aggregation group. | |
| Supports limit on the number of MAC addresses to be learned on a port. | |
| Supports blackhole MAC addresses. | |
| VLAN features | Supports IEEE 802.1Q (VLAN) and 4096 VLANs. |
| Supports port-based VLAN. | |
| Supports MAC-based VLAN. | |
| Supports basic QinQ. | |
| Supports 1:1 VLAN switching. | |
| Supports N:1 VLAN switching. | |
| QoS | Supports port rate limit and traffic rate limit. |
| Supports four queues with different priorities on each port. | |
| Supports mapping of packets to different queues based on 802.1p. | |
| Supports multiple algorithms including SP, WRR, and SP+WRR. | |
| Supports traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, Layer-4 port number,protocol type, VLAN ID, Ethernet frame protocol type, and CoS.protocol type, and CoS. | |
| Supports traffic-based priority marking and packet redirection. | |
| IPv6 features | Supports IPv6 host functions. |
| Supports static route configuration. | |
| Supports IPv6 ACL. | |
| Supports MLD v1/v2 snooping | |
| Multicast | Supports IGMP v1/v2/v3 snooping. |
| Supports multicast load sharing among bundled ports. | |
| Supports port-based multicast rate limit and traffic statistics. | |
| Port mirroring | Supports 1:1 or N:1 port mirroring. |
| Supports Remote Switched Port | |
| Analyzer (RSPAN) and traffic-based mirroring. | |
| Supports packet forwarding on an observing port. | |
| Security | Supports IEEE 802.1X authentication and the limit on the maximum number of users on a port. |
| Supports dynamic ARP detection. | |
| Supports IP Source Guard. | |
| Supports multiple authentication methods including AAA, RADIUS, HWTACACS+, and NAC. | |
| Supports binding of the IP address,MAC address, port number, and VLAN ID. | |
| Support port rate limit. | |
| Supports port isolation, port security, and sticky MAC. | |
| Supports packet filtering. | |
| Supports packet filtering based on MAC addresses. | |
| Supports suppression of multicast, broadcast, and unknown single-cast packets. | |
| Supports limit on the number of MAC addresses to be learned. | |
| Supports CPU protection. | |
| Surge protection | Each port has a surge protection capability of 6 KV. Each port has a surge protection capability of 15 KV after an extra surge protection device is added. |
| Management and maintenance | Supports iStack |
| Supports automatic configuration. | |
| Supports CLI configuration. | |
| Supports remote configuration and maintenance by using Telnet. | |
| Supports SNMP v1/v2/v3. | |
| Supports RMON. | |
| Supports HGMP v2. | |
| Supports SSH v2. | |
| Supports Web management. | |
| Supports GVRP. | |
| Operating environment | Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing) |
| Power supply | AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz |
| Dimensions (mm) | 250 (W) x 180 (D)x 43.6 (H) |
| Weight | < 1.4 kg |
| Power consumption | < 12.8 W |
