Description

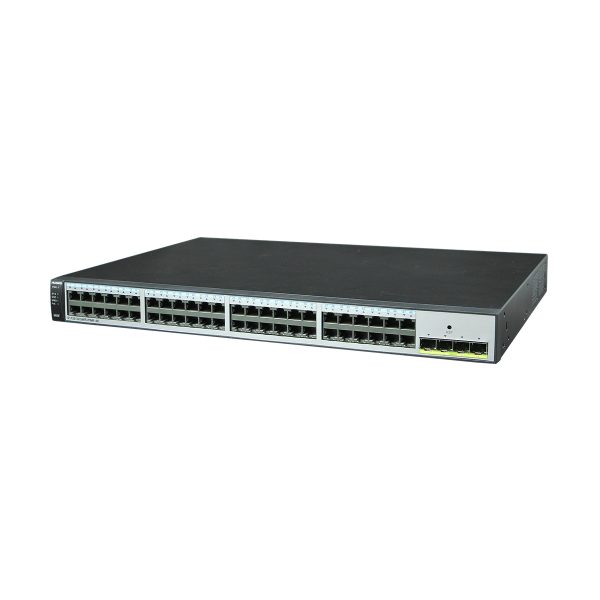

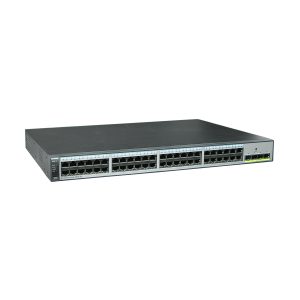

Huawei S1720-52GWR-PWR-4X-E-AC with 48 10/100/1000BASE-T ports, is one of the Huawei S1700 series switches. The S1700 is deployed at the access layer of an enterprise network to deliver cost-effective packet switching capability. In addition, the S1700 provides multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability. The S1700 series switches are applicable to various scenarios, for example, GE access to enterprise networks and GE-todesktop, building future-oriented IT networks for enterprises.

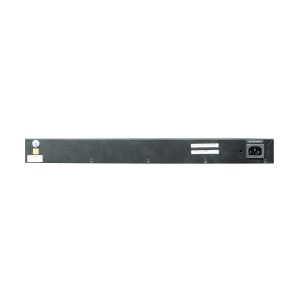

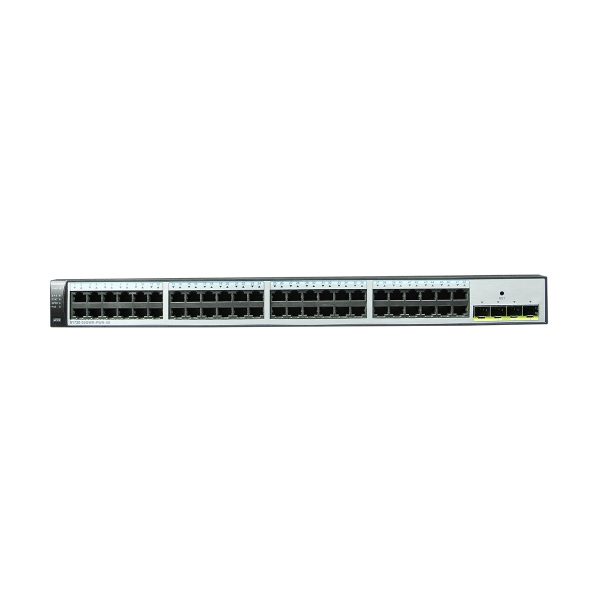

S1720-52GWR-PWR-4X-E-AC appearance and structure
| 1. Mode switching button | 5. Ground screw |
| 2. Forty-eight PoE+ 10/100/1000BASE-T ports | 6. Jack reserved for AC power cable locking strap |
| 3. Four 10GE SFP+ Ethernet ports | 7. AC power socket |
| 4. Reset button |
S1720-52GWR-PWR-4X-E-AC Datasheet
| Item | S1720-52GWR-PWR-4X-E-AC |
| Fixed port | 48 Ethernet 10/100/1000 ports and 4 10GE SFP+ |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 336 Gbit/s |
| Mean-Time-Between- Failures (MTBF), years | 38 |
| Mean-Time-To-Repair (MTTR), hours | 2 |
| Security features | Hardware ACL Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication. RADIUS authentication Portal authentication Port isolation Storm suppression Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks DHCP snooping |
| VLAN | 4K VLANs VLAN assignment based on access, trunk, and hybrid ports Management VLAN Voice VLAN |
| QoS | PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities |
| STP | STP (IEEE 802.1d) RSTP (IEEE 802.1w) MSTP (IEEE 802.1s) |
| Multicast | IGMP snooping and a maximum of 1K multicast groups Fast leave |
| Routing Feature | IPv4 and IPv6 static routing |
| Link Aggregation | 64 LAGs with a maximum of eight ports in each LAG Static LACP |
| Port Mirroring | Port-based bi-directional flow mirroring Configuring a trunk as a mirrored interface |
| Bandwidth Control | Rate limiting for incoming and outgoing packets, with a granularity of 8 kbit/s |
| Broadcast Storm Suppression | Broadcast storm suppression based on the interface rate Alarm sending when the traffic rate reaches the upper limit |
| Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration |
| Device Maintenance | Remote Network Monitoring (RMON) System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
| AC Input Voltage | Rated voltage range: 100 V to 240 V AC; 50/60 Hz Maximum voltage range: 90 V to 264 V AC; 47 Hz to 63 Hz |
| Maximum Power Consumption (100% throughput, full speed of fans) | Without PD: 63.5 W With PD: 464.3 W (PoE: 369.6 W) |
| Operating Temperature | 0-1800m: 0°C-45°C 1800-5000m: decrease 1℃ when the altitude increases every 220m |
| Noise (under normal temperature-sound power) | 43.1 dBA |
| Relative Humidity (RH) | 5% RH to 95% RH |
| Operating Altitude | 0 m to 5, 000 m |
| Dimensions (W x D x H) | 442 mm x 310 mm x 43.6 mm |
| Weight (without optical modules) | 5.9 kg |
