Description
S12700E-4 overview
Huawei CloudEngine S12700E series agile switches are core switches designed for next-generation campus networks.
- Using a fully programmable switching architecture, the S12700E series switches allow for fast, flexible function customization and support a smooth evolution to software-defined networking (SDN).
- The S12700E series switches provide the native wireless access controller (AC) capability to help build a wired and wireless converged network. Their unified user management capabilities deliver refined user and service management, and Huawei’s Packet Conservation Algorithm for Internet (iPCA) supports hop-by-hop monitoring of any service flows, helping you manage services in a more refined way.
- The S12700E series switches run Huawei Versatile Routing Platform (VRP), which provides high-performance L2/L3 switching services as well as a variety of network services, such as MPLS VPN, desktop cloud, and video conferencing.
- The S12700E series switches adopt next-generation switch fabric (NGSF), and use the cell switching technology to reduce the forwarding latency and improve the load balancing capability of switch fabric units (SFUs).
- The S12700E series switches support single-link 100G hardware clustering and a variety of reliability technologies such as hardware Ethernet OAM, BFD, and ring network protection. These help you improve productivity and maximize network operation time, and therefore reduce the total cost of ownership (TCO).
The S12700E series switches come in three models: S12700E-4, S12700E-8, and S12700E-12. The maximum numbers of line processing units and switch fabric units supported by these models are:
- S12700E-4: 2 MPUs, 2 SFUs, and 4 LPUs
- S12700E-8: 2 MPUs, 4 SFUs, and 8 LPUs
- S12700E-12: 2 MPUs, 4 SFUs and 12 LPUs
Huawei CloudEngine S12700E series agile switches are core switches designed for next-generation campus networks.
Mapping between the S12700E-4 chassis and software versions
| Chassis | Version |
|---|---|
| S12700E-4 chassis | Supported in V200R019C00 and later versions |

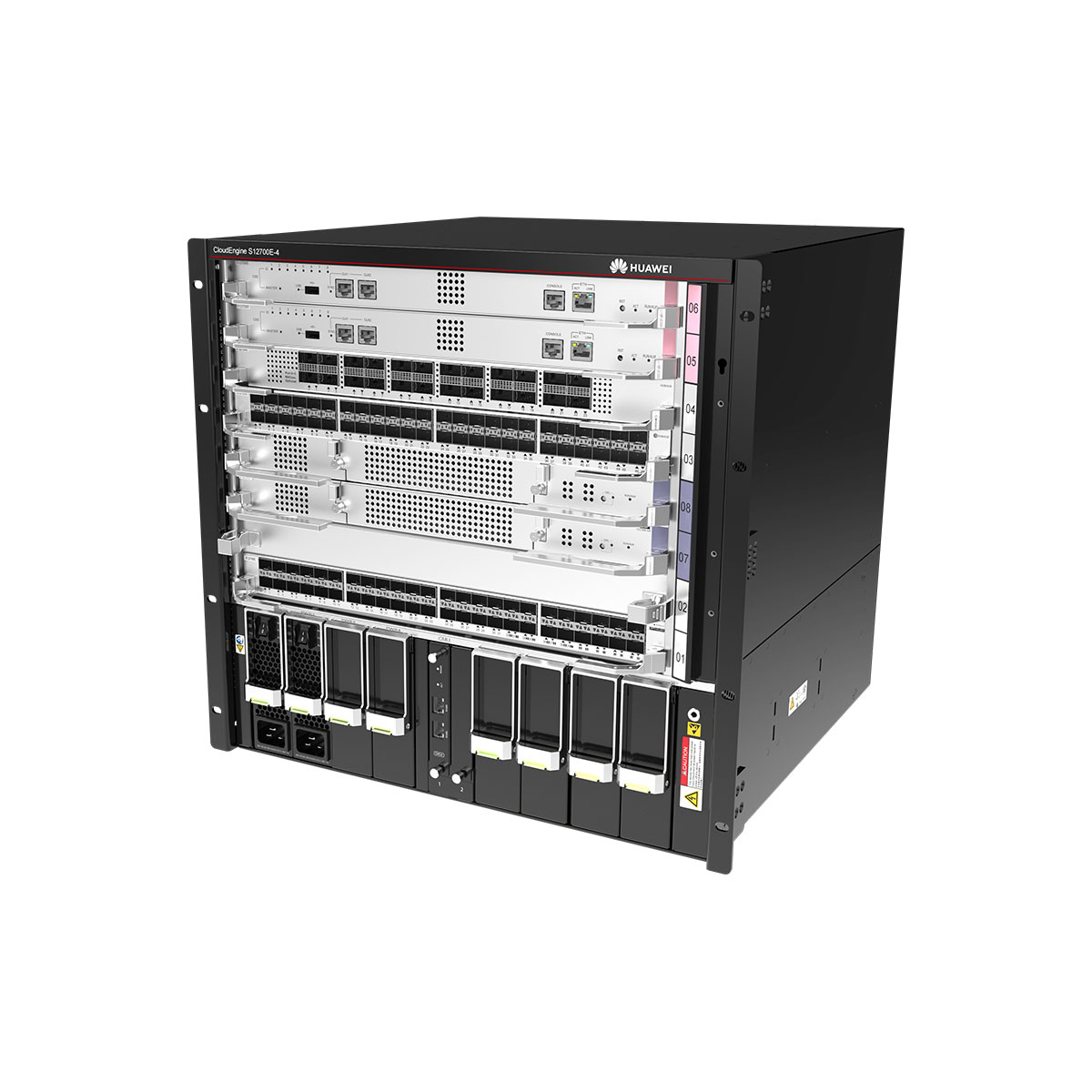

S12700E-4 chassis Front Panel
| Slot Type | Slot ID | Slot ID | Remarks |
| MPU slots | SLOT05, SLOT06 | MPU | MPUs in the two slots work in active/standby mode. |
| MPU slots | SLOT07, SLOT08 | SFU | One to two SFUs can be installed. |
| MPU slots | SLOT01 to SLOT04 | NOTE:
The cards supported by a switch depend on the software version. |
|
| CMU slots | CMU1, CMU2 | CMU | NOTE:
The cards supported by a switch depend on the software version. |
| CMU slots | PWR1 to PWR4 | Power Module | – |

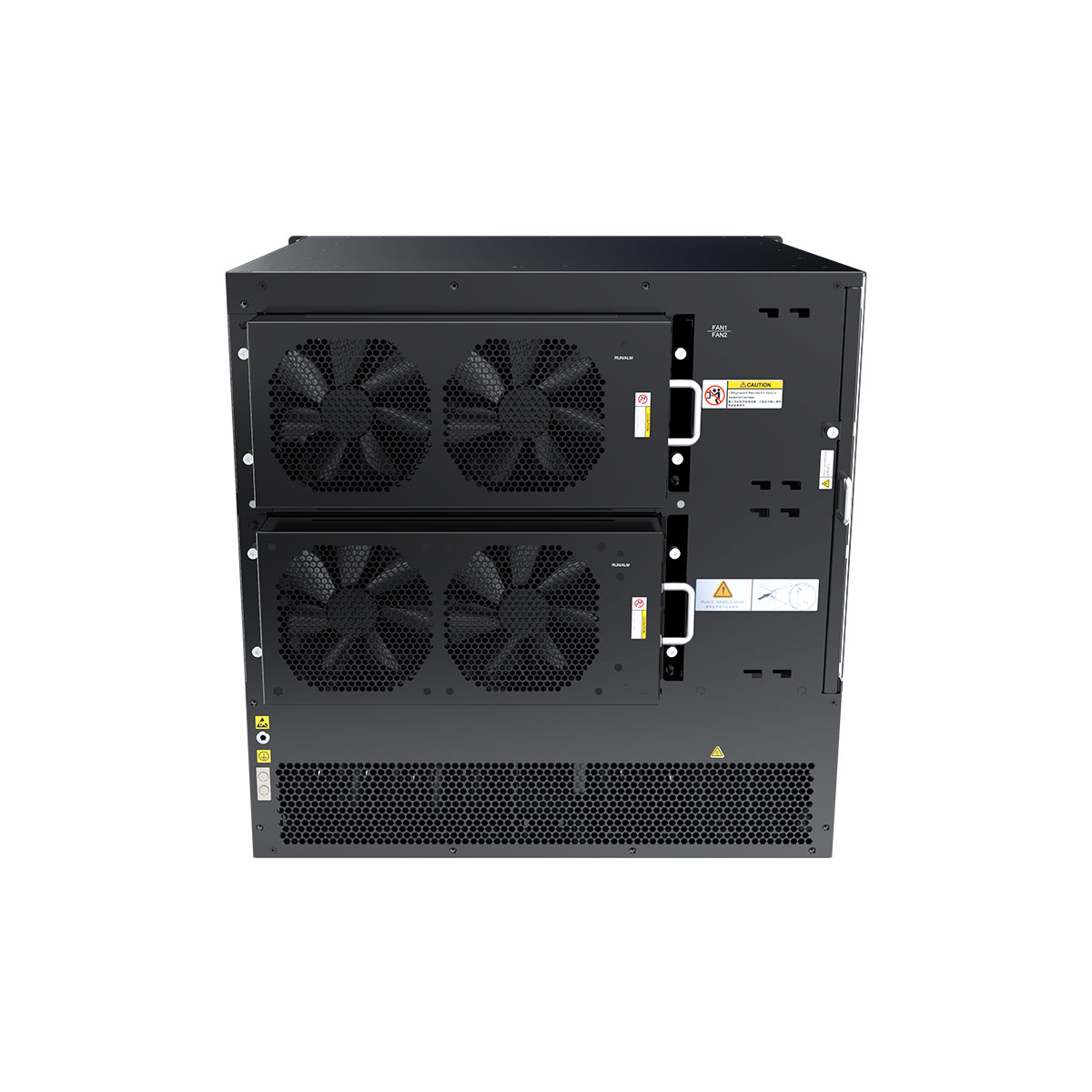

| Fan module slot | FAN1 to FAN2 | Fan Module | – |
