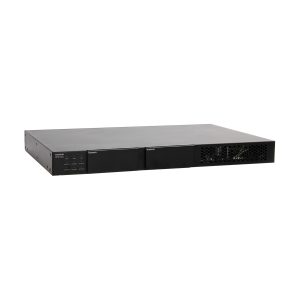

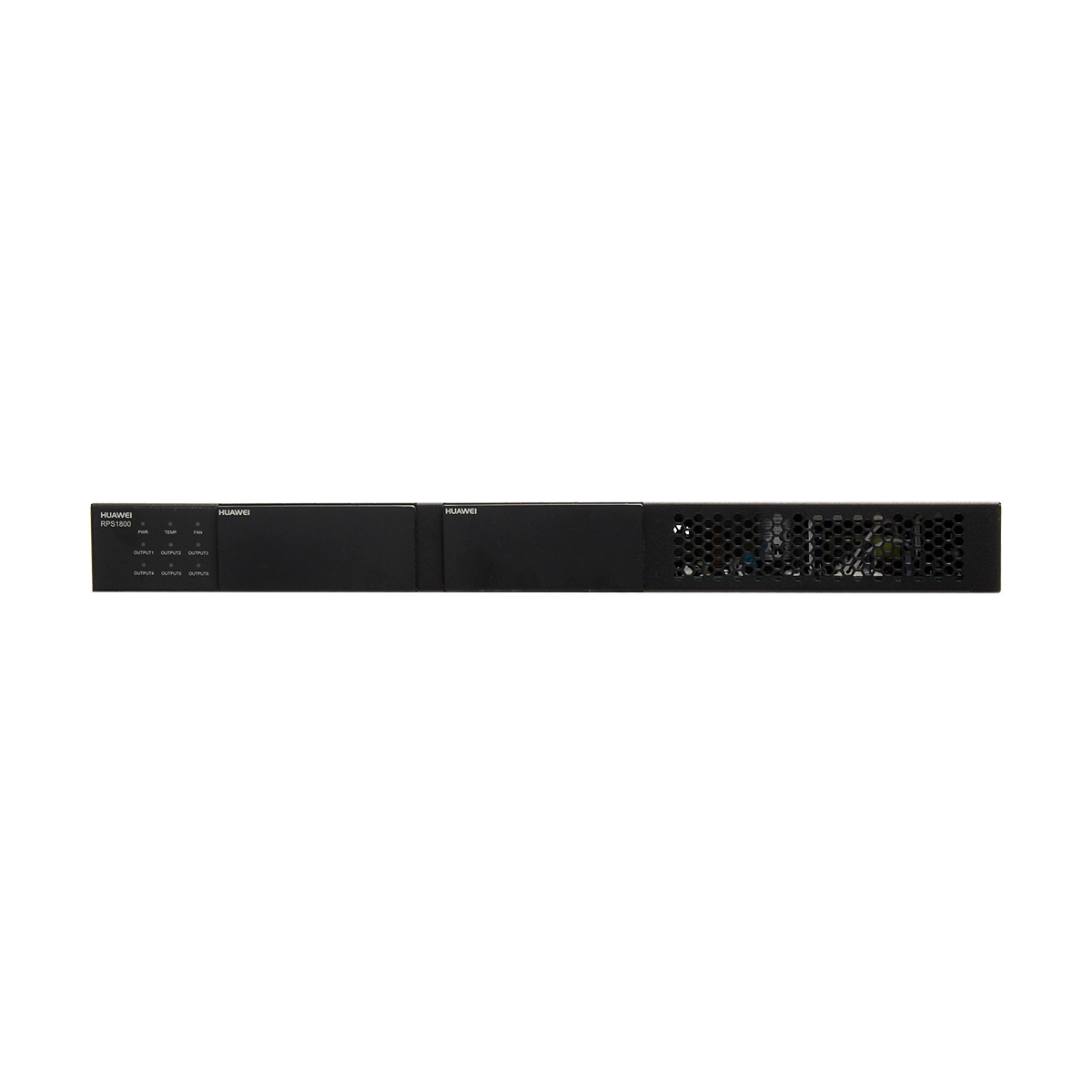

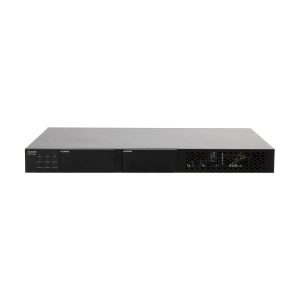

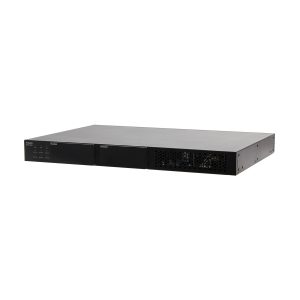

RPS1800 Redundant Power Supply (6 DC Output Ports, 12V Total Output Power 140W, 48V Total Output Power 1600W)
RPS1800 Redundant Power Supply (6 DC Output Ports, 12V Total Output Power 140W, 48V Total Output Power 1600W)
| Item | Details |
|---|---|
| Description | RPS1800 Redundant Power Supply (6 DC Output Ports,12V Total Output Power 140W,48V Total Output Power 1600W) |
| Part Number | 02353857 |
| Model | RPS1800 |
| Item | Description (Without Power Modules Installed) | Description (with One Power Module Installed) | Description (with Two Power Modules Installed) |
|---|---|---|---|
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) | ||
| Weight | 4.0 kg | 5.5 kg | 7.0 kg |
| Operating temperature | 0°C to 50°C (at 0-2000 m altitude) | ||
| Storage temperature | -40°C to +70°C | ||
| Relative humidity | 5% RH to 95% RH, noncondensing | ||
| Airflow direction | Air flows in through the DC output ports side and flows out through the power module side. | ||
| Rated input voltage | 220/110 V AC, 50/60 Hz | ||
| Input voltage range | 200 V AC to 240 V AC (220 V rated voltage input)/100 V AC to 120 V AC (110 V rated voltage input), 50/60 Hz | ||
| Input current | 12 A | ||
| Maximum output current | 12 V: 11.5 A |
|
|
| Maximum output power | 12 V: 140 W |
|
|
| Item | Description (Without Power Modules Installed) | Description (with One Power Module Installed) | Description (with Two Power Modules Installed) |
|---|---|---|---|
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) | ||
| Weight | 4.0 kg | 5.5 kg | 7.0 kg |
| Operating temperature | 0°C to 50°C (at 0-2000 m altitude) | ||
| Storage temperature | -40°C to +70°C | ||
| Relative humidity | 5% RH to 95% RH, noncondensing | ||
| Airflow direction | Air flows in through the DC output ports side and flows out through the power module side. | ||
| Rated input voltage | 220/110 V AC, 50/60 Hz | ||
| Input voltage range | 200 V AC to 240 V AC (220 V rated voltage input)/100 V AC to 120 V AC (110 V rated voltage input), 50/60 Hz | ||
| Input current | 12 A | ||
| Maximum output current | 12 V: 11.5 A |
|
|
| Maximum output power | 12 V: 140 W |
|
|
