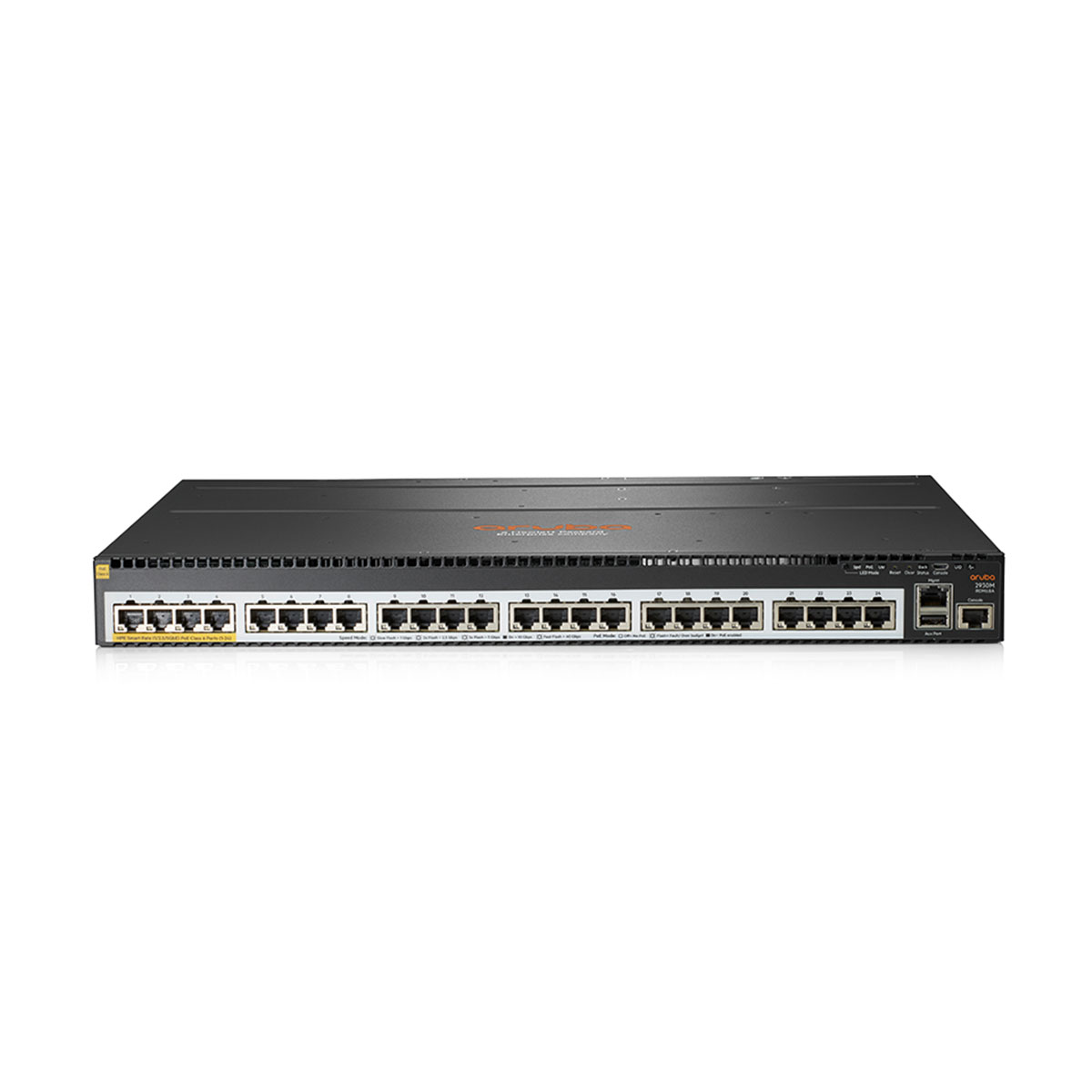

Aruba 2930M series R0M68A switch supports 24 100M,1/2.5/5 G Base-T PoE class 6 ports, PoE supported

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

R0M67A overview

The Aruba 2930M switch series is designed for customer screating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 network switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba Air Wave and cloud-based Aruba Central.

The feature rich 2930M supports a robust QoS, RIP, Access OSPF routing, PIM, VRRP, IPv6 and Dynamic Segmentation for unified and secure access. The Aruba 2930M Switch Series provides a simple and powerful access layer solution that can be quickly set up at branch offices with little or no lT support using Zero Touch Deployment. The switches include a Limited Lifetime Warranty.

Key features:

  • Aruba Layer 3 Switch with 10 chassis backplane stacking, static, RIP and access OSPF routing,
  • Dynamic Segmentation, ACLs, SDN, and robust Qos-Advanced security and network management via Aruba ClearPass Policy Manager, Aruba Air Wave and Aruba Central
  • Modular 10GbE or 40GbE uplinks and HPE Smart Rate (IEEE 802.3bz), with up to 1440W PoE
  • Models with 24 ports of HPE Smart Rate with IEEE 802.3bz
  • Up to 60W PoE per port (IEEE 802.3bt Class 6) for high power devices
  • Software defined ready with REST APls and Open Flow support
  • Simple deployment with Zero Touch Provisioning
Items JL322A JL323A R0M67A JL324A R0M68A
I/O ports and slots 44 Autosensing 10/100/100o ports; 36 Autosensing 10/100/1000 ports 36 Autosensing 10/100/1000 ports 24 Autosensing 10OM,1/2.5/5GBaseT ports PoE+ 24Autosensing 100M,1/2.5/5GBaseT PoE Class 6 ports
4 combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports 4 Combo 10/100/10OOBASE-TPoE+ or 100/1O00Mbps SFP Ports 4Combo 10/100/1000BASE-T PoE Class 6 or 100/1000Mbps SFP Ports
8802.3bz 10OM,1/2.5/5GBaseT and 10GbaseT copper PoE+ ports 8802.3bz 100M,1/2.5/5GBaseT and 10GbaseT PoE Class 6 ports
 1 Dual Personality (RJ-45 or uSB Micro-B)serial console port 1 Dual Personality(R-45 or US8 Micro-B) serial console port 1 Dual Personality(R]-45 or USB Micro-B) serial console port 1 Dual Personality (RJ-45 or USB Micro-8)serial console port 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
1 USBA port for uploading/ downloading files 1USB A port for uploading/ downloading files 1 USB A port for uploading/ downloading files 1 USB A port for uploading/downloading files 1USB A port for uploading/downloading files
1 100BASE-TOut of Band Management Port 1 10OBASE-T Out of Band Management Port 1 100BASE-T Out of Band Management Port 1100BASE-T Out of Band Management Port 1100BASE-T Out of Band Management Port
1 Uplink Slot 1 Uplink Slot 1 Uplink Slot 1 Uplink Slot 1 Uplink Slot
1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot
2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2Power Supply Slots (power supplies not included)
10 Mbps Latency <98.5us (FIFO 64 byte packets) <98.5us (FIFO 64 byte packets) <98.5 us (FIFO 64-byte packets) N/A N/A
100 Mbps Latency <11.8uS (FIFO 64-byte Packets) <11.8uS (FIFO 64-byte Packets) <11.8uS (FIFO 64-byte packets) N/A N/A
1000 Mbps Latency <3.1us (FIFO64-byte packets) <3.1us (FIFO 64-byte packets) <3.1 uS (FIFO64-byte packets) <3.1us(FIFO 64-byte packets) <3.1 us (FIFO 64-byte packets)
2.5 Gbps Latency N/A <6.5uS (FIFO 64-byte packets) <6.5uS (FIFO 64-byte packets) <6.5us(FIFO 64-byte packets) <6.5us (FIFO 64-byte packets)
5 GbpsLatency N/A <4.2pS (FIFo 64-byte packets) <4.2 uS (FIFO64-byte packets) <4.2us(FIFO64-byte packets) <4.2 us (FIFO64-byte packets
10 Gbps Latency <3.4uS (FIFO 64-byte packets) <3.4uS (FIFO 64-byte packets) <3.4 uS (FIFO64-bye packets) <3.4uS(FIFO 64-byte packets) <3.4 us (FIFO 64-byte packets)
Throughput 112 Mpps 112 Mpps 112 Mpps 112 Mpps 112 Mpps
Stacking Perforrmance 100 Gbps 100 Gbps 100 Gbps 100 Gbps 100 Gbps
Switching Capacity 176Gbps 320 Gbps 320 Gbps 320 Gbps 320 Gbps
Switching Capacity (lncluding Stacking) 276Gbps 420 Gbps 420 Gbps 420 Gbps 420 Gbps
Routing table Size 2,000 IPv4,1,000 lPv6 in hardware, 200 OsPF,256 Static,10,000 RIP 2,000 IPv4,1,00O IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OsPF,256 Static,10,000 RIP 2,000 Pv4,1,000 IPv6 in hardware,200 OSPF,256 Static, 10,000 RIP 2,0OO lPv4,1,000 lPv6 in hardware,200 OSPF,256 Static, 10,000 RIP
Mac Address table size 32768 entries 32768 entries 32768 entries 32768 entries 32768 entries
Dimensions 1.73" (Height)x 17.42"(Width)x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73"(Height)x 17.42"(Width) x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73"(Height)x 17.42" (Width) x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73" (Height)x 17.42" (Width)x 12.77”(Depth) (4.39cm x44.25cm x 32.43cm) 1.73” (Height)x 17.42" (Width)x 12.77”(Depth) (4.39cm x4425cmx 32.43cm)
weight 10.25 lbs 4.65kg 9.81lbs4.45 kg 9.90 lbs 4.49 kg 9.92 lbs 4.50 kg 9.96 lbs 4.52 kg

Additional information

Brand

Aruba
Items JL322A JL323A R0M67A JL324A R0M68A
I/O ports and slots 44 Autosensing 10/100/100o ports; 36 Autosensing 10/100/1000 ports 36 Autosensing 10/100/1000 ports 24 Autosensing 10OM,1/2.5/5GBaseT ports PoE+ 24Autosensing 100M,1/2.5/5GBaseT PoE Class 6 ports
4 combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports 4 Combo 10/100/10OOBASE-TPoE+ or 100/1O00Mbps SFP Ports 4Combo 10/100/1000BASE-T PoE Class 6 or 100/1000Mbps SFP Ports
8802.3bz 10OM,1/2.5/5GBaseT and 10GbaseT copper PoE+ ports 8802.3bz 100M,1/2.5/5GBaseT and 10GbaseT PoE Class 6 ports
 1 Dual Personality (RJ-45 or uSB Micro-B)serial console port 1 Dual Personality(R-45 or US8 Micro-B) serial console port 1 Dual Personality(R]-45 or USB Micro-B) serial console port 1 Dual Personality (RJ-45 or USB Micro-8)serial console port 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
1 USBA port for uploading/ downloading files 1USB A port for uploading/ downloading files 1 USB A port for uploading/ downloading files 1 USB A port for uploading/downloading files 1USB A port for uploading/downloading files
1 100BASE-TOut of Band Management Port 1 10OBASE-T Out of Band Management Port 1 100BASE-T Out of Band Management Port 1100BASE-T Out of Band Management Port 1100BASE-T Out of Band Management Port
1 Uplink Slot 1 Uplink Slot 1 Uplink Slot 1 Uplink Slot 1 Uplink Slot
1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot 1 Stacking Module Slot
2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2 Power Supply Slots (power supplies not included) 2Power Supply Slots (power supplies not included)
10 Mbps Latency <98.5us (FIFO 64 byte packets) <98.5us (FIFO 64 byte packets) <98.5 us (FIFO 64-byte packets) N/A N/A
100 Mbps Latency <11.8uS (FIFO 64-byte Packets) <11.8uS (FIFO 64-byte Packets) <11.8uS (FIFO 64-byte packets) N/A N/A
1000 Mbps Latency <3.1us (FIFO64-byte packets) <3.1us (FIFO 64-byte packets) <3.1 uS (FIFO64-byte packets) <3.1us(FIFO 64-byte packets) <3.1 us (FIFO 64-byte packets)
2.5 Gbps Latency N/A <6.5uS (FIFO 64-byte packets) <6.5uS (FIFO 64-byte packets) <6.5us(FIFO 64-byte packets) <6.5us (FIFO 64-byte packets)
5 GbpsLatency N/A <4.2pS (FIFo 64-byte packets) <4.2 uS (FIFO64-byte packets) <4.2us(FIFO64-byte packets) <4.2 us (FIFO64-byte packets
10 Gbps Latency <3.4uS (FIFO 64-byte packets) <3.4uS (FIFO 64-byte packets) <3.4 uS (FIFO64-bye packets) <3.4uS(FIFO 64-byte packets) <3.4 us (FIFO 64-byte packets)
Throughput 112 Mpps 112 Mpps 112 Mpps 112 Mpps 112 Mpps
Stacking Perforrmance 100 Gbps 100 Gbps 100 Gbps 100 Gbps 100 Gbps
Switching Capacity 176Gbps 320 Gbps 320 Gbps 320 Gbps 320 Gbps
Switching Capacity (lncluding Stacking) 276Gbps 420 Gbps 420 Gbps 420 Gbps 420 Gbps
Routing table Size 2,000 IPv4,1,000 lPv6 in hardware, 200 OsPF,256 Static,10,000 RIP 2,000 IPv4,1,00O IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OsPF,256 Static,10,000 RIP 2,000 Pv4,1,000 IPv6 in hardware,200 OSPF,256 Static, 10,000 RIP 2,0OO lPv4,1,000 lPv6 in hardware,200 OSPF,256 Static, 10,000 RIP
Mac Address table size 32768 entries 32768 entries 32768 entries 32768 entries 32768 entries
Dimensions 1.73" (Height)x 17.42"(Width)x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73"(Height)x 17.42"(Width) x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73"(Height)x 17.42" (Width) x 12.77(Depth) (4.39cm x44.25cm x 32.43cm) 1.73" (Height)x 17.42" (Width)x 12.77”(Depth) (4.39cm x44.25cm x 32.43cm) 1.73” (Height)x 17.42" (Width)x 12.77”(Depth) (4.39cm x4425cmx 32.43cm)
weight 10.25 lbs 4.65kg 9.81lbs4.45 kg 9.90 lbs 4.49 kg 9.92 lbs 4.50 kg 9.96 lbs 4.52 kg
