Description
PWAHF Overview
ZXDSL 9806H AC power board PWAHF
Use 110 V/220 V AC input (voltage range is 90 V AC ~ 286 V AC).
Provide battery backup power access and support battery backup power access capability.

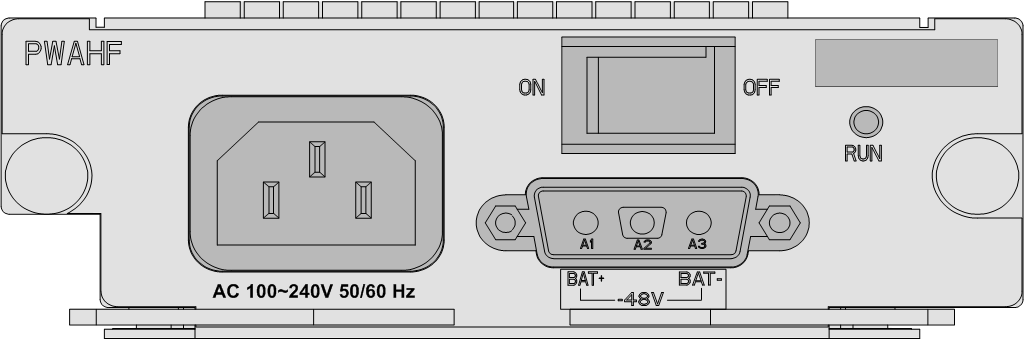

PWAHF Front Panel
Categories:ZXDSL 9806H
PWAHF
AvailabilityIn Stock
WarrantyUp to 36 months
Original price was: $0.00.Current price is: $0.00.
ZXDSL 9806H AC power board PWAHF
PWAHF Datasheet
| Item | PWAHF |
| AC input voltage | 90 V AC~286 V AC |
| Power consumption | 4.5 W |
| AC limit voltage | 315 V AC |
| Working temperature | –30~65℃ |
| High voltage DC input | 130 V DC~380 V DC |
| Output Power | 54 V/4 A，3.45 V/25 A |
| Battery interface | Only supports battery input |
| Battery management | Charging current limit, battery power off, undervoltage alarm |
| Dimensions（H*W*D) | 41.4 mm*100 mm*215 mm |
Additional information
| Weight | 3.0000 kg |
|---|
PWAHF Datasheet
| Item | PWAHF |
| AC input voltage | 90 V AC~286 V AC |
| Power consumption | 4.5 W |
| AC limit voltage | 315 V AC |
| Working temperature | –30~65℃ |
| High voltage DC input | 130 V DC~380 V DC |
| Output Power | 54 V/4 A，3.45 V/25 A |
| Battery interface | Only supports battery input |
| Battery management | Charging current limit, battery power off, undervoltage alarm |
| Dimensions（H*W*D) | 41.4 mm*100 mm*215 mm |
