PL3T-1
Categories:

PL3T

1 Review Write a review
PN03054664
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OSN1800V 3*E3/T3 electrical interface board PL3T, 03054664

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

PL3T overview

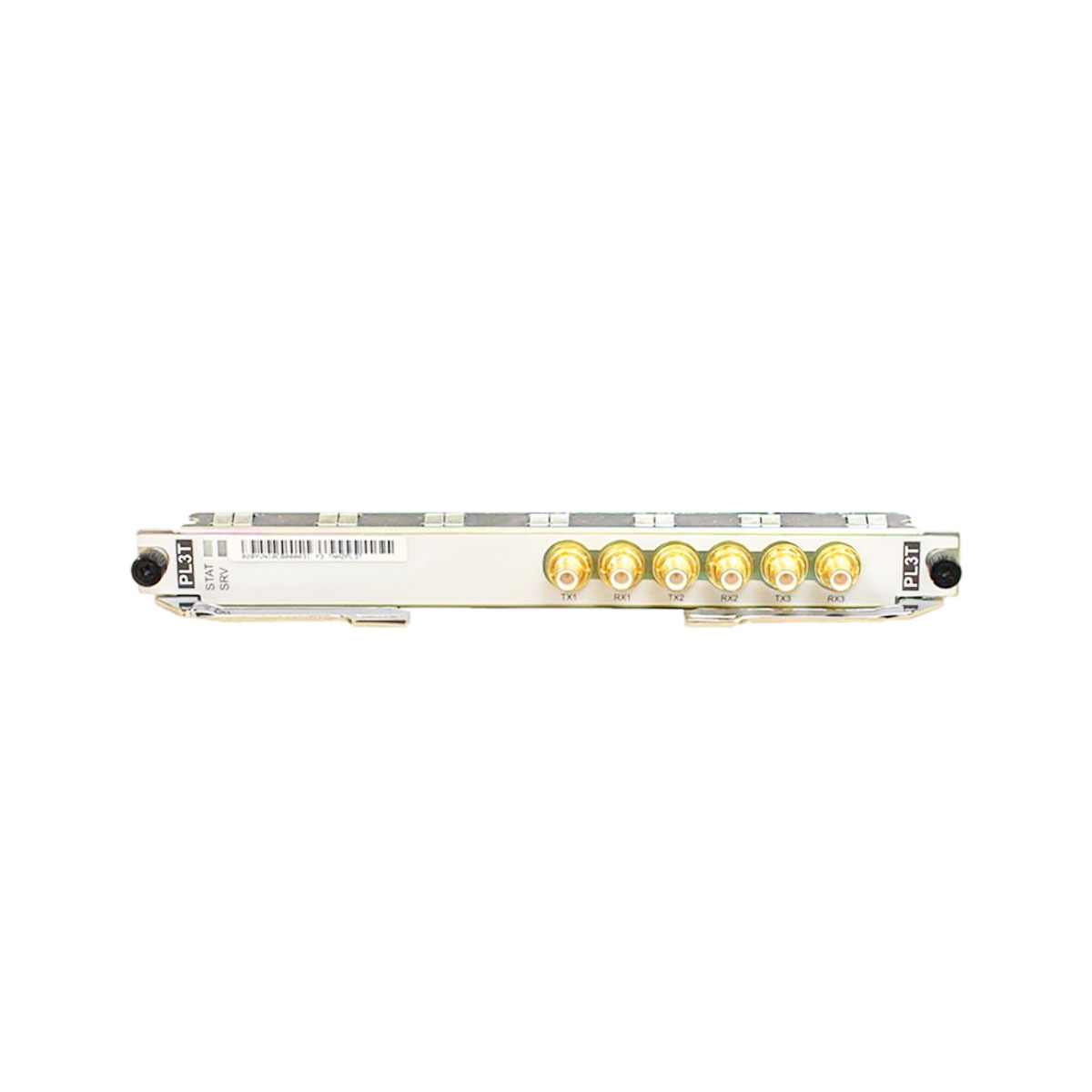

Huawei OSN1800V 3*E3/T3 electrical interface board PL3T.

The PL3T is a PDH processing board.

The PL3T can be used on the OptiX OSN equipment series to add and drop PDH signals.

The PL3T transmits/receives and processes 3*E3/T3 signals.

Version description of the PL3T board

Board

Product Applicable-System Control Board-Initial Board Version Supported by System Control Board

TNF1PL3T

1800 I Enhanced-TMA1UXCL-V100R008C10

1800 V-TNF5UXCM-V100R003C05

1800 V-TNF5UXCME-V100R005C20

1800 V-TNZ5UXCMS-V100R006C10

1800 V-TNZ5XCS-V100R019C10SPC300

1800 II Enhanced-TNZ1UXCL-V100R007C10

1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600
Item
PL3T
Service processing Receives/Transmits and processes 3*E3/T3 signals.
Overhead processing Sets and queries all path overheads at the VC-3 level.
Electrical port specifications Supports the 3*channel 75*ohm E3/T3 interface.
Alarms and performance events Provides various alarms and performance events, facilitating equipment management and maintenance.
Tributary clock sources Extracts clock signals from the first and second channels.
Physical Clock Supported
Maintenance features
  • Inloops and outloops at electrical ports
  • Warm resets and cold resets (with warm resets having no impact on services)
  • Board manufacturing information query
  • Board temperature detection
  • PRBS tests
  • Hot board swapping
SNCP protection Functions only as the service sink board to work with a line board or universal line board to implement SNCP protection.

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item
PL3T
Service processing Receives/Transmits and processes 3*E3/T3 signals.
Overhead processing Sets and queries all path overheads at the VC-3 level.
Electrical port specifications Supports the 3*channel 75*ohm E3/T3 interface.
Alarms and performance events Provides various alarms and performance events, facilitating equipment management and maintenance.
Tributary clock sources Extracts clock signals from the first and second channels.
Physical Clock Supported
Maintenance features
  • Inloops and outloops at electrical ports
  • Warm resets and cold resets (with warm resets having no impact on services)
  • Board manufacturing information query
  • Board temperature detection
  • PRBS tests
  • Hot board swapping
SNCP protection Functions only as the service sink board to work with a line board or universal line board to implement SNCP protection.
