Categories:CloudEngine 6800 Series

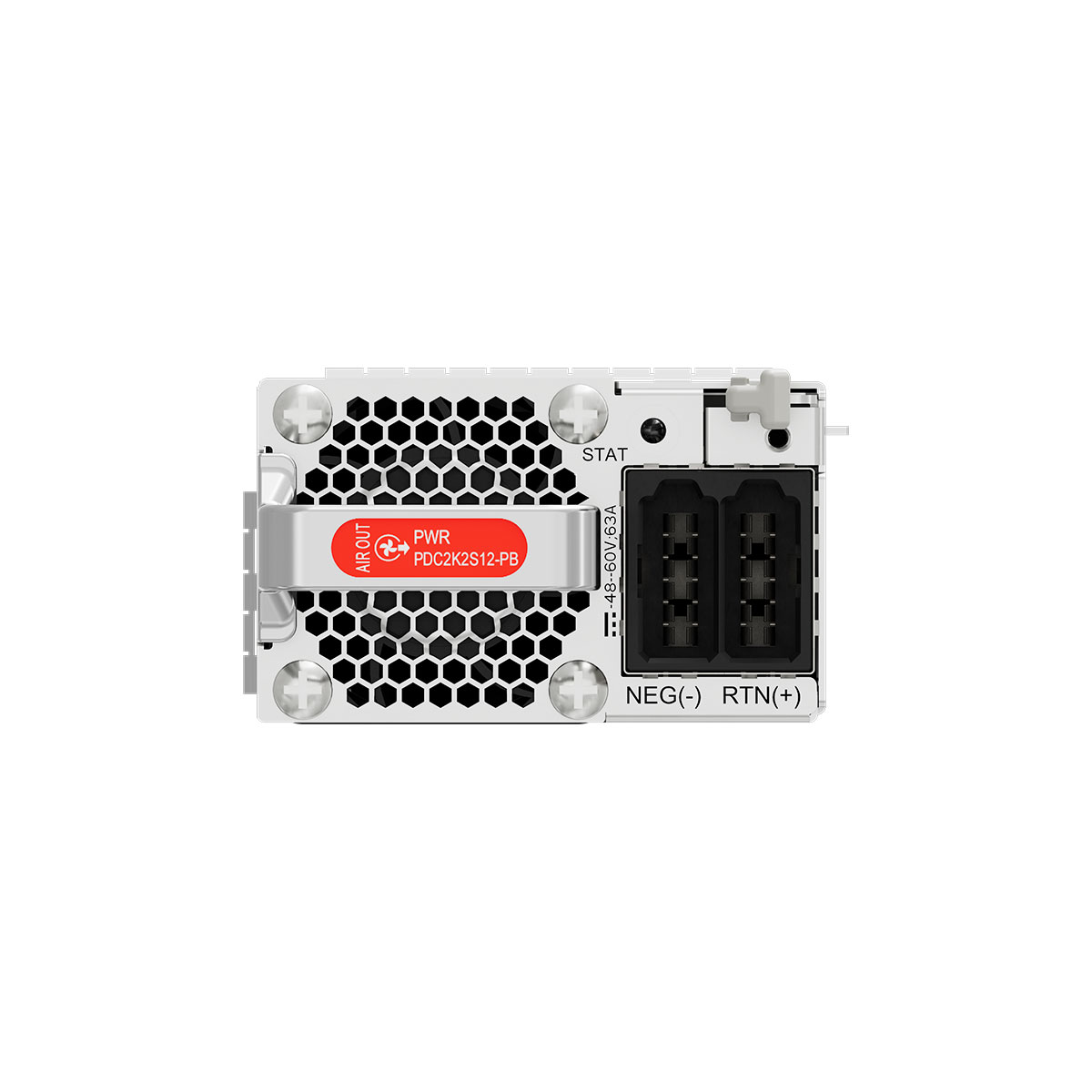

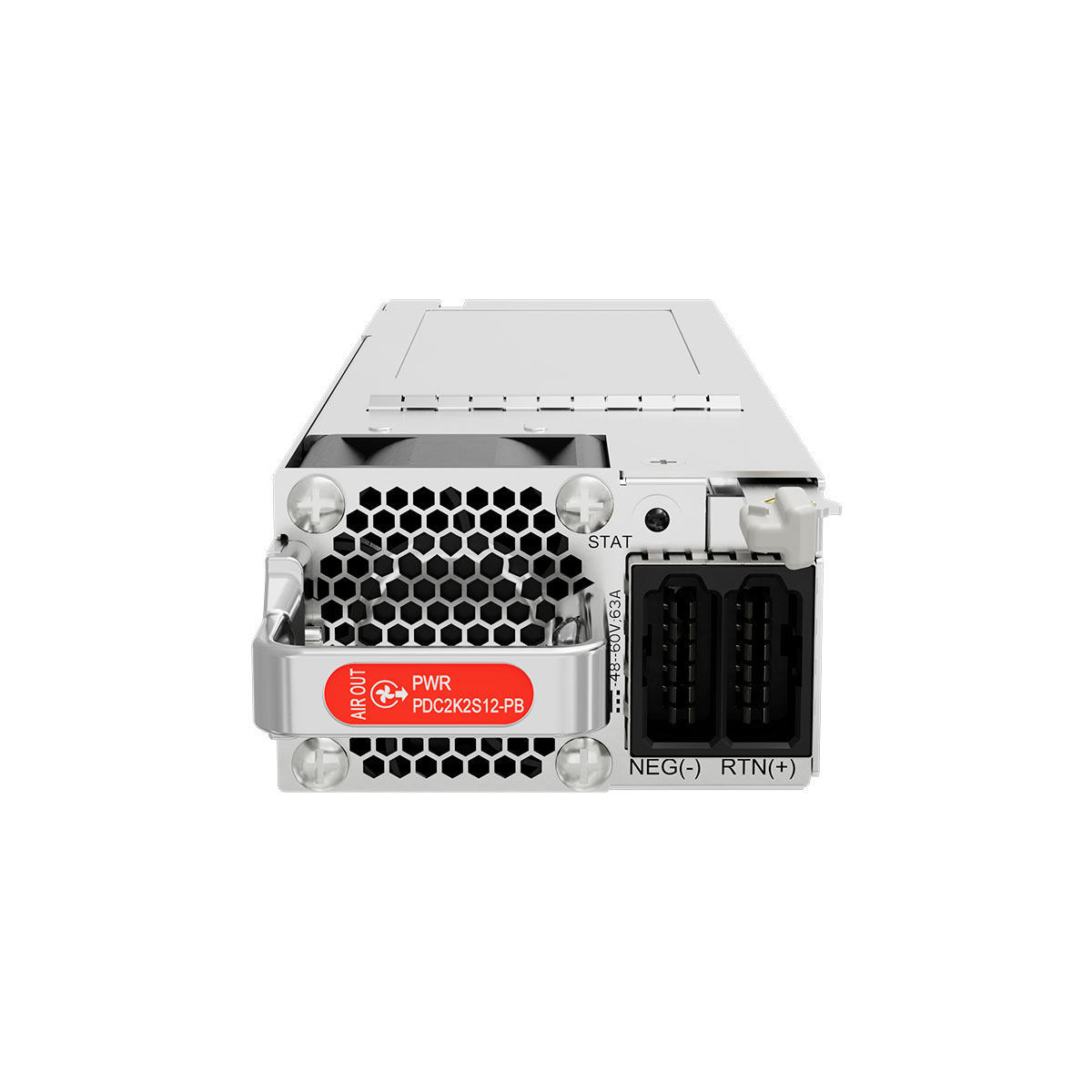

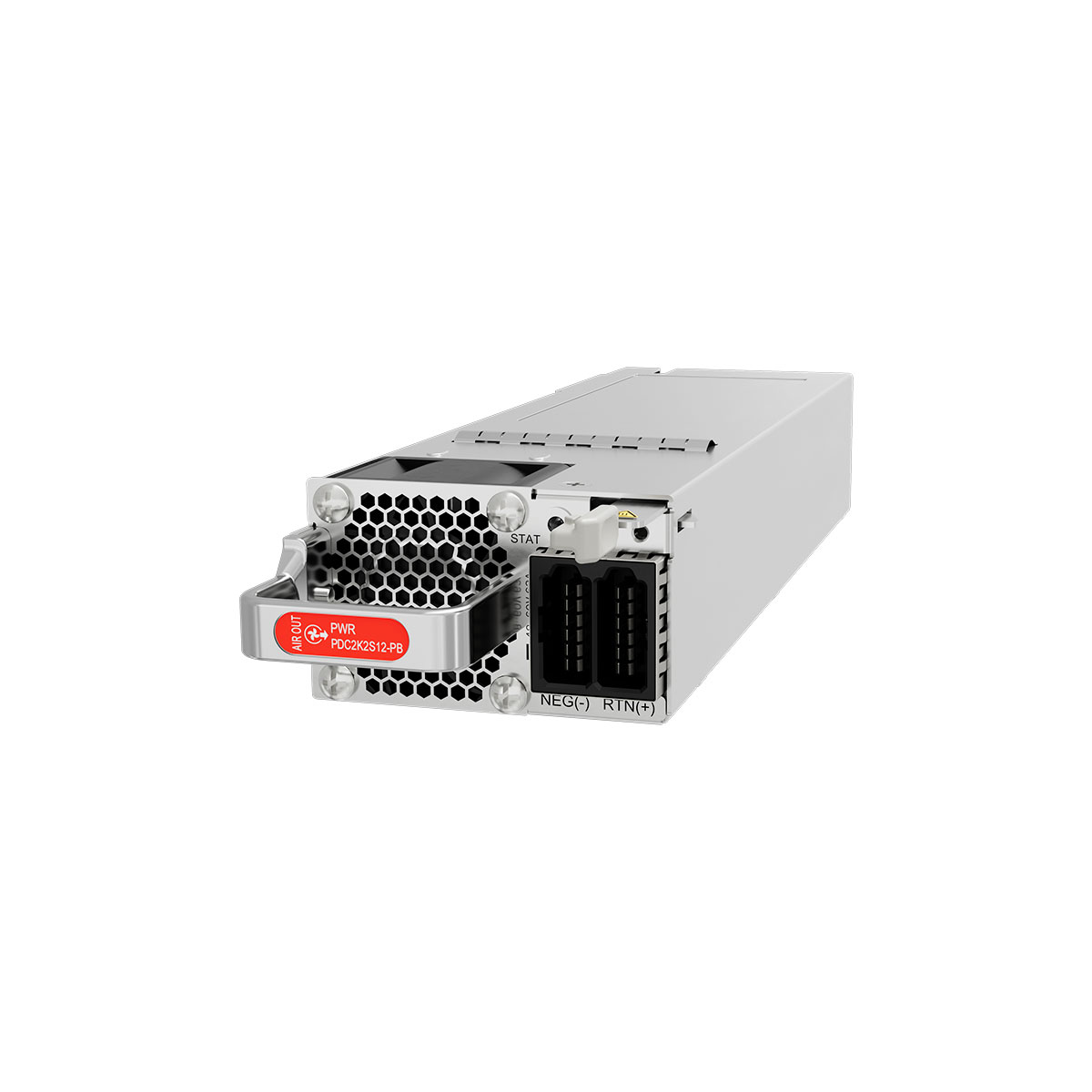

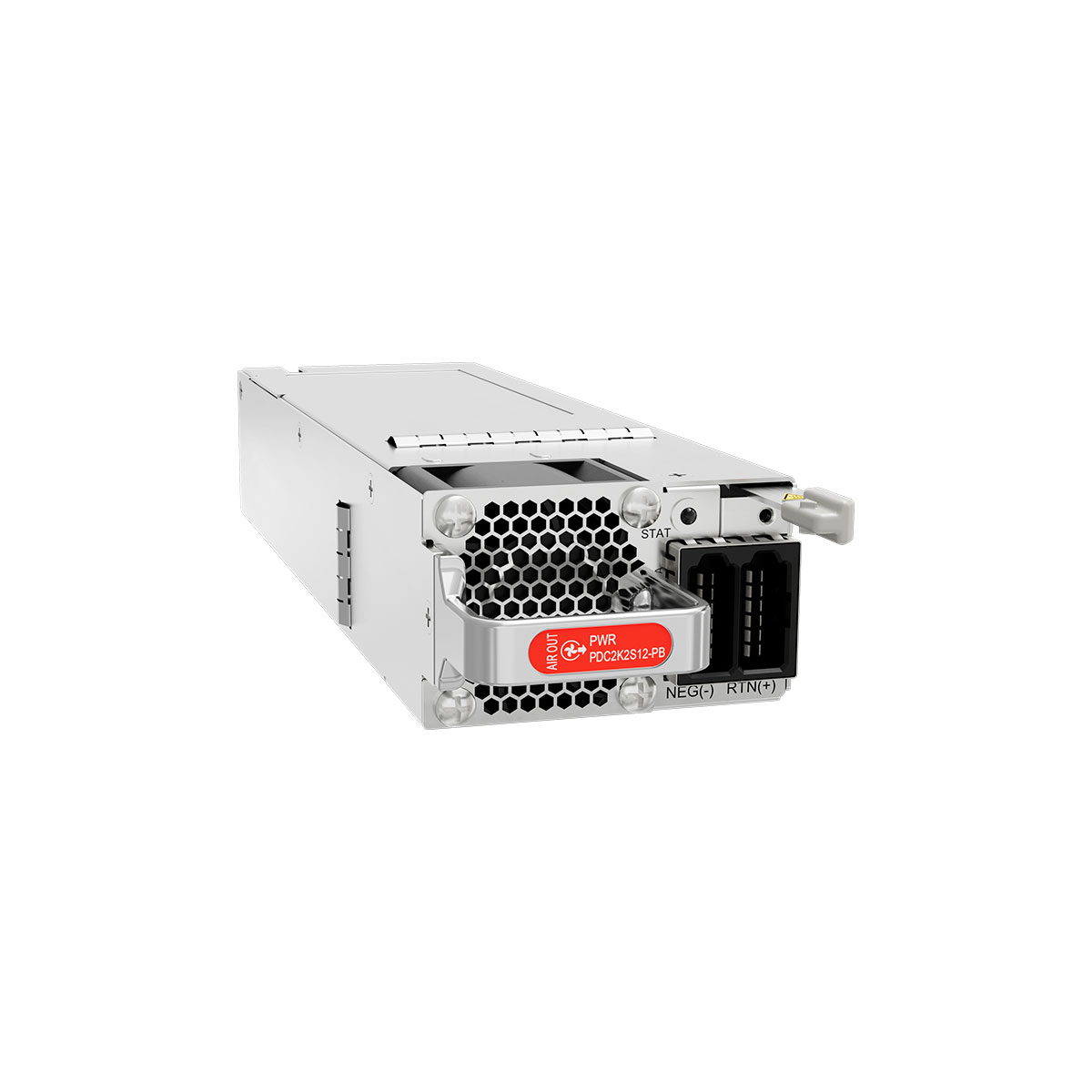

PDC2K2S12-PB

0 Reviews Write a review

PN02313BUW

AvailabilityIn Stock

WarrantyUp to 36 months

HuaWei PDC2K2S12-PB support 600W AC Power Module Front to Back, Power panel side intake

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

PAC600S12-PF Overview

HuaWei PAC600S12-PF support 600W AC Power Module Front to Back, Power panel side intake

Mappings between PAC600S12-PF and product models

Product	Product Model	First Supported Version	Limitations
CloudEngine 6800	CE6870-48S6CQ-EI-A (02354VSK)	V200R022C00	–
CloudEngine 6800	CE6870-48S6CQ-EI-A (02354VSJ)	V200R022C00	–
CloudEngine 6800	CE6870-48S6CQ-EI-A (02354VSH)	V200R022C00	–

Front Panel

1. Lock	2. Indicator	3. Air vent	4. Handle NOTE: Each power module is delivered with a velcro strap on the handle. This velcro strap is used to strap the power cable to the handle.
5. Airflow flag back-to-front airflow front-to-back airflow	6. Power socket	–	–

Item	PAC600S12-PF
Number of inputs	1
Rated input voltage [V]	100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V]	AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A]	8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V]	12 V
Rated output current [A]	50A
Rated output power [W]	600W
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm (in.)]	39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)]	1 kg (2.20 lb)
Weight with packaging [kg (lb)]	1 kg (2.20 lb)

Item	PAC600S12-PF
Number of inputs	1
Rated input voltage [V]	100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V]	AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A]	8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V]	12 V
Rated output current [A]	50A
Rated output power [W]	600W
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm (in.)]	39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)]	1 kg (2.20 lb)
Weight with packaging [kg (lb)]	1 kg (2.20 lb)
