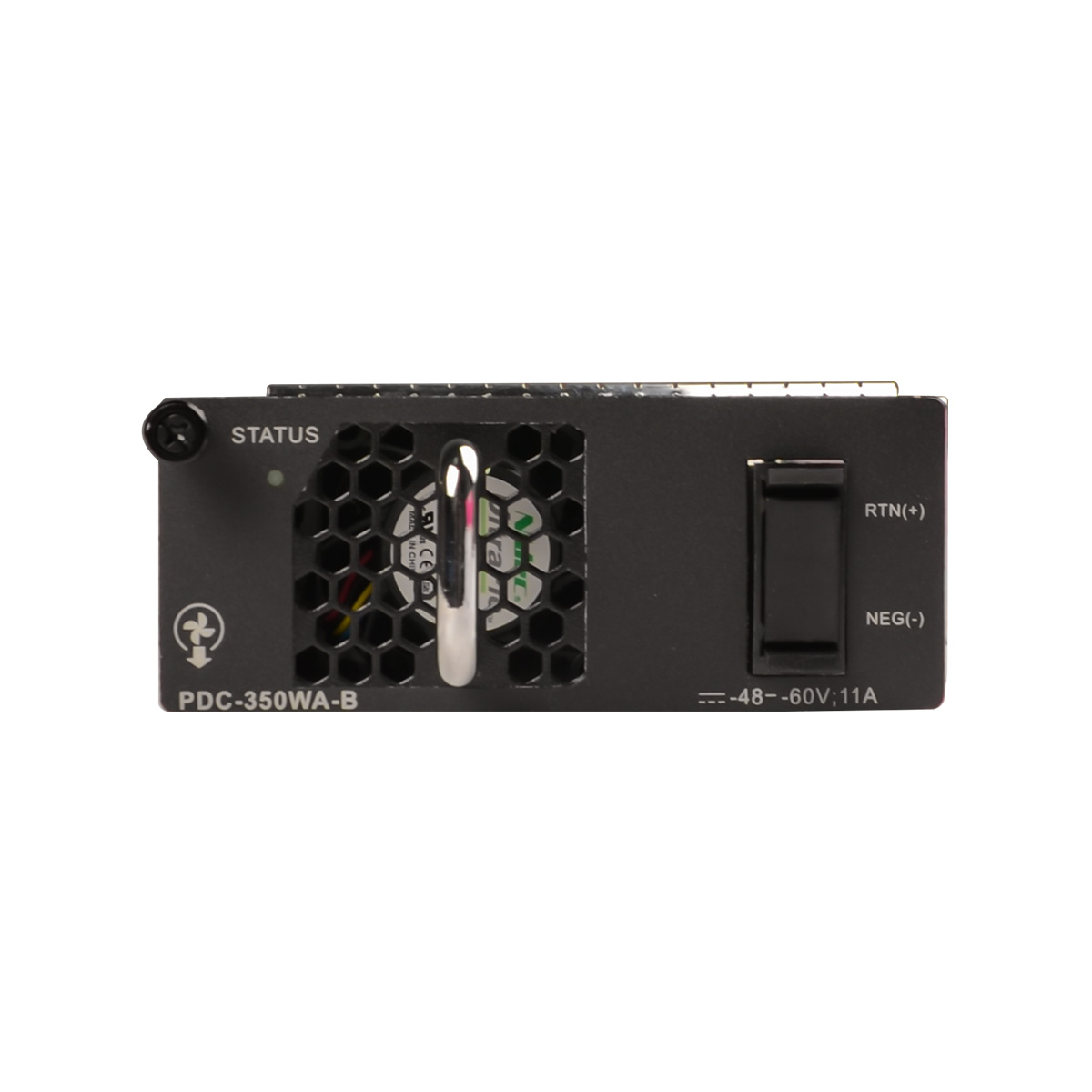

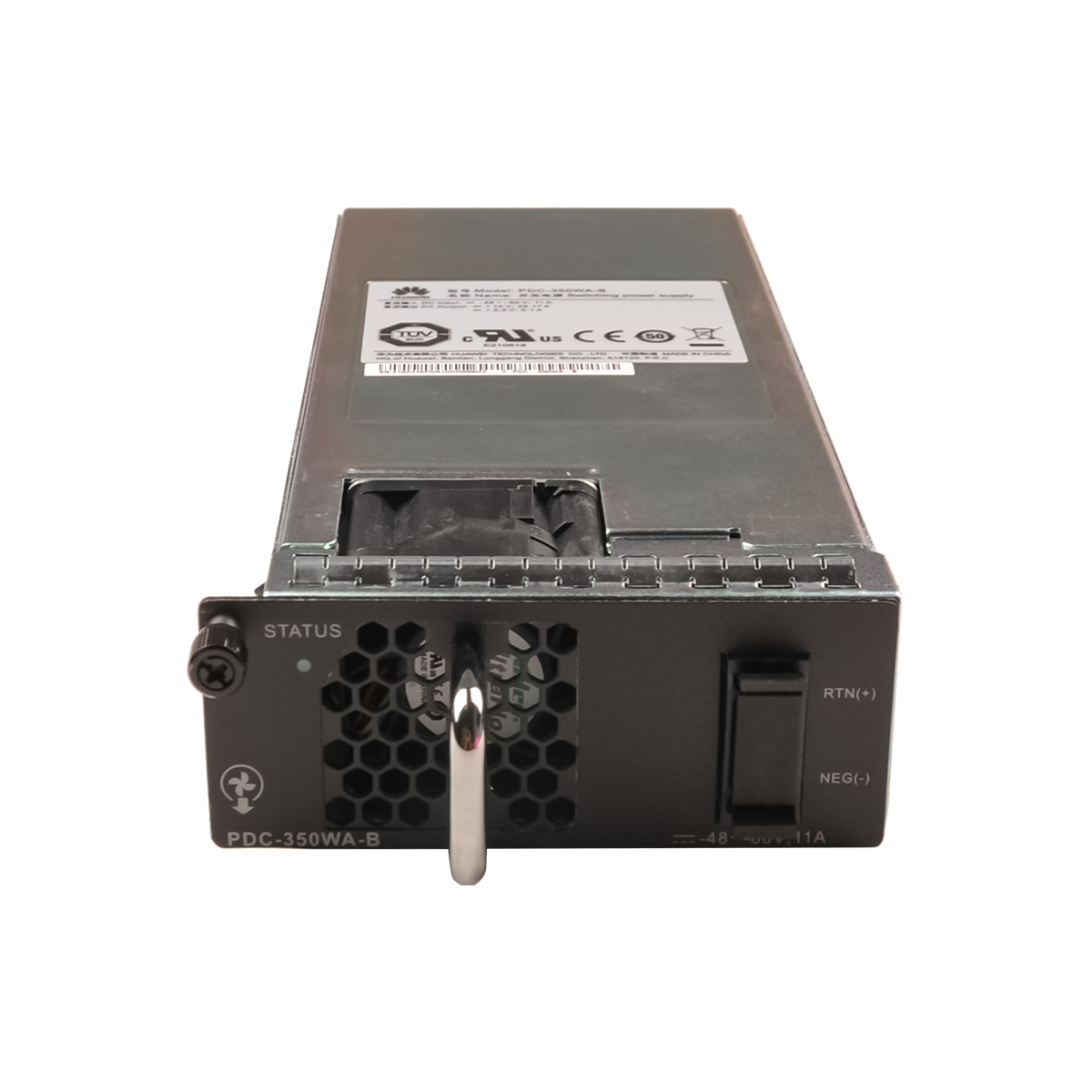

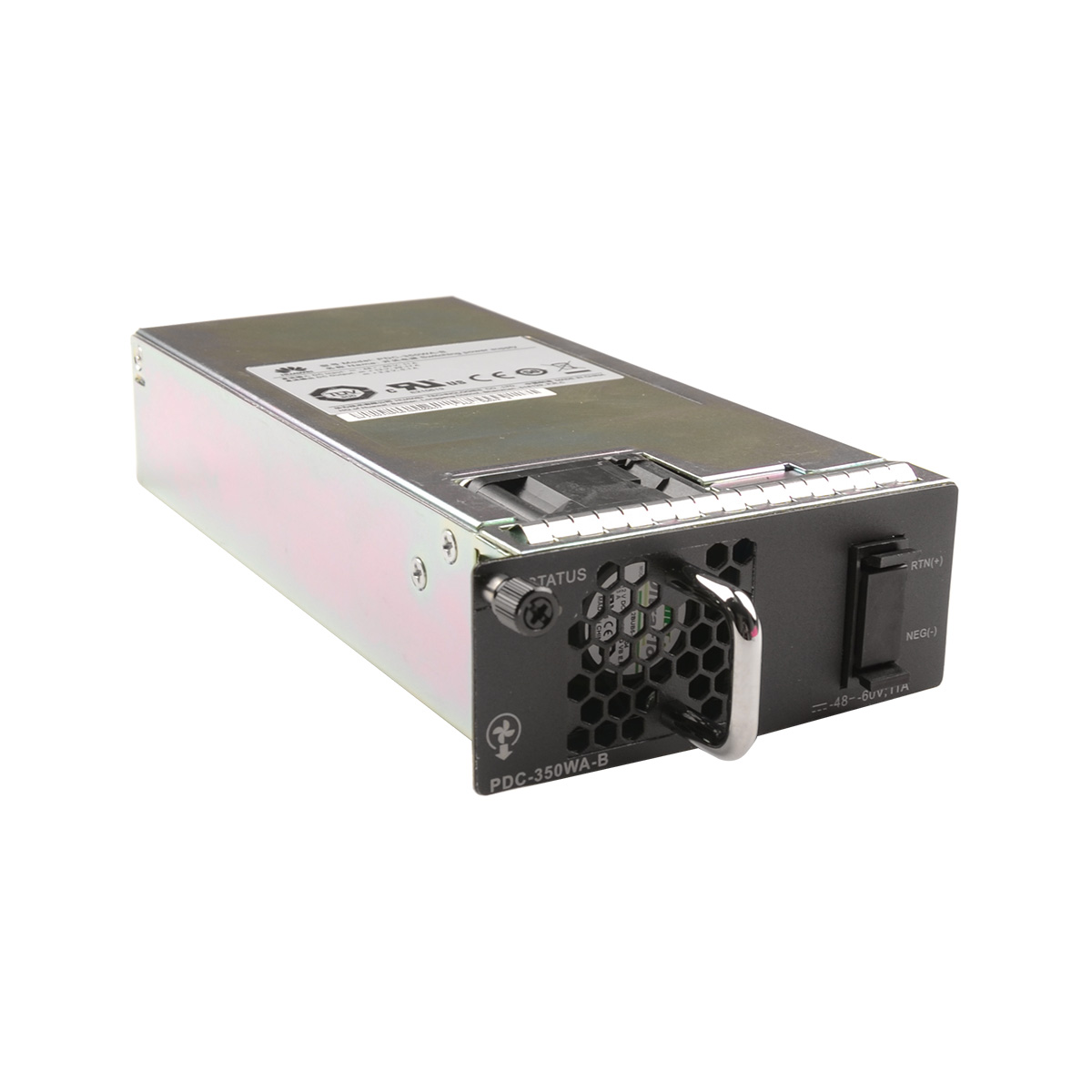

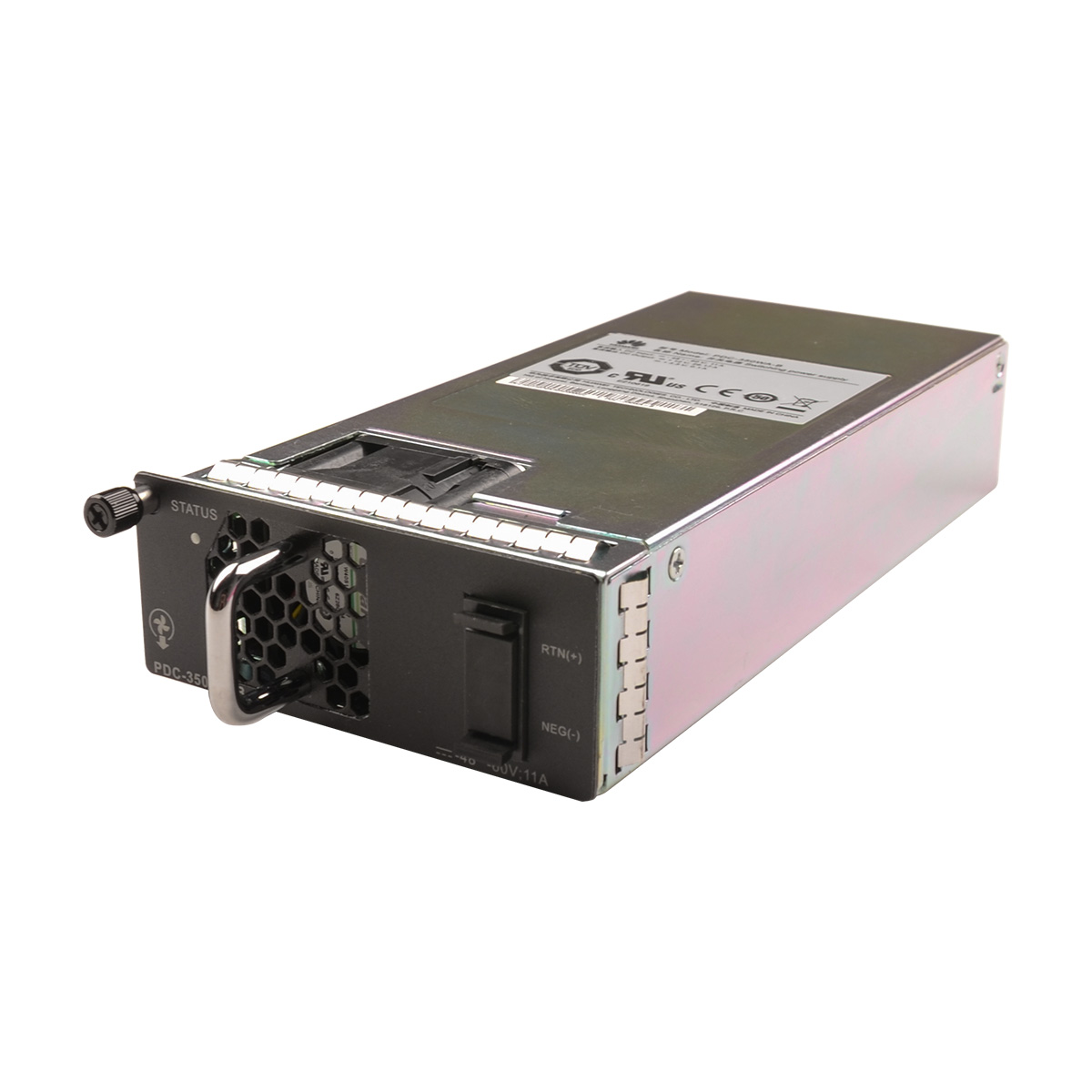

PDC-350WA-B 350 W DC Power Module for S6720-EI Switch
Mappings between PDC-350WA-B and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| S6720-EI | S6720-30C-EI-24S-AC (02350DMN) | V200R008C00 |
| S6720-EI | S6720-30C-EI-24S-DC (02350NHU) | V200R009C00 |
| S6720-EI | S6720-54C-EI-48S-AC (02350DMP) | V200R008C00 |
| S6720-EI | S6720-54C-EI-48S-DC (02350NHV) | V200R009C00 |
| Product | Product Model | First Supported Version |
|---|---|---|
| S6720-HI | S6720-30L-HI-24S (02351MXR) | V200R012C00 |
| S6720-HI | S6720-50L-HI-48S (02351MXN) | V200R012C00 |
| Item | PDC-350WA-B |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 0.72 kg (1.59 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 11 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 29.17 A |
| Rated output power [W] | 350 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
| Weight | 2.0000 kg |
|---|---|
| Dimensions | 27.0000 × 21.0000 × 8.0000 cm |
| Brand | Huawei |
| Campus Switch |
| Item | PDC-350WA-B |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 0.72 kg (1.59 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 11 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 29.17 A |
| Rated output power [W] | 350 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
