Categories:S12700/S12700E Series

PAC3KS54-CE

0 Reviews Write a review

PN02312FFP

BrandsHuawei

AvailabilityIn Stock

Campus Switch Power Module

WarrantyUp to 36 months

Huawei PAC3KS54-CE 3000 W AC power module apply to Huawei S12700/S12700E series switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

PAC3KS54-CE Overview

Huawei PAC3KS54-CE 3000 W AC power module apply to Huawei S12700/S12700E series switch

Mappings between PAC3KS54-CE and product models

Product	Product Model	First Supported Version
S12700E	S12700E-4	V200R019C00
S12700E	S12700E-8	V200R019C00
S12700E	S12700E-12	V200R019C00
S12700	S12700	V200R019C00

Functions of a 3000 W AC power module

Function		Description
Input protection	Input overvoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overvoltage, the power module can automatically start supplying power again.
	Input undervoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
	Input overcurrent protection	In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.
Output protection	Output overvoltage protection	In this protection state: If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again. If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
	Output overcurrent protection	In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		The power module is hot swappable.

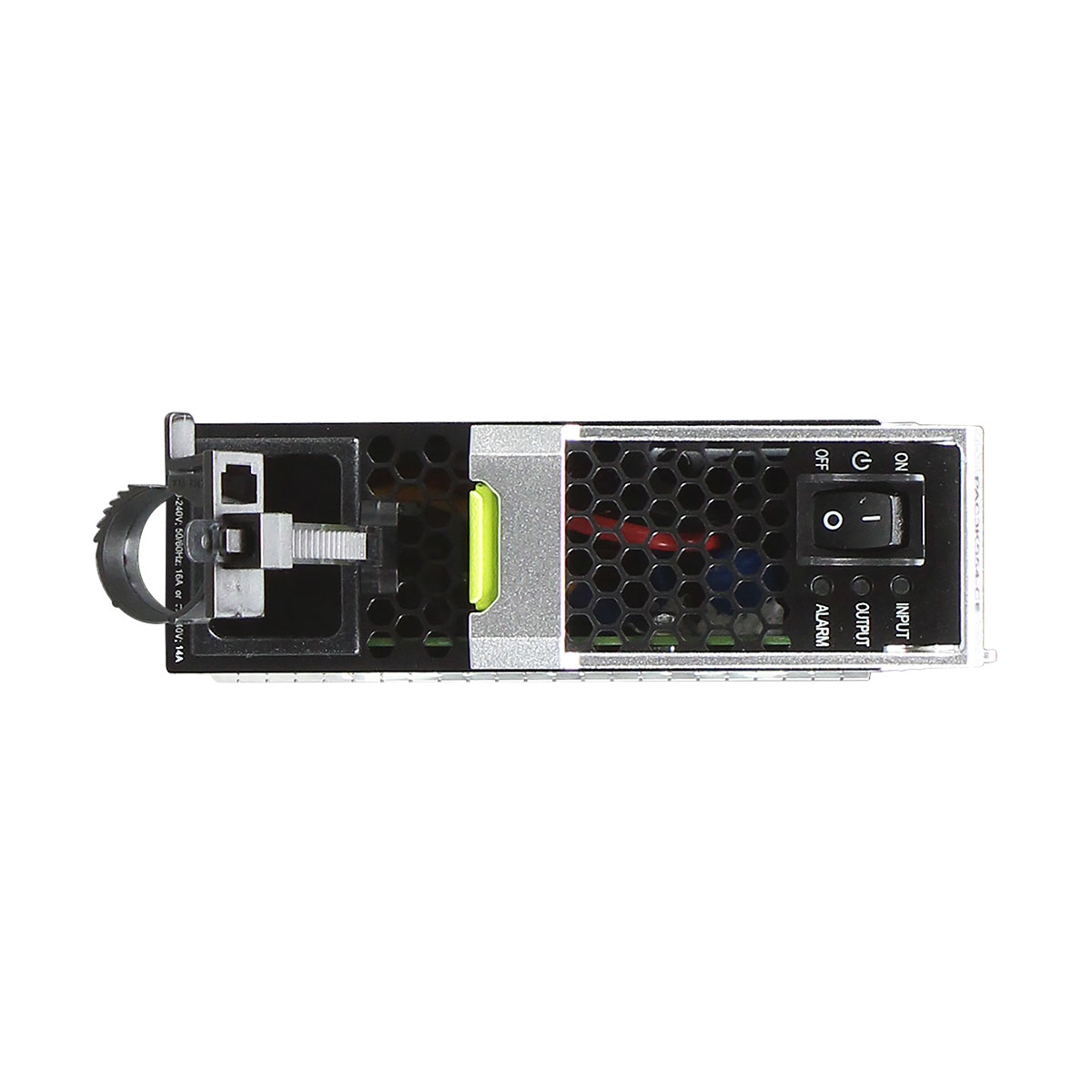

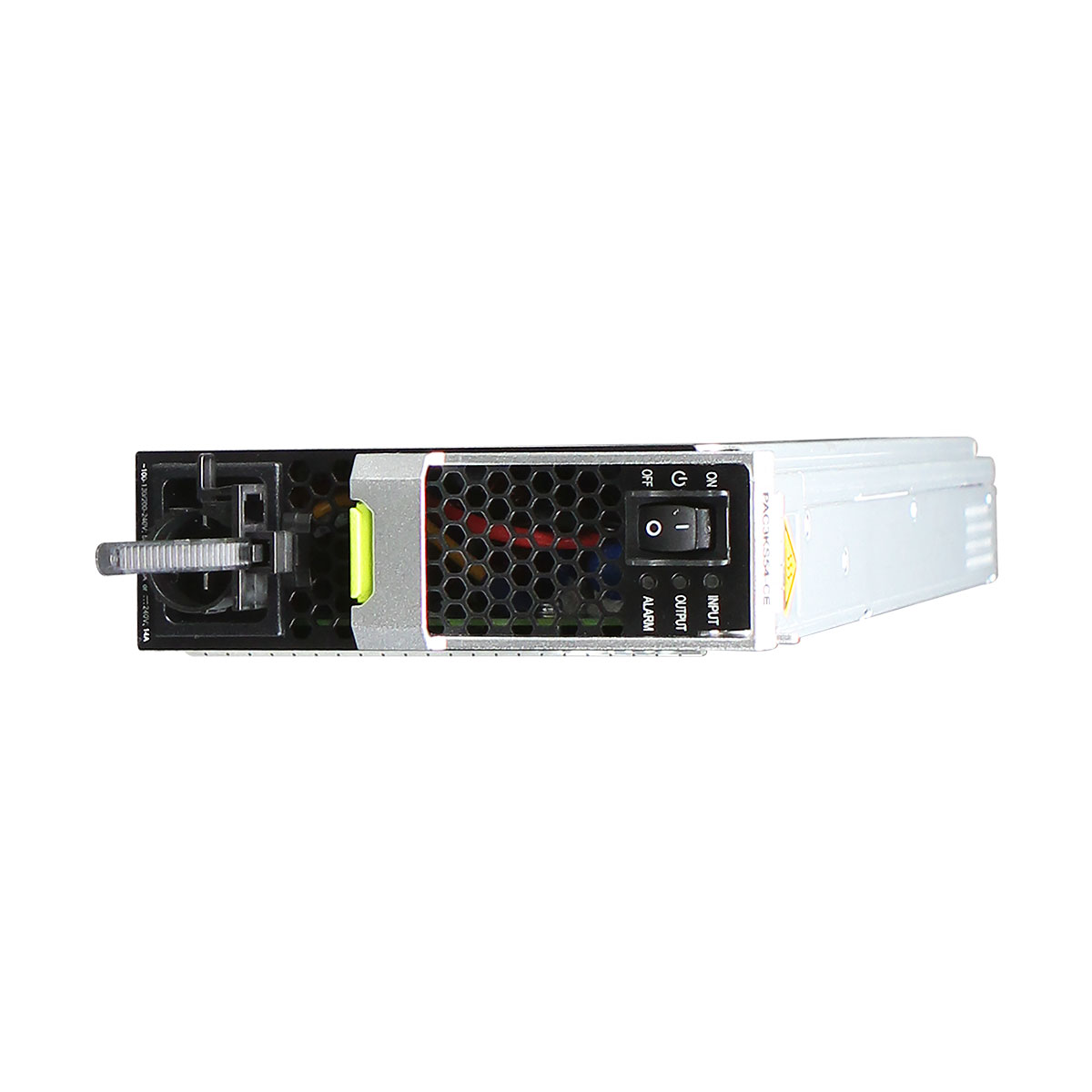

Front Panel

1	Power switch
2	Ejector lever
3	Power socket
4	ALARM indicator
5	OUTPUT indicator
6	INPUT indicator

Item		PAC3KS54-CE
AC input	Rated input voltage	220 V AC/110 V AC; 50/60 Hz
	Rated input voltage range	200 V AC to 240 V AC (220 V AC input)/100 V AC to 130 V AC (110 V AC input); 47 Hz to 63 Hz
	Maximum input voltage range	90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage is in the range of 90 V AC to 175 V AC.) The maximum current of the power cable used by the 3000 W AC power module is 16 A. When the 220 V input is used, the minimum voltage cannot be lower than 200 V. When the 110 V input is used, the minimum voltage cannot be lower than 100 V.
	Maximum input current	16 A
High-voltage DC input	Rated input voltage	240 V DC
	Rated input voltage range	190 V DC to 290 V DC
	Maximum input voltage range	14 A
Output	Maximum output current	56.1 A (220 V AC input)/28.1 A (110 V AC Input)
Output	Maximum output power	3000 W (220 V AC input or 240 V DC)/1500 W (110 V AC input)
Hot swapping		Supported
Part number		02312FFP
Dimensions (H x W x D)		130 mm x 41 mm x 417.4 mm (5.1 in. x 1.6 in. x 16.4 in.)
Weight		< 3.0 kg

Weight	3 kg
Dimensions	42 × 4.1 × 13 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	Power Module

Item		PAC3KS54-CE
AC input	Rated input voltage	220 V AC/110 V AC; 50/60 Hz
	Rated input voltage range	200 V AC to 240 V AC (220 V AC input)/100 V AC to 130 V AC (110 V AC input); 47 Hz to 63 Hz
	Maximum input voltage range	90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage is in the range of 90 V AC to 175 V AC.) The maximum current of the power cable used by the 3000 W AC power module is 16 A. When the 220 V input is used, the minimum voltage cannot be lower than 200 V. When the 110 V input is used, the minimum voltage cannot be lower than 100 V.
	Maximum input current	16 A
High-voltage DC input	Rated input voltage	240 V DC
	Rated input voltage range	190 V DC to 290 V DC
	Maximum input voltage range	14 A
Output	Maximum output current	56.1 A (220 V AC input)/28.1 A (110 V AC Input)
Output	Maximum output power	3000 W (220 V AC input or 240 V DC)/1500 W (110 V AC input)
Hot swapping		Supported
Part number		02312FFP
Dimensions (H x W x D)		130 mm x 41 mm x 417.4 mm (5.1 in. x 1.6 in. x 16.4 in.)
Weight		< 3.0 kg
