PDC240S12-CN

0 Reviews Write a review

PN02314VUJ

AvailabilityIn Stock

WarrantyUp to 36 months

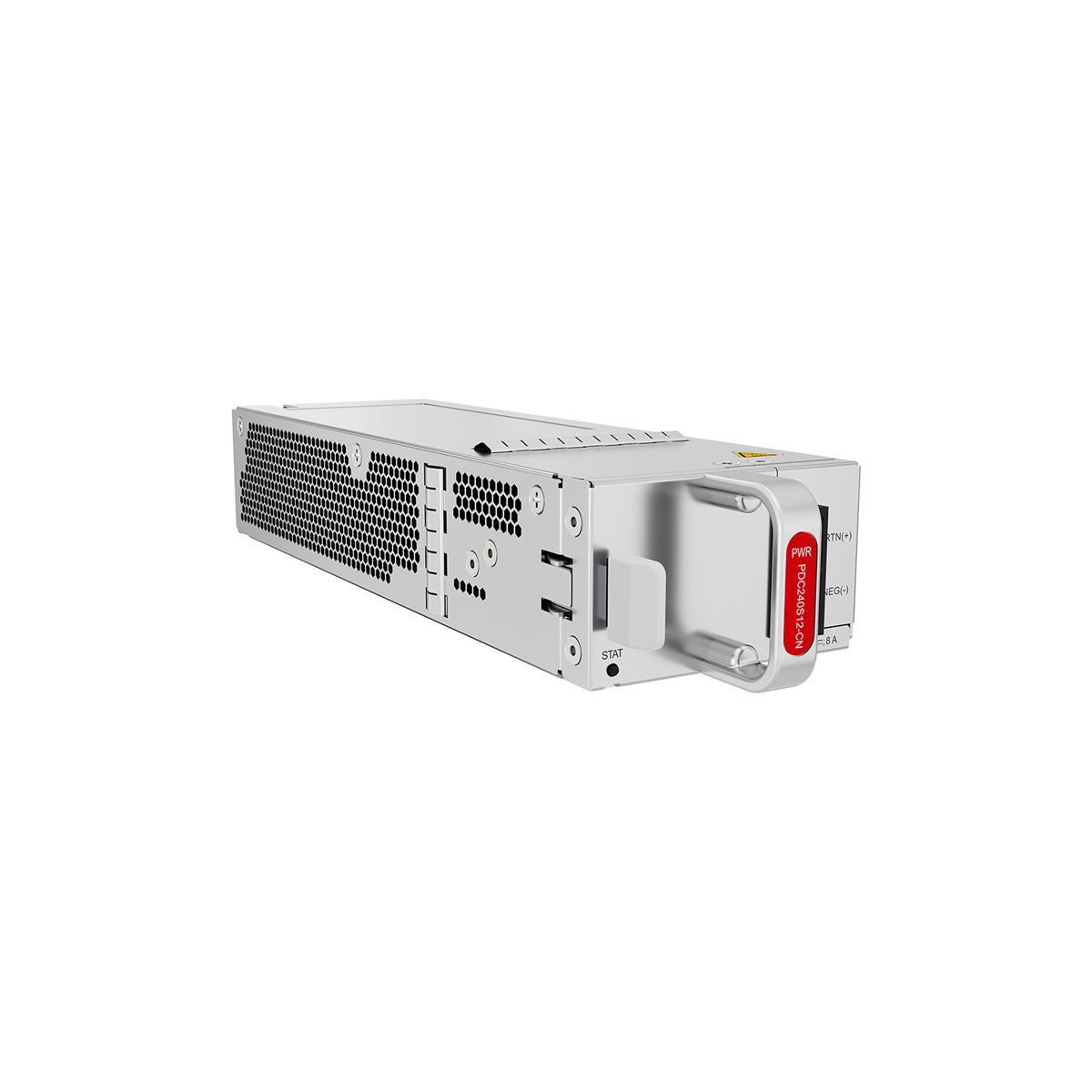

Huawei PDC240S12-CN support 240W DC Power Module (66 mm Width case, No Fans)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

PDC240S12-CN Overview

Item	Details
Description	240W DC Power Module (66 mm Width case, No Fans)
Part Number	02314VUJ
Model	PDC240S12-CN

Mappings between PDC240S12-CN and product models

Product	Product Model	First Supported Version	Limitations
S6750-S	S6750-S16X10Y2CZ (98012444)	V600R024C00	–
S6750-S	S6750-S16X8YZ (98012445)	V600R024C00	–
S6750-S	S6750-S24T16X8Y2CZ (98012446)	V600R024C00	–
S6750E-S	S6750E-S16X10Y2CZ (98012861)	V600R024C10	–
S6750E-S	S6750E-S24T16X8Y2CZ (98012860)	V600R024C10	–

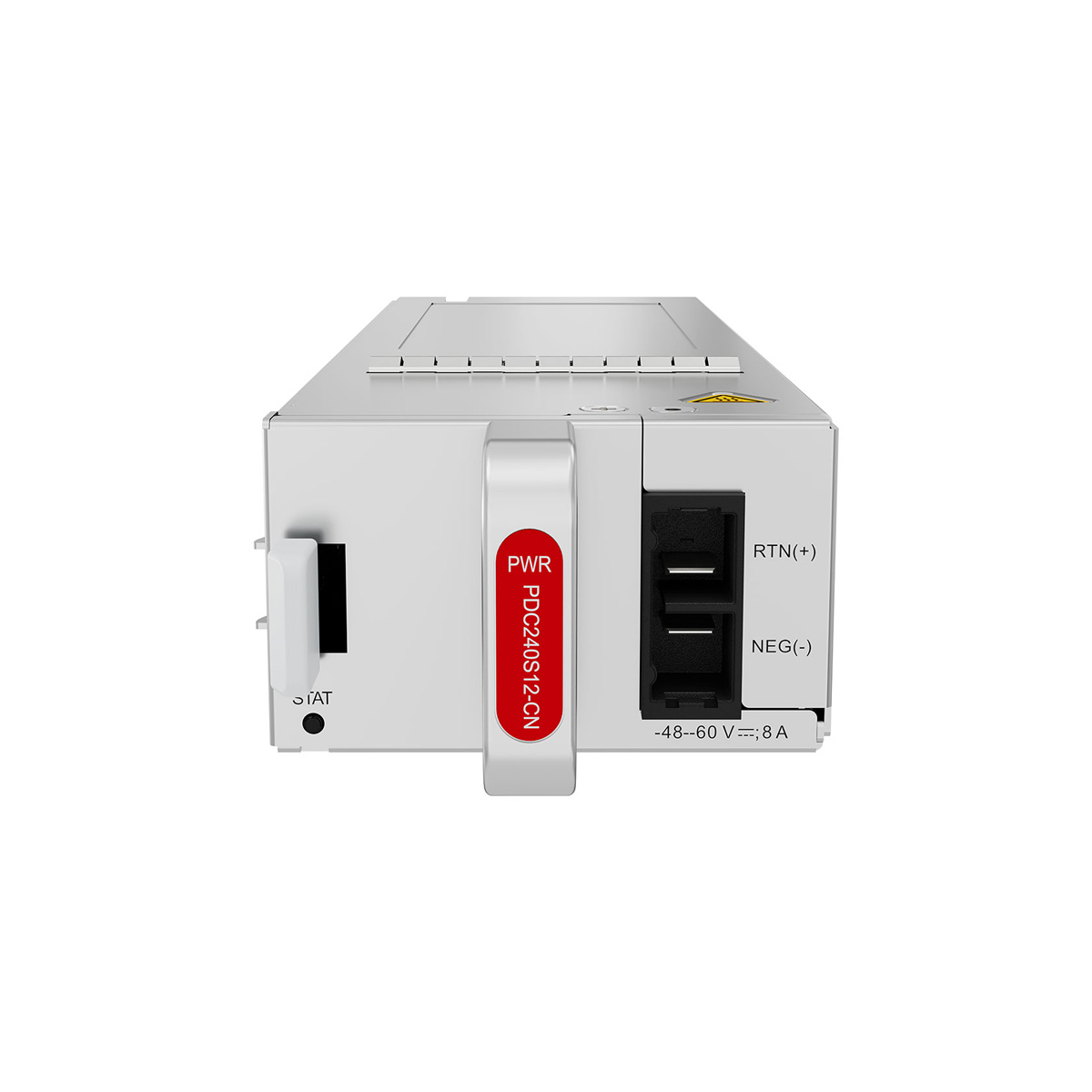

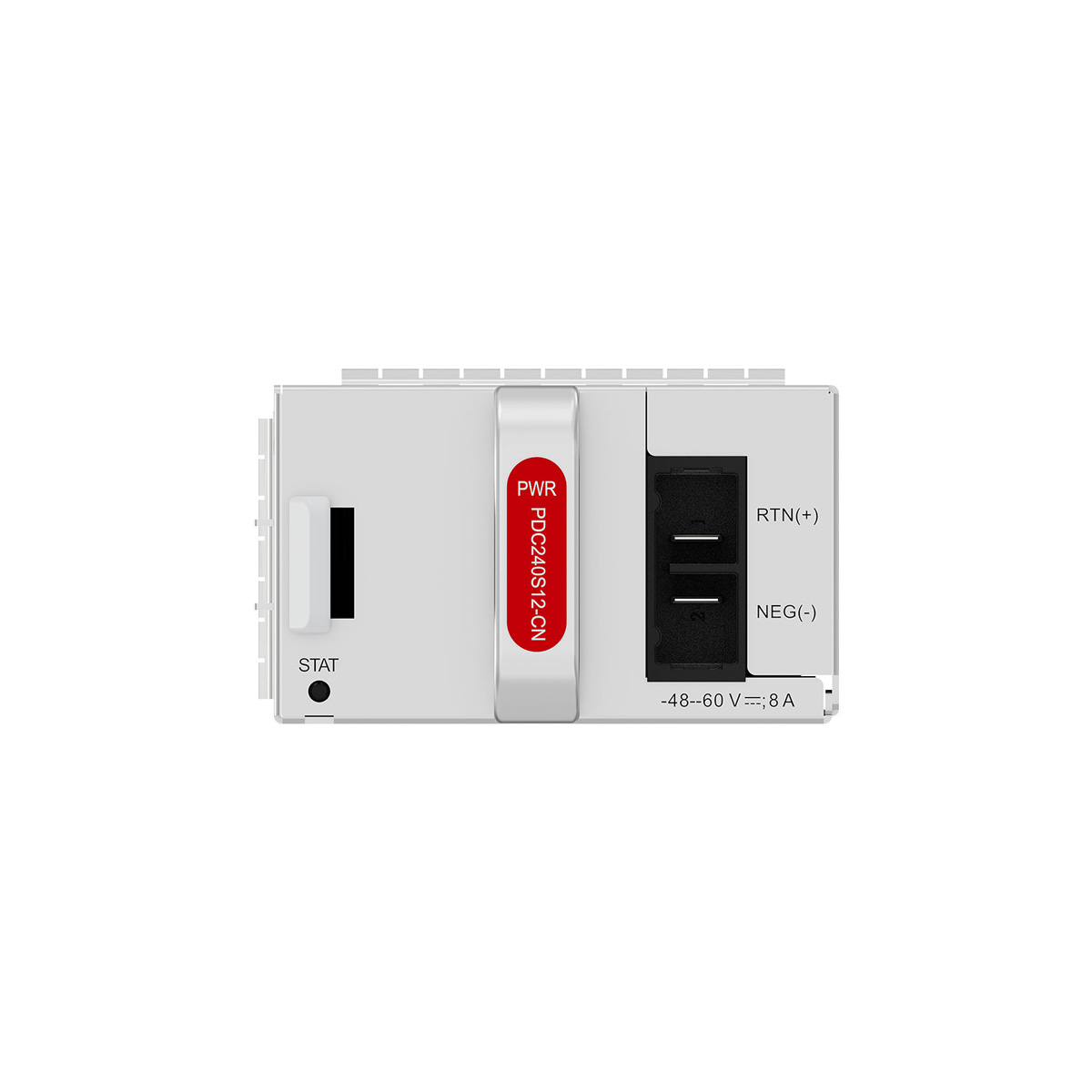

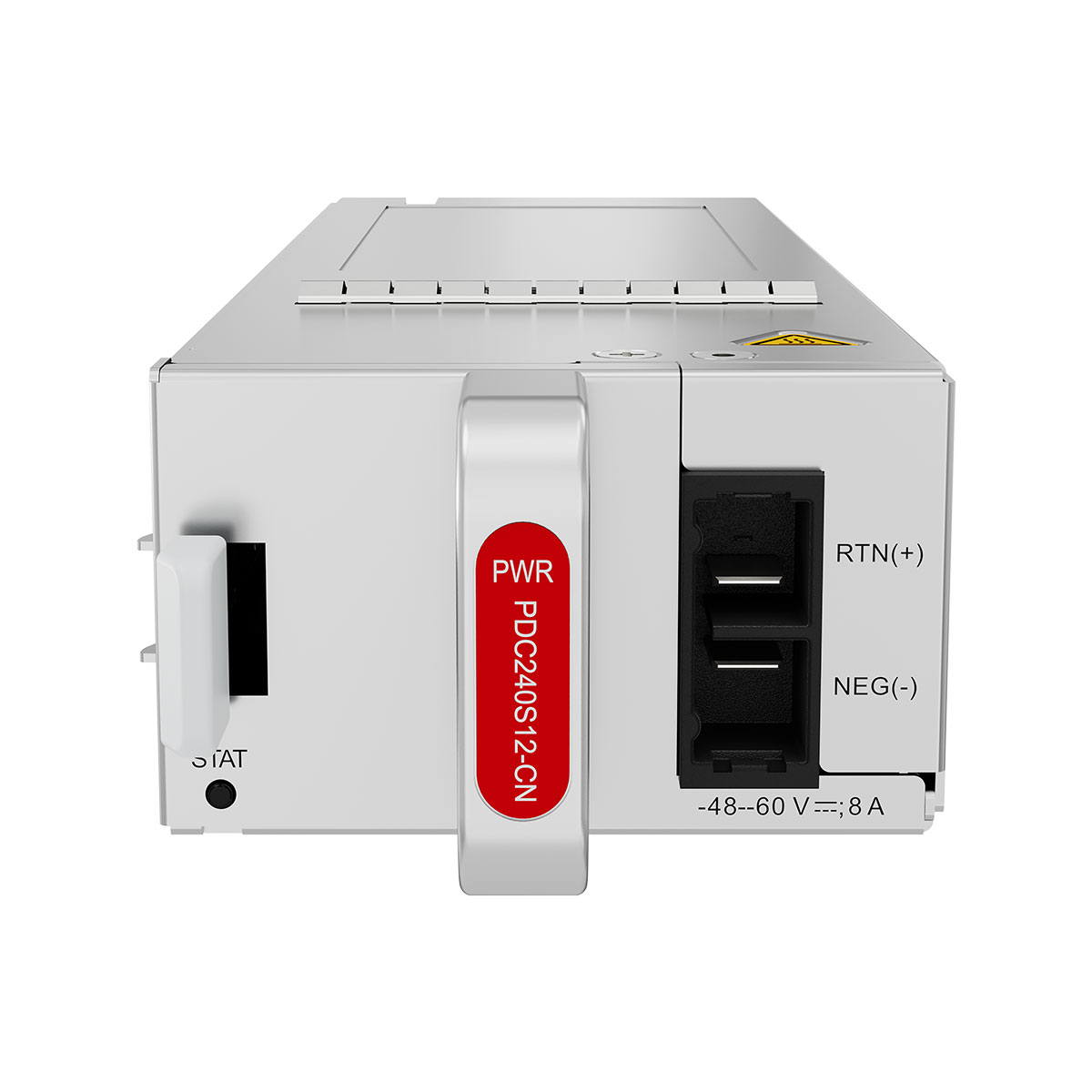

Front Panel of PDC240S12-CN

1. Lock

2. Indicator

3. Handle

4. Power socket

Item	PAC180S12-CN
Rated input voltage [V]	+48 V DC -48 V DC to -60 V DC
Input voltage range [V]	+40 V DC to +57 V DC -38.4 V DC to -72 V DC
Maximum input current [A]	8 A
Rated output voltage [V]	12 V
Rated output current [A]	–25°C to +55°C (–13°F to +131°F): 20 A 55°C to 65°C (131°F to 149°F): 15 A
Rated output power [W]	–25°C to +55°C (–13°F to +131°F): 240 W 55°C to 65°C (131°F to 149°F): 180 W
Power dissipation Mode	Natural heat dissipation
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm(in.)]	39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)]	0.61 kg (1.34 lb)
Number of inputs	1
Input undervoltage protection	Stops power output and automatically restores power output after the input voltage becomes normal.
Input overvoltage protection	Stops power output and automatically restores power output after the input voltage becomes normal.
Input overcurrent protection	Stops power output and does not automatically restore power output after the input current becomes normal.
Output current limiting protection	Intermittently provides output and automatically restores normal output after the output current falls within a normal range.
Output overvoltage protection	Intermittently stops output and automatically restores output after the overvoltage condition is removed.
Output short circuit protection	Intermittently provides output and automatically restores normal output after the output short circuit is removed.
Overtemperature protection	When the temperature of the power module reaches a preset threshold, the power module stops power output and will automatically restore power output after the temperature drops back to the normal range.
Heat dissipation	The heat dissipation is provided by the fan of the power module.
Hot swap	The device has power module redundancy. You can hot-swap a power module without interrupting device operation.

Item	PAC180S12-CN
Rated input voltage [V]	+48 V DC -48 V DC to -60 V DC
Input voltage range [V]	+40 V DC to +57 V DC -38.4 V DC to -72 V DC
Maximum input current [A]	8 A
Rated output voltage [V]	12 V
Rated output current [A]	–25°C to +55°C (–13°F to +131°F): 20 A 55°C to 65°C (131°F to 149°F): 15 A
Rated output power [W]	–25°C to +55°C (–13°F to +131°F): 240 W 55°C to 65°C (131°F to 149°F): 180 W
Power dissipation Mode	Natural heat dissipation
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm(in.)]	39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)]	0.61 kg (1.34 lb)
Number of inputs	1
Input undervoltage protection	Stops power output and automatically restores power output after the input voltage becomes normal.
Input overvoltage protection	Stops power output and automatically restores power output after the input voltage becomes normal.
Input overcurrent protection	Stops power output and does not automatically restore power output after the input current becomes normal.
Output current limiting protection	Intermittently provides output and automatically restores normal output after the output current falls within a normal range.
Output overvoltage protection	Intermittently stops output and automatically restores output after the overvoltage condition is removed.
Output short circuit protection	Intermittently provides output and automatically restores normal output after the output short circuit is removed.
Overtemperature protection	When the temperature of the power module reaches a preset threshold, the power module stops power output and will automatically restore power output after the temperature drops back to the normal range.
Heat dissipation	The heat dissipation is provided by the fan of the power module.
Hot swap	The device has power module redundancy. You can hot-swap a power module without interrupting device operation.
