Description
PAC1K5S53-AL overview
Huawei NetEngine 8000 series PAC1K5S53-AL 1500W AC power module. DC power module and AC power module cannot be used at the same time.
Mapping products and versions
| Product | Slot | Minimum Version Requirement |
|---|---|---|
| NetEngine 8000 M8 | slot 1 and slot 3 | V800R012C00 |
| NetEngine 8000 M14 | slot 1 to slot 4 | V800R012C00 |

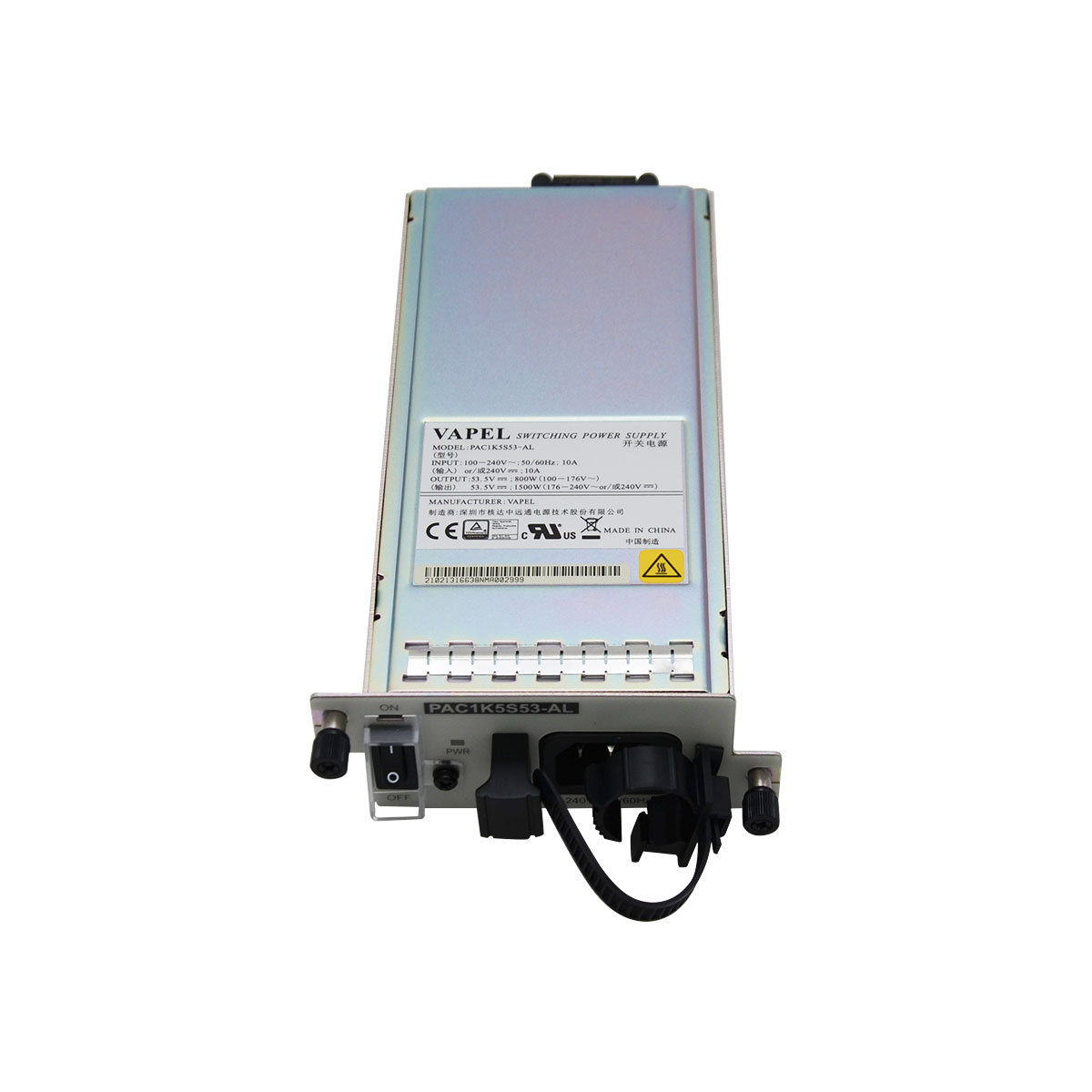

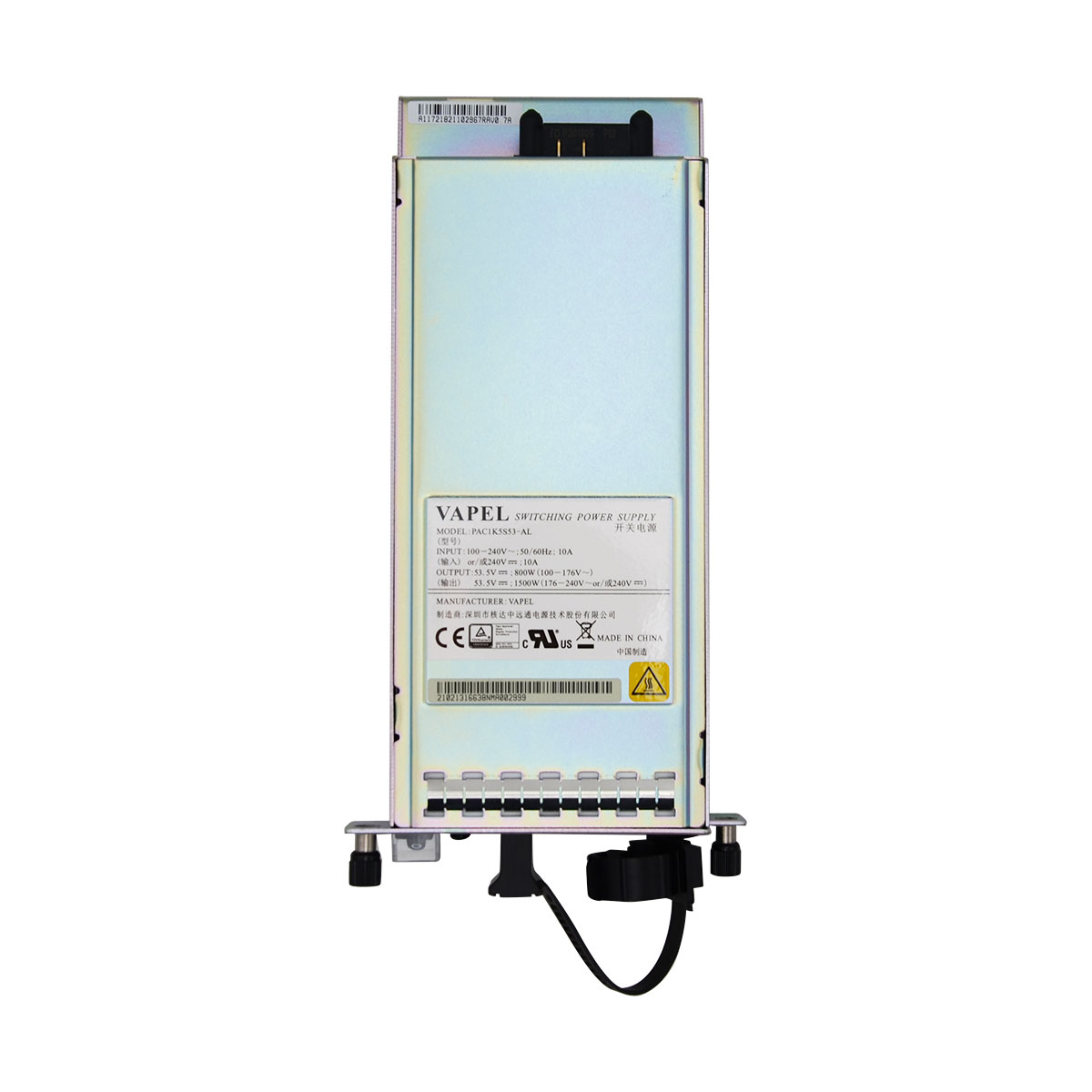

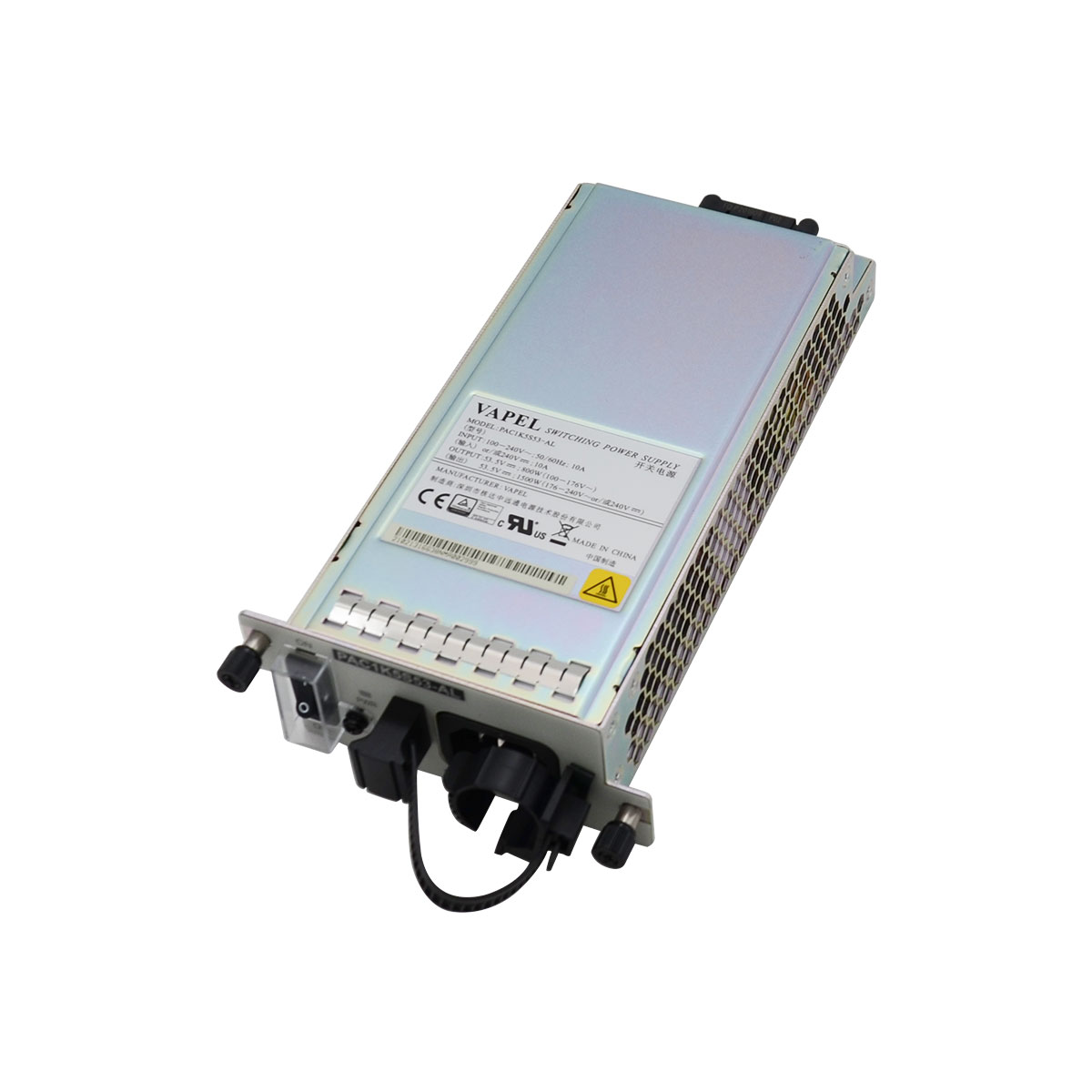

Appearance of the PAC1K5S53-AL

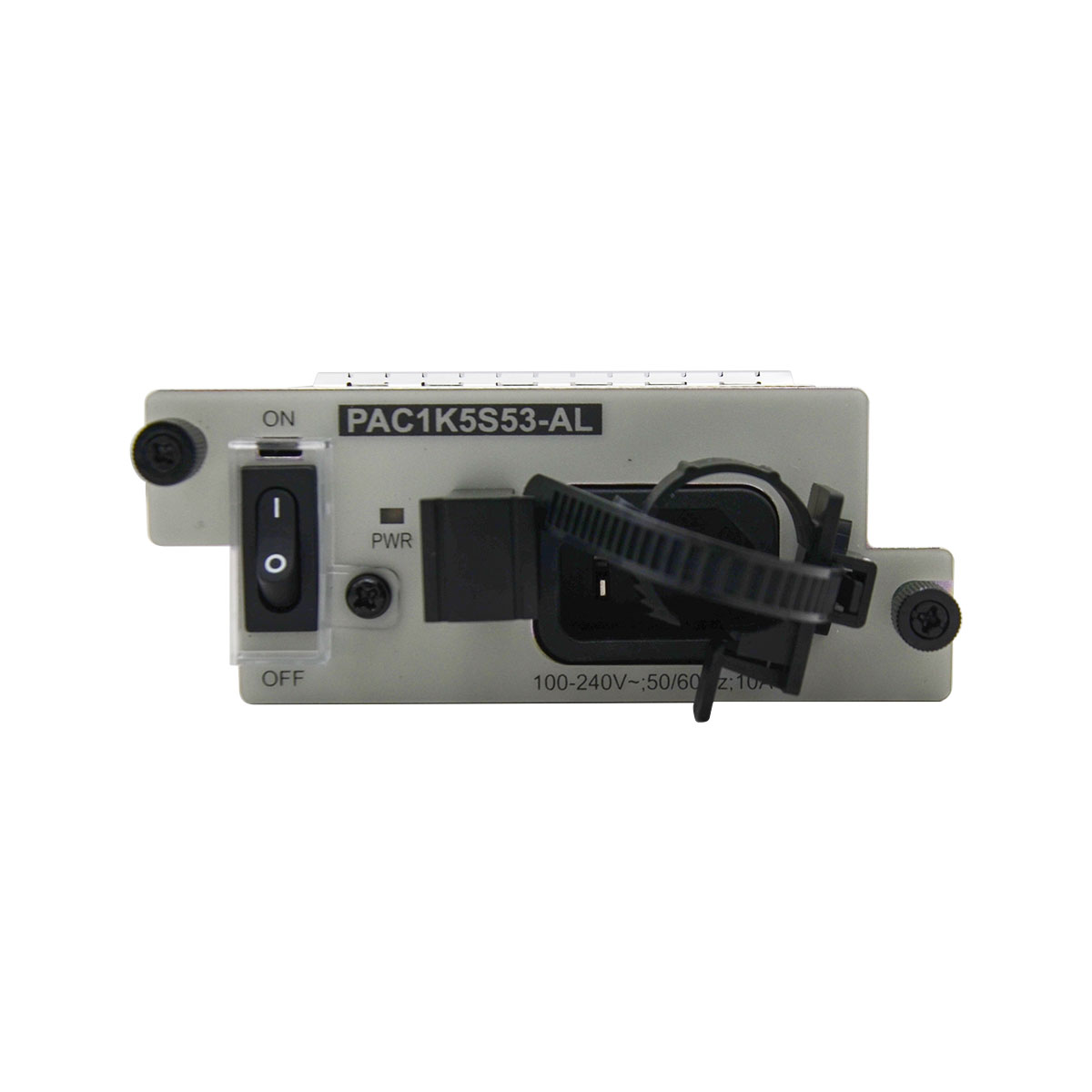

Panel of the PAC1K5S53-AL
Indicators on the PAC1K5S53-AL
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| PWR | Power supply status indicator | Green | Steady on | The voltage of input AC power is normal. |
| Blinks (on for 0.1s and off for 0.1s) | A program is being loaded online. | |||
| Red | Steady on | The power supply is abnormal. An output fault, overtemperature protection alarm, or communication fault occurs. | ||
| – | Off | The power input is faulty (lost or invalid). |
Buttons on the PAC1K5S53-AL
| Silkscreen | Name | Description |
|---|---|---|
| ON/OFF | ON/OFF button | Press the OFF button to power on or off the power module. |
Ports on the PAC1K5S53-AL
| Port | Description |
|---|---|
| AC power cable connector | AC power input interface |
