Categories:S6750-S Series

PAC180S12-CN

0 Reviews Write a review

PN02131754

AvailabilityIn Stock

WarrantyUp to 36 months

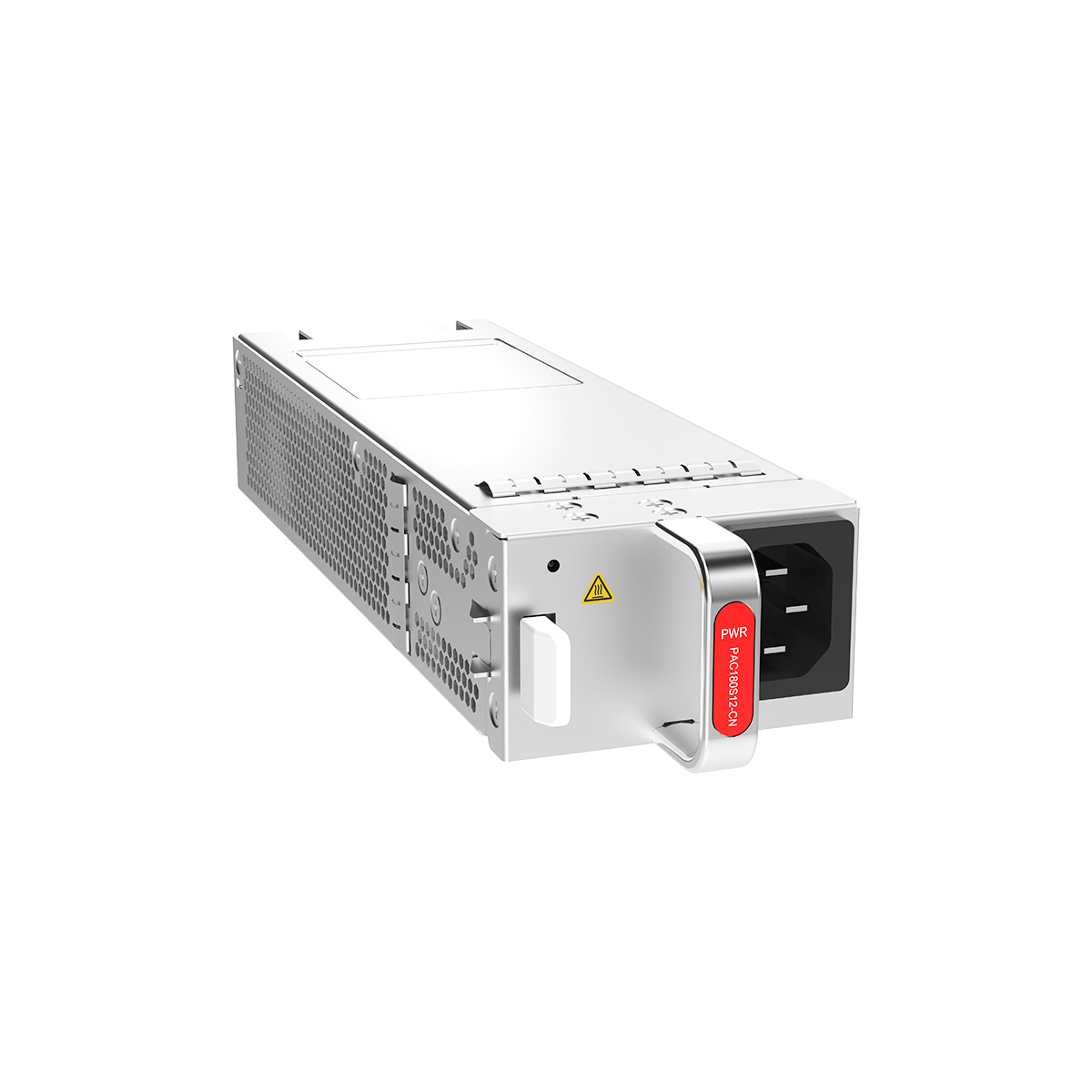

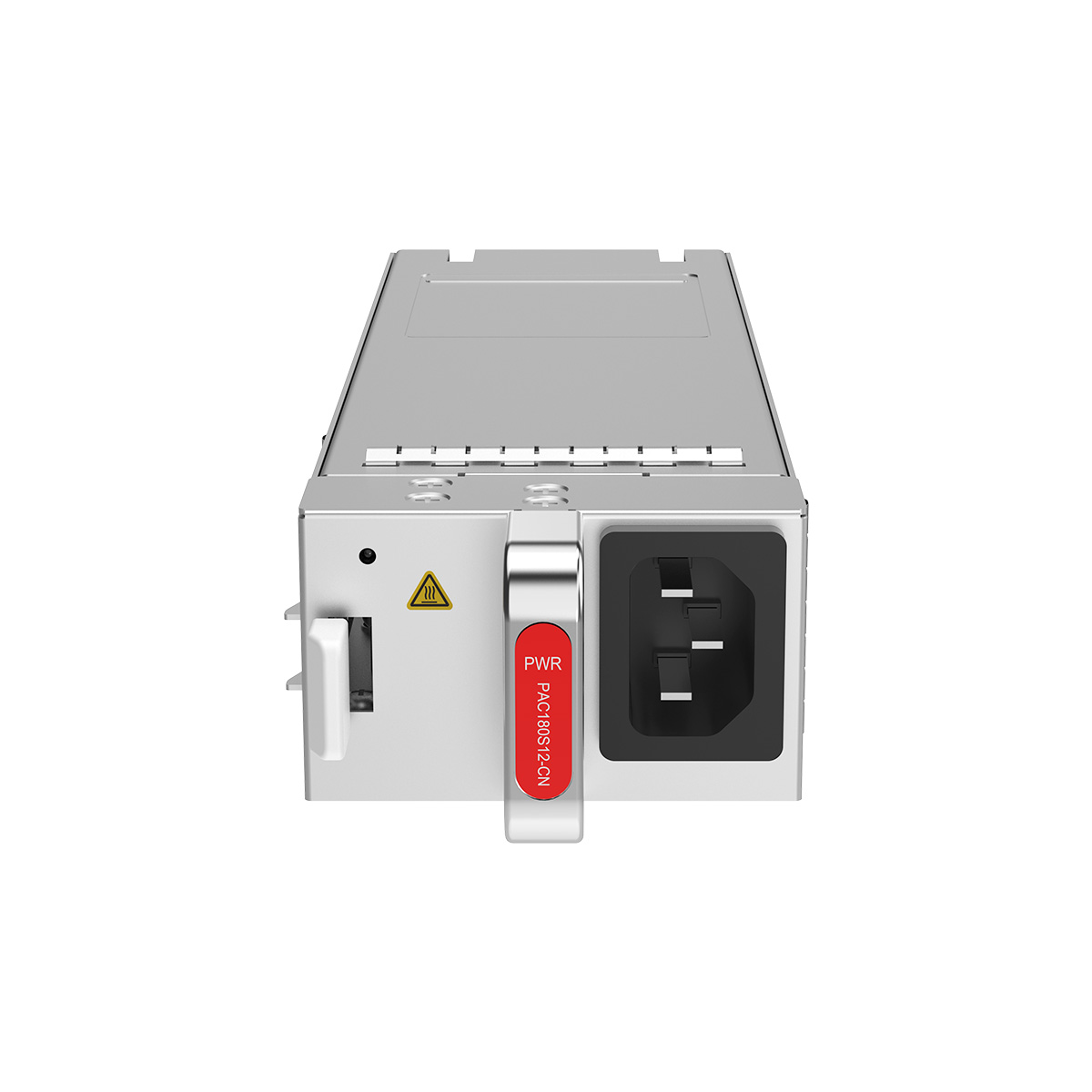

Huawei PAC180S12-CN support 180W AC&240 V DC Power Module (66 mm Width case, No Fans)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

PAC180S12-CN Overview

Item	Details
Description	180W AC&240 V DC Power Module (66 mm Width case, No Fans)
Part Number	02131754
Model	PAC180S12-CN

Mappings between PAC180S12-CN and product models

Product	Product Model	First Supported Version	Limitations
S6750-S	S6750-S16X10Y2CZ (98012444)	V600R024C00	When cards are used, power modules with a power of 240 W or higher must be used.
S6750-S	S6750-S16X8YZ (98012445)	V600R024C00	–
S6750-S	S6750-S24T16X8Y2CZ (98012446)	V600R024C00	When cards are used, power modules with a power of 240 W or higher must be used.
S6750E-S	S6750E-S16X10Y2CZ (98012861)	V600R024C10	When cards are used, power modules with a power of 240 W or higher must be used.
S6750E-S	S6750E-S24T16X8Y2CZ (98012860)	V600R024C10	When cards are used, power modules with a power of 240 W or higher must be used.

Front Panel of PAC180S12-CN

1. Power indicator (STAT)

2. Handle

3. Power socket

–

Item	PAC180S12-CN
Rated input voltage [V]	100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Input voltage range [V]	90 V AC to 290 V AC; 45 Hz~66 Hz 190 V DC to 290 V DC
Maximum input current [A]	3 A
Rated output voltage [V]	12 V
Rated output current [A]	15 A
Rated output power [W]	180 W
Power dissipation Mode	Natural heat dissipation without fans
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm(in.)]	39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)]	1.2 kg (2.65 lb)
Number of inputs	1

Input protection	Input undervoltage protection	In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
	Input overvoltage protection	In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
	Input overcurrent protection	In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output protection	Output overvoltage protection	In this protection state, the power module stops supplying power intermittently. When the output voltage restores to the normal range, the power module automatically resumes power supply.
	Output overcurrent protection	In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		Supported

Item	PAC180S12-CN
Rated input voltage [V]	100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Input voltage range [V]	90 V AC to 290 V AC; 45 Hz~66 Hz 190 V DC to 290 V DC
Maximum input current [A]	3 A
Rated output voltage [V]	12 V
Rated output current [A]	15 A
Rated output power [W]	180 W
Power dissipation Mode	Natural heat dissipation without fans
Hot swapping	Supported
Dimensions without packaging (H x W x D) [mm(in.)]	39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)]	1.2 kg (2.65 lb)
Number of inputs	1

Input protection	Input undervoltage protection	In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
	Input overvoltage protection	In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
	Input overcurrent protection	In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output protection	Output overvoltage protection	In this protection state, the power module stops supplying power intermittently. When the output voltage restores to the normal range, the power module automatically resumes power supply.
	Output overcurrent protection	In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		Supported
