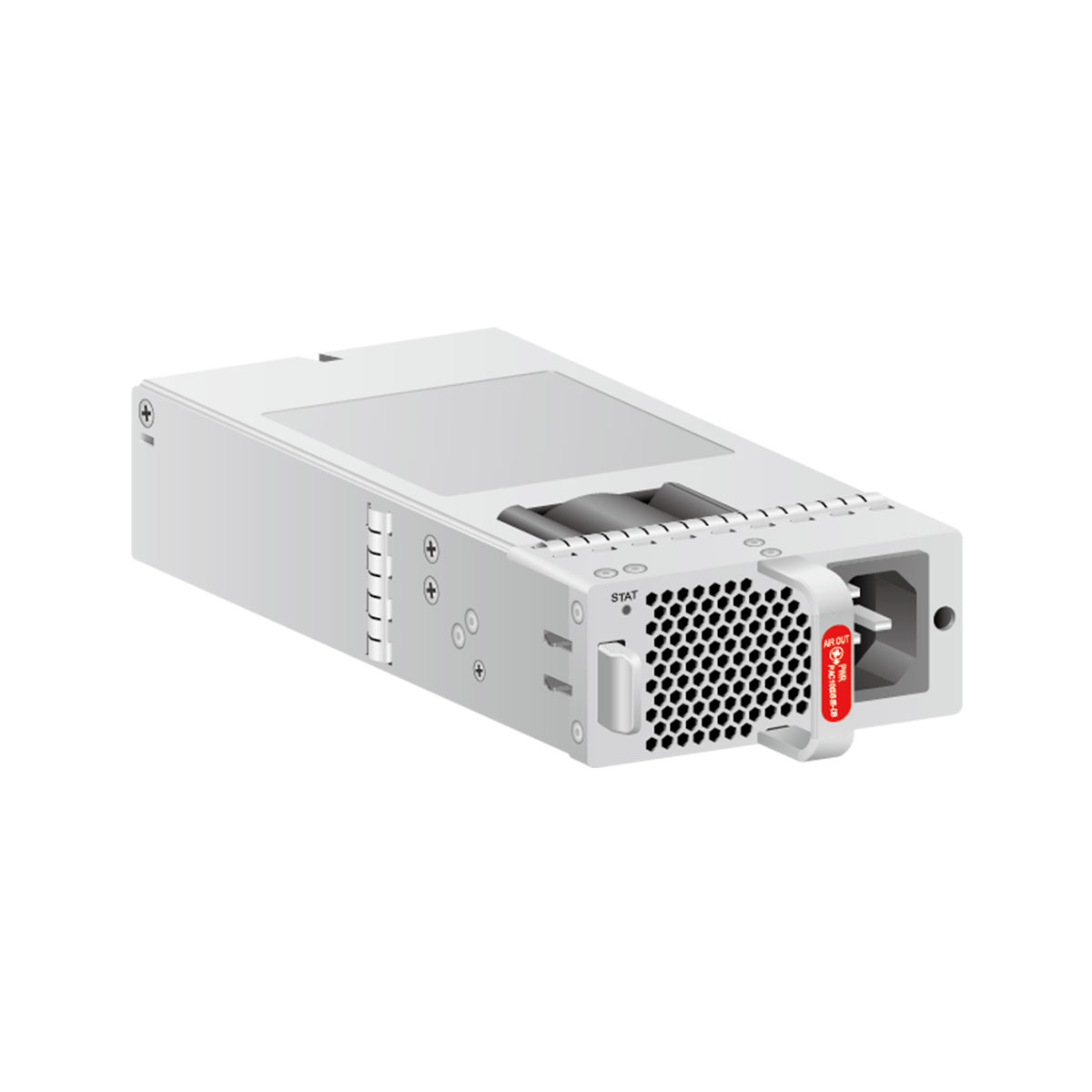

PAC1000S56-DB is1000 W PoE AC&240 V DC Power Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Mappings between PAC1000S56-DB and product models

Product Product Model First Supported Version
S5731-S S5731-S24P4X (02353AHX) V200R020C10
S5731-S S5731-S24P4X (02353AHX-001) V200R020C10
S5731-S S5731-S24P4X (02353AHX-003) V200R021C10SPC600
S5731-S S5731-S48P4X (02353AJH) V200R020C10
S5731-S S5731-S48P4X (02353AJH-001) V200R020C10
S5731-S S5731-S48P4X (02353AJH-003) V200R021C10SPC600
S5731S-S S5731S-S24P4X-A (02353AHY) V200R020C10
S5731S-S S5731S-S24P4X-A (02353AHY-001) V200R020C10
S5731S-S S5731S-S24P4X-A (02353AHY-003) V200R021C10SPC600
S5731S-S S5731S-S48P4X-A (02353AJJ) V200R020C10
S5731S-S S5731S-S48P4X-A (02353AJJ-001) V200R020C10
S5731S-S S5731S-S48P4X-A (02353AJJ-003) V200R021C10SPC600
S5731-H S5731-H24HB4XZ (02354QXD) V200R021C10SPC500
S5731-H S5731-H24HB4XZ (02354QXD-001) V200R021C10SPC600
S5731-H S5731-H24P4XC (02352QPV) V200R020C10
S5731-H S5731-H24P4XC (02352QPV-001) V200R020C10
S5731-H S5731-H24P4XC (02352QPV-003) V200R021C10SPC600
S5731-H S5731-H48HB4XZ (02354QXB) V200R021C10SPC500
S5731-H S5731-H48HB4XZ (02354QXB-001) V200R021C10SPC600
S5731-H S5731-H48P4XC (02352SVD) V200R020C10
S5731-H S5731-H48P4XC (02352SVD-001) V200R020C10
S5731-H S5731-H48P4XC (02352SVD-003) V200R021C10SPC600
S5731S-H S5731S-H24HB4XZ-A (02354QXE) V200R021C10SPC500
S5731S-H S5731S-H24HB4XZ-A (02354QXE-001) V200R021C10SPC600
S5731S-H S5731S-H48HB4XZ-A (02354QXC) V200R021C10SPC500
S5731S-H S5731S-H48HB4XZ-A (02354QXC-001) V200R021C10SPC600
S5732-H S5732-H24UM2CC (02353HUC) V200R020C10
S5732-H S5732-H24UM2CC (02353HUC-003) V200R021C10SPC500
S5732-H S5732-H24UM2CC (02353SJY) V200R020C10
S5732-H S5732-H24UM2CC (02353SJY-001) V200R020C10
S5732-H S5732-H24UM2CC (02353SJY-004) V200R020C10
S5732-H S5732-H24UM2CC (02353SJY-010) V200R021C10SPC500
S5732-H S5732-H24UM2CC (02353SJY-011) V200R021C10SPC500
S5732-H S5732-H24UM2CC (02353SJY-014) V200R021C10SPC500
S5732-H S5732-H24UM2CC (02353SJY-020) V200R022C00
S5732-H S5732-H24UM2CC (02353SJY-021) V200R022C00
S5732-H S5732-H24UM2CC (02353SJY-024) V200R022C00
S5732-H S5732-H48UM2CC (02353HUB) V200R020C10
S5732-H S5732-H48UM2CC (02353HUB-002) V200R021C10SPC500
S5732-H S5732-H48UM2CC (02353SJT) V200R020C10
S5732-H S5732-H48UM2CC (02353SJT-001) V200R020C10
S5732-H S5732-H48UM2CC (02353SJT-003) V200R020C10
S5732-H S5732-H48UM2CC (02353SJT-004) V200R020C10
S5732-H S5732-H48UM2CC (02353SJT-010) V200R021C10SPC500
S5732-H S5732-H48UM2CC (02353SJT-011) V200R021C10SPC500
S5732-H S5732-H48UM2CC (02353SJT-013) V200R021C10SPC500
S5732-H S5732-H48UM2CC (02353SJT-014) V200R021C10SPC500
S5732-H S5732-H48UM2CC (02353SJT-020) V200R022C00
S5732-H S5732-H48UM2CC (02353SJT-021) V200R022C00
S5732-H S5732-H48UM2CC (02353SJT-023) V200R022C00
S5732-H S5732-H48UM2CC (02353SJT-024) V200R022C00
S5732-H S5732-H48XUM2CC (02353MLH) V200R020C10
S5732-H S5732-H48XUM2CC (02353MLH-001) V200R021C10SPC500
S5735-L S5735-L48P4X-A (98010944) V200R020C10
S5735S-L S5735S-L48P4S-A (98010946) V200R020C10
S5735S-L S5735S-L48P4X-A (98010945) V200R020C10
S5735-S S5735-S24P4X (98010940) V200R020C10
S5735-S S5735-S48P4X (98010943) V200R020C10
S5735S-S S5735S-S24P4X-A (98010969) V200R020C10
S5735S-S S5735S-S48P4X-A (98010970) V200R020C10
S5735S-H S5735S-H24U4XC-A (98011033) V200R020C10
S5735S-H S5735S-H48U4XC-A (98011037) V200R020C10
S5736-S S5736-S24UM4XC (98011020) V200R020C10
S5736-S S5736-S24UM4XC (98011020-001) V200R020C10
S5736-S S5736-S24UM4XC (98011020-004) V200R020C10
Item  PAC1000S56-DB
Dimensions without packaging (H x W x D) [mm(in.)] 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.)
Weight without packaging [kg(lb)] 1.1 kg (2.43 lb)
Number of inputs 1
Rated input voltage [V] 100 V AC to 130 V AC, 50/60 Hz 200 V AC to 240 V AC, 50/60 Hz 240 V DC
Input voltage range [V] 90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC
Maximum input current [A] 100 V AC to 130 V AC: 12 A 200 V AC to 240 V AC: 8 A 240 V DC: 8 A
Rated output voltage [V] 56 V
Rated output current [A] 100 V AC to 130 V AC input: 16.08 A 200 V AC to 240 V AC input and 240 V DC input: 17.86 A
Rated output power [W] 100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported

Additional information

Item  PAC1000S56-DB
Dimensions without packaging (H x W x D) [mm(in.)] 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.)
Weight without packaging [kg(lb)] 1.1 kg (2.43 lb)
Number of inputs 1
Rated input voltage [V] 100 V AC to 130 V AC, 50/60 Hz 200 V AC to 240 V AC, 50/60 Hz 240 V DC
Input voltage range [V] 90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC
Maximum input current [A] 100 V AC to 130 V AC: 12 A 200 V AC to 240 V AC: 8 A 240 V DC: 8 A
Rated output voltage [V] 56 V
Rated output current [A] 100 V AC to 130 V AC input: 16.08 A 200 V AC to 240 V AC input and 240 V DC input: 17.86 A
Rated output power [W] 100 V AC to 130 V AC input: •Total: 900 W 200 V AC to 240 V AC input and 240 V DC input: •Total: 1000 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported
