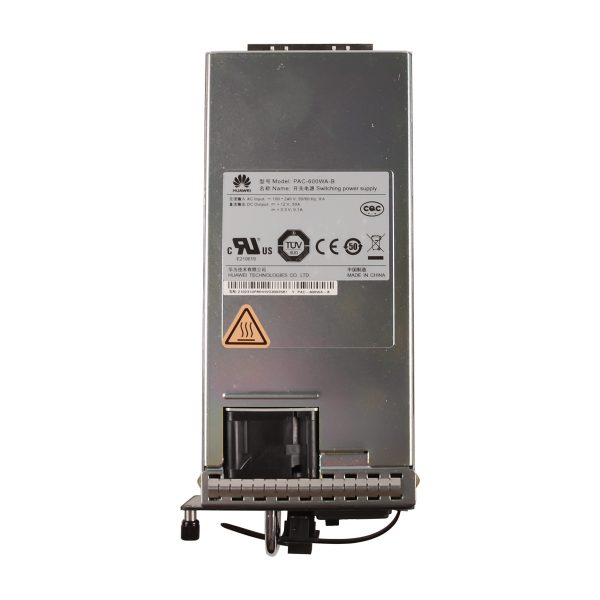

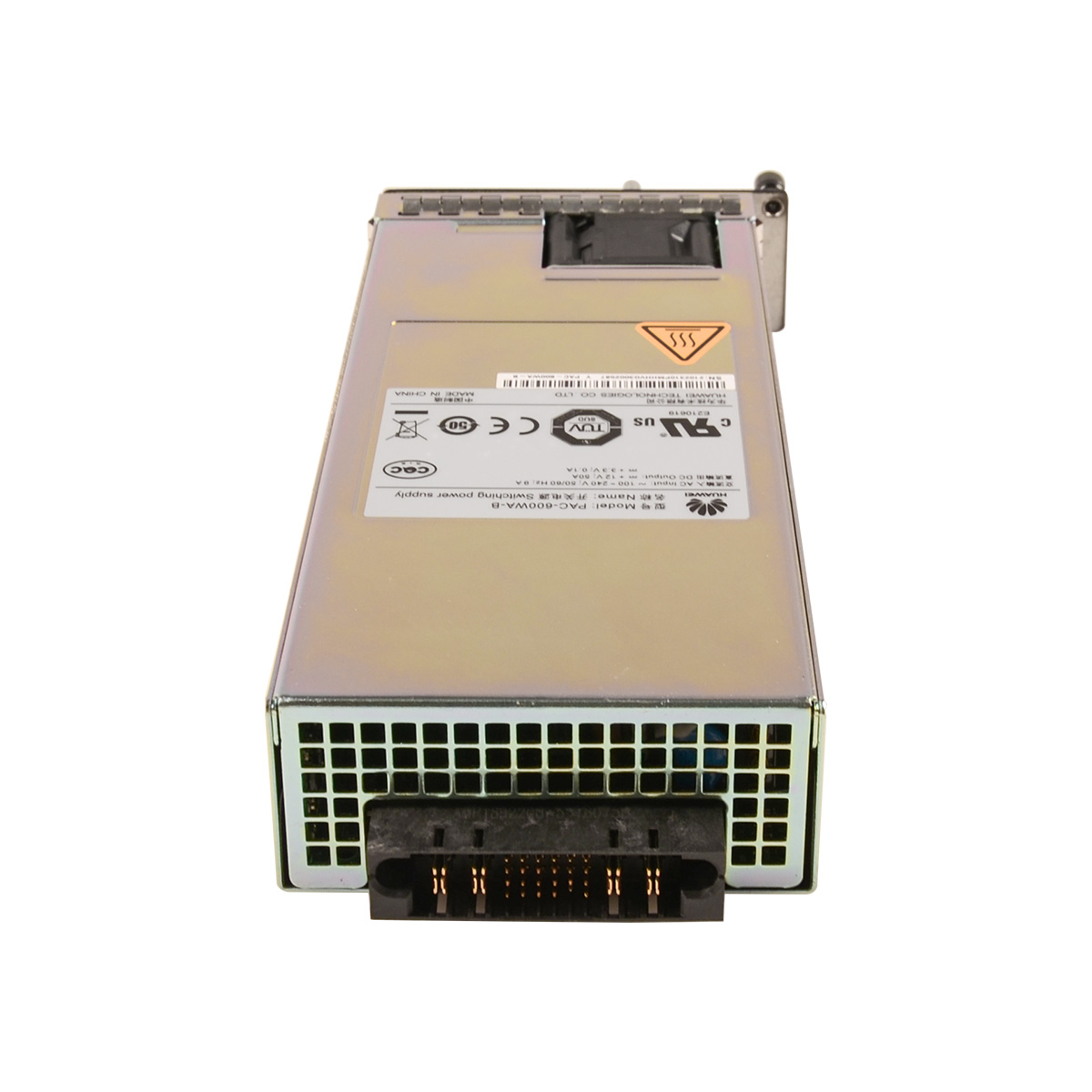

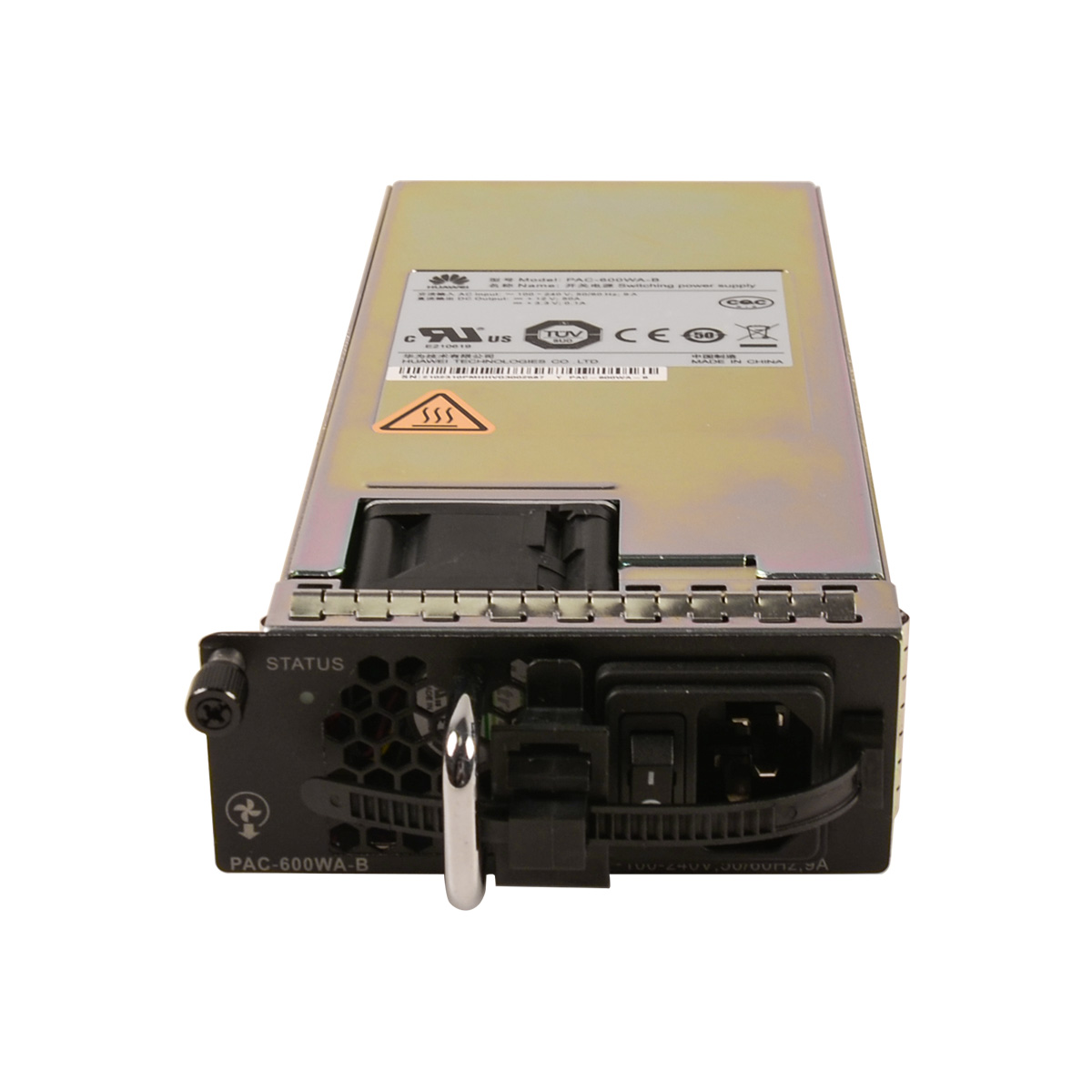

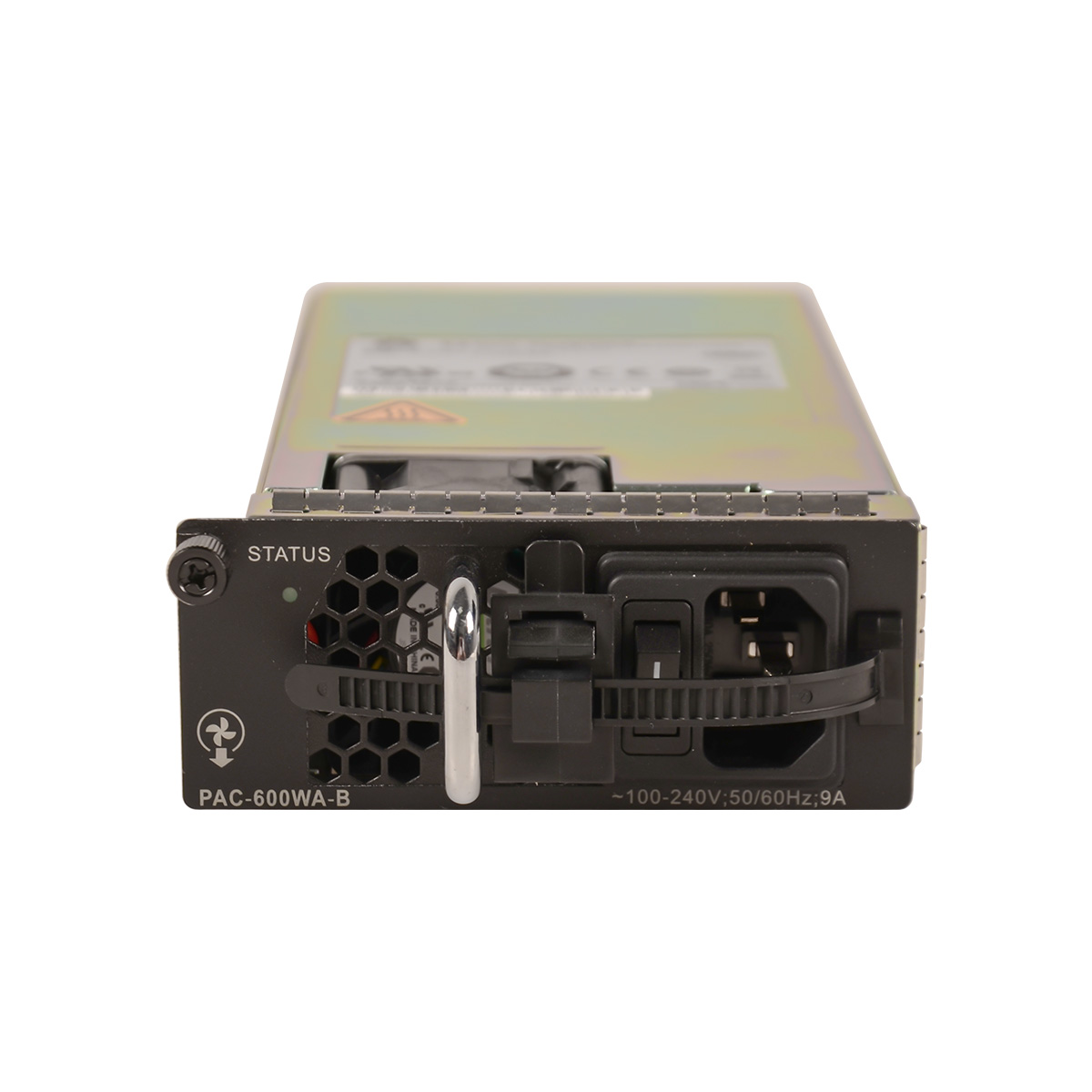

PAC-600WA-B 600 W AC Power Module for S6720-EI series
Mappings between PAC-600WA-B and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| S5720-HI | S5720-56C-HI-AC (02358598) | V200R006C00 |
| S5720-HI | S5720-32C-HI-24S-AC (02358600) | V200R006C00 |
| S5730-HI | S5730-60C-HI-48S (02351XFS) | V200R013C00 |
| S5730-HI | S5730-68C-HI-48S (02351XFT) | V200R013C00 |
| Item | PAC-600WA-B |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 1 kg (2.20 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 9 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
| Weight | 2.0000 kg |
|---|---|
| Dimensions | 27.0000 × 21.0000 × 8.0000 cm |
| Brand | Huawei |
| Campus Switch |
| Item | PAC-600WA-B |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 1 kg (2.20 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 9 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
