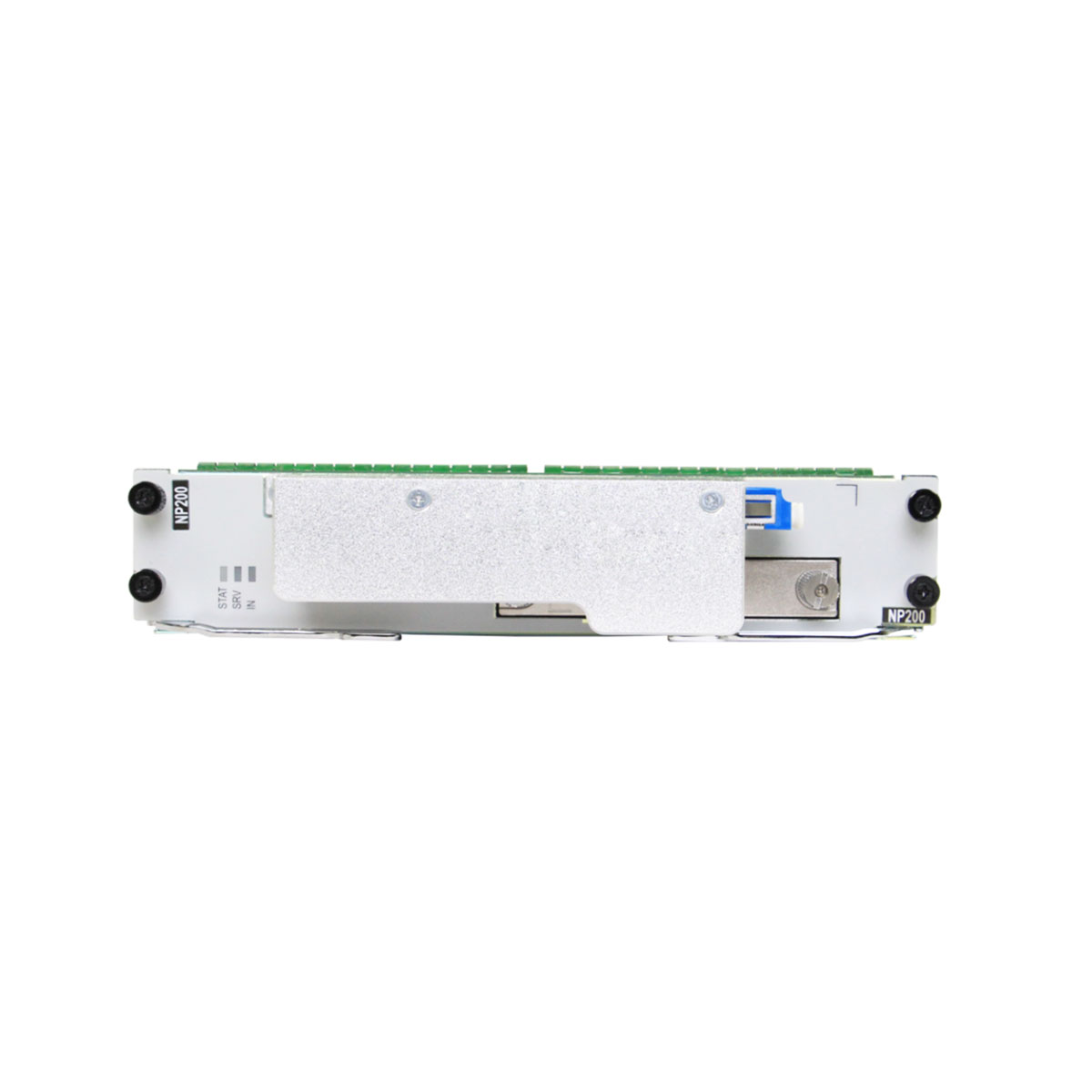

NP200/NP200E

1 Review Write a review
SKU2012312
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OSN1800V 1*100G Turbo WDM Line Service Processing Board, extend to 200G/1*100G Turbo WDM Line Service Processing Extended Board.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

NP200/NP200E overview

Huawei OSN1800V 1x100G Turbo WDM Line Service Processing Board, extend to 200G/1*100G Turbo WDM Line Service Processing Extended Board.

The NP200 board and NP200E board are PID boards. The NP200 board can be independently used in a 100G system or work with the NP200E board in a 200G system. The NP200E board must work with the NP200 board in a 200G system.

The TNF6NP200/TNF6NP200E board supports the mixed transmission of OTN and SDH services. The TNZ5NP200 and TNZ5NP200E board supports hybrid transmission of OTN, SDH and packet services. It supports Layer 2 switching, MPLS-TP, and OTN interfaces.

The NP200 and NP200E boards consist of the following similar modules: signal processing module, PID optical module, control and communication module, and power module. The difference is that the NP200 board has an OADM optical module.

Version description of the NP200/NP200E board

Board

Product Applicable

System Control Board-Initial Board Version Supported by System Control Board

TNF6NP200/TNF6NP200E

1800 V

TNF5UXCM/TNF5UXCME/TNF5XCH-V100R006C20

TNZ5NP200/TNZ5NP200E

1800 V

TNZ5UXCMS-V100R008C00

Item
NP200/NP200E

Basic function

NP200/NP200E:

  • 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4
  • Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2 and ODU2e signals.
NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

NP200:

  • Multiplexes and demultiplexes two optical signals. That is, the NP200 board receives one OTU4 optical signal from the NP200E board and converts its own OTU4 optical signal and the received OTU4 optical signal into one multiplexed optical signal.

Cross-connect capabilities

Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or 10 channels of ODU2/ODU2e signals or 2 chanels of ODU3 signal or one chanel of ODU4 signal between the NP200/NP200E and the cross-connect board.

NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

OTN function
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU4 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.

ESC function

Supported

PRBS function

Supports the PRBS function on the WDM side.

LPT function

Not supported

FEC coding

SDFEC2

NOTE:

Boards that use different FEC modes cannot interconnect with each other.

Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

ALS function

Not supported

Latency measurement

Supported

Test frame

Not supported

IEEE 1588v2

Not supported

Physical clock

Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)

NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

Protection scheme
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:

When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.

Over-temperature protection

If the temperature of a board exceeds the upper threshold and services are affected, the board will automatically reset the key chips to prevent a board damage.

Loopback
  • Supports system-side channel inloops and outloops.
  • Supports WDM-side inloops and outloops.
NOTE:

The total bandwidth of channel inloops on the TNZ5NP200/TNZ5NP200E board must not exceed 40G.

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Item
NP200/NP200E

Basic function

NP200/NP200E:

  • 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4
  • Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2 and ODU2e signals.
NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

NP200:

  • Multiplexes and demultiplexes two optical signals. That is, the NP200 board receives one OTU4 optical signal from the NP200E board and converts its own OTU4 optical signal and the received OTU4 optical signal into one multiplexed optical signal.

Cross-connect capabilities

Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or 10 channels of ODU2/ODU2e signals or 2 chanels of ODU3 signal or one chanel of ODU4 signal between the NP200/NP200E and the cross-connect board.

NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

OTN function
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
  • OTU4 layer: supports the SM function.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.

ESC function

Supported

PRBS function

Supports the PRBS function on the WDM side.

LPT function

Not supported

FEC coding

SDFEC2

NOTE:

Boards that use different FEC modes cannot interconnect with each other.

Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

ALS function

Not supported

Latency measurement

Supported

Test frame

Not supported

IEEE 1588v2

Not supported

Physical clock

Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)

NOTE:

Only TNZ5NP200/TNZ5NP200E board supports ODU3.

Protection scheme
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:

When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.

Over-temperature protection

If the temperature of a board exceeds the upper threshold and services are affected, the board will automatically reset the key chips to prevent a board damage.

Loopback
  • Supports system-side channel inloops and outloops.
  • Supports WDM-side inloops and outloops.
NOTE:

The total bandwidth of channel inloops on the TNZ5NP200/TNZ5NP200E board must not exceed 40G.
