$0.00 Original price was: $0.00.Current price is: $0.00.

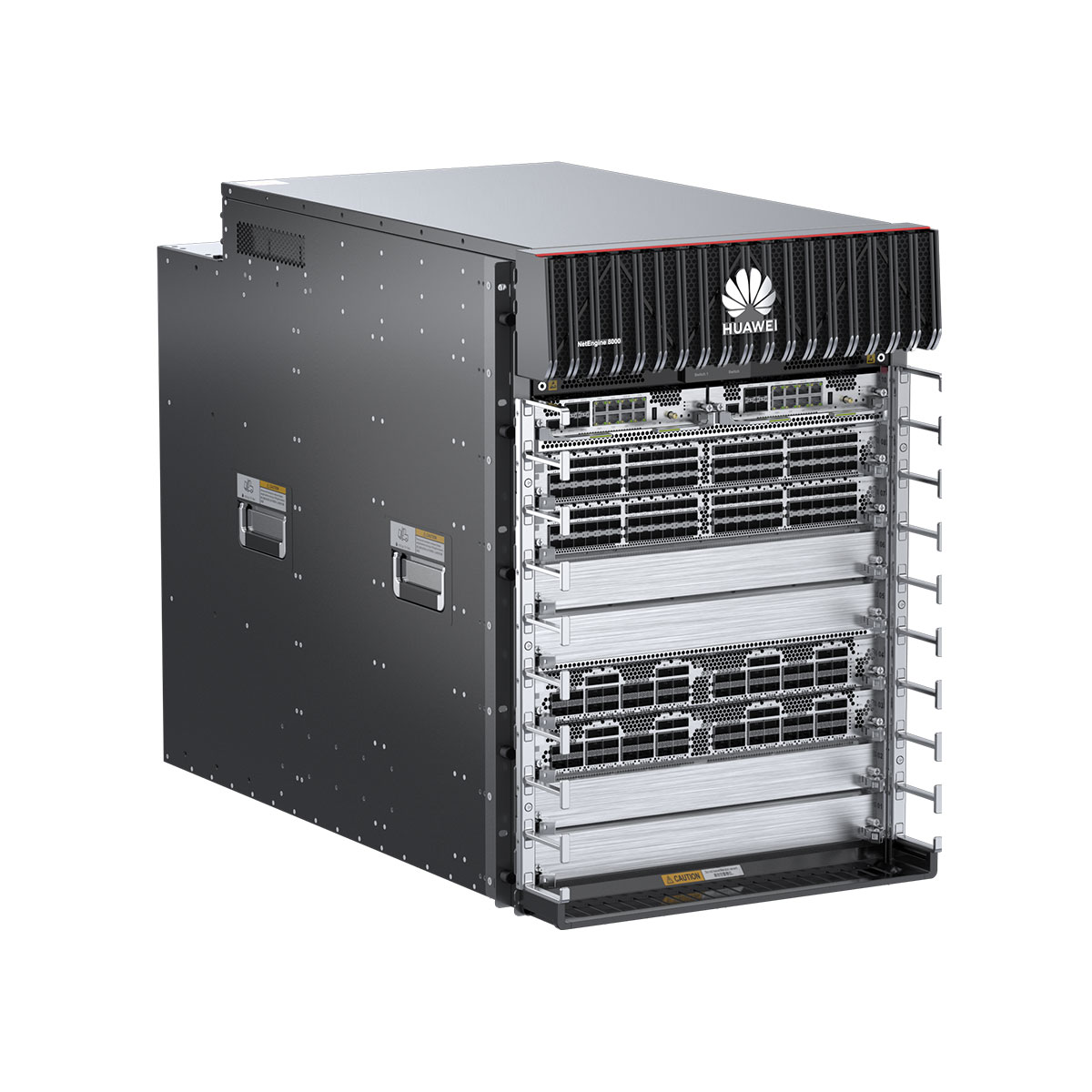

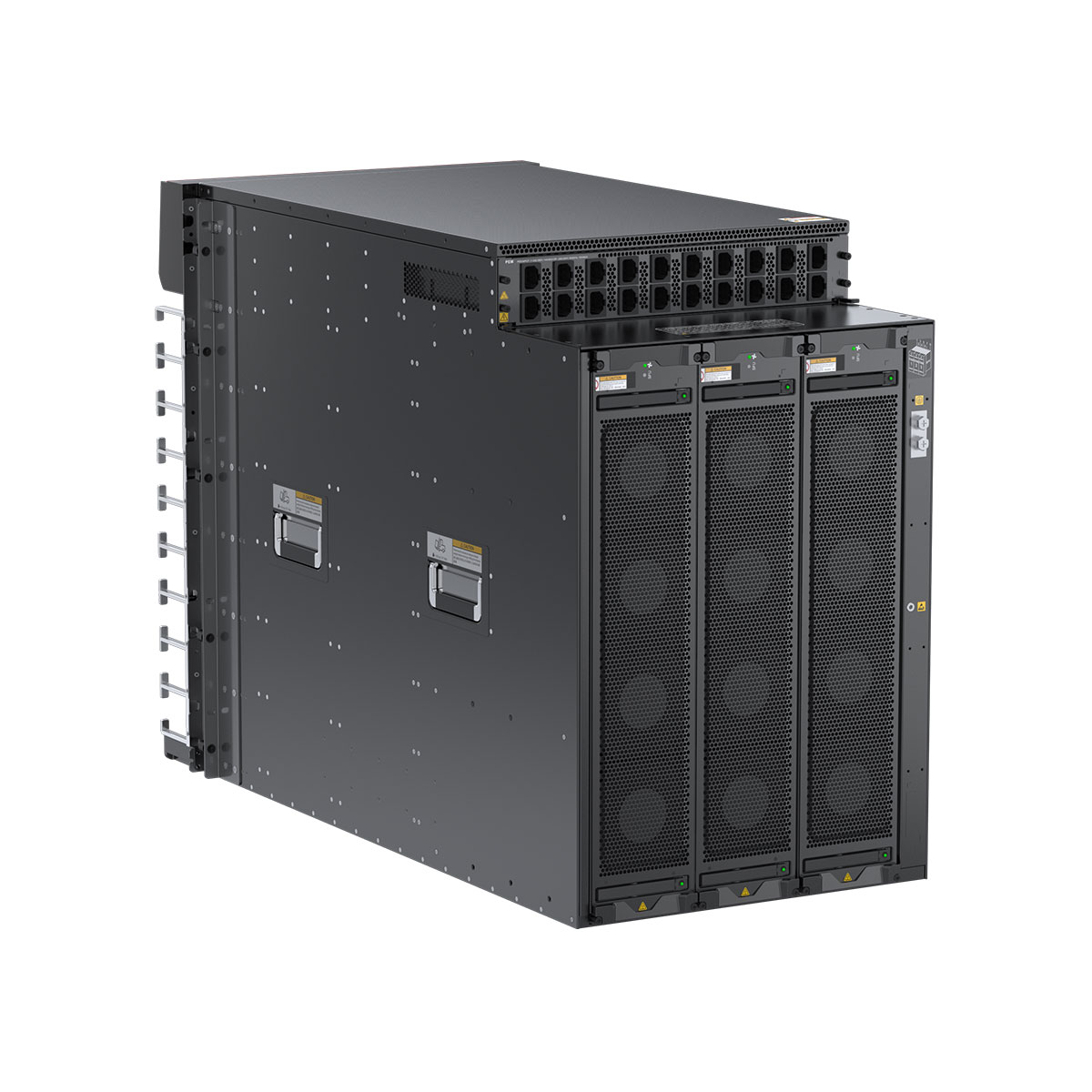

Huawei NE8000 X8 with 2*IPU(1:1) , 8*SFU(8, 7+1), 8*Processing Board/Subcard
Huawei NE8000 X8 with 2*IPU(1:1) , 8*SFU(8, 7+1), 8*Processing Board/Subcard
Switching Capacity: 83.78 Tbit/s
Forwarding Performance: 14,496 Mpps
Max. Capacity of a Board: 4 Tbit/s
Capacity Density (G/U): 2025
IPU: 2, 1:1
SFU: 8, 7+1
Processing Board/Subcard: 8
Power Supply Module: Max 10, N+1
Fan Module: 12, 11+1
| Item | NetEngine 8000 X4 |
| Switching Capacity | 83.78 Tbit/s |
| Forwarding Performance | 14,496 Mpps |
| Max. Capacity of a Board | 4 Tbit/s |
| Capacity Density (G/U) | 2025 |
| IPU | 2, 1:1 |
| SFU | 8, 7+1 |
| Processing Board/Subcard | 8 |
| Power Supply Module | Max 10, N+1 |
| Fan Module | 12, 11+1 |
| Interface types | 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC-3c/STM-1c |
| Layer 2 Ethernet protocols | G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols |
| Ethernet services | VLAN and bridge domain |
| Routing protocols | Routing protocols such as RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGPv6, IPv4 multicast, IPv6 multicast, static routes, and multicast static routes |
| IPv4 | TCP/IP protocol suite, including ICMP, IP, TCP, UDP, socket (TCP/UDP/RAW IP), and ARP Static DNS DNS client FTP server FTP client TFTP client DHCP relay and DHCP server Ping Tracert NQA IP policy-based routing Flow-based next hop IP policy-based routing for load balancing QinQ interfaces (QinQ termination and dot1q termination interfaces) supporting IPv4 load balancing Interface board-specifific fast ping reply Egress protection through mirror SIDs for MPLS-in-UDP tunnels |
| IPv6 | IPv6 (ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 relay Static IPv6 DNS TFTP IPv6 client IPv6 policy-based routing ND fast reply |
| L2VPN | PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN |
| L3VPN | CE access to an L3VPN through a Layer 3 interface Support for static, BGP, RIP, OSPF, and IS-IS routes between CEs and PEs Inter-AS VPN, including RFC 2547 bis option A Inter-AS VPN, including RFC 2547 bis option B Inter-AS VPN, including RFC 2547 bis option A NG MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirection to a VPN L3VPN PIPE/uniform mode (unifified and separate confifiguration for upstream and downstream traffic) L3VPN traffic statistics collection |
| SRv6 | SRv6 BE, SRv6 TE Policy, and SRv6 egress protection |
| Clock | Physical layer synchronization and 1588v2 |
| OAM | iFIT IP FPM NQA TWAMP BFD MPLS OAM MPLS TP OAM VRRP Ethernet OAM 802.3ah Y.1731 Ethernet LPT Bit error-triggered switching |
| QoS | QPPB, Differ-Serv, HQoS, and redirection |
| Dimensions (H x W x D) | 702.3 x 442 x 861.4 mm (15.8 U) |
| Typical Power Consumption | 11,017 W |
| Weight (With Full Configuration) | 296.6 kg |
| Item | NetEngine 8000 X4 |
| Switching Capacity | 83.78 Tbit/s |
| Forwarding Performance | 14,496 Mpps |
| Max. Capacity of a Board | 4 Tbit/s |
| Capacity Density (G/U) | 2025 |
| IPU | 2, 1:1 |
| SFU | 8, 7+1 |
| Processing Board/Subcard | 8 |
| Power Supply Module | Max 10, N+1 |
| Fan Module | 12, 11+1 |
| Interface types | 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC-3c/STM-1c |
| Layer 2 Ethernet protocols | G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols |
| Ethernet services | VLAN and bridge domain |
| Routing protocols | Routing protocols such as RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGPv6, IPv4 multicast, IPv6 multicast, static routes, and multicast static routes |
| IPv4 | TCP/IP protocol suite, including ICMP, IP, TCP, UDP, socket (TCP/UDP/RAW IP), and ARP Static DNS DNS client FTP server FTP client TFTP client DHCP relay and DHCP server Ping Tracert NQA IP policy-based routing Flow-based next hop IP policy-based routing for load balancing QinQ interfaces (QinQ termination and dot1q termination interfaces) supporting IPv4 load balancing Interface board-specifific fast ping reply Egress protection through mirror SIDs for MPLS-in-UDP tunnels |
| IPv6 | IPv6 (ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 relay Static IPv6 DNS TFTP IPv6 client IPv6 policy-based routing ND fast reply |
| L2VPN | PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN |
| L3VPN | CE access to an L3VPN through a Layer 3 interface Support for static, BGP, RIP, OSPF, and IS-IS routes between CEs and PEs Inter-AS VPN, including RFC 2547 bis option A Inter-AS VPN, including RFC 2547 bis option B Inter-AS VPN, including RFC 2547 bis option A NG MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirection to a VPN L3VPN PIPE/uniform mode (unifified and separate confifiguration for upstream and downstream traffic) L3VPN traffic statistics collection |
| SRv6 | SRv6 BE, SRv6 TE Policy, and SRv6 egress protection |
| Clock | Physical layer synchronization and 1588v2 |
| OAM | iFIT IP FPM NQA TWAMP BFD MPLS OAM MPLS TP OAM VRRP Ethernet OAM 802.3ah Y.1731 Ethernet LPT Bit error-triggered switching |
| QoS | QPPB, Differ-Serv, HQoS, and redirection |
| Dimensions (H x W x D) | 702.3 x 442 x 861.4 mm (15.8 U) |
| Typical Power Consumption | 11,017 W |
| Weight (With Full Configuration) | 296.6 kg |
