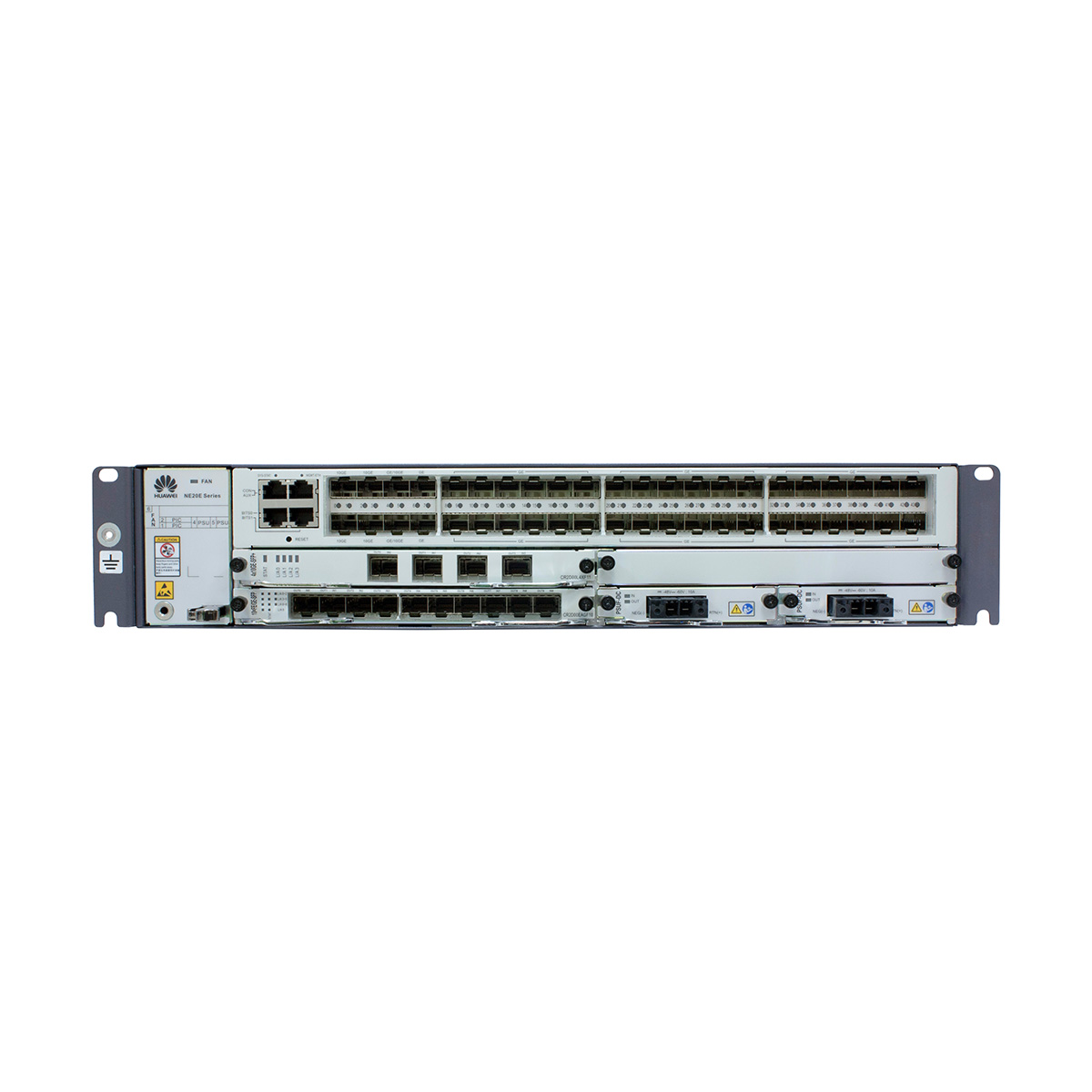

ne20e s2f dc 1

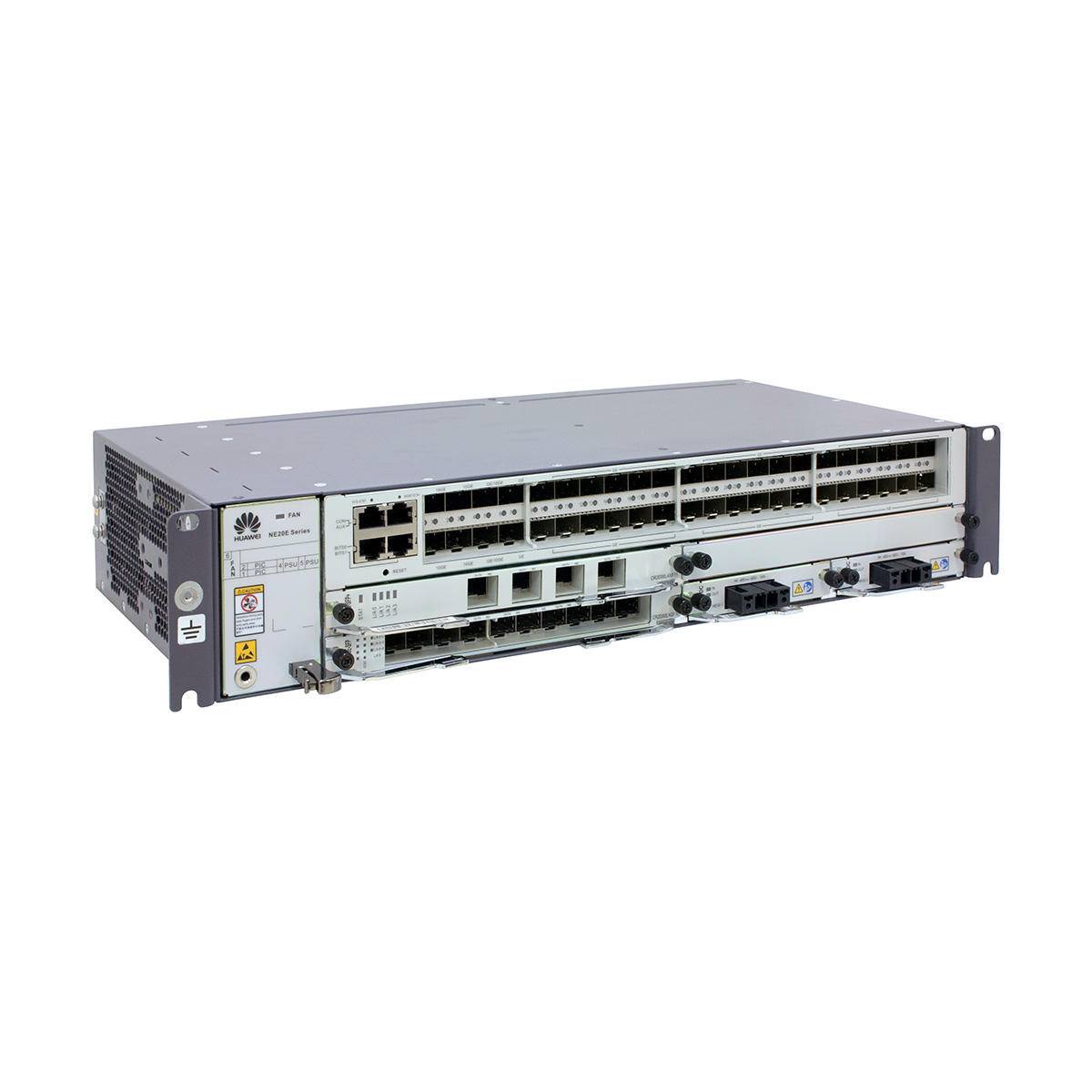

ne20e s2f dc 2
Categories:

NE20E-S2F-DC

1 Review Write a review
PN02311ARQ
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

NE20E-S2F-DC integrated chassis with 4*10GE (SFP+) + 40*GE (SFP), 2*DC power module equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

NE20E-S2F-DC Overview

NetEngine20E-S Universal Service Router (NE20E-S) series are high-endnetwork products developed by Huawei for transportation, finance, electricity, government, education, and enterprise networks. They mainly serve as aggregation nodes on IP backbone networks, core nodes on small and medium-sized enterprise networks, edge nodes on campus networks, and access nodes on small and medium-sized education networks.

Huawei NE20E-S2F-DC integrated chassis with one fixed interface and two PIC slots. The chassis can be a DC or AC chassis, 2 DC power module equipped.

Fixed ports support: 4*10GE (SFP+) + 40*GE (SFP)

Forwarding performance: 150 Mpps

Switching capacity: 320 Gbps

NE20E S2F DC

1. Ground terminal 2. Mounting ear 3. Fan module 4. Subcard
5. ESD jack 6. Cable tray 7. Power supply module
Slot Layout

NE20E S2F

Description of slot layout

Slot Name Slot Quantity Slot ID Remarks
Slots for PICs 2 1 and 2 including high-speed, low-speed cards and other PICs that support hot swap
Fixed interfaces 1 3 The fourth and fifth port support GE mode(They can support 10 GE mode by loading the license).
Slot for PSUs 2 4 and 5 –
Slot for a fan module 1 6 –
NE20E-S2F-DC Datasheet
Item NE20E-S2F-DC
Switching Capacity(Gbit/s) 320
Forwarding Performance(Mpps) 150
Number of Slots 2 PICs
Interface Types 10GE, GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS OC-3c/STM-1c ATM E1/CE1
Clock Synchronization Synchronous Ethernet and IEEE 1588v2
Layer 2 Features IEEE 802.1q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1ab, and STP/RSTP/MSTP
IPv4/IPv6 Routing Protocols IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack Various IPv4-to-IPv6 transition technologies: Manual tunnel, 6to4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing
L2/L3 VPN LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN
Multicast IGMP v1/v2/v3, IGMP snooping, IPv6 multicast, static multicast routing, PIM-SM, PIM-SSM, MBGP, and NG MVPN
QoS WRED, five-level HQoS, and VLL/PWE3 QoS
Broadband Access Capabilities Access for individuals or home users through Layer 2/Layer 3 devices; Layer 2/Layer 3 leased line or PPP leased line access for enterprises or corporations Access media: xDSL, Ethernet, IPv4, and IPv4/IPv6 dual stack Access protocols: IPoE, PPPoE, IPoEoVLAN, PPPoEoVLAN, IPoEoQ, PPPoEoQ, and ND Link authentication modes: PPP authentication (PAP/CHAP), web/portal authentication, binding authentication, and fast authentication; authentication based on DHCP options, VBAS, VLAN, and PPPoE+ Non-authentication, remote authentication Authorization modes: Direct authorization, authenticated if RADIUS authorization is successful, and dynamic authorization of online users Security services, such as user isolation by VLAN or VPN and binding authentication
Powerful L2TP Capabilities L2TP Access Concentrator (LAC), L2TP Network Server (LNS), and L2TP Tunnel Switch (LTS) functionalities Support for master and backup LNSs: If the master LNS becomes unreachable, an LAC can establish a connection with the backup LNS, improving reliability and fault tolerance LNS load balancing: If an L2TP connection is initiated by an LAC, more than one LNS address can be manually specified or delivered by the RADIUS server. The LAC then allocates user sessions among the LNSs
Security ACL-based packet filtering, AAA, SNMPv3 encryption and authentication, URPF, GTSM, DHCP snooping, ARP attack defense, and SSHv2
Value-added Services NAT, IPSec, MACSec, GRE, and NetStream
OAM Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah
Operating Temperature –5°C to 65°C
Operating Humidity 5% RH to 85% RH, non-condensing
Operating Altitude(M) ≤ 3,000
Power Consumption (in full configuration)(W) 309
Dimensions(mm) 89 (H) x 442 (W) x 220 (D)
Full Configuration Weight(kg) 9.5

Additional information

NE20E-S2F-DC Datasheet
Item NE20E-S2F-DC
Switching Capacity(Gbit/s) 320
Forwarding Performance(Mpps) 150
Number of Slots 2 PICs
Interface Types 10GE, GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS OC-3c/STM-1c ATM E1/CE1
Clock Synchronization Synchronous Ethernet and IEEE 1588v2
Layer 2 Features IEEE 802.1q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1ab, and STP/RSTP/MSTP
IPv4/IPv6 Routing Protocols IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack Various IPv4-to-IPv6 transition technologies: Manual tunnel, 6to4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing
L2/L3 VPN LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN
Multicast IGMP v1/v2/v3, IGMP snooping, IPv6 multicast, static multicast routing, PIM-SM, PIM-SSM, MBGP, and NG MVPN
QoS WRED, five-level HQoS, and VLL/PWE3 QoS
Broadband Access Capabilities Access for individuals or home users through Layer 2/Layer 3 devices; Layer 2/Layer 3 leased line or PPP leased line access for enterprises or corporations Access media: xDSL, Ethernet, IPv4, and IPv4/IPv6 dual stack Access protocols: IPoE, PPPoE, IPoEoVLAN, PPPoEoVLAN, IPoEoQ, PPPoEoQ, and ND Link authentication modes: PPP authentication (PAP/CHAP), web/portal authentication, binding authentication, and fast authentication; authentication based on DHCP options, VBAS, VLAN, and PPPoE+ Non-authentication, remote authentication Authorization modes: Direct authorization, authenticated if RADIUS authorization is successful, and dynamic authorization of online users Security services, such as user isolation by VLAN or VPN and binding authentication
Powerful L2TP Capabilities L2TP Access Concentrator (LAC), L2TP Network Server (LNS), and L2TP Tunnel Switch (LTS) functionalities Support for master and backup LNSs: If the master LNS becomes unreachable, an LAC can establish a connection with the backup LNS, improving reliability and fault tolerance LNS load balancing: If an L2TP connection is initiated by an LAC, more than one LNS address can be manually specified or delivered by the RADIUS server. The LAC then allocates user sessions among the LNSs
Security ACL-based packet filtering, AAA, SNMPv3 encryption and authentication, URPF, GTSM, DHCP snooping, ARP attack defense, and SSHv2
Value-added Services NAT, IPSec, MACSec, GRE, and NetStream
OAM Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah
Operating Temperature –5°C to 65°C
Operating Humidity 5% RH to 85% RH, non-condensing
Operating Altitude(M) ≤ 3,000
Power Consumption (in full configuration)(W) 309
Dimensions(mm) 89 (H) x 442 (W) x 220 (D)
Full Configuration Weight(kg) 9.5
