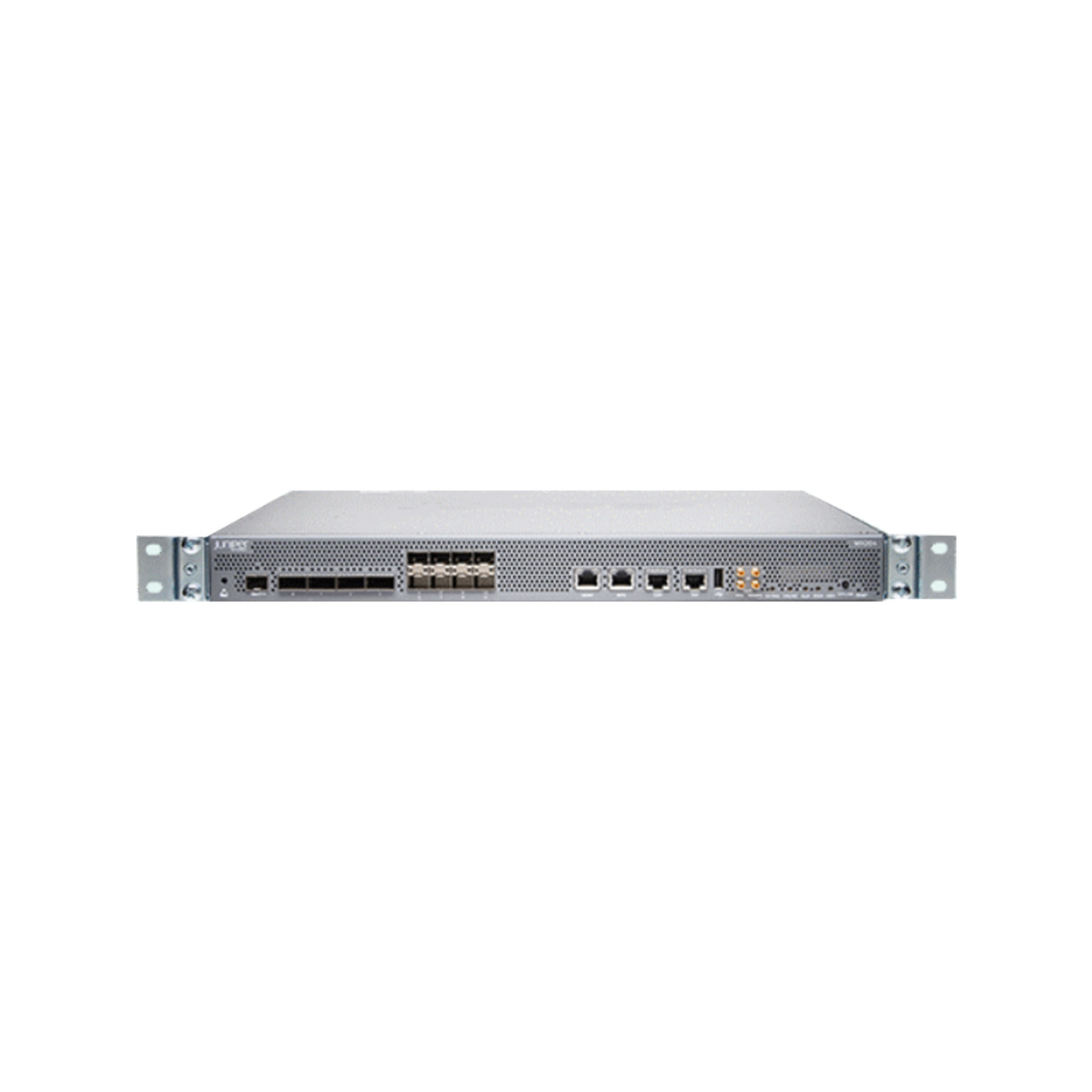

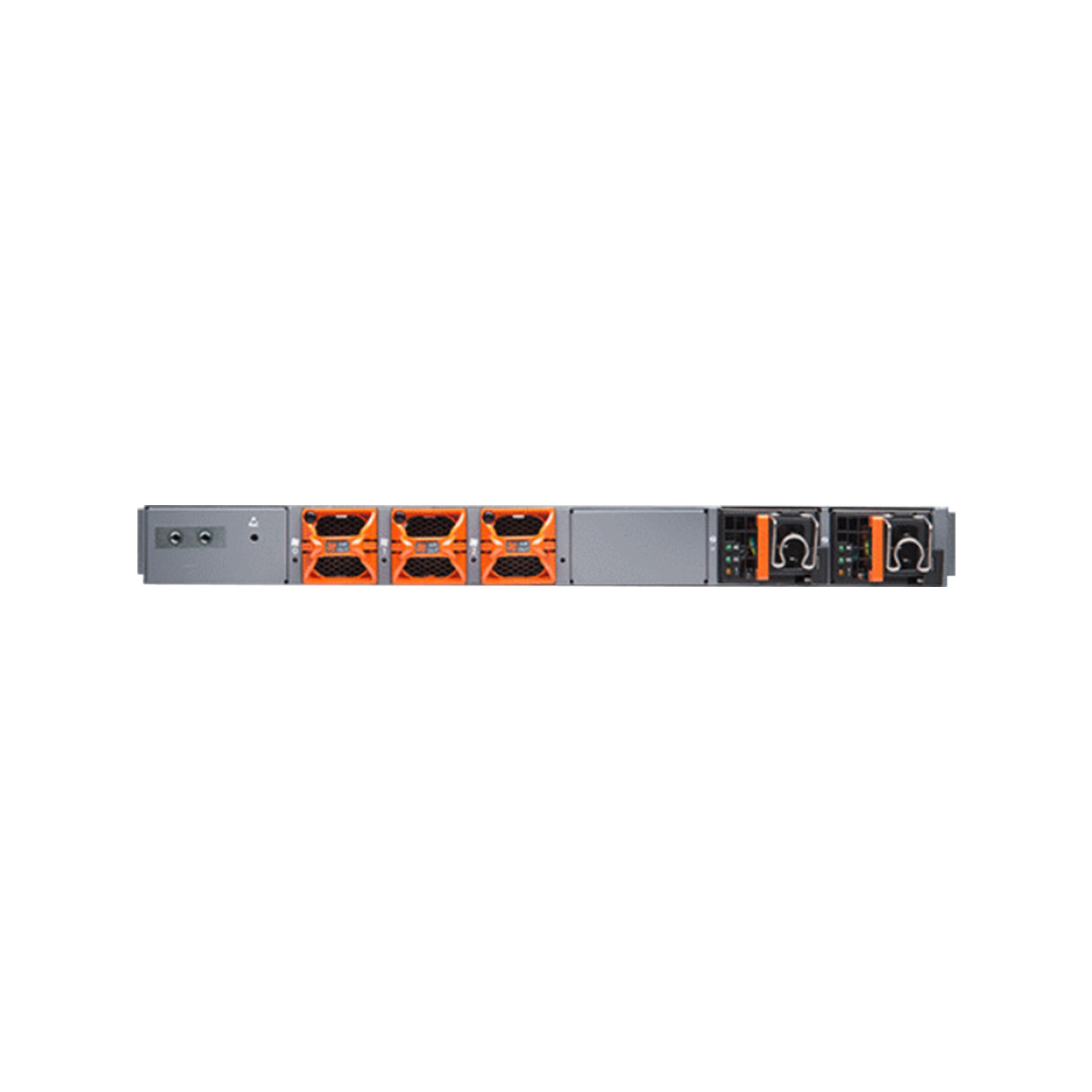

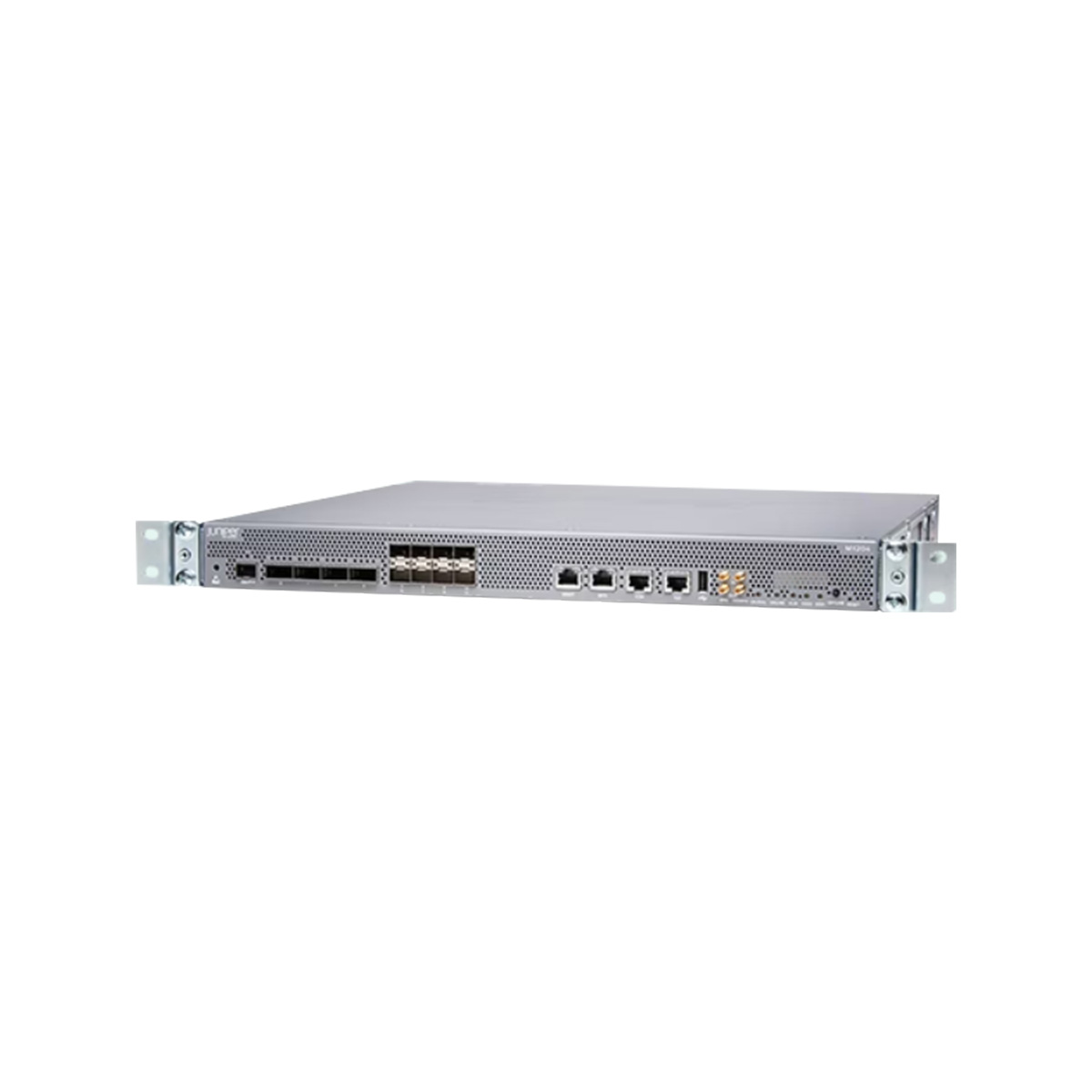

MX204

0 Reviews Write a review

SKU2027116

BrandsJuniper

AvailabilityIn Stock

WarrantyUp to 36 months

Juniper MX204 router, supports 400 Gbps of system throughput and support for up to 24 10GbE, 4 40GbE, or 4 100GbE interfaces per chassis.

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

MX204 Overview

The SDN-enabled MX204 Universal Routing Platform is a cloud-grade solution designed for service providers, mobile operators, and MSOs, offering 400 Gbps throughput in a compact 1U form factor. It supports high-density 10GbE, 40GbE, and 100GbE interfaces, powered by the Junos OS and Trio chipset. The MX204 delivers advanced routing, switching, security, and service features, along with automation and telemetry for the Self-Driving Network™. It also meets the strict timing and synchronization needs of mobile and financial services.

MX204 Highlight

400 Gbps capacity
Space and power efficiency – 1 RU
Full service suite – 1:1 NAT, firewall
Rich multiservice edge features

MX Series Universal Routing Platforms at a Glance

	MX960	MX480	MX240	MX204
Rack units	16	8	5	1
Systems per rack	3	6	9	48
Slots	11 MPCs	6 MPCs	2 MPCs	8 10GbE, 4 100GbE
Per slot capacity	1.5 Tbps	1.5 Tbps	1.5 Tbps	NA
Maximum system throughput¹	12 Tbps	7.5 Tbps	3 Tbps	400 Gbps
PDH	Yes	Yes	Yes	NA
Sonet/SDH	Yes	Yes	Yes	NA
Maximum 1GbE	440	240	80	24
Maximum 10GbE	528	300	120	24
Maximum 40GbE	132	75	30	4
Maximum 100GbE	120	75	30	4
Maximum 400GbE	24	15	6	NA
10GbE DWDM	88	48	16	8
100GbE DWDM	22	40	4	4

MX204 Datasheet

MX960	MX480	MX240	MX204
Layout	System capacity	12 Tbps	7.5 Tbps	3 Tbps	400 Gbps
	Slot orientation	Vertical	Horizontal	Horizontal	NA
	Mounting	Front or center	Front or center	Front or center	Front or center
Physical Specification	Dimensions (W x H x D)	17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm)	17.45 x 14 x 24.5 in (44.3 x 35.6 x 62.2 cm)	17.45 x 8.71 x 24.5 (44.3 x 22.1 x 62.2 cm) 17.45 x 8.71 x 24.5 （44.3 x 22.1 x 62.2 厘米）	17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm)
	Weight fully loaded	334 lb/151.6 kg	180 lbs/81.6 kg	130 lb/59 kg	23.15 lb/10.5 kg
	Weight unloaded	150 lbs/68.1 kg	65.5 lbs/29.7 kg	52 lbs/23.6 kg	17 lb/7.71 kg
Routing Engine	Default memory	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	32GB DDR4; 2x100 GB SSD
Routing Engine	Number of cores	6 cores	6 cores	6 cores	8 cores
Redundancy	Components	Power supplies, REs, fans	Power supplies, REs, fans	Power supplies, REs, fans	Power supplies and fans
Environmental	Air flow	Front to back	Side to side	Side to side	Front to back
	Operating temperature	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C)
	Operating humidity	5% to 90%	5% to 90%	5% to 90%	5% to 90%
	Operating altitude	10,000 ft (3048 m)	10,000 ft (3048 m)	10,000 ft (3048 m)	6,000 ft (1900 m)
Certifications	NEBS	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection

Brand	Juniper

MX204 Datasheet

MX960	MX480	MX240	MX204
Layout	System capacity	12 Tbps	7.5 Tbps	3 Tbps	400 Gbps
	Slot orientation	Vertical	Horizontal	Horizontal	NA
	Mounting	Front or center	Front or center	Front or center	Front or center
Physical Specification	Dimensions (W x H x D)	17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm)	17.45 x 14 x 24.5 in (44.3 x 35.6 x 62.2 cm)	17.45 x 8.71 x 24.5 (44.3 x 22.1 x 62.2 cm) 17.45 x 8.71 x 24.5 （44.3 x 22.1 x 62.2 厘米）	17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm)
	Weight fully loaded	334 lb/151.6 kg	180 lbs/81.6 kg	130 lb/59 kg	23.15 lb/10.5 kg
	Weight unloaded	150 lbs/68.1 kg	65.5 lbs/29.7 kg	52 lbs/23.6 kg	17 lb/7.71 kg
Routing Engine	Default memory	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD	32GB DDR4; 2x100 GB SSD
Routing Engine	Number of cores	6 cores	6 cores	6 cores	8 cores
Redundancy	Components	Power supplies, REs, fans	Power supplies, REs, fans	Power supplies, REs, fans	Power supplies and fans
Environmental	Air flow	Front to back	Side to side	Side to side	Front to back
	Operating temperature	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C) at sea level	32° to 115° F (0° to 46° C)
	Operating humidity	5% to 90%	5% to 90%	5% to 90%	5% to 90%
	Operating altitude	10,000 ft (3048 m)	10,000 ft (3048 m)	10,000 ft (3048 m)	6,000 ft (1900 m)
Certifications	NEBS	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection	- GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core Physical Protection
