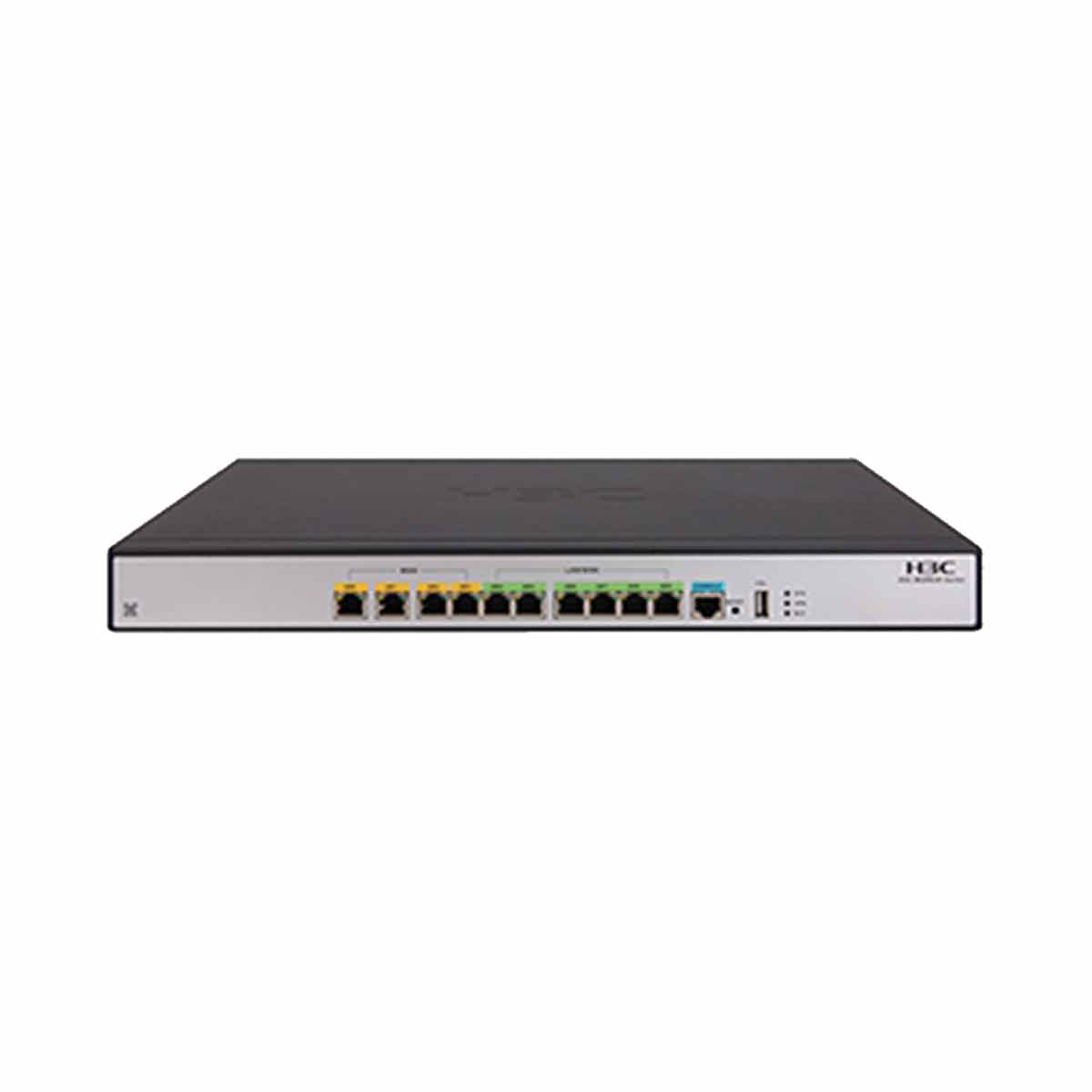

MSR830-10EI-GL

Name: MSR830-10EI-GL
SKU: 2015221
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

SKU2015221

BrandsH3C

AvailabilityIn Stock

WarrantyUp to 36 months

H3C MSR830-10EI-GL 10-Port Gigabit Router(4GE WAN,6GE LAN/WAN)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

MSR830-10EI-GL overview

The MSR830 router series can be deployed as an egress router for small- to medium-sized enterprise networks to operate with VPN, NAT, and IPSec service gateways. Together with other H3C products, the MSR830 can provide comprehensive network solutions for government, power, financial, tax, railway, and education customers.

The MSR830 series has the following models: MSR830-6EI-GL, MSR830-10EI-GL, MSR830-6HI-GL, and MSR830-10HI-GL.

Product ID	Description
RT-MSR830-6EI-GL	H3C MSR830 6-Port Gigabit Router(2GE WAN,4GE LAN/WAN)
RT-MSR830-10EI-GL	H3C MSR830 10-Port Gigabit Router(4GE WAN,6GE LAN/WAN)
RT-MSR830-6HI-GL	H3C MSR830 6-Port Gigabit Router(2GE WAN(1Combo),4GE LAN/WAN)
RT-MSR830-10HI-GL	H3C MSR830 10-Port Gigabit Router(4GE WAN(1Combo),6GE LAN/WAN)

Item	MSR830-6EI-GL	MSR830-10EI-GL	MSR830-6HI-GL	MSR830-10HI-GL
CPU	800MHz	800MHz	1.3GHz	1.3GHz
Forwarding Performance In Service (IMIX)	200 Mbps	200 Mbps	800Mbps	800Mbps
Memory	1 GB	1 GB	1 GB	1 GB
Flash (default/maximum)	256 MB	256 MB	256 MB/32GB	256 MB/32GB
External Flash	N/A	N/A	Micro SD card	Micro SD card
USB ports	N/A	1	1	1
CON ports	1	1	1	1
WAN ports	2 × GE copper ports	4 × GE copper ports	1 × GE copper ports 1 × GE combo port	3 × GE copper ports 1 × GE combo port
LAN ports	4 × GE ports (can be configured as WAN interfaces)	6 × GE ports (can be configured as WAN interfaces)	4 × GE ports(can be configured as WAN interfaces)	6 × GE ports (can be configured as WAN interfaces)
Console ports	1	1	1	1
Max power consumption	22 W	22 W	22 W	22 W
Rated voltage	100 VAC to 240 VAC @ 50 Hz/60 Hz
Dimensions (H × W × D)	44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in)
Weight	2.45 kg (5.40 lb)
Operating temperature	0ºC to 45ºC (32°F to 113°F)
Operating humidity	5% RH to 95% RH, non-condensing
EMC	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Security	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943

Brand	H3C
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	MSR830-6EI-GL	MSR830-10EI-GL	MSR830-6HI-GL	MSR830-10HI-GL
CPU	800MHz	800MHz	1.3GHz	1.3GHz
Forwarding Performance In Service (IMIX)	200 Mbps	200 Mbps	800Mbps	800Mbps
Memory	1 GB	1 GB	1 GB	1 GB
Flash (default/maximum)	256 MB	256 MB	256 MB/32GB	256 MB/32GB
External Flash	N/A	N/A	Micro SD card	Micro SD card
USB ports	N/A	1	1	1
CON ports	1	1	1	1
WAN ports	2 × GE copper ports	4 × GE copper ports	1 × GE copper ports 1 × GE combo port	3 × GE copper ports 1 × GE combo port
LAN ports	4 × GE ports (can be configured as WAN interfaces)	6 × GE ports (can be configured as WAN interfaces)	4 × GE ports(can be configured as WAN interfaces)	6 × GE ports (can be configured as WAN interfaces)
Console ports	1	1	1	1
Max power consumption	22 W	22 W	22 W	22 W
Rated voltage	100 VAC to 240 VAC @ 50 Hz/60 Hz
Dimensions (H × W × D)	44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in)
Weight	2.45 kg (5.40 lb)
Operating temperature	0ºC to 45ºC (32°F to 113°F)
Operating humidity	5% RH to 95% RH, non-condensing
EMC	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Security	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943
