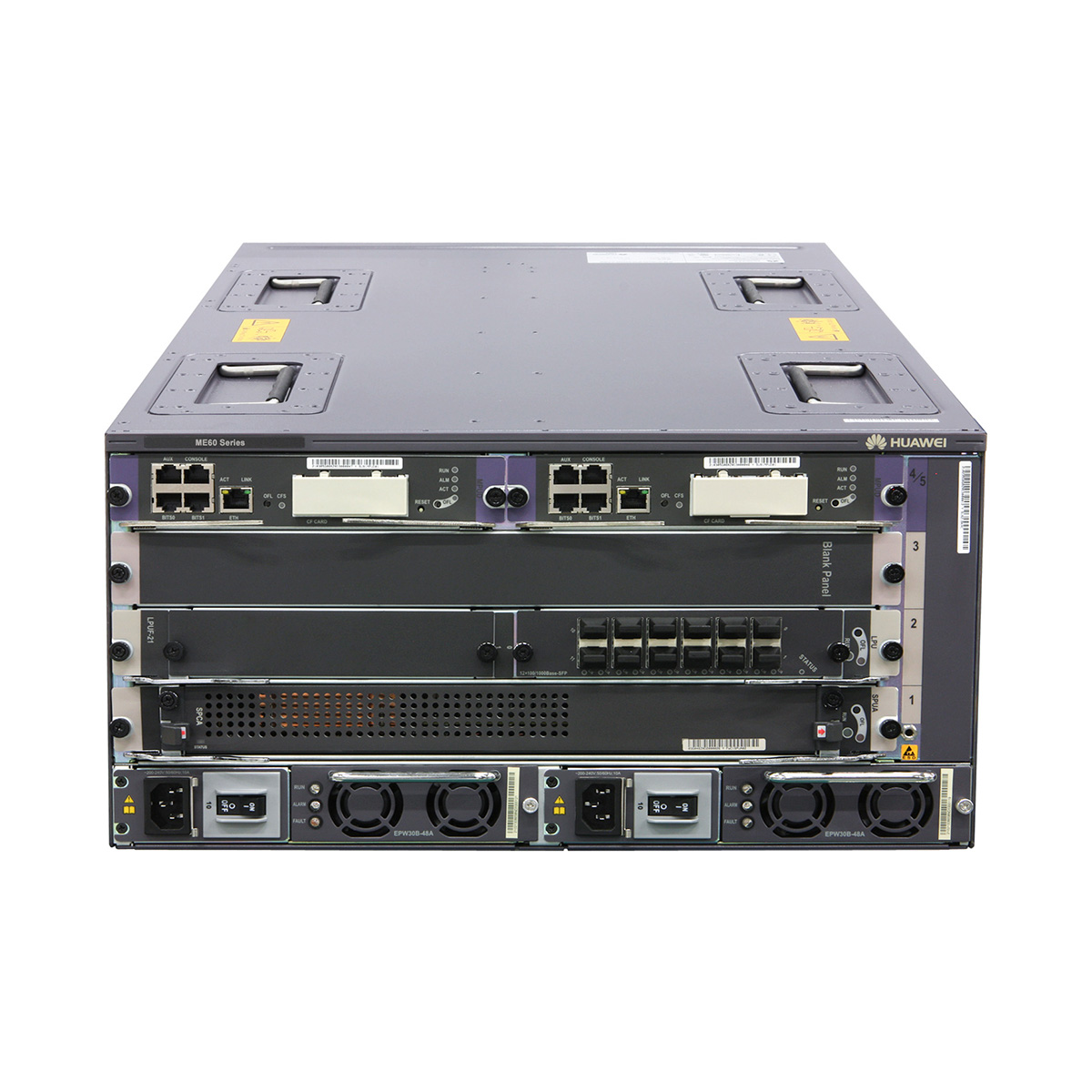

Huawei ME60X3 AC with 1*Chassis, 2*MPUD, 2*AC POWER

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME60 X3 AC Overview

ME60 series are multiple-service control gateways (BRASs) developed by Huawei for industries such as broadcasting, television, and education. ME60s provide a platform for unified user access and management.

Based on a 2T platform, ME60s provide the industry’s largest-capacity routing line card (480G) and a large-capacity NAT service line card (160G) that enable customers to smoothly evolve from IPv4 to IPv6.

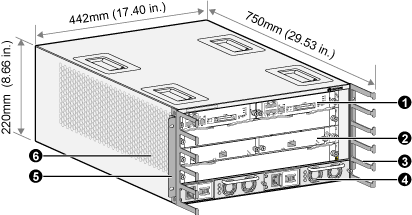

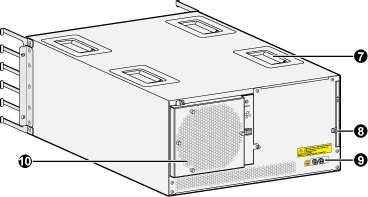

Components of the ME60-X3 AC chassis

fig dc ne hw 00007503

fig dc ne hw 00007504

. MPU 2. BSU/MSU 3. Cabling rack 4. AC Power module
5. Rack-mounting ear 6. Air intake vent 7. Handle 8. Air filter
9. Ground terminal 10. Fan
Clearances Around the ME60-X3

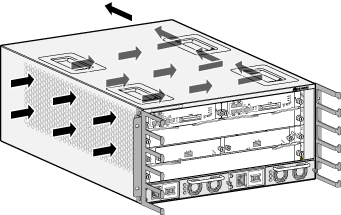

ME60-X3 air flow path

ME60 X3 AC-3

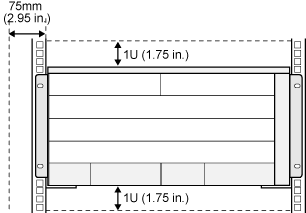

Allow at least 75 mm (2.95 in.) of clearance around the air intake vent of the ME60-X3, and 1 U of clearances between chassis.

Clearance around the ME60 for heat dissipation

ME60 X3 AC-4

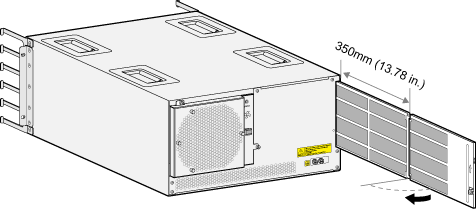

Allow at least 350 mm (13.78 in.) of clearance around the air filter of the ME60-X3 for maintenance.

Clearance around the ME60-X3 for maintenance

ME60 X3 AC-5

ME60 X3 AC Datasheet
Item ME60 X3 AC
Switching Capacity 1.08 Tbit/s
Forwarding Performance 360 Mbit/s
Number of Slots 5 slots, including 3 LPUs and 2 SRUs
Interface Types 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE
Processing unit(MHz) Dominant frequency: 800
BootROM(MB) 2
SDRAM(GB) 4
NVRAM( KB) 512
Flash(MB) 16
CF card(GB) 2
BRAS User access protocols: PPPoE, IPoE, 802.1X, and ND access User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, COPS, and COA
L2TP Maximum number of sessions supported: 64K per slot and 128K per device Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
IPv4 Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
IPv6 IPv4/IPv6 dual stacks A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite) Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB
MPLS/MPLS VPN MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis Inter-AS Option A, inter-AS Option B, and inter-AS Option C Integration with Internet services Martini MPLS L2VPN and Kompella MPLS L2VPN VPLS and VLL Heterogeneous interworking Multicast VPN
Layer 2 Features Protocols such as IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports
Reliability Protection mechanisms such as IP/LDP/VPN/TE/VLL FRR, IP/TE automatic rerouting, fast convergence of IGP/BGP/multicast routes, VRRP, load balancing among IP-Trunk links, BFD, MPLS/Ethernet OAM, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane Redundancy backup for key components such as route processing modules, SFUs, and power modules to guard against a single point of failure Switching between components that hot back up each other, Graceful Restart (GR), NSF, NSR, and ISSU Hot swapping for all components Intra- or inter-CGN service chassis 1+1 and 1:1 hot backup
QoS Provides a well-designed HQoS mechanism Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and traffic shaping, and complex rule definition and fine-grained flow identification Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services Supports DiffServ- and MPLS TE-based DS-TE, eight Class Types (CTs), and TE-tunnel-based QoS Supports a maximum of 768K flow queues per slot
Value-added Service Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP bearer networks Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service
Multicast IGMP v1, IGMP v2, and IGMP v3 Static multicast Multicast routing protocols, such as PIM-SM, PIM-SSM, MSDP, and MBGP Multicast CAC Interoperability between multicast protocols Multicast policies for multicast routing protocols and multicast forwarding Multicast QoS Two-level multicast replication on the SFU and LPU to achieve optimal multicast service performance
Security ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense DoS attack defense MAC address limit MAC-IP binding SSH SSHv2
Maximum Power Consumption(W) 920 (BSUF-100)
Operating Environment Long-term operating temperature: 0°C to 45°C Short-term operating temperature: –5°C to 55°C Long-term operating humidity: 5% to 85% Short-term operating humidity: 0% to 100% Operating altitude: Equal to or below 4,000m
Dimensions(mm) 220 (H)x 442 (W) x 650 (D)
Empty chassis Weight(kg) 31
Full Configuration Weight(kg) 52 kg (100G)
\

Additional information

Weight 52.0000 kg
Dimensions 65.0000 × 44.2000 × 22.0000 cm
ME60 X3 AC Datasheet
Item ME60 X3 AC
Switching Capacity 1.08 Tbit/s
Forwarding Performance 360 Mbit/s
Number of Slots 5 slots, including 3 LPUs and 2 SRUs
Interface Types 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE
Processing unit(MHz) Dominant frequency: 800
BootROM(MB) 2
SDRAM(GB) 4
NVRAM( KB) 512
Flash(MB) 16
CF card(GB) 2
BRAS User access protocols: PPPoE, IPoE, 802.1X, and ND access User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, COPS, and COA
L2TP Maximum number of sessions supported: 64K per slot and 128K per device Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
IPv4 Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
IPv6 IPv4/IPv6 dual stacks A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite) Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB
MPLS/MPLS VPN MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis Inter-AS Option A, inter-AS Option B, and inter-AS Option C Integration with Internet services Martini MPLS L2VPN and Kompella MPLS L2VPN VPLS and VLL Heterogeneous interworking Multicast VPN
Layer 2 Features Protocols such as IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports
Reliability Protection mechanisms such as IP/LDP/VPN/TE/VLL FRR, IP/TE automatic rerouting, fast convergence of IGP/BGP/multicast routes, VRRP, load balancing among IP-Trunk links, BFD, MPLS/Ethernet OAM, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane Redundancy backup for key components such as route processing modules, SFUs, and power modules to guard against a single point of failure Switching between components that hot back up each other, Graceful Restart (GR), NSF, NSR, and ISSU Hot swapping for all components Intra- or inter-CGN service chassis 1+1 and 1:1 hot backup
QoS Provides a well-designed HQoS mechanism Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and traffic shaping, and complex rule definition and fine-grained flow identification Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services Supports DiffServ- and MPLS TE-based DS-TE, eight Class Types (CTs), and TE-tunnel-based QoS Supports a maximum of 768K flow queues per slot
Value-added Service Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP bearer networks Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service
Multicast IGMP v1, IGMP v2, and IGMP v3 Static multicast Multicast routing protocols, such as PIM-SM, PIM-SSM, MSDP, and MBGP Multicast CAC Interoperability between multicast protocols Multicast policies for multicast routing protocols and multicast forwarding Multicast QoS Two-level multicast replication on the SFU and LPU to achieve optimal multicast service performance
Security ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense DoS attack defense MAC address limit MAC-IP binding SSH SSHv2
Maximum Power Consumption(W) 920 (BSUF-100)
Operating Environment Long-term operating temperature: 0°C to 45°C Short-term operating temperature: –5°C to 55°C Long-term operating humidity: 5% to 85% Short-term operating humidity: 0% to 100% Operating altitude: Equal to or below 4,000m
Dimensions(mm) 220 (H)x 442 (W) x 650 (D)
Empty chassis Weight(kg) 31
Full Configuration Weight(kg) 52 kg (100G)
\
