Categories:ME60 BRAS

ME0M0E2NFB74

0 Reviews Write a review

PN03034MCW

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

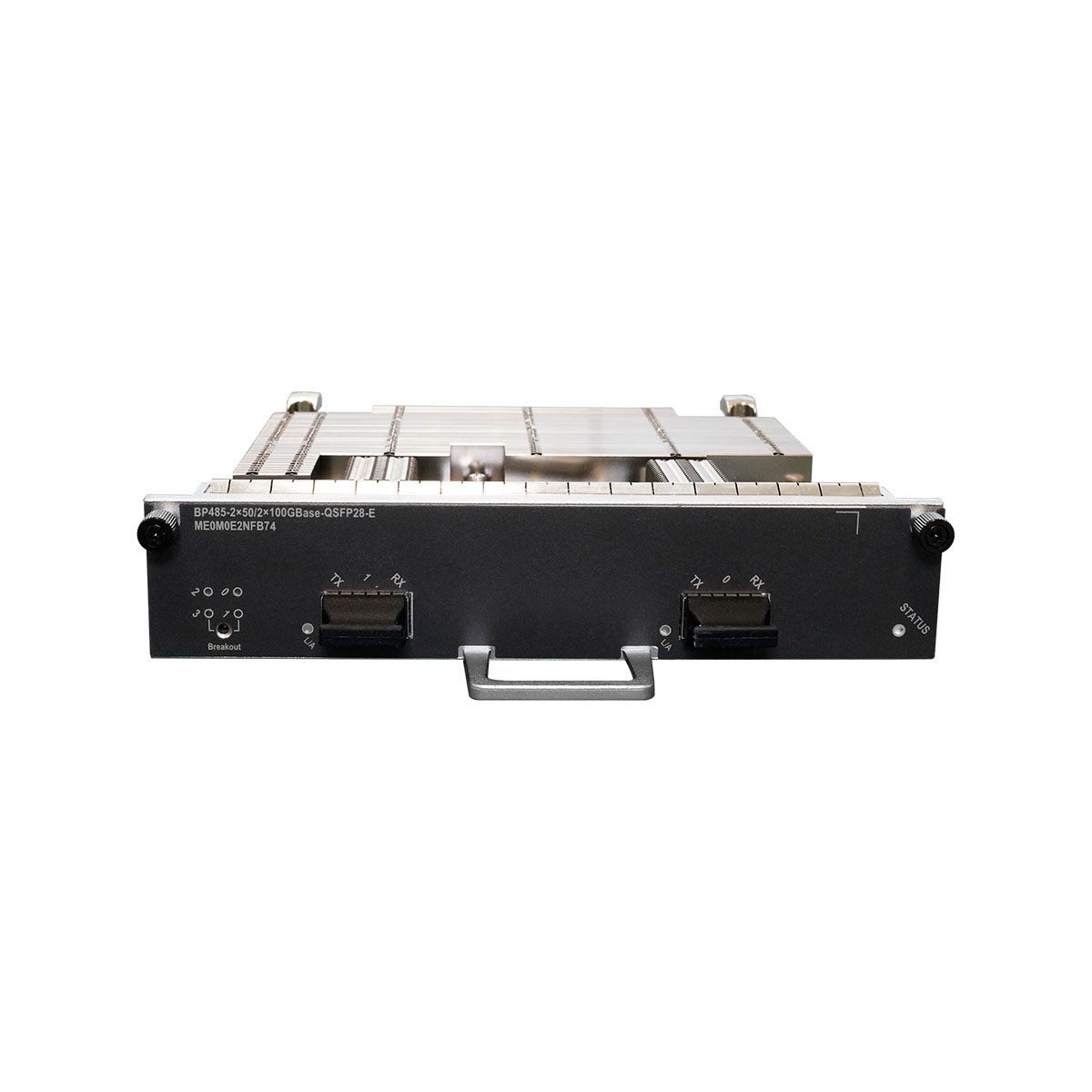

ME60 ME0M0E2NFB74 with 2-Port 50GBase/2-Port 100GBase-QSFP28 Flexible Card E(BP485-E)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ME0M0E2NFB74 Overview

Item	Details
Description	2-Port 50GBase/2-Port 100GBase-QSFP28 Flexible Card E(BP485-E)
Part Number	03034MCW
Model	ME0M0E2NFB74
Card type	Flexible Board
Silkscreen	BP485-2×50/2×100GBase-QSFP28-E

Ports on the ME0M0E2NFB74

Port

Connector Type

Description

Available Components

0 to 1

QSFP28/QSFP+

Interface for inputting and outputting 10G LAN/WAN, 40GE, 50GE, or 100GE optical signals

100Gbps QSFP28 Optical Module

50Gbps QSFP28 Optical Module

50Gbps QSFP28 BIDI Optical Module

40Gbps QSFP+ Optical Module

Item	ME0M0E2NFB74
Basic function	Provides two 100GE interfaces for line-rate transmitting and receiving.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. 10G ports that work in WAN mode support only the master mode, and do not support the slave mode. The default transmission rate of a port on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default port rate, for example, if a 40G optical module is used, run the port split command on the corresponding port to enable port breakout. When the board works with 02312NCX optical modules, the long-term operating temperature range of these optical modules is 0°C to 45°C (32°F to 113°F).
Breakout supported	Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported	No
FlexE supported	No
Dimensions without packaging (H x W x D) [mm(in.)]	37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.)
Weight without packaging [kg(lb)]	1.3 kg (2.87 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	91.9 W
Typical heat dissipation [BTU/hour]	298.23 BTU/hour
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	ME0M0E2NFB74
Basic function	Provides two 100GE interfaces for line-rate transmitting and receiving.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. 10G ports that work in WAN mode support only the master mode, and do not support the slave mode. The default transmission rate of a port on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default port rate, for example, if a 40G optical module is used, run the port split command on the corresponding port to enable port breakout. When the board works with 02312NCX optical modules, the long-term operating temperature range of these optical modules is 0°C to 45°C (32°F to 113°F).
Breakout supported	Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported	No
FlexE supported	No
Dimensions without packaging (H x W x D) [mm(in.)]	37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.)
Weight without packaging [kg(lb)]	1.3 kg (2.87 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	91.9 W
Typical heat dissipation [BTU/hour]	298.23 BTU/hour
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
