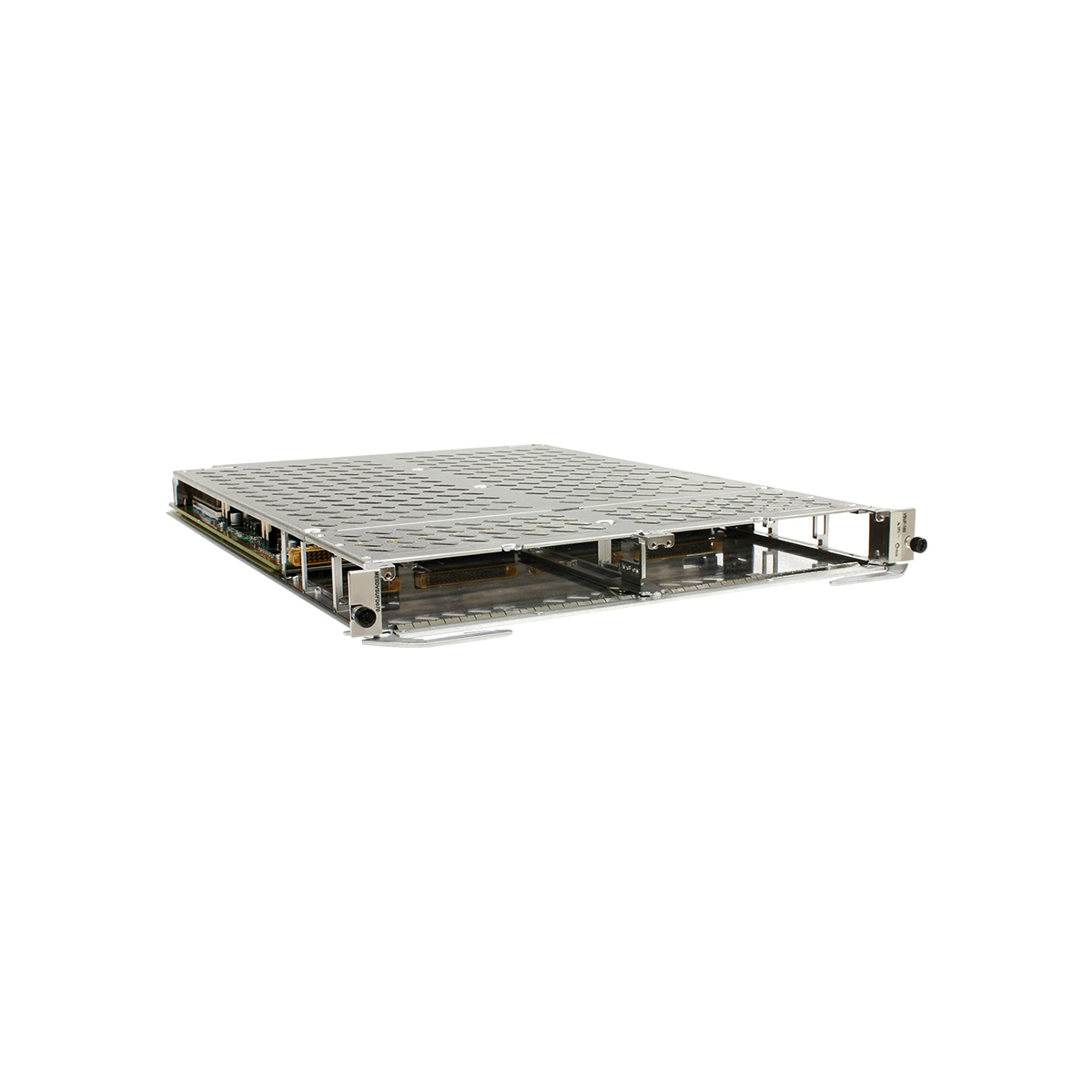

Huawei ME60-X16A ME60-X8A Control Gateway Interface board VSUF-160 ME0DVSUFD070
Flexible Card Versatile Service Unit 160(VSUF-160)
| Product | Minimum Version Requirement |
| ME60–X3 | V800R008C10 |
| ME60–X8 | V800R008C10 |
| ME60–X16 | V800R008C10 |
| ME60–X8A | V800R008C10 |
| ME60–X16A | V800R008C10 |
| Item | ME0DVSUF8070 |
| Line-Rate capability | Supports a maximum of 160 Gbit/s line-rate service processing capability and defaults to 40 Gbit/s. |
| Slot information | The board provides a maximum of two half-width slots and each slot can hold one universal service card. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | To facilitate heat dissipation, on the ME60-X8, installing a VSUF-160 in slot 3, 4, 5, or 6 is recommended; on the ME60-X16, installing a VSUF-160 in slot 3, 4, 5, 10, 11, 12, 13, or 14 is recommended. . |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 312.0 W |
| Typical heat dissipation | 1012.3 BTU/hour |
| Weight | 7.5 kg (16.54 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
| Weight | 7.2000 kg |
|---|---|
| Dimensions | 54.0000 × 40.0000 × 5.0000 cm |
| ME60 BRAS |
| Item | ME0DVSUF8070 |
| Line-Rate capability | Supports a maximum of 160 Gbit/s line-rate service processing capability and defaults to 40 Gbit/s. |
| Slot information | The board provides a maximum of two half-width slots and each slot can hold one universal service card. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | To facilitate heat dissipation, on the ME60-X8, installing a VSUF-160 in slot 3, 4, 5, or 6 is recommended; on the ME60-X16, installing a VSUF-160 in slot 3, 4, 5, 10, 11, 12, 13, or 14 is recommended. . |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 312.0 W |
| Typical heat dissipation | 1012.3 BTU/hour |
| Weight | 7.5 kg (16.54 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
