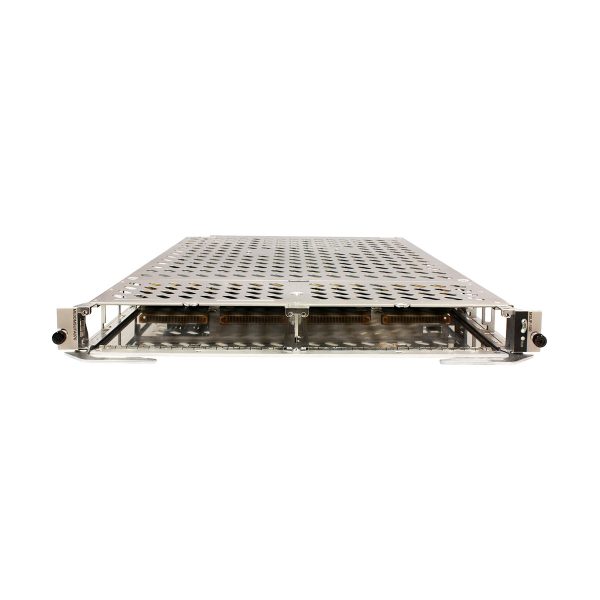

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)
Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)
| Product | Minimum Version Requirement for Flexible Card |
| ME60–X3 | V800R008C10 |
| ME60–X8 | V800R008C10 |
| ME60–X16 | V800R008C10 |
| ME60–X8A | V800R008C10 |
| ME60–X16A | V800R008C10 |
| Item | ME0DMSUFA070 |
| Line-Rate capability | Supports 100G line-rate processing of broadband services. |
| Slot information | The board provides a maximum of two half-width slots and each slot can hold one FPIC card. |
| Reliability and availability | Hot swappable. |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 150.2 W |
| Typical heat dissipation | 487.3 BTU/hour |
| Weight | 7.2 kg (15.88 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
| Weight | 7.2000 kg |
|---|---|
| Dimensions | 53.5600 × 39.9200 × 4.0100 cm |
| ME60 BRAS |
| Item | ME0DMSUFA070 |
| Line-Rate capability | Supports 100G line-rate processing of broadband services. |
| Slot information | The board provides a maximum of two half-width slots and each slot can hold one FPIC card. |
| Reliability and availability | Hot swappable. |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 150.2 W |
| Typical heat dissipation | 487.3 BTU/hour |
| Weight | 7.2 kg (15.88 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
