Categories:ME60 BRAS

ME0DE4NE8V72

0 Reviews Write a review

PN03034CRH

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

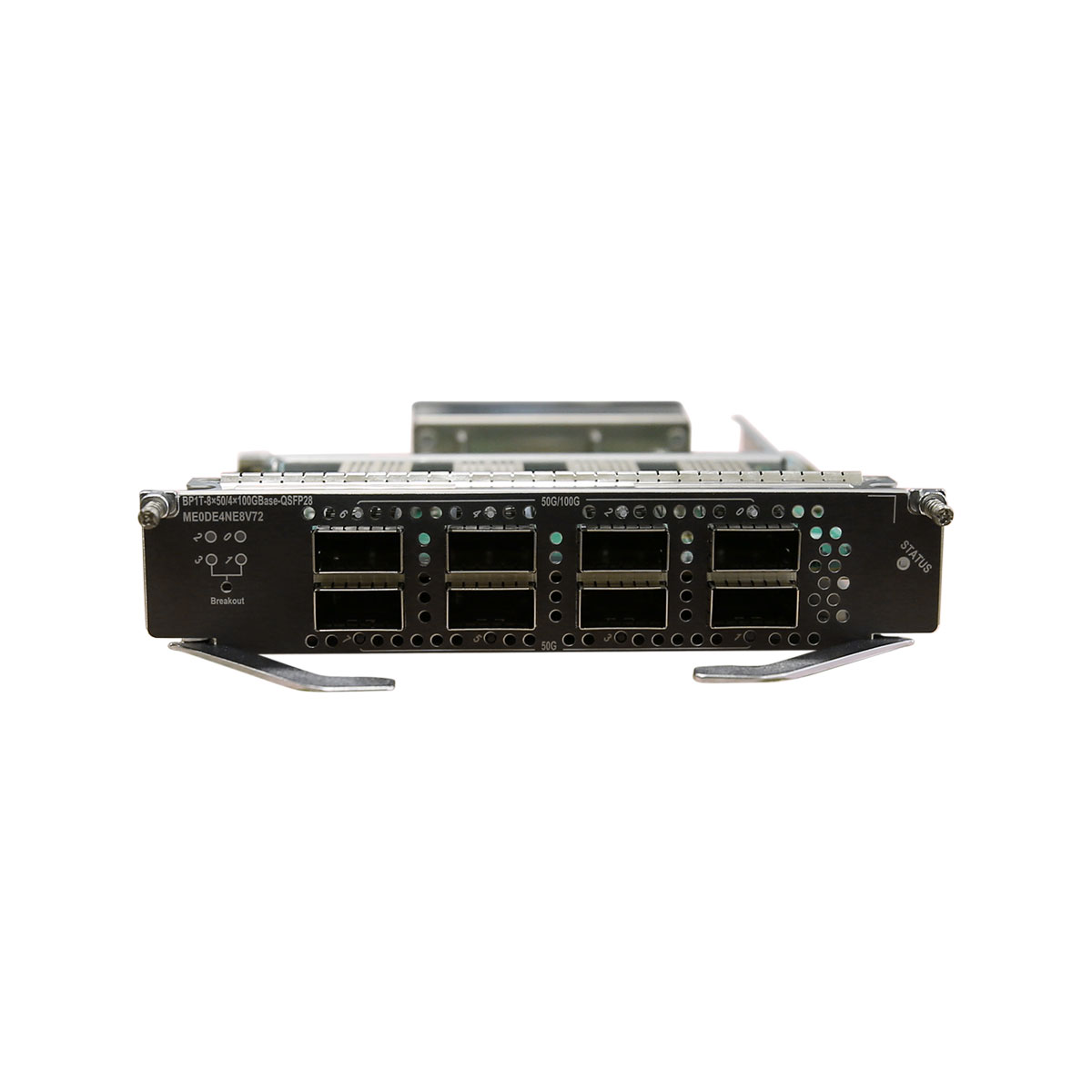

ME60 ME0DE4NE8V72 with 8-Port 50GBase/4-Port 100GBase-QSFP28 FlexE Flexible Card(BP1T)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ME0DE4NE8V72 Overview

Item	Details
Description	8-Port 50GBase/4-Port 100GBase-QSFP28 FlexE Flexible Card(BP1T)
Part Number	03034CRH
Model	ME0DE4NE8V72
Card type	Flexible Board
Silkscreen	BP1T-8×50/4x100GBase-QSFP28

Mappings between ME0DE4NE8V72 and product models

Chassis	Product Model	Supported Versions	Limitations
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray)	ME0B0BKP0871	V800R013C00SPC100 and later versions	–
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray)	ME0B0BKP0872	V800R013C00SPC100 and later versions	–
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray)	ME0B0BKP0873	V800R013C00SPC100 and later versions	–
ME60-X8A Integrated Chassis DC Components	ME0B0BKP0874	V800R013C00SPC100 and later versions	–
ME60-X8A Integrated AC/HVDC Chassis Components	ME0B0BKP0875	V800R013C00SPC100 and later versions	–
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray)	ME0B0BKP1671	V800R013C00SPC100 and later versions	–
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray)	ME0B0BKP1672	V800R013C00SPC100 and later versions	–
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray)	ME0B0BKP1673	V800R013C00SPC100 and later versions	–
ME60-X16A Integrated DC Chassis Components	ME0B0BKP1674	V800R013C00SPC100 and later versions	–
ME60-X16A Integrated AC/HVDC Chassis Components	ME0B0BKP1675	V800R013C00SPC100 and later versions	–

Item	ME0DE4NE8V72
Basic function	Supports 400G line-rate forwarding.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. Even-numbered interfaces (interfaces 0, 2, 4, and 6) can work in 4x10GE breakout, 4x25GE breakout, 40GE, 50GE, or 100GE mode,50GE default,the working mode can be switched to 50GE/100GE using a port-speed command and be switched to 40GE/4*10GE breakout/4x25GE breakout using a port split command. Odd-numbered interfaces (interfaces 1, 3, 5, and 7) can work only in 50GE mode. 2. If an even-numbered interface works in 4x10GE breakout, 4x25GE breakout, 40GE, or 100GE mode, the following odd-numbered 50GE interface cannot work. For example: If interface 0 works in 4x10GE breakout, 4x25GE breakout, 40GE, or 100GE mode, interface 1 cannot work. If interface 0 works in 50GE mode, interface 1 can work in 50GE mode. Interfaces 2 and 3, interfaces 4 and 5, and interfaces 6 and 7 comply with the same restrictions. 3. The four 10GE interfaces split from the same QSFP+ interface must work in the 10GE LAN mode. The default transmission rate of an interface on the subcard is 50 Gbit/s. When the transmission rate of the used optical module does not match the default interface rate, for example, when a 40G optical module is used, run the port split command on the board interface to implement the interface breakout function. 4. When the 02312NCX optical module or 02312MLF optical module is installed on the board, the long-term operating temperature of the optical module ranges from 0°C (32°F) to 45°C (113°F).
Breakout supported	Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported	No
FlexE supported	No
Dimensions without packaging (H x W x D) [mm(in.)]	37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)]	0.9 kg (1.98 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	54.3 W
Typical heat dissipation [BTU/hour]	176.17 BTU/hour
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
Storage	-

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	ME0DE4NE8V72
Basic function	Supports 400G line-rate forwarding.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. Even-numbered interfaces (interfaces 0, 2, 4, and 6) can work in 4x10GE breakout, 4x25GE breakout, 40GE, 50GE, or 100GE mode,50GE default,the working mode can be switched to 50GE/100GE using a port-speed command and be switched to 40GE/4*10GE breakout/4x25GE breakout using a port split command. Odd-numbered interfaces (interfaces 1, 3, 5, and 7) can work only in 50GE mode. 2. If an even-numbered interface works in 4x10GE breakout, 4x25GE breakout, 40GE, or 100GE mode, the following odd-numbered 50GE interface cannot work. For example: If interface 0 works in 4x10GE breakout, 4x25GE breakout, 40GE, or 100GE mode, interface 1 cannot work. If interface 0 works in 50GE mode, interface 1 can work in 50GE mode. Interfaces 2 and 3, interfaces 4 and 5, and interfaces 6 and 7 comply with the same restrictions. 3. The four 10GE interfaces split from the same QSFP+ interface must work in the 10GE LAN mode. The default transmission rate of an interface on the subcard is 50 Gbit/s. When the transmission rate of the used optical module does not match the default interface rate, for example, when a 40G optical module is used, run the port split command on the board interface to implement the interface breakout function. 4. When the 02312NCX optical module or 02312MLF optical module is installed on the board, the long-term operating temperature of the optical module ranges from 0°C (32°F) to 45°C (113°F).
Breakout supported	Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported	No
FlexE supported	No
Dimensions without packaging (H x W x D) [mm(in.)]	37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)]	0.9 kg (1.98 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	54.3 W
Typical heat dissipation [BTU/hour]	176.17 BTU/hour
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
Storage	-
